Rob Posted March 20, 2012 Share Posted March 20, 2012 Hi there, I need a air schematic for connecting up a T2090. The valve on top of this trans is unmarked as far as ports and completely different than the former T2100 series valve.Can anybody make me a copy?Thanks,Rob 1 Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/23972-need-air-plumbing-diagram/ Share on other sites More sharing options...
smorse54 Posted March 21, 2012 Share Posted March 21, 2012 Rob, I have the manuals at work. I can have Mark fax you a copy of the plumbing schematic tomorrow. Steve Quote Link to comment https://www.bigmacktrucks.com/topic/23972-need-air-plumbing-diagram/#findComment-109076 Share on other sites More sharing options...

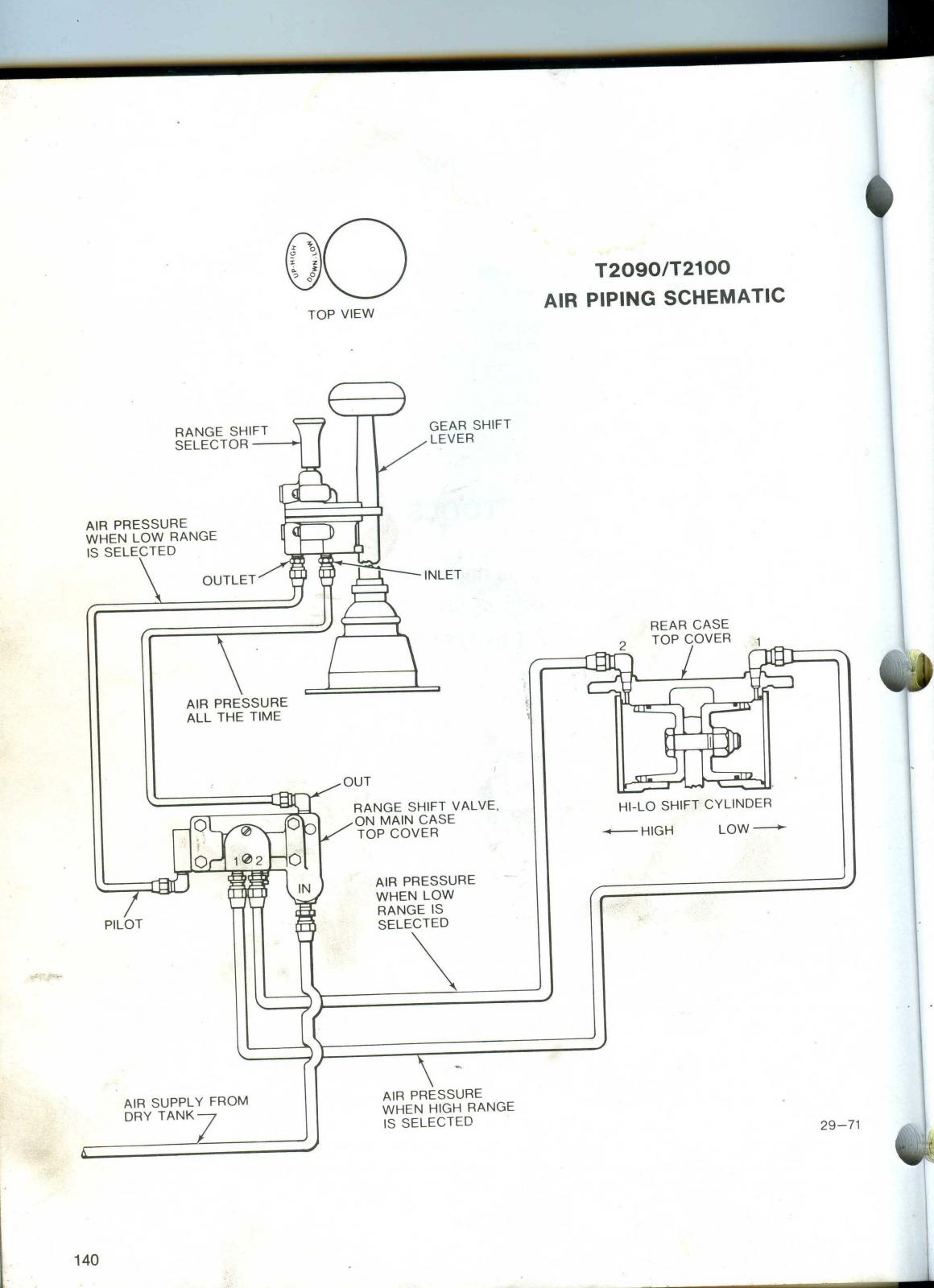

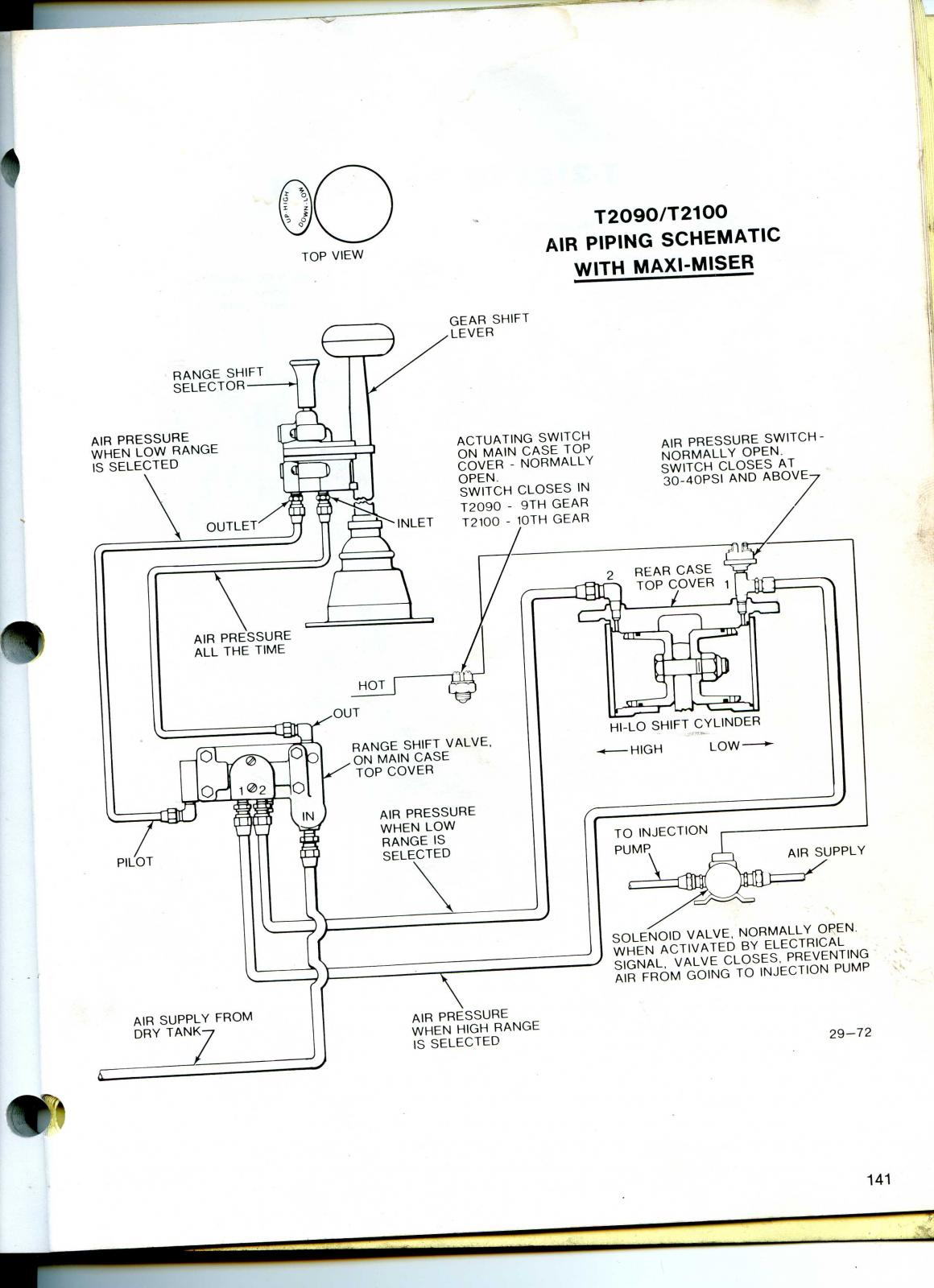

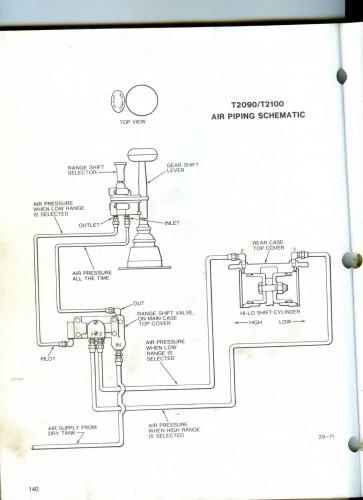

theakerstwo Posted March 21, 2012 Share Posted March 21, 2012 Try this Rob Quote glenn akers Link to comment https://www.bigmacktrucks.com/topic/23972-need-air-plumbing-diagram/#findComment-109104 Share on other sites More sharing options...
dawayne.pace@icgbusa.com Posted August 25, 2020 Share Posted August 25, 2020 I need a air diagram for a T2080 Transmission. Can anybody help me out? dawayne.pace@icgbusa.com Quote Link to comment https://www.bigmacktrucks.com/topic/23972-need-air-plumbing-diagram/#findComment-459536 Share on other sites More sharing options...
