doubleclutchinweasel

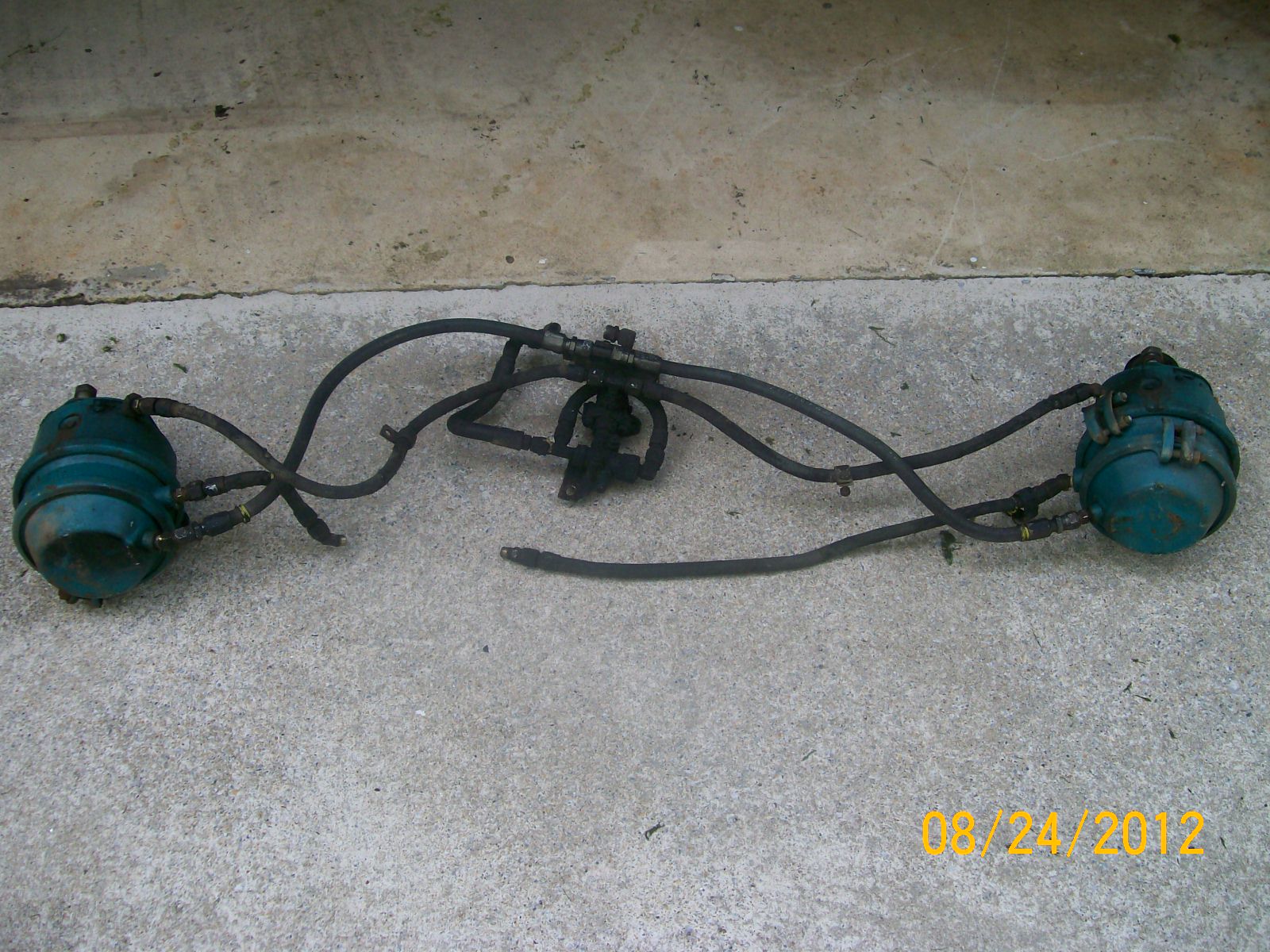

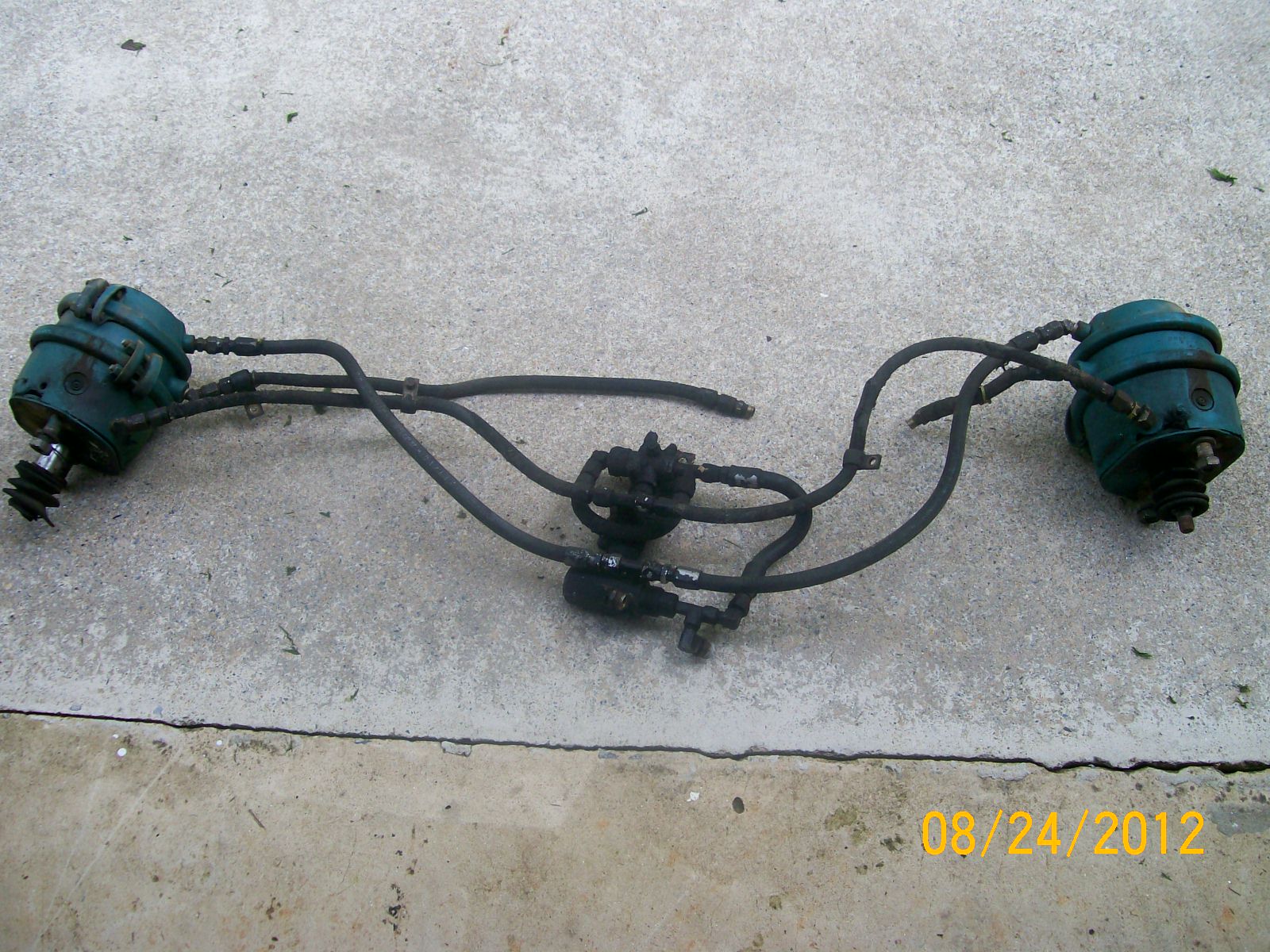

As promised, here are a couple of pictures of the DD3 system. Let me know if anybody is interested. Oh, and we CAN do trades! I have a long list of little, piddly parts I need. Somebody out there might have them just laying around... Kent

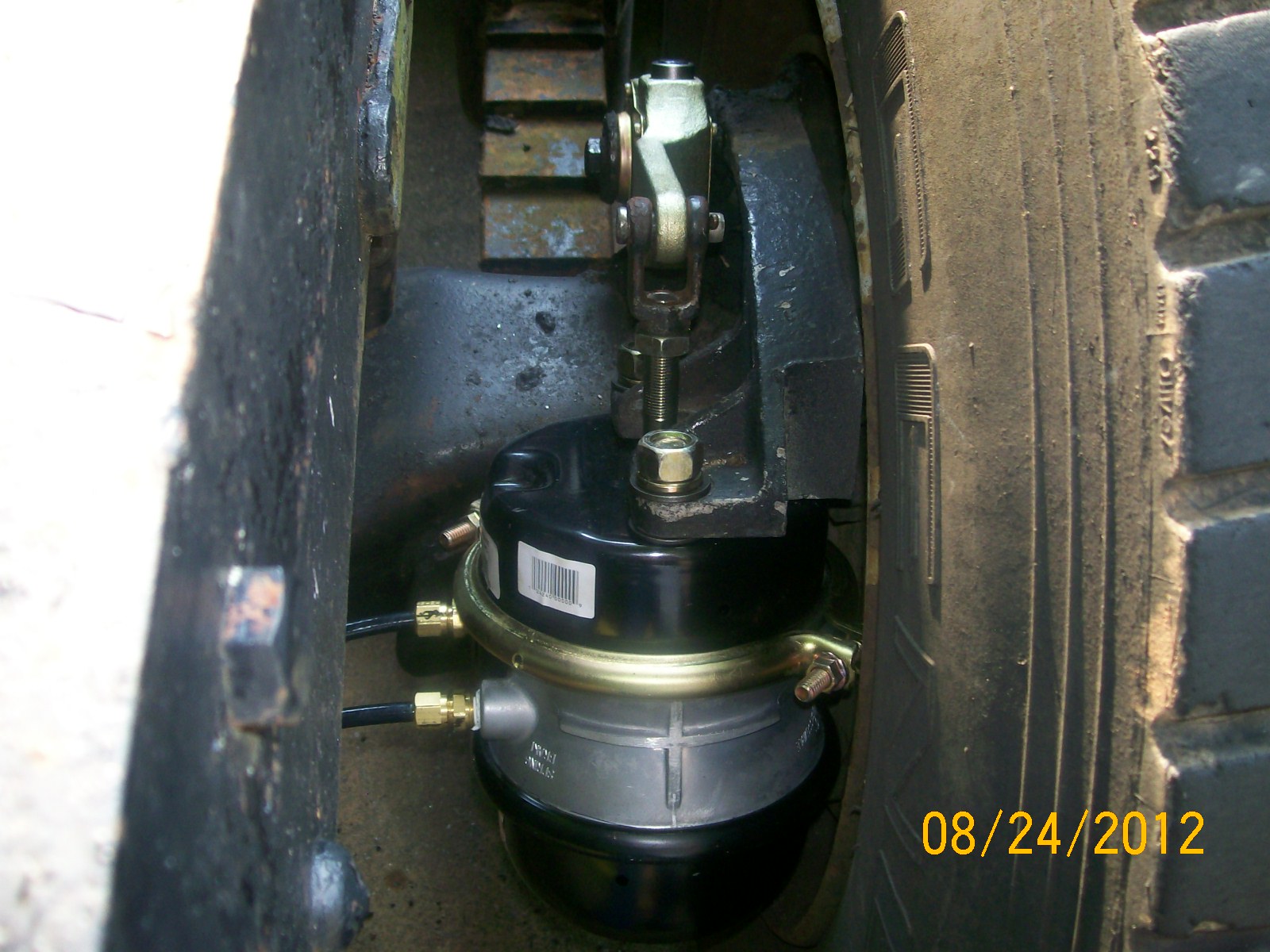

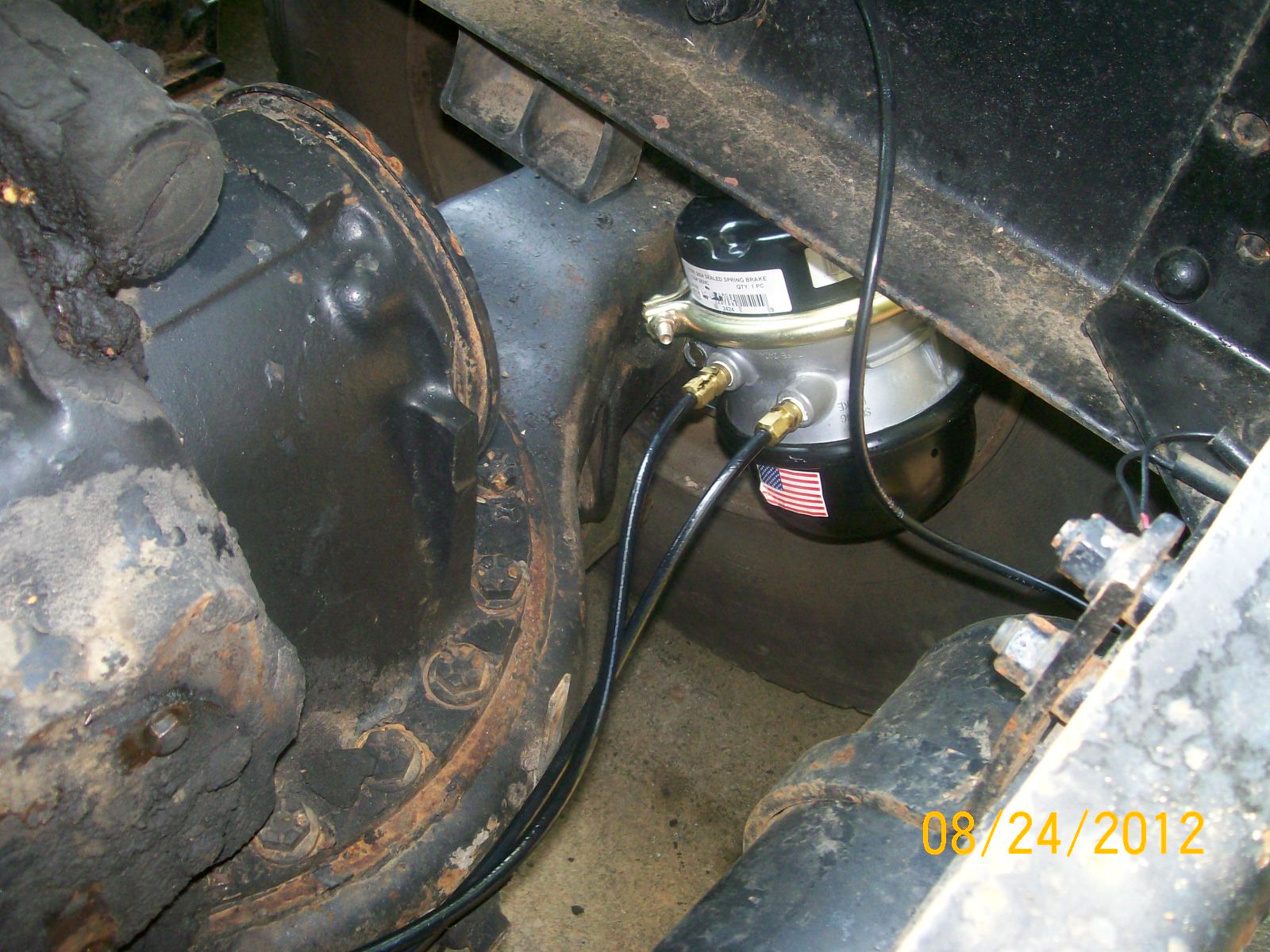

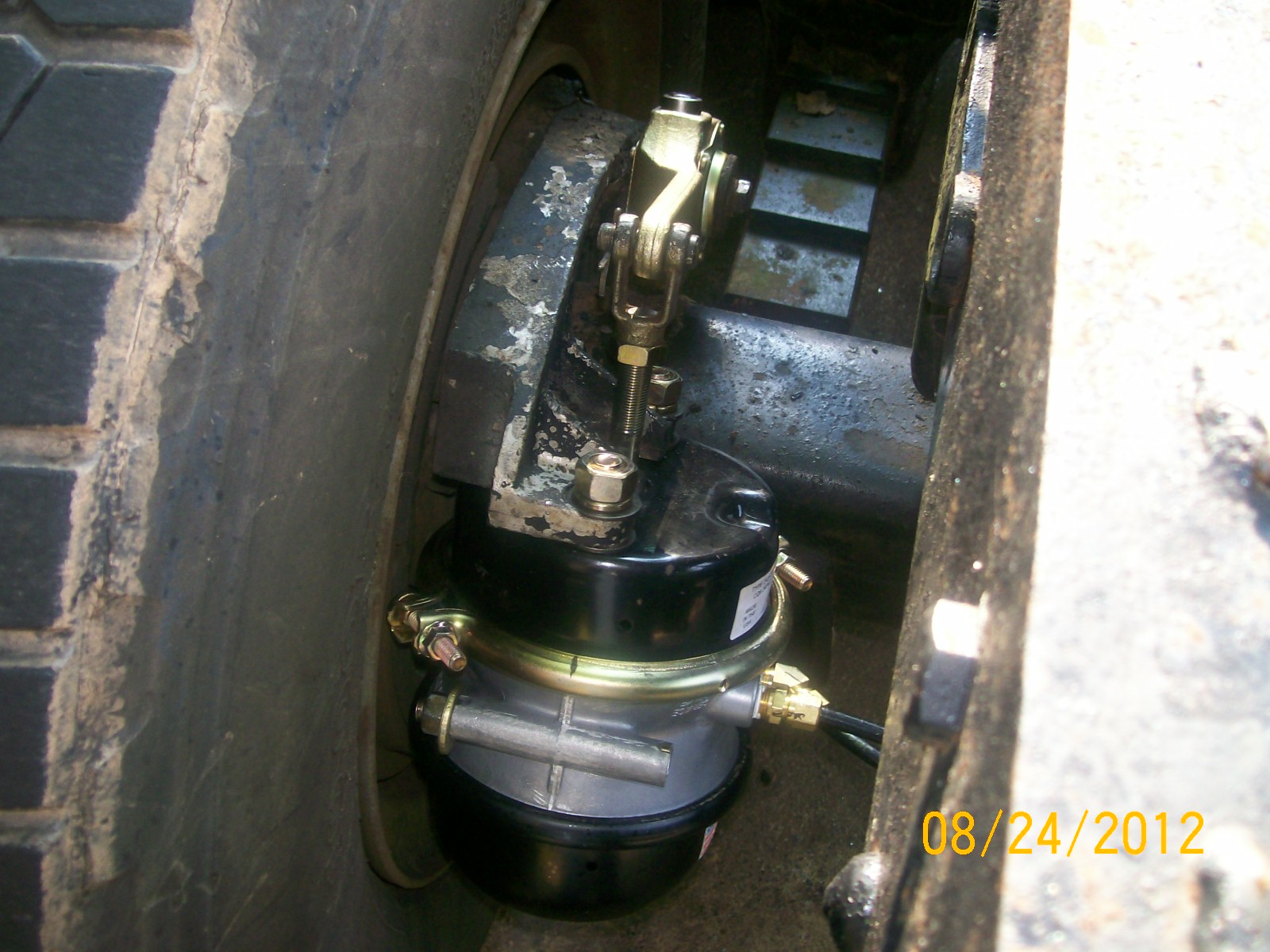

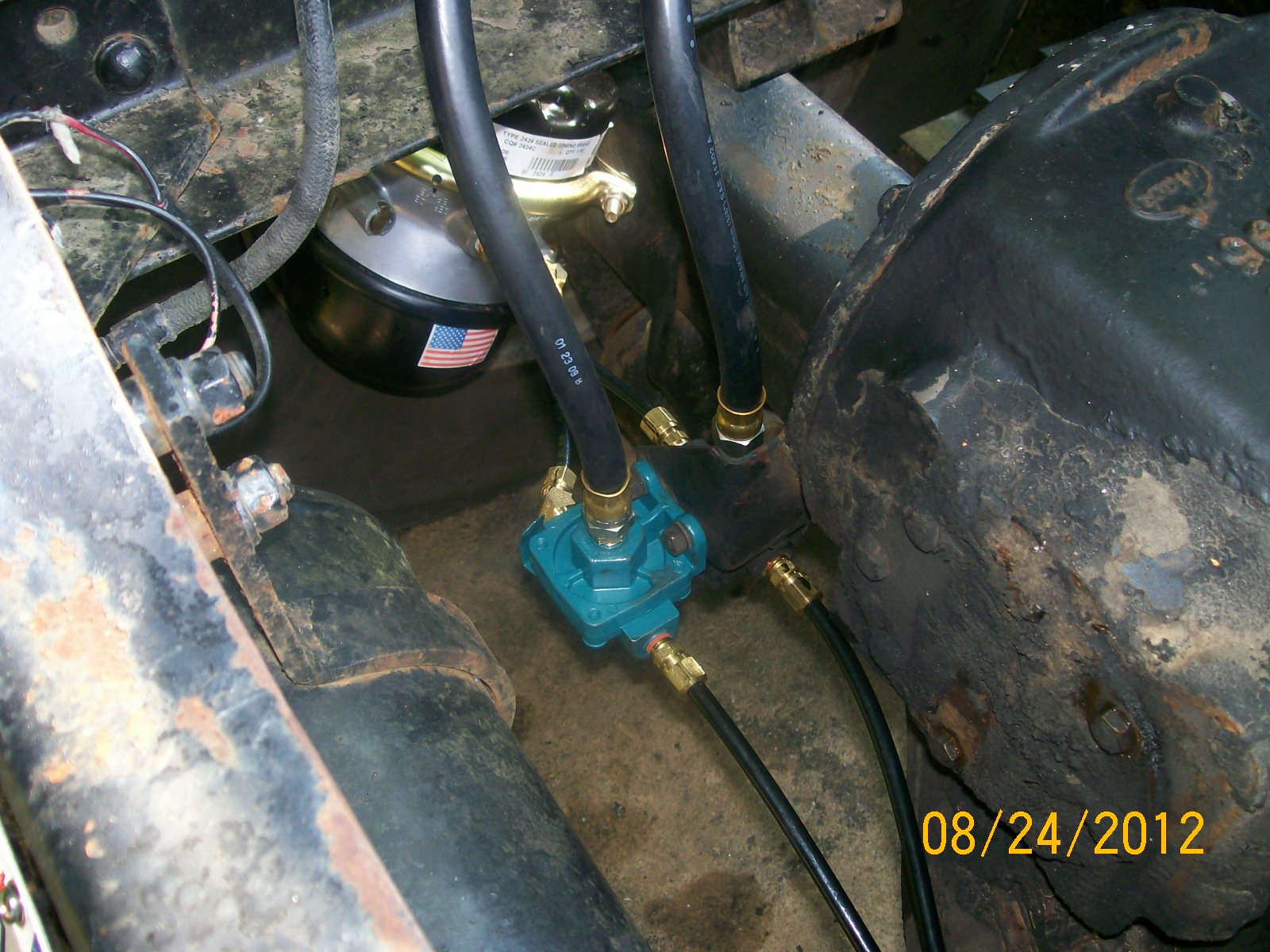

Okay, got the DD3s replaced on the rear-most axle this week. Put in 2424s and new slack adjusters. 2424s fit well. Of course, I thought they would, once I determined that the front drive axle actually DID have 24s on it! Sometimes it's hard to determine exactly what you have when the parts are this old! Have to find old product information to be able to accurately identify this stuff. The finished axle looks very neat. I was able to use another QR valve in the new spring brake release circuit as both a release valve and a convenient tee location. I mounted it back-to-back on the existing QR valve, so it looks really clean. I'll get a picture or three on here in a day or two. Might give somebody else some ideas. The Gates air brake tubing sure looks better than 43-year-old hose. I went with G32 (compression) fittings instead of push-to-lock fittings. I like the PtL, but the compression fittings just make me feel better. Managed to keep the isolated air tank at the rear, originally connected to the DD3 system, as an emergency brake release reservoir. Still got a lot to do. But, I can now start moving forward, replacing a little air system at a time. Plan to do the front drive axle, and a few feet of air line, this weekend...wife permitting! Who knows; some day I might actually get through the whole air system! Brakes...brakes are cool...m'kay? Much more to come... Kent

Hi, everybody! I have a pair of DD3 chambers (24 sq in service / 17 sq in parking) I just removed from my '70 R600. The bellows on them need replaced, but the cans worked correctly when I removed them (08/23/12). I took the entire "octopus" of hoses off the rear axle as a complete unit when I removed it. So, the mounting brackets, tees, inversion valve, etc... are all there and intact. Pictues and pricing will be forthcoming. I need to research pricing a bit before I commit to anything. Actually, I have a post out there entitled "Spring Brake Upgrade" which has a few pictures of the system on it, if anybody's interested. I don't need them, and would prefer to sell the whole thing to avoid starting a pile of "junk" in the garage! So, the pricing will be reasonable, but not free! I mean, they're not "junk" by any means. But, they're not new either. I do not think these are '70 vintage, but rather have been rebuilt and replaced at some point in time between then and now. I understand these can be somewhat difficult to come by, and rebuilt ones can be pricey. Maybe these can help somebody get something going without having to fork out the dough for a new set. In the meantime, feel free to make offers or suggestions (be nice, Rob)! More to come... Kent

More on the brakes...One of the DD3s failed to release this weekend. Turns out, at some previous service, somebody swapped the service and parking lines. So, there was no way for the smaller (17 sq in) chamber to advance the rod far enough to allow the roller locks to disengage. Even when I swapped them back, I had to loosen the bracket slightly to get them to release. Works better now. And, it stops a lot better on the larger (24 sq in) diaphragm. Have some 2424s located locally, and am waiting on a few more air brake tubing fittings from same source. Should have everything here this week. Going to remove DD3s and replace with the 2424s (after verifying clearance...but it looks okay). Will remove "inversion valve", and other DD3-related plumbing. probably put in a QR valve on the parking brake line. DD3 setup didn't have one. Probably couldn't use one, what with the inversion valve and such. Good time to put on a new pair of slack adjusters (they finally arrived). Found a schematic using standard spring brakes that allows me to keep the remote reservoir and emergency release circuit intact, so I'm going to do that. I like having the isolated emergency release reservoir. Beats the heck out of caging the parking brake spring to move a dead truck off the railroad tracks! So, hopefully I'll have the rear drive axle converted to current brakes and new brake line tubing soon. Then, I can move to the front drive axle and replace the cans and lines there, as well. The tees and junctions along the frame allow for a fairly small section of air line to be replaced at a time, starting from the rear. So, I can do that in stages and not get over-stressed by taking everything off at once. More to come... Kent

New spring leaves are in. The guys in Knoxville, TN, at Suspensions Unlimited (aka Knoxville Spring Service) got me in and out in about an hour. Did 3 new leaves at $50/per, and 2 new U-bolts. Total cost: $211. They were planning to have to cut the spring bands off, but, like everything else under this truck, they came off with no problem. Sometimes it's good being covered in oil! They reminded me to re-torque the new U-bolts after a little driving. Will also re-chech the screws in the bands. So, this piece (1 of 10,000) is done. Now, back to brakes, lights, etc... Thanks for all the comments. More to come... Kent

The slack adjusters have now arrived at the parts house. They should ship out on Monday, and be here by Thursday or Friday. I should have the front spring back in by then, so I can put these on next weekend, maybe.

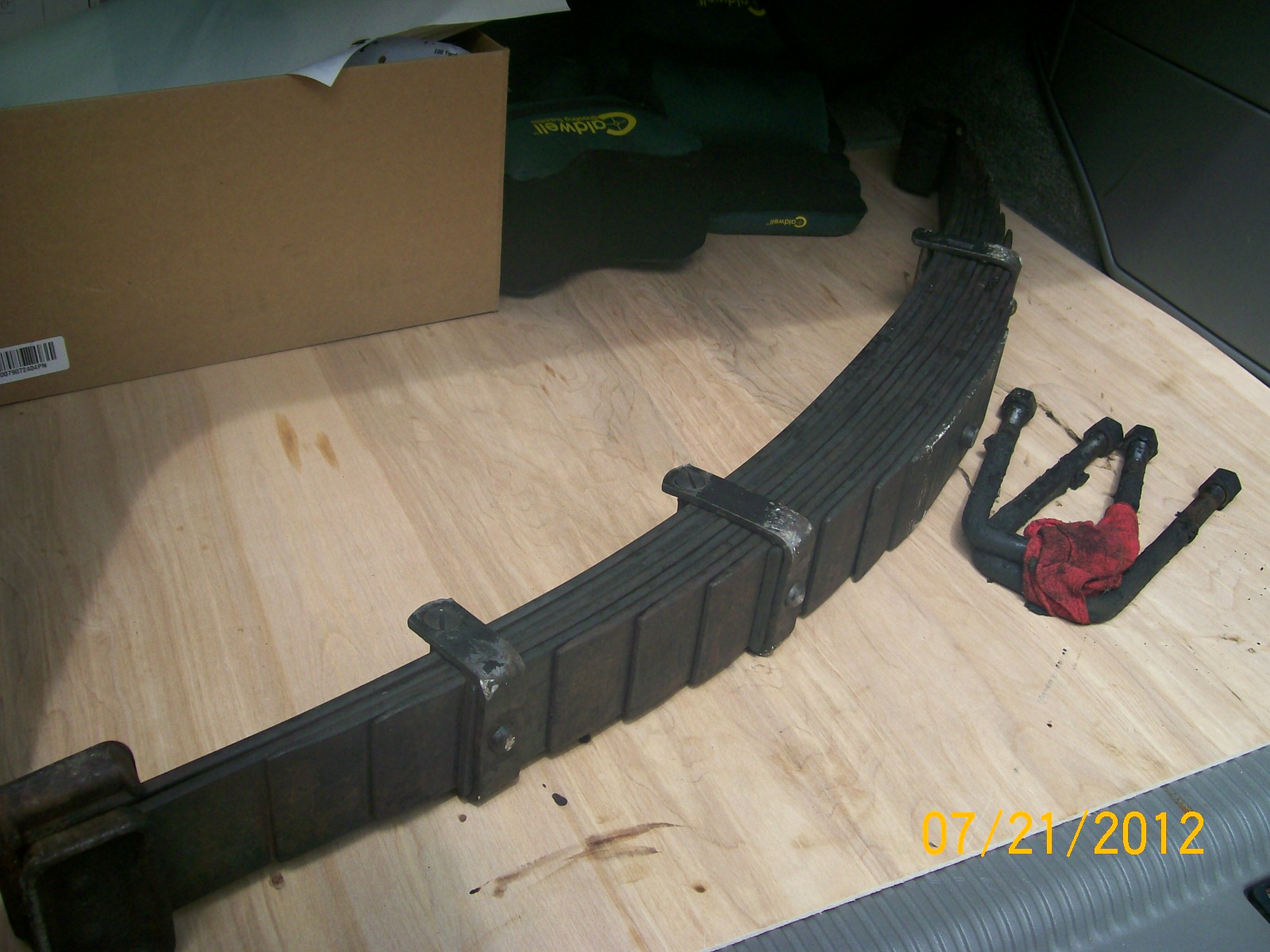

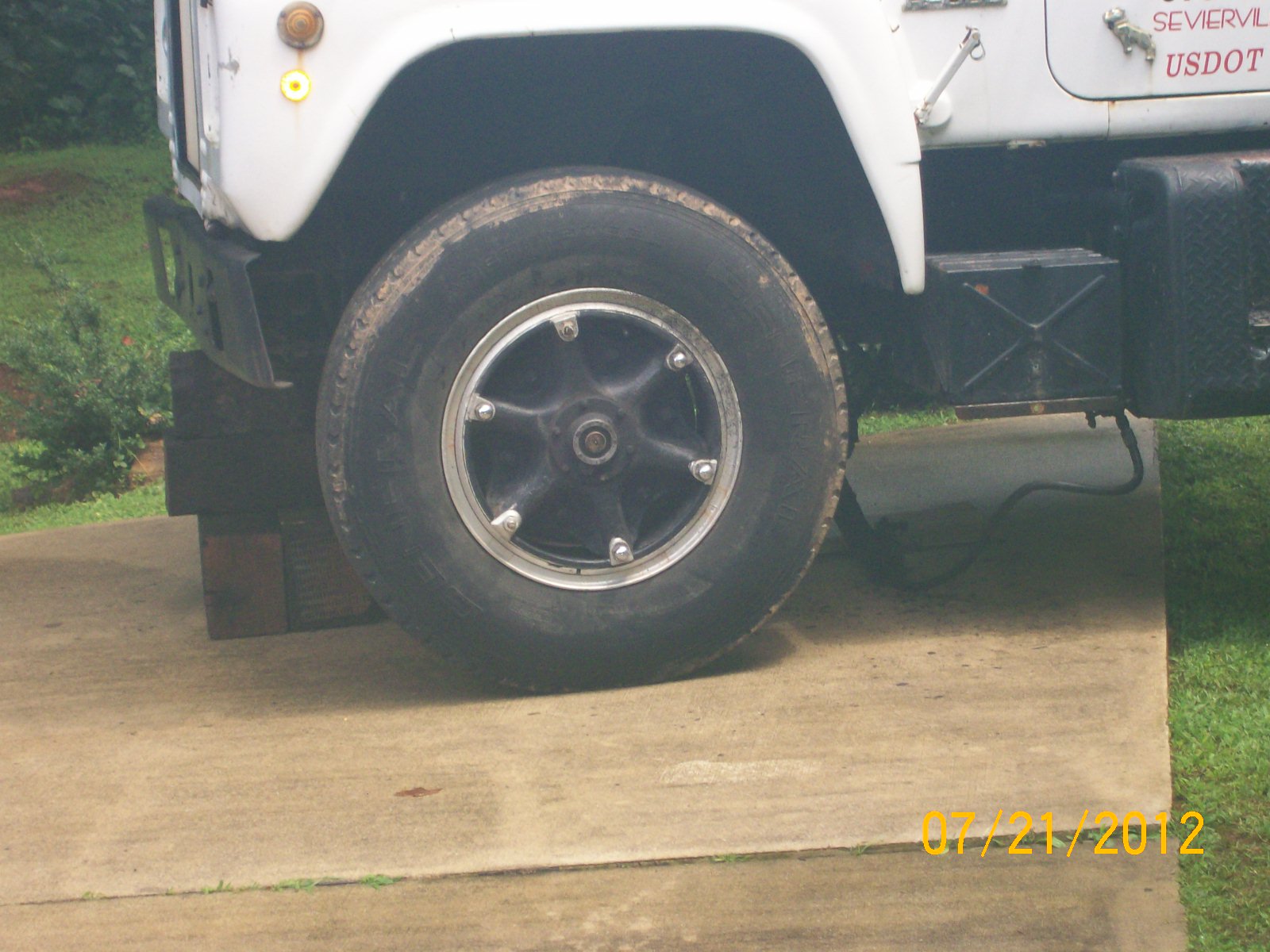

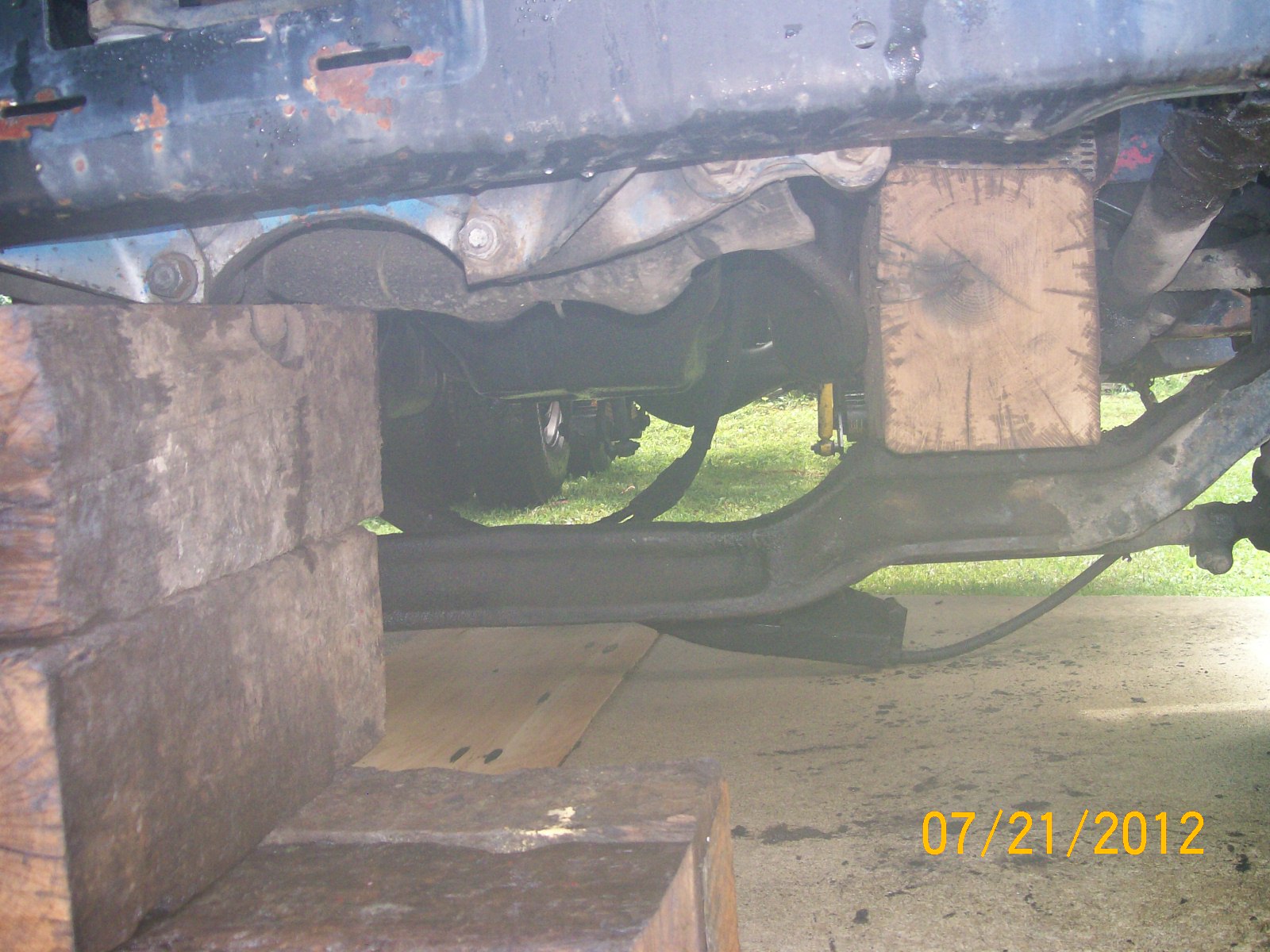

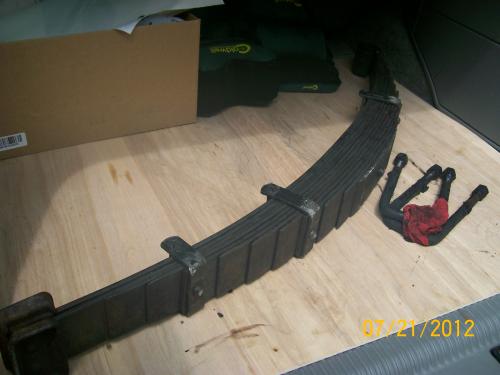

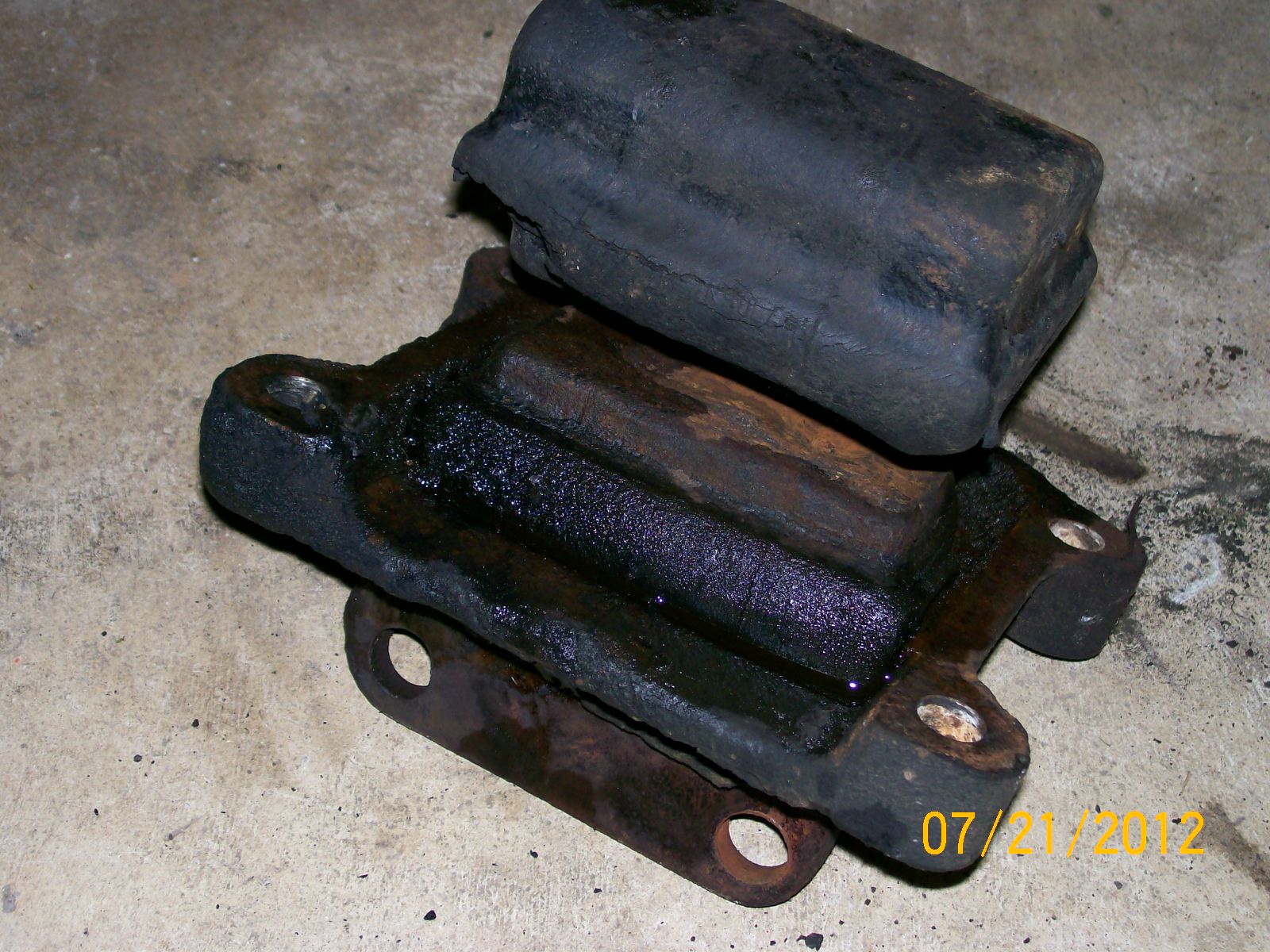

Found a guy a couple of hours away who can make me a couple of replacement leaves fo $50 each. He's another old 40-year veteran spring maker, and was recommended by the Mack dealer there. So, I pulled the spring out this morning. Use a cut-up cross tie for blocks. Jacked up against the middle of the front crossmember. After spring was removed, put another block on the axle, and let it down until the frame rested on it. Also have a block under the front crossmember. Front pin wouldn't quite go out from the outside-in, because of a slightly tweaked bumper mount. So, I pushed it back in and went out the other way. Of course, the spring got out of kilter, and had to be weaseled into position before the pin would go in. Pictures of the hanger cap soaking, the truck blocked up, the spring cleaned up and resting comfortably in the back of the Tahoe (FUN by yourself!), and a close-up of the broken leaves. U-bolts came out with a little torque, so I didn't have to torch them. Should make it easier to duplicate them, having them in one piece!

Holy crap. This is funny!I had stumbled across St. Louis Spring earlier, and had sent them a message from work. When I checked my work email, they had already responded. His price is about 1/3 that of Stengel brothers. I'll be talking to them soon... Thanks again, Kent

Thanks, Dude.

You ain't right!I was lookin' at new springs for my old R. And, the more I learn, the less I like the prospect of diggin' two more 40-year-old springs out of the junk yard. I mean, they're the same age as my worn out and broken things. I checked with Stengel Bros. They can hook you up, but that's almost as much as I paid for the truck! Know of any other reputable spring shops (preferrable in the SouthEast...so shipping doesn't cost more than the springs)?

Ya know... Some of the old U-model sales brochures point out that the left-side spring had more leaves than the right-hand one (like 12 vs. 10). For what it's worth...

Thanks, Ron.When you mention the rear spring hangers, I assume you're talking about the entire bracket which bolts to the frame. And, I also assume you re-used your original axle. Did yours have threaded front pins or straight front pins? Kent

Yeah, them's all familiar names, alright! I've always been in the Dodge group ("team green"). Made v-belt pulleys (sheaves) and couplings for 13-1/2 years, then moved when we built the new roller bearing plant in '96. Made our own housings for years, and used Timken (tapered) and FAG (spherical) inserts. Dodge had wanted to make their own tapered bearings for about 40 years, but couldn't make it happen. I was "lucky" enough to get to make it happen. No pressure, right? If you're ever here in western NC, I'd be glad to show you around.Kent

OK. Those points all make sense. I just need to round up some decent tall jack stands.The company I work for is Dodge (no relation whatsoever to the auto maker). We make mechanical drive components (gearboxes, pullys, couplings, etc...). A few years ago, Rockwell sold us to Baldor. So, now Reliance and Baldor motors are part of the same company. Weird, considering the years of competition. Then, ABB, a Swedish outfit, bought the whole kit and kaboodle. Huge freakin' company. They paid something like a billion dollars CASH for the Baldor/Reliance/Dodge corporation. I've been lucky. Started as a machine operator. Worked on about every type of machine they had. Did maintenance. Did engineering. Modified and rebuilt machines. Designed machines. Traveled extensively (can't tell you how many times to Europe...lost count years ago). Was the engineering manager for 5 years. Hated it. Would rather do it myself. Am doing it myself now! Our plant is one of the most profitable facilities in the global organization (I take credit for that!). We do something like $140 million in business per year with only about 115 people total. Can't publically tell you the profit numbers, but they are obscene (again, I take credit for that!). But, with the headaches that come with high-profile projects, I need a release. The old Mack is just the ticket. Sure, it needs work. But, once I get the springs fixed, I can drive it. I'm working through the air system, but I try to leave it drivable most of the time. I dread the springs. It looks like it could be a royal pain in the rump! MUCH more to come... Kent

No, seriously Rob. How the heck do you block that thing up? Front crossmember, maybe? Kent

Oh, yeah. Very familiar with a Blanchard. The first night I went to work (been there 30 years this Thanksgiving), I ran a 48" blanchard grinder. Saw a guy forget to pull out the stone spacers (used when wheel segments got too short) when he put on new wheels. Touched the parts, and "poof"! New set of stones reduced to rubble. Funny as h%#l!Worked on maintaining and rebuilding CNCs, programming CNCs, buying CNCs, blah-blah-blah CNCs. Was part of the plant start-up crew when we built the plant I'm in now. Been designing tools and fixtures off and on for 25 years. For the past 8 years or so, I've been developing process and designing machines to in-source our own double-row tapered roller bearings, previously sourced from Timken. But, when it comes to figuring out exactly how to jack up the old Mack, and still manage to get jack stands under it, I'm a newbie!!! And, dang, them's gonna' be some tall jack stands, ain't they? Kent

Good news, Rob.I went out and laid down in the mudhole which used to be a yard before all this rain, and with very little fanfare, loosened and re-tightened those 4 bolts on the rear spring hanger. I grumble a lot about the build-up of grime on this old truck, but I really have to hand it to the guys who used it last. There is grease everywhere there is supposed to be grease. They apparently did maintain their trucks. Oh, there are frozen-up things here and there, but, by and large, most of the important bolts still turn. So, maybe this won't be all that bad. Of course, I still need to get a spring and new U-bolts. But, I feel better knowing the bolts aren't frozen! More to come... Kent

Thanks again,Rob.Tricks I've leared through the years which have helped keep whatever sanity I have left are: (1) lots of penetrant (I like PB Blaster), (2) a little bit of heat, and (3) always hit the head of the bolt (like trying to drive it into the hole) before you try to remove it. And, usually, I "tighten" just a fuzz before loosening. I work every day on machine tools, and sometimes getting the screws out is the worst part of fixing them. If I recall correctly, isn't that rear housing aluminum? Steel bolts really hate aluminum threads! Kent

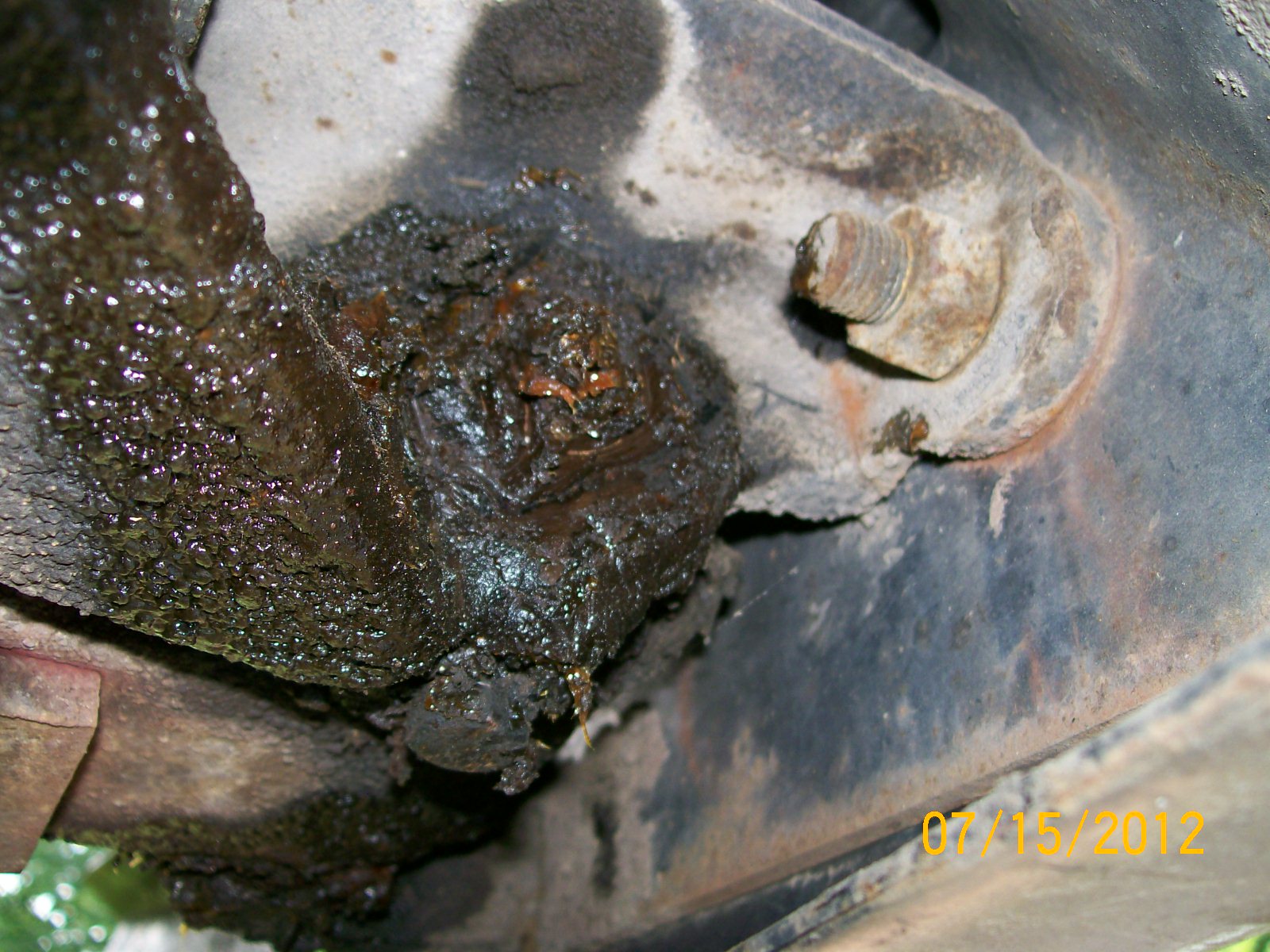

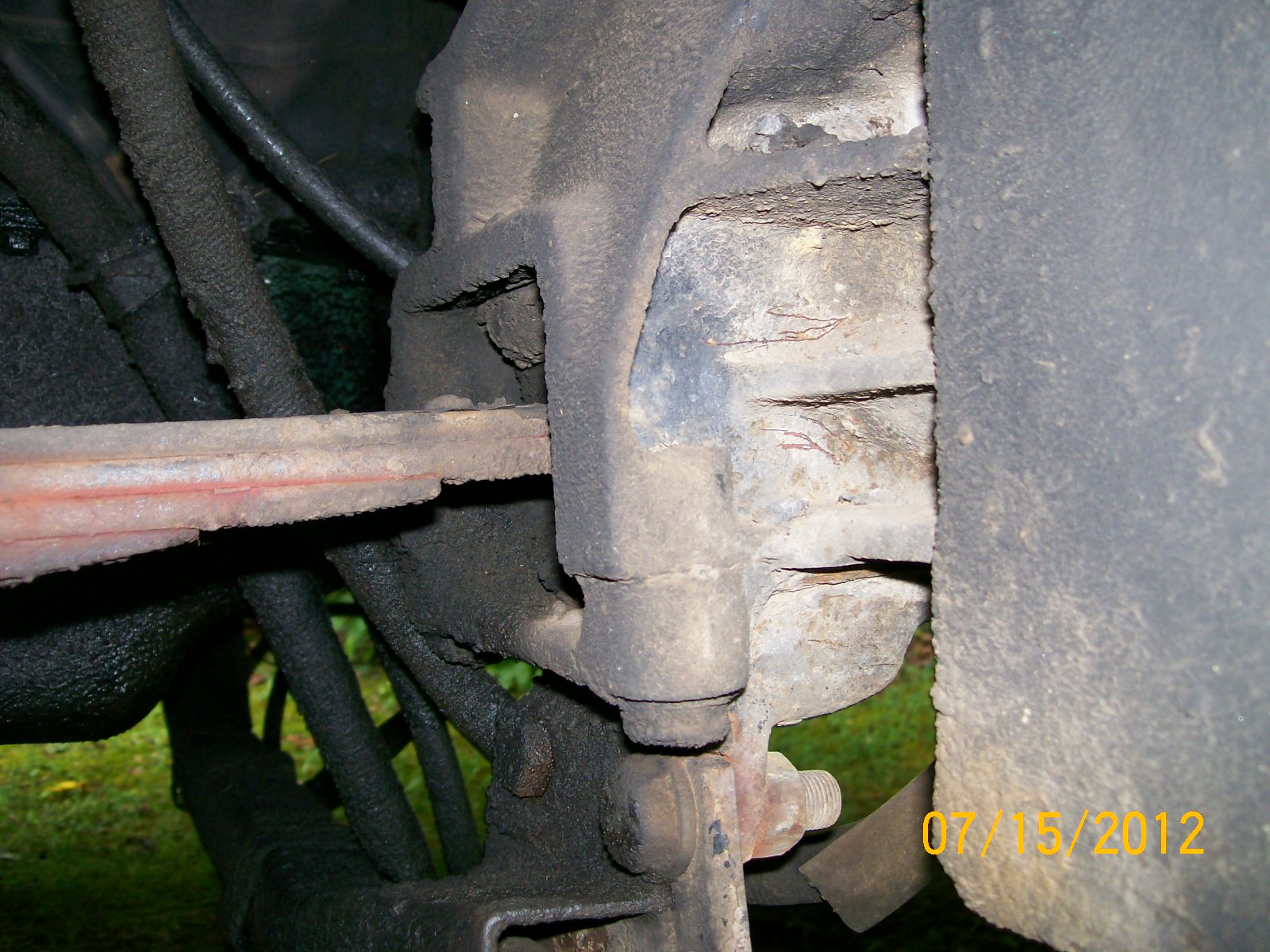

In the lower picture, I am showing the front of the spring, viewed from inboard. I cleaned it off a little with a screwdriver, and I believe the grease fitting is in this end of the pin. The other end appears flat. I see a small hex-head cap screw on the bottom of the hanger, which appears to line up perfectly with the pin itself. Would that be the retaining screw? On the other picture, I am showing the rear of the spring from the outside. I am assuming that split-line is where to take this end loose. It looks fairly obvious. Of course, I've already learned that, on stuff this old, nothing is ever simple! Kent

Yeah, I've found a few already. Prices are much higher now. And, some need to be explained a little better (which volume, or what printing). I'll keep looking.Looking through some images of old brochures. Looks like the 3-leaf, tapered springs may be 55" lomg, as opposed to the older 54" springs. If so, it would probably take a lot more modification than I want to do. So, I may be better off to stay with the originals. More to come,,, Kent

Yes, there are no backing plates, and the brakes are open, like you said.I think I'll bring home a new size 24, and just try it. If my measurements are correct, it looks like everything should clear by about 3/16 of an inch. And, I believe this is an all-original setup, as the build sheet called for DD3 chambers, and the chambers are mounted directly to the brackets, with no adapters anywhere. Thanks, Kent

Thanks, Rob.No, I don't have that manual. But, now that I know it exists, I can snag one. The different springs to which I am referring are the factory front springs Mack started putting under the Rs in the later '70s. The first ones appeared in either '75 or '76. From the looks of them, everything appeared the same, except for the springs and the riser block on which they sit. I was hoping one of our readers might have both an older and a newer truck, and might know about the interchangeability of them. If all else fails, I may grab a pair of them, and a pair of the originals, when I make my parts run. If they work, Fine. If they don't work, fine! I know that the first ones I ever noticed were on an R600 with an FA-535 axle. But, I didn't notice what year that truck was. More to come... Kent

Still waiting on the new slack adjusters. Should be here in another week or so. Trying to identify the size of the brake chambers on here. Can't find numbers on anything. In the Bendix literature, they mention only size 24 and size 30 DD3s. It's definitely not a 30. So, if they only made those 2 sizes, it must be a 24. And, I think it is safe to assume the service brake chambers would be the same. The service chambers on the other axle MIGHT be 24s, but it's hard to tell. They are definitely 20s or 24s, based on the physical size. A new 24 (or even a new 20, for that matter) looks like it will be a pretty tight fit in there, between the clamp band and the axle housing. Has anybody put late-model chambers on one of this vintage ('70)? Did you have any clearance issues? What sizes did you end up with? If nobody has, I may end up being the Guinea Pig! Kent

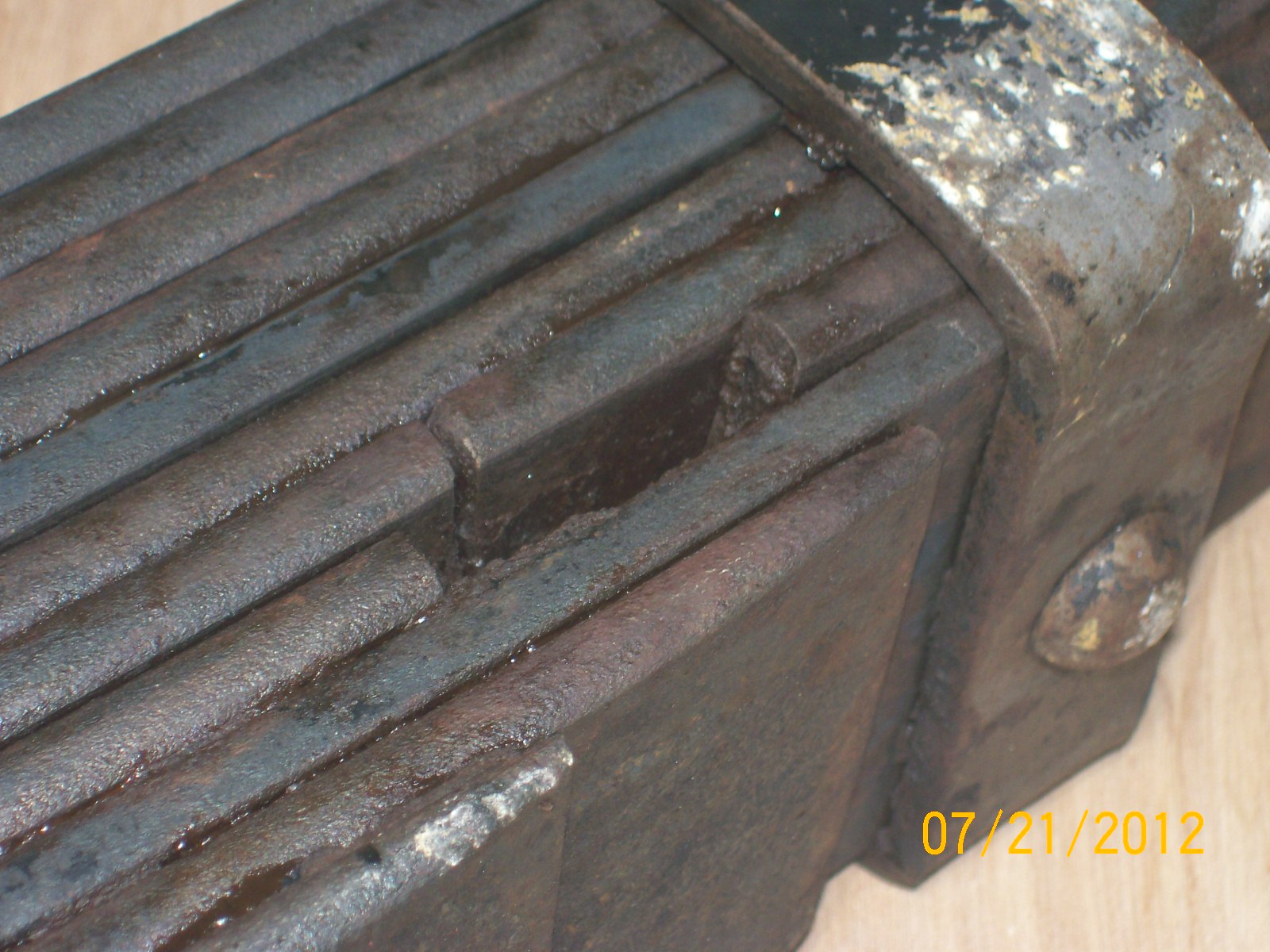

Hello, Everybody! Looks like I have a couple of broken leaves in my left front spring on the '70 R600. The front axle is an FA-535. I've never pulled one of these springs out before. So, assuming everything is blocked-up safely, what's the routine? Looks like the front of the spring is attached by a pin. I would assume there is a locking bolt of some kind under all that crud which releases the pin. I can't tell much about the rear attachment, as it disappears into the rear spring box. Do you separate the halves of the hanger box to get it out? Is the rear solidly mounted, or does it slide in that box (one end has to give, right?!). I have access to more of these springs (looks like standard 12 X 0.323" leaves), but I can also get the later 3-leaf "tapered leaf" springs. How difficult is that swap, assuming all the spacer blocks and caps are there? Is that spring a direct interchange? Do different axles have different mounting pads, or is there some commonality? Anything y'all can tell me about spring removal/replacement, and about swapping-in those later ones, would be much appreciated. And, as always, pictures are great. Thanks, Everybody! Kent

No, I won't trash 'em!
