When my son's Triumph Thunderbird came due for valve adjustment service, we bought the on-line factory service manual to get the procedure. As we did it, I took detail photos of every step. Then, I cut and pasted the instructions into a word document and pasted my pictures in with the instructions. Where something didn't make sense, we changed the sequence or the wording to make it work better. We added notes, hints, and warnings as we found things along the way. What we ended up with was a super-detailed (and accurate) how-to book to do that job correctly. I was trying to find a sample page on here, but I must have put it on my laptop at home. I guess all that time I spent years back writing training manuals paid off! In other words, I know how you feel! Stuff is hard without something to reference!

Well, O'Dog...

"If your military career ended in the recruitment office..."

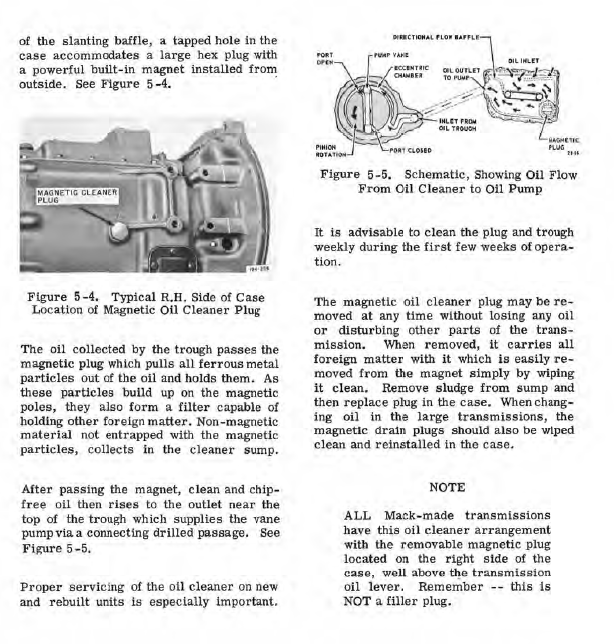

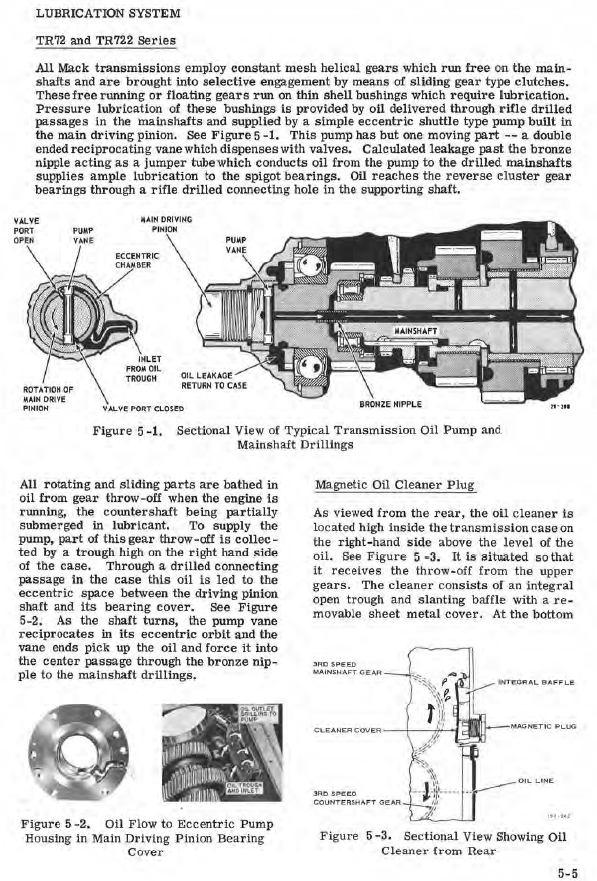

Did the trough run around the top of the case and drip down on the gears? I may be thinking of some other gearbox, though. Old age, you know?

Awesome pictures, D! That should help him out a good bit.

I’m a big fan of carriage bolts and nylock nuts!

Welcome to the world of purebred mutts! Awesome R model.

That's pretty interesting.

Yep. The Ford and the Mack had a different sound than, say, a 903 Cummins. Even the Cat 3408 didn't sound quite the same.

Incidentally, the Triplex section might be of some use to you too, since it shows only a "married" box without the break in the picture for the 5-speed. I'd say the only difference between the Duplex and Triplex would be the rear box. The front mainshaft would likely look the same. Best of luck to you, LTK! Weasel out...

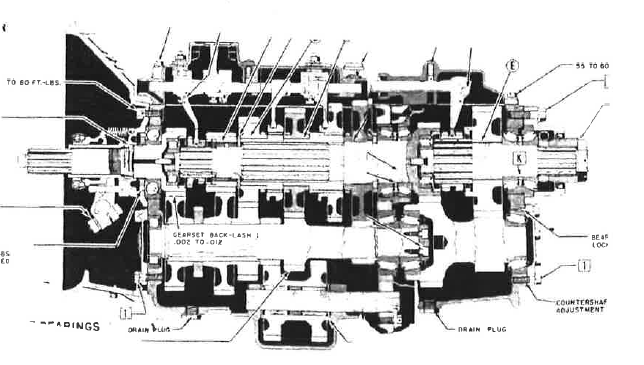

I guess it looks kinda like this with the 5-speed section removed! The instructions are not clear on setting the mainshaft end play at the 2 indicated points. Maybe it would be obvious if you were in there. Almost looks like the main box and the aux box are set separately. But, it looks like the countershafts are all set from the same point on the aux box.

Were you able to access the PDF file from the link I sent you? I can always post some individual pages on here if I need to.

Yeah, this PDF file is a little rough! My physical manual is far easier to read. If you have any specific sections you would like to enhance, let me know. Maybe I can take a picture of them and send it to you. I guess end play on the mainshaft makes sense. After all, there are several shafts in the center of that box (main input shaft, main mainshaft, aux input shaft, aux mainshaft). Might want little clearance between the ends of each one! Technically, I guess the front mainshaft is the rear input shaft. Sorry about that!

I tried to upload that manual to the WIKI section, but it is too big.

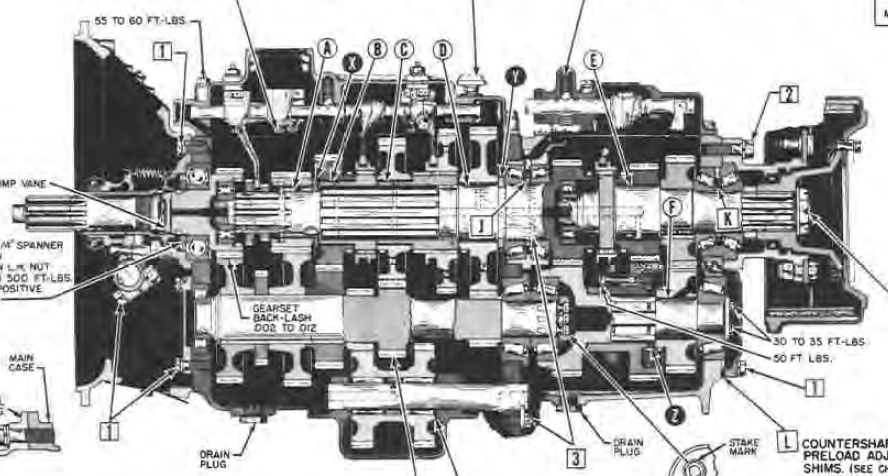

When I looked at the drawing this morning, it looks like it actually has an "END PLAY" spec on the MAINSHAFT and a "PRE-LOAD" spec on the COUNTERSHAFT. But, I have no personal experience with this transmission. So, don't take my word alone for it.

But, here's a teaser...

I sent you a PM. Contact me when you get it.

Uhhhhh....yeah.

I meant to look in one of my manuals, but forgot. Wait, I may have something here at work. Let me look and get back to you.

Exactly! They are meant to pull much lighter loads. Imagine a 400-500HP gas-burning High Performance Hemi V8 trying to pull 100,000 pounds? At 75mph? Not for long! The class 8 diesels are meant to last. Turning them up to max output can only shorten their life expectancy.

That kinda sounds like what I was saying on Jo-Jo's thread! Well put, Joe!

My '17 Ram 3500 had the 950 ft-lb version of the 6.7L Cummins. Plenty of power for pulling anything I'll ever hook to it. But, it does NOT have to move 80K+. It does NOT have to move that 80K+ for 600+ miles every day. It does NOT have to stop that 80K+ a dozen times an hour. I've had this discussion with some of the die-hard Ram guys a dozen times. It's not all about power, it's about longevity. I love my 6.7, bit even the old 250 horse 673 I drove would outlast it in a heavy truck! Jo-Jo, this is an interesting discussion. Like everybody, I seem to always want MORE POWER (argh, argh, argh). But, I also remember all too well the 180 horse Thermodynes slooooowly dragging those heavy weights up the hills. The 237 and 250 motors were noticeably better. A 300 or 350 was incredible. The 400 HP stuff just seemed like showing off! I guess it is just progress that newer stuff is stouter. I guess the comfort levels of the newer stuff are supposed to reduce driver fatigue. But, to me, a truck is SUPPOSED to be a little bit rough. But, that's probably just because that's how they were "back then". I'm sure my back would appreciate the improvements in the newer stuff. In any engine, turning up the power can reduce longevity. Everything in life is a bit of a trade-off. But, there is also usually an optimum point...where the lines cross. I mean, straining the guts out of a weaker engine can shorten its longevity, too. Just like putting too much power on it can. I guess, if we knew what that magic number was, we could just tune everything to that point and get the best compromise of power and longevity. Then we would go buy lottery tickets, because we would apparently have gifted insight into the netherworld! I am going to keep reading this one because EVERYBODY'S opinion on this is valid. They vary by experience and requirement.

It is, indeed, NASCAR hall of famer Bobby Labonte. Hippy wins a cookie!

Here is the link. Upload your picture there. Then copy the link they give you and paste it here. Seems like they offer a variety of links, depending on what you are going to do with the picture. So, you may have to experiment with the links to see which one works best on here. I THINK one of them says "for use on forums." https://postimages.org/
