Chase1210

this is the same on a 2010 MP7 I assume? Do you have the part number handy?

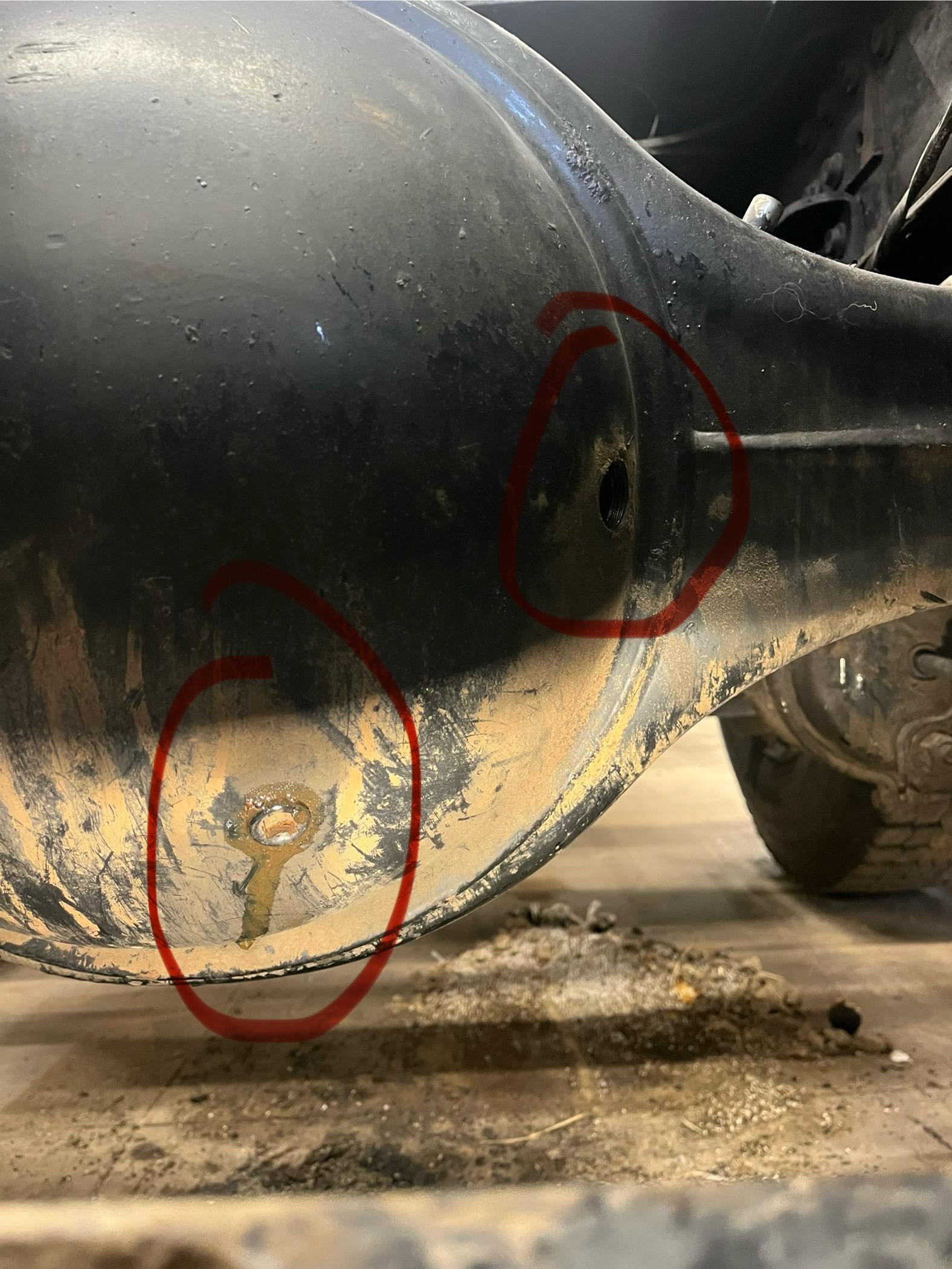

Which of these is the level that the rear end oil should be at? I assume the higher one??

At one point in this trucks life it had a brand new turbo/vgt, still had no boost. Then it was discovered that the egr was stuck open. Hence the egr not being the problem anymore. ...very frustrating

The EGR isn't the problem 😉... No codes, no lights. What is a good computer or scanner I can buy that will work with this truck that doesn't cost $1000?

I have already checked all the potential boost leak spots pretty extensively. I suppose the CAC could have a leak somewhere that I'm missing down low where I can't really see. After I was unable to find a boost leak I kind of switched gears to thinking it was a fuel problem, but I did not find any fuel blockages anywhere when I swapped the filter housing. How can I check fuel pressure without a computer? Where would I tie a mechanical gauge into the sytstem?

this was my problem. that check valve goes on the front side of the housing. trucks running! still doesn’t have sh** for boost tho. max 25 psi. wtf!!

what position on the housing should the overflow valve be in? i can not get this thing to run. i have good fuel flow from the tank when i pressurize it , but truck will not stay running and hand primer loses its pressure after every attempt to start

I really appreciate it. Hopefully I can get it sorted out in the morning. I may have some more questions for you! Thank you!!

Thank you! That looks more like what I've got. Now... (3) Tank to ECU. (17) ECU to filter housing (12) Return from head to filter housing (4) and (8) to and from filter housing to pump, but which is which? My vin # is 1M1AW02Y1AM011833 if that helps?

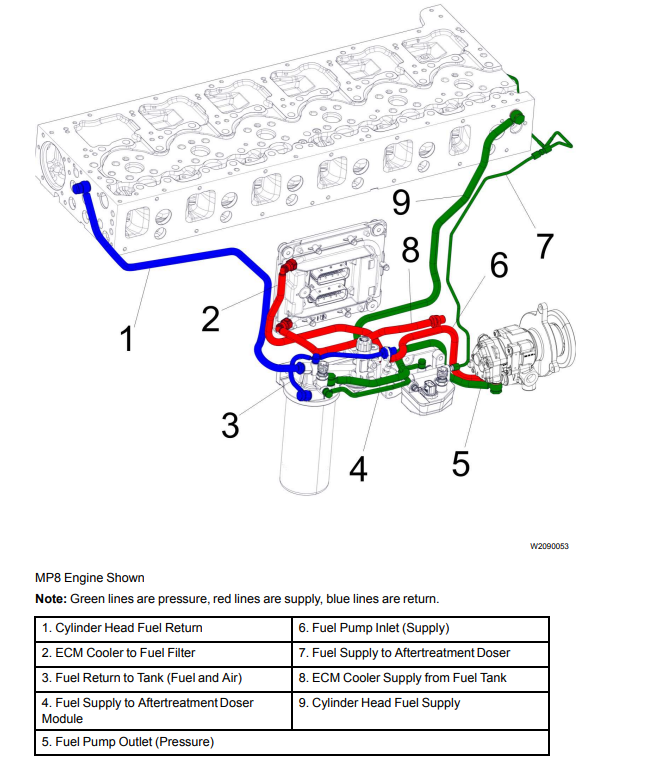

Hi all, I have a 2010 CXU with an MP7. I replaced the fuel filter housing and now I can not get the truck to fire. I've tried all the things you would normally do. Now I'm convinced I may have a line messed up or a banjo bolt. I noticed as I was putting in back together that 1 of the bigger sized banjo bolts is bigger than the others. It has same threads but is a bit longer than the others. Does anyone know which line the bigger bolt goes go? I've attached a diagram of where each line goes and this is not how my lines are routed. Does anyone know if there is a different diagram with the routing different than this? Everything was original when I took it apart. When I pump the hand pump, it will get hard after 15-20 pumps but then after trying to start the prime seems to go away, that is why I feel like a line may be wrong. Maybe someone could post some pictures of there housing and lines so I can compare to how I have them? Thanks

Hi all, I have a 2010 CXU613 with an MP7, what do you all recommend for a scan tool? I need something to read fuel pressure but will use for other stuff down the road. Basically looking for a all around universal scanner, that will talk with my mack.

Hello all, I'm looking for a driver side rear cab corner for my 2010 CXU. There are some rot holes that I cut out, and instead of making them myself I was hoping to just weld in a new corner. I called mack and they wanted 800+$ for the whole corner, which I do not need. I only need the small section behind the marker light and under the grab handle. Thanks!

Hello all, I'm looking for a wiring diagram to find where the wires go to from the boost pressure sensor. Truck has no boost showing on the gauge, just 2 dashes like this "--". I feel plenty of boost coming out of the hole where the sensor goes, and also replaced the sensor already. Truck has no power at all, so I need to find where the wires go and hopefully I can find a bad one. Motor is an MP7, Thanks

i have this same issue with my mp7. can anyone be more specific about where to find this wire? what color it is ? anyone have a diagram? thanks!

Anyone have any ideas? Can the truck be derated without throwing an engine light? It doesn't seem to have nearly the power that it should.
