Some of this is repetition: Remove the inner window frame; Remove the complete vent window assembly; Remove the large Phillips head screws holding the door latch (in the jamb) and push that assembly in to clear the door jamb; Pull out the clip holding the lock cylinder and remove the cylinder and operating rod; Remove the screws holding the outer door handle and pull that whole assembly out; Remove the screws around the outside of the inner panel; With the window all the way down you should be ready to remove the entire window assembly; Remember that the side glass is tempered and will shatter into lots of little pieces if too much force is applied.

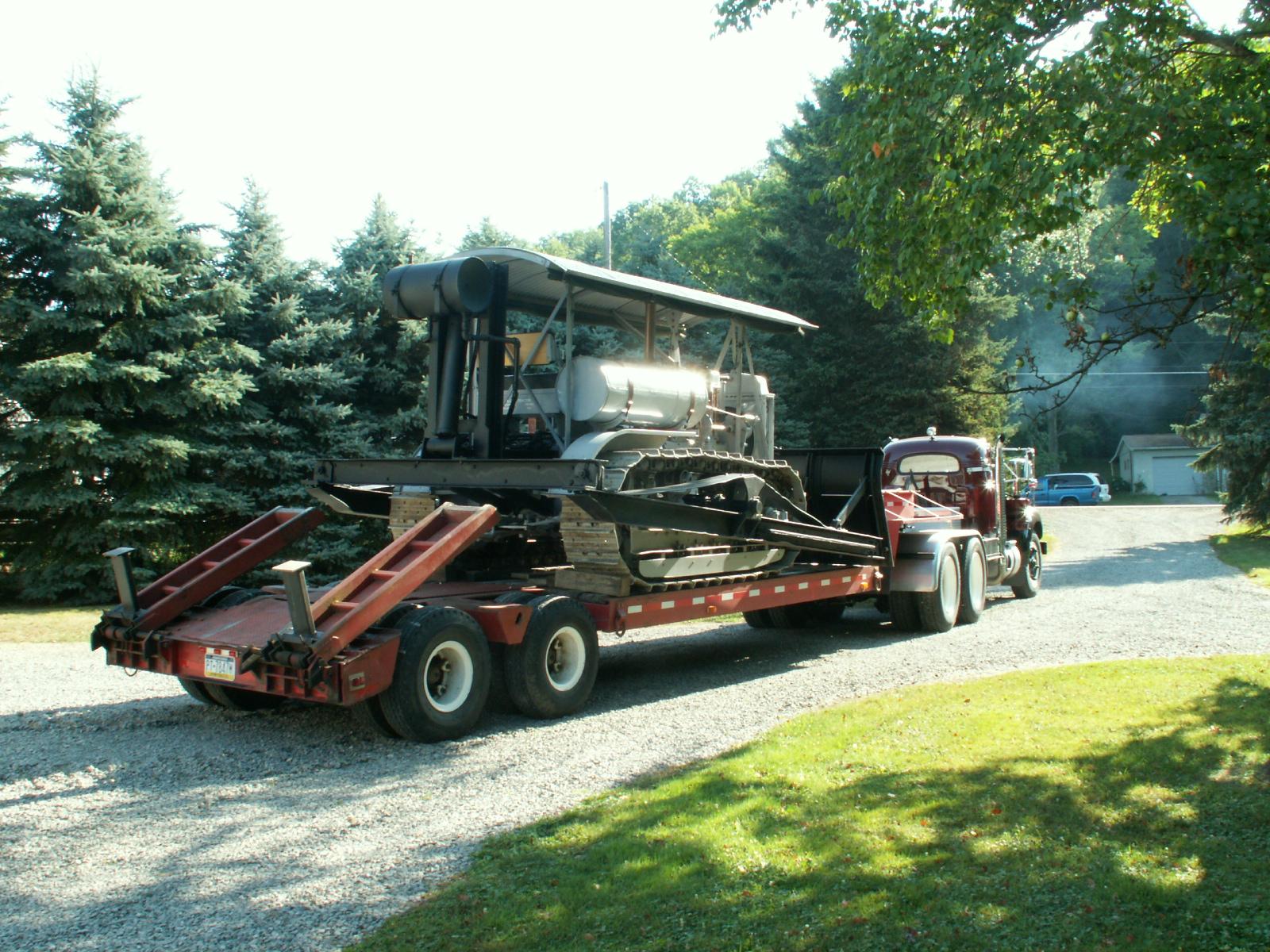

Don't have any handy of just the trailer. When I got it it was a run hard oil field work trailer. I put new side rails and cross members, brakes, lights and paint. I also rebushed the entire suspension (Hyster was gone by then Etnyre still provided the bushings). 8/4" white oak for the deck. It has a Braden winch (20,000 slp), 90' of 5/8 cable, mounted on the head end of the trailer. Hydraulic driven off the B75 wet line. It still shows battle scars from days in the patch. Here is a picture behind the B75 with the Sixty Caterpillar on board.

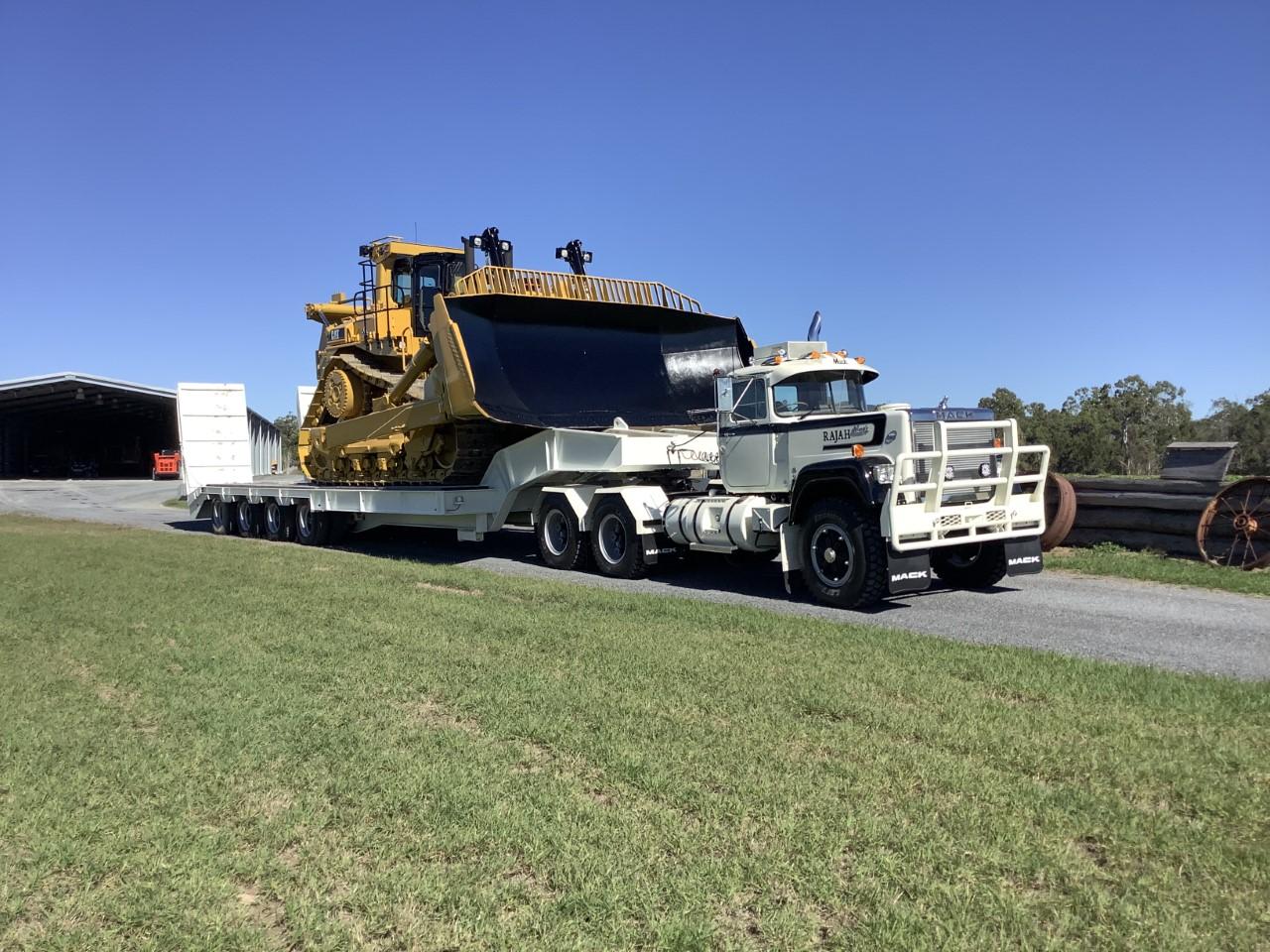

The Rajah truck is a R800, E9, 9 1/2' wide prime mover and is part of the Osborne operation based at Champions, Rockhampton, Queensland, AU

Here is a specification sheet for the E9 V8 as a .pdf. Send me a private message with your email and I will send you a more detailed sheet on the E9. I don't usually respond to updates on these 8 year old posts. E9 500 Spec Sheet ESP.pdf

That is Mike and Kelly Osborne Trucking, near Riverton, WY. Mike has moved multiple military vehicles for a new museum there in Wyoming. Other than an occasional red engine, almost all their powers are V8 thumpers. Mike can give you all the details on the truck. This is one of the prime movers from the southern branch, Osborne Down Under.

I guess that I can deal with either a 10R x 17.5 or an 11R x 17.5 tire diameter. My question is will they fit on any 17.5 wheel or will there be a difference in wheel width as the outside diameter gets larger. The 215 x 17.5 wheels I am looking at are much smaller in diameter but I can't tell if the wheel itself is narrower in width.

I downloaded and printed the charts - can't read them in either format, thanks for trying.

My Hyster lowboy trailer has 10.00 x 15 LPT tube tires on Dayton spoke wheels that are ready for a changeout. I' m looking for a chart showing size and compatibility to change to tubeless tires on Dayton wheels. Looks like 11R 17.5 would be a direct swap for the tires but one of the questions is would a 215 75 R 17.5 wheel work with that size tire.

Quit fooling around and load the D11N.

I usually pay $50 for the inspection sticker. The permanent plates are for 10,000+ gvw only. May be up to $150 for the plate now - we are in PA.

Pennsylvania will not issue an "antique" license for a trailer. Just buy a permanent plate for it - $125 and your done other than an annual inspection.

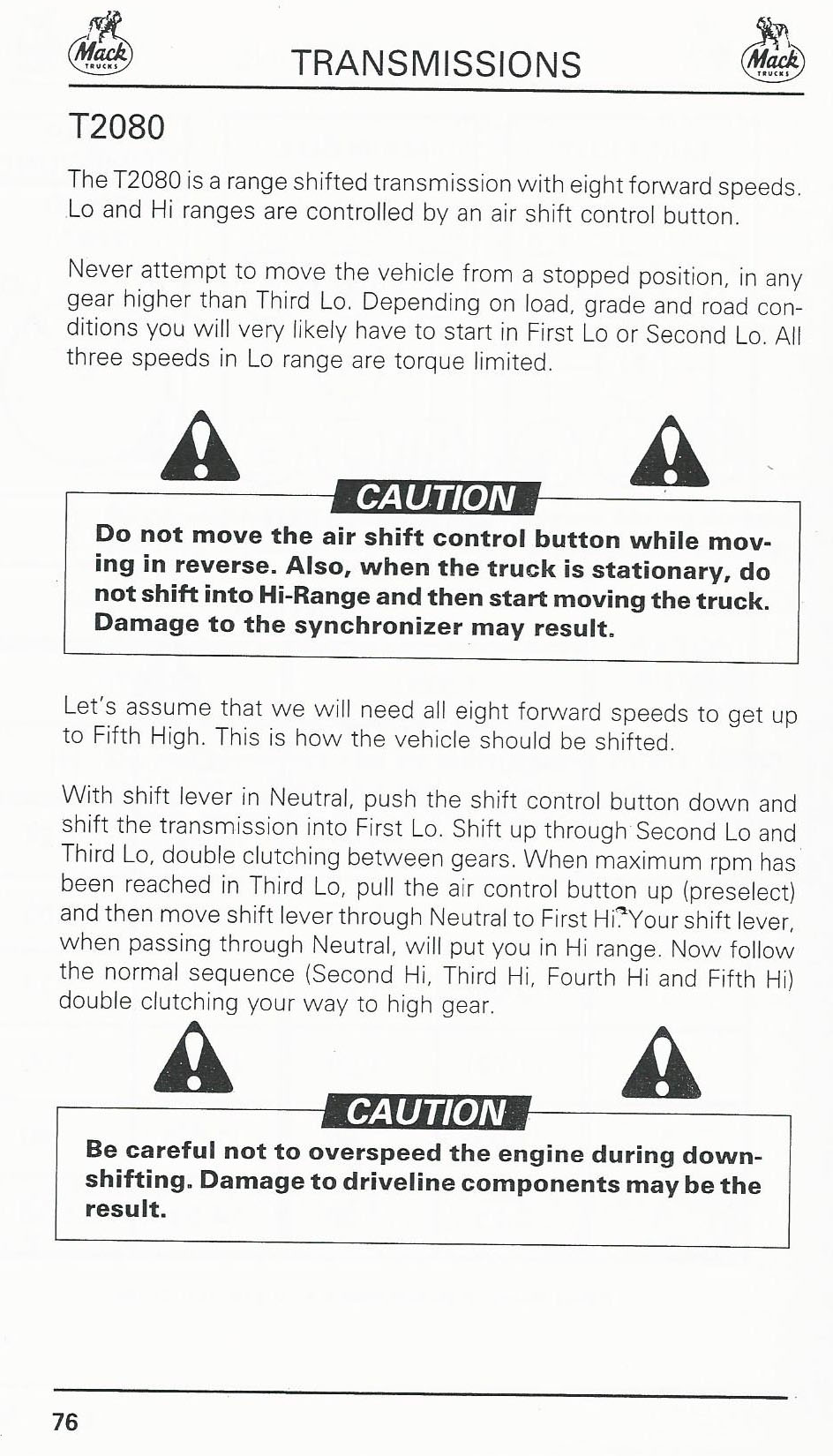

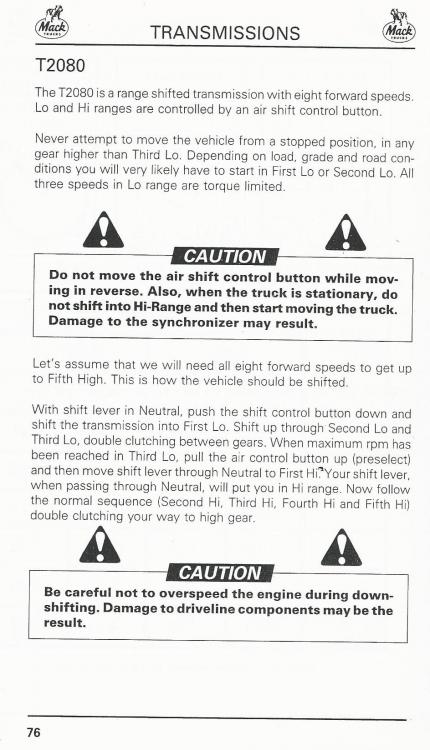

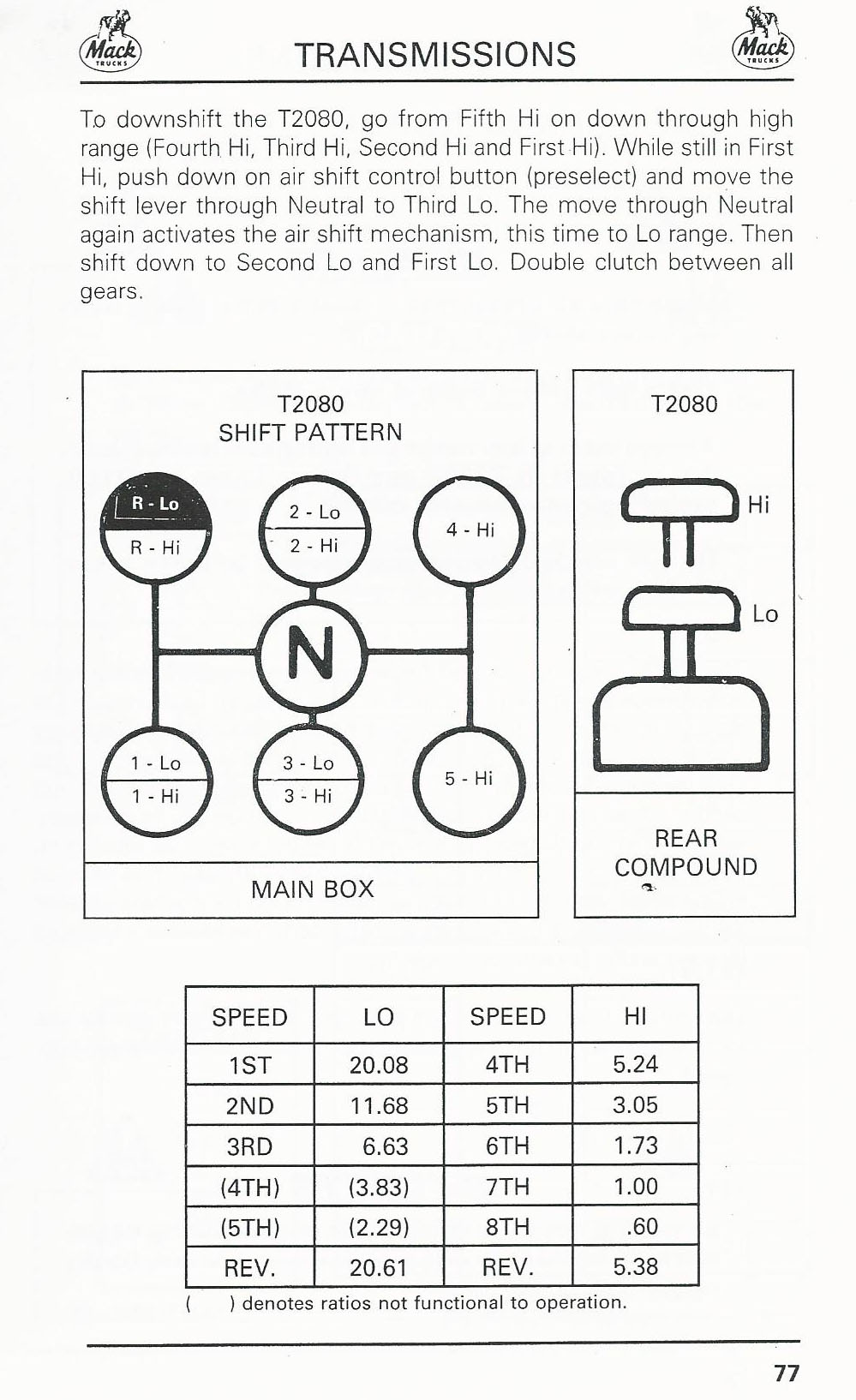

Here are a couple of page scans on the T2080.

Send me a private message with your email address/ contact information and I will ask Tony to contact you.

Mike - I sent you a private message.

I sent you a private message.

Thanks- Those are some real nice looking labels. The earlier labels were slightly different - more of a transparent backing. Made in your shop or by somebody else?

OK Thanks- How about this one ? Left door jamb under latch post? Will

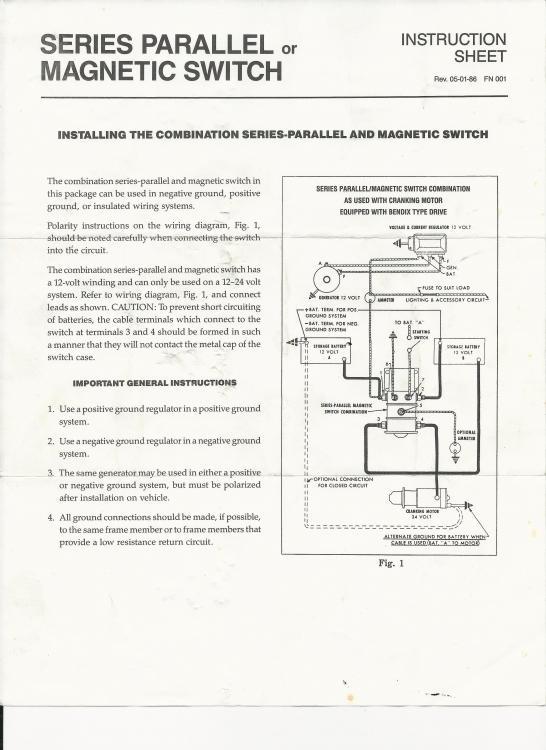

This may be what you have already seen. The old voltage regulators were either negative or positive ground, but the more modern ones can be used with either. If your series/ parallel switch has through bolts open it up and repair the burnt contacts. There are two sets of contacts within the S/ P switch.

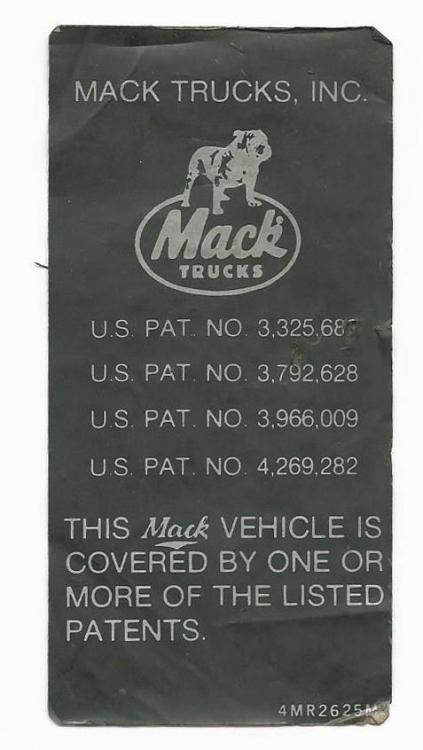

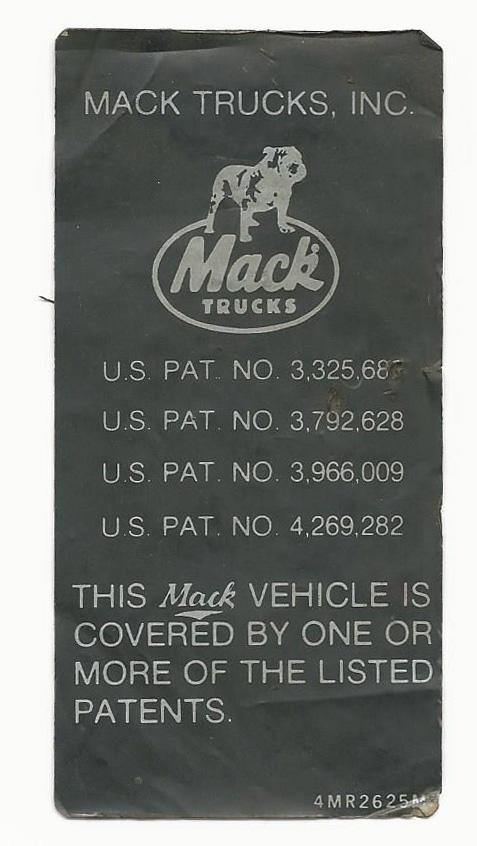

Where is this label (part # 4MR2625M) place on a RW 613? Probably on the driver's door jam below the latch? 2" wide x 4" tall

The first Mack in Australia was imported from the US in 1919 (AC). That truck still exists in the Champion collection. Mack started building trucks in Australia in 1963 and still continues today. 2019 was the 100th year celebration by Mack Trucks Australia.

It belongs to Mike and Kelly Osborne, Osborne Trucking, near Riverton, Wyoming. Their business and trucks have been featured in Wheels of Time magazine twice. The truck is V8 powered. I think the bulldozer is a 36A D8. Mike uses that for snow plowing in his driveway and removing cattle guards. The Freedom Series trucks have been discussed in many threads on this forum. Do a search. It was a special edition (<200 produced) of MH and RW Mack trucks in 1986/ 1987 with a 3 year 300,000 mile warranty that offered "complete Freedom" from repair cost. All trucks left Allentown with the Phantom grey paint with red trim and the statue of liberty graphics. "War Dog" is much more of an expert on things Osborne than I am. This is the decal on the hood:

Remember: What you see is not what you get and also what you buy is not what you are going to get.

Mike- I sent you a private message.

Vlad- that is the cab suspension (?) that was used with a sleeper compartment - at least on the early trucks. From the records at the Archives at the Mack Truck Historical Museum: Freedom Series engines: (these numbers don't add up to the total production due to some missing build sheets) E6 350 131 E9 500 14 E9 450 8 E9 400 5 All of the Magnum Series left Allentown with one of the 3 E 9 engines.

The build sheets for the SuperLiner II Magnum (186) trucks all list "Air Suspended Cab Mounting" as part of the standard package. On all trucks equipped with either size (36" or 60") sleepers, that item is either lined out or marked "deleted". My truck had the 2 shock absorbers installed as in the picture above and a block of rubber (might as well have been a 2 X 6) mounted where the air bag and control would have been placed. All of the sleepers I have seen are ridged mounted - just rubber bushings on 6 steel brackets. I replaced the rubber block on my truck cab with a Mack air bag and control rods and used a modern, flexible cab seal. Seems to work just fine.
