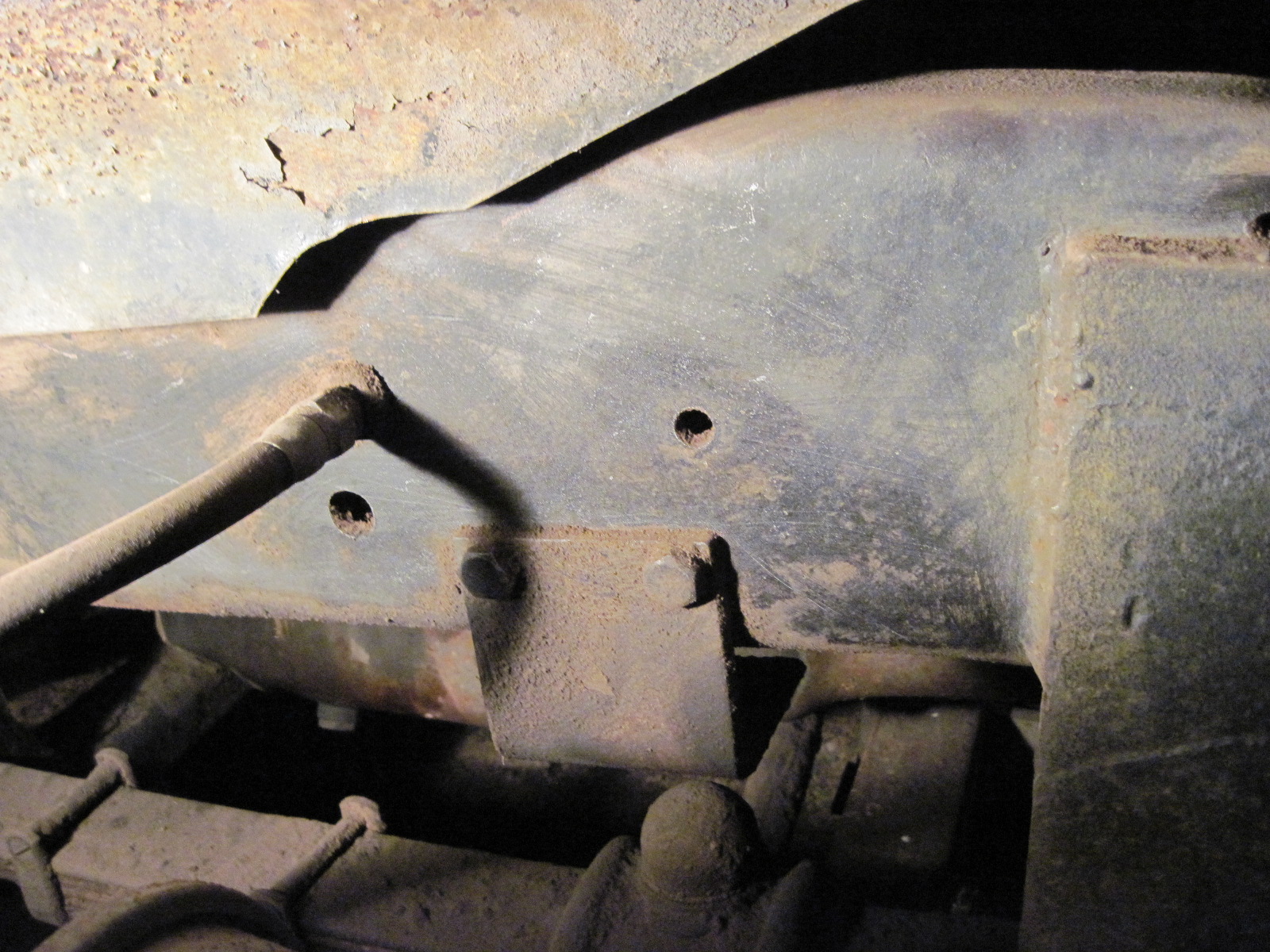

leversole Posted November 1, 2010 Share Posted November 1, 2010 Am I looking in the right place?!? Or is it under that welded plate!Thanks Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/ Share on other sites More sharing options...
Bobby Covert Posted November 1, 2010 Share Posted November 1, 2010 It is on the passenger side frame under the fender well Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66187 Share on other sites More sharing options...
Mike Posted November 1, 2010 Share Posted November 1, 2010 Am I looking in the right place?!? Or is it under that welded plate!Thanks Further back to where the spring perch is connected. It will be mid ways on your frame ecthed inside. WD 40 is sometimes good for finding these things to spray on. mike Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66193 Share on other sites More sharing options...
David Posted November 2, 2010 Share Posted November 2, 2010 What is the welded plate for? Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66213 Share on other sites More sharing options...
leversole Posted November 2, 2010 Author Share Posted November 2, 2010 (edited) What is the welded plate for?Some kind of heavy duty bumper mount...there is some structure with pivot point around the front axle...It looks like the truck may have had a snow plow at one time... Edited November 2, 2010 by leversole Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66225 Share on other sites More sharing options...

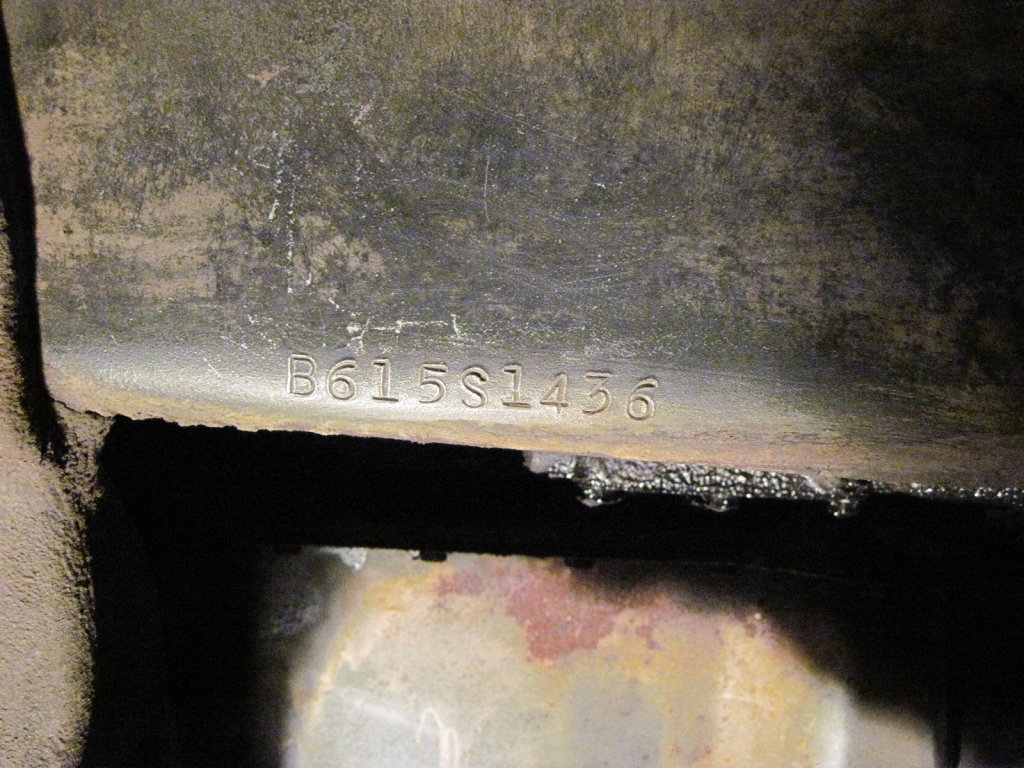

leversole Posted November 2, 2010 Author Share Posted November 2, 2010 Found it! Right where it is supposed to be!Can someone point me to the transmission (TRT72) and rear end (38K tandems, I am told) serial numbers?I will send all these numbers off to the museum with a donation! Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66226 Share on other sites More sharing options...
Rob Posted November 2, 2010 Share Posted November 2, 2010 Found it! Right where it is supposed to be!Can someone point me to the transmission (TRT72) and rear end (38K tandems, I am told) serial numbers?I will send all these numbers off to the museum with a donation!The trans numbers are hand stamped into the case just behind, or below the TRT72 stamping. The rear axle serial numbers and specification number is stamped into the rear rear axle bowl, (not the drop in) just to the right of centerline and should start with SWDXXX, (SWD is a 34,000# rating suspension).Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66244 Share on other sites More sharing options...
leversole Posted November 2, 2010 Author Share Posted November 2, 2010 Thanks All...Dont know what I would be doing without all of the help...looking forward to the first time I can help answer someone else's questions... Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66247 Share on other sites More sharing options...
Mike Posted November 2, 2010 Share Posted November 2, 2010 Thanks All...Dont know what I would be doing without all of the help...looking forward to the first time I can help answer someone else's questions... Ok, I'll be calling you. mike Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66253 Share on other sites More sharing options...
Bobby Covert Posted November 3, 2010 Share Posted November 3, 2010 Mine is a little older than yours. My # is B615T1044. I am guessing you are a tandem axle too. Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66281 Share on other sites More sharing options...
Bobby Covert Posted November 3, 2010 Share Posted November 3, 2010 Hey leversole we have seen pictures of all inner workings of your 615. Where are the pictures of the outside in daylight? Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66283 Share on other sites More sharing options...

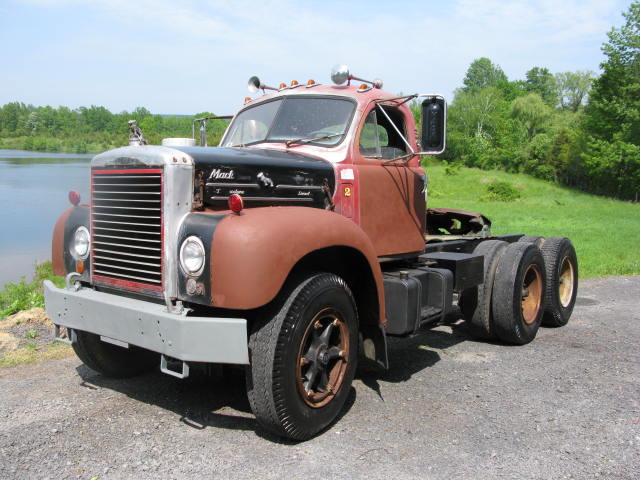

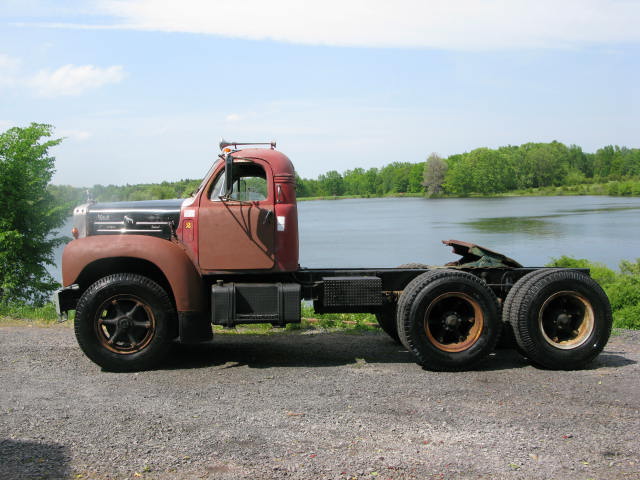

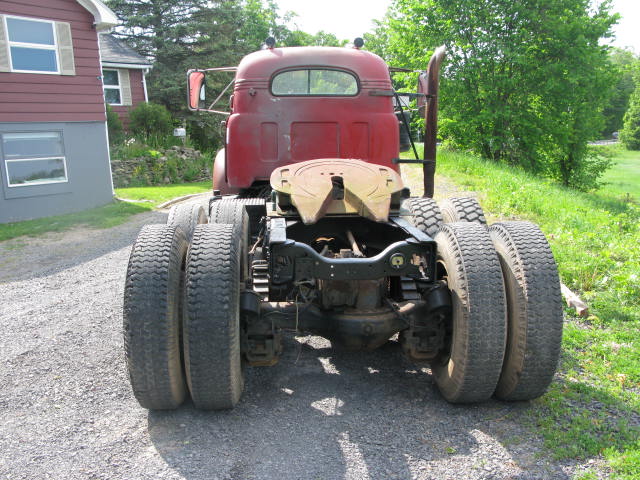

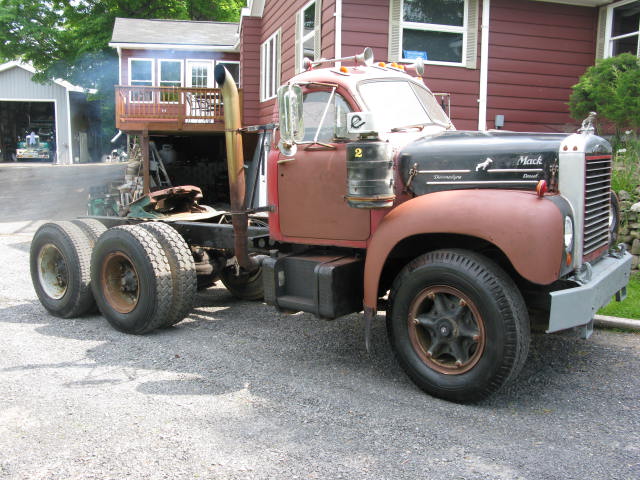

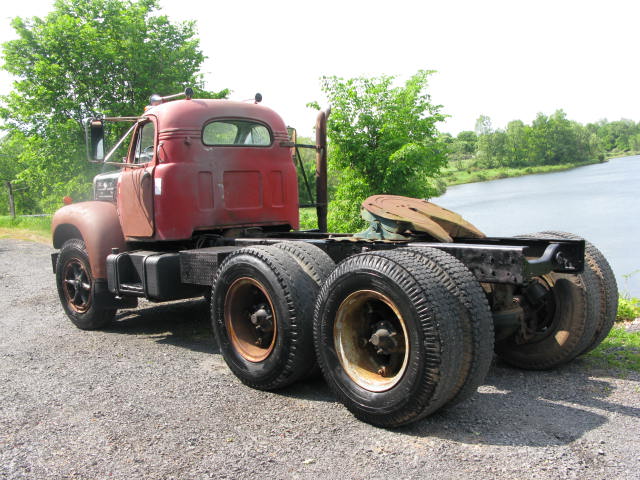

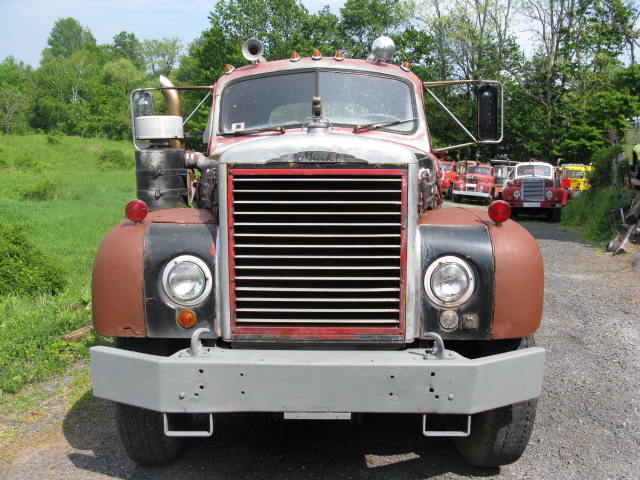

leversole Posted November 3, 2010 Author Share Posted November 3, 2010 (edited) Hey leversole we have seen pictures of all inner workings of your 615. Where are the pictures of the outside in daylight?That pesky job (read as monetary support for my new Mack project) of mine keeps me away till almost dark every night...here are a couple though...more to come. Edited November 3, 2010 by leversole Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66286 Share on other sites More sharing options...
Rob Posted November 3, 2010 Share Posted November 3, 2010 That pesky job (read as monetary support for my new Mack project) of mine keeps me away till almost dark every night...here are a couple though...more to come.The rear suspension under that truck are 40,000# plus rated with the acorn caps and two piece axle shafts.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66291 Share on other sites More sharing options...
leversole Posted November 3, 2010 Author Share Posted November 3, 2010 The trans numbers are hand stamped into the case just behind, or below the TRT72 stamping. The rear axle serial numbers and specification number is stamped into the rear rear axle bowl, (not the drop in) just to the right of centerline and should start with SWDXXX, (SWD is a 34,000# rating suspension).RobThe bowls are covered in grease, are the numbers at the "south pole" (bottom) or the front, back, or sides on the upper part of the bowl?Maybe I can get lucky and scrape off only a few pounds of sludge!Thanks Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66292 Share on other sites More sharing options...
Rob Posted November 3, 2010 Share Posted November 3, 2010 The bowls are covered in grease, are the numbers at the "south pole" (bottom) or the front, back, or sides on the upper part of the bowl?Maybe I can get lucky and scrape off only a few pounds of sludge!ThanksShould be stamped just to the right of the plug you fill, and check the oil level at. The is the rear rear axle. The stamping will be fairly large, about 1/2 inch tall. Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66293 Share on other sites More sharing options...
Superdog Posted November 3, 2010 Share Posted November 3, 2010 Mine is a little older than yours. My # is B615T1044. I am guessing you are a tandem axle too.Mine is B615T1069. Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66294 Share on other sites More sharing options...
Bobby Covert Posted November 3, 2010 Share Posted November 3, 2010 Hey Superdog that means mine is 25 trucks older than yours! Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66313 Share on other sites More sharing options...
Bobby Covert Posted November 3, 2010 Share Posted November 3, 2010 In case you guys dont know the hood is made of Aluminum. So are the headlight panels. I have stripped mine and polished them. If you do strip yours you will need to polish them to keep them in top shape Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66314 Share on other sites More sharing options...
Superdog Posted November 3, 2010 Share Posted November 3, 2010 Hey Superdog that means mine is 25 trucks older than yours!Sure enough.Does yours still have the 864?Mine does but it needs work.I gotta find a hood for mine also.The one that's on it is a B61 hood that the previous owner set on it to keep motor covered. Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66319 Share on other sites More sharing options...

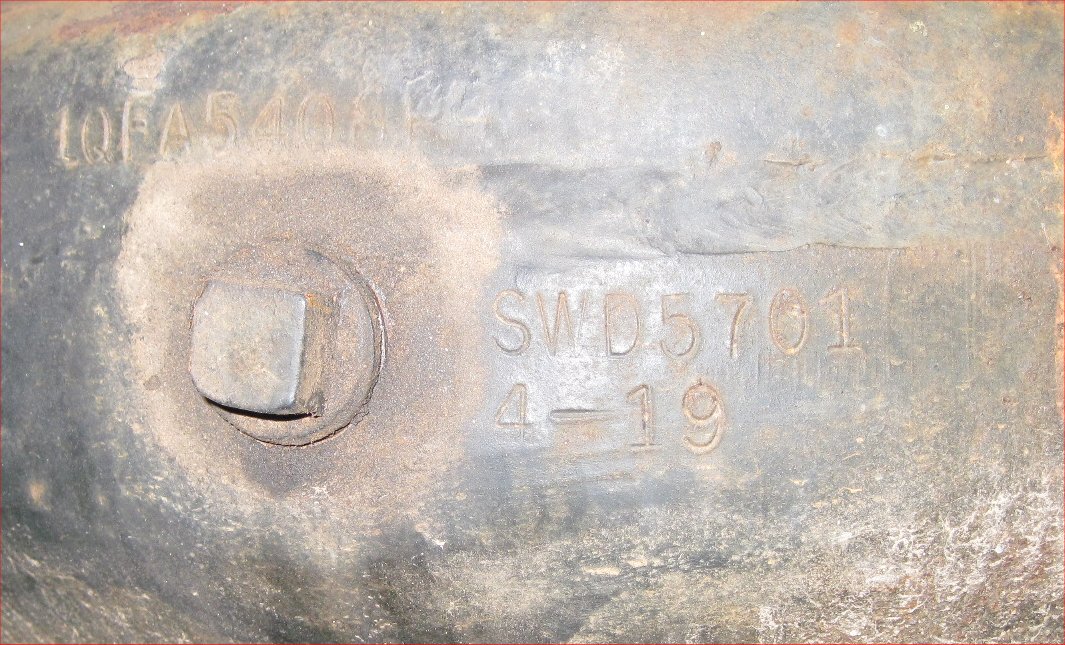

leversole Posted November 4, 2010 Author Share Posted November 4, 2010 Should be stamped just to the right of the plug you fill, and check the oil level at. The is the rear rear axle. The stamping will be fairly large, about 1/2 inch tall. RobFound 'em...Do they give anyone a cluse as to what the weight rating or ratio might be?Thanks Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66320 Share on other sites More sharing options...
Rob Posted November 4, 2010 Share Posted November 4, 2010 Found 'em...Do they give anyone a cluse as to what the weight rating or ratio might be?Thanks38,000# suspension. I suspect someone has changed something as the drive axles appear to be two piece using the acorn style cap on the driven ends. The axel ratio will be stamped into the flat pad area just to the left side of the driveshaft yoke usually at the top rt. side of this pad. Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66323 Share on other sites More sharing options...
Bobby Covert Posted November 4, 2010 Share Posted November 4, 2010 My 864 is long gone and I never met it. Quote Link to comment https://www.bigmacktrucks.com/topic/16351-frame-serial-number/#findComment-66340 Share on other sites More sharing options...
