Rob Posted August 6, 2011 Share Posted August 6, 2011 Tonight I was building up my new transmission to slip back into the winch truck this weekend. I noticed when attempting to run the air plumbing the air line fittings on the new trans are 5/32nds, where the former was 1/8th. I have a new NOS 4900 shift knob I plan to use and it is threaded for the 1/8 plastic lines. I can remove the brass fittings from the former transmission and swap them without problem as the threads are the same, (1/8th-27npt), or adapt the shift knob for larger lines.Do I need the higher airflow to facilitate the range and splitter functions faster than the 1/8th plastic line can supply? If not why was the change made? I'm making the broad assumption the change was to hasten the time for mechanical operation of the aforementioned items.Thanks,Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/20066-air-lines-differ/ Share on other sites More sharing options...
other dog Posted August 6, 2011 Share Posted August 6, 2011 That's right, I forgot about that! I got a new '85 cabover KW and that was the year they moved the shift lever up on the dog house. It worked by cables instead ofa shaft and thegearshift was real short and hard to shift. I had one of the old type range selector valves so I put a 4 or 6'' extension on the gear shift, old typeshift knob- one of those in the mixer now- attached the range selector valve with hose clamps, then found the air lines were bigger.I ended up getting it to work but I don't remember what I did, knowing me it probably involved bubble gum, silicone, duct tape, paper clips,etc. -probably not theway you'd want to go! Never had any problems with it though. This was a 9 speed, not a 13.I do still have an old range selector or 2, but you'd need an old type 13 speed knob for the splitter. Quote Producer of poorly photo-chopped pictures since 1999. Link to comment https://www.bigmacktrucks.com/topic/20066-air-lines-differ/#findComment-83248 Share on other sites More sharing options...
Rob Posted August 6, 2011 Author Share Posted August 6, 2011 Think I'm gonna go ahead and plumb it with 1" sandblaster hose. That way not only will it shift in the blink of an eye, the hose will never wear out.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/20066-air-lines-differ/#findComment-83263 Share on other sites More sharing options...
other dog Posted August 6, 2011 Share Posted August 6, 2011 Think I'm gonna go ahead and plumb it with 1" sandblaster hose. That way not only will it shift in the blink of an eye, the hose will never wear out.Robyou might want to put a pressure regulator on it then or it might blow the sides of the transmission out. Quote Producer of poorly photo-chopped pictures since 1999. Link to comment https://www.bigmacktrucks.com/topic/20066-air-lines-differ/#findComment-83265 Share on other sites More sharing options...
Rob Posted August 6, 2011 Author Share Posted August 6, 2011 Should be alright cause most sandblasting is performed between 100-125psig with hose rated apropriately. Volume performs the task along with pressure.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/20066-air-lines-differ/#findComment-83266 Share on other sites More sharing options...

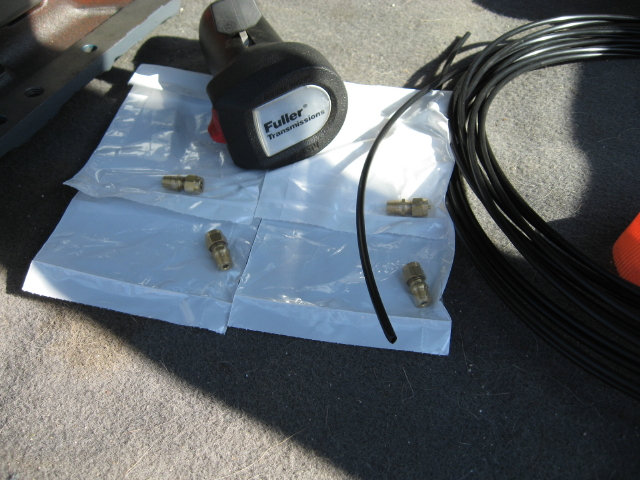

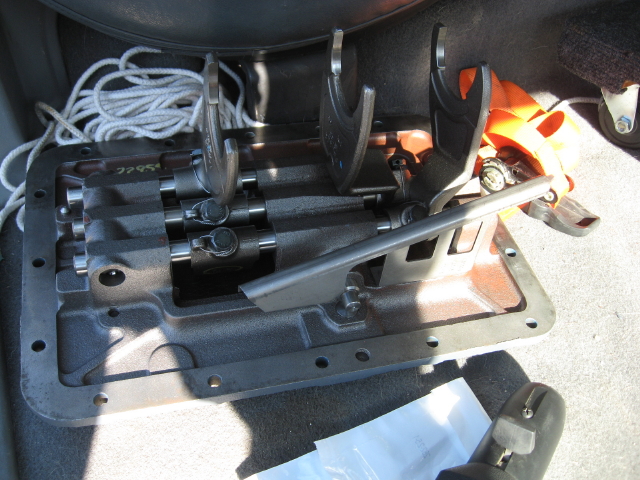

Rob Posted August 14, 2011 Author Share Posted August 14, 2011 Well I decided to purchase new fittings for the 4900 series shift knob in the 5/32nds size to fit the existing fittings on the trans. Bought 50 ft. of the air line so that ought to cover it with a little left over.The left over top shift cover for the RTO series of trans will be kept as it is all new including forks, rails, and all hardware. I'll use it in another trans.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/20066-air-lines-differ/#findComment-83683 Share on other sites More sharing options...
ducky698 Posted August 15, 2011 Share Posted August 15, 2011 Hi, the spicer has 1/8 fittings with 1/4inch air line. you could all ways go up to that?Grant Quote Link to comment https://www.bigmacktrucks.com/topic/20066-air-lines-differ/#findComment-83769 Share on other sites More sharing options...
