burnin oil Posted October 4, 2011 Share Posted October 4, 2011 I got the 51 LJT home this weekend and checked the engine serial number. It should be a Lanova but the serial number is END 673 164 93. Shouldn't a Lanova be an END 672? I bought the truck from the second owners son who swears the motor is original. I found some records in the truck showing the heads where swapped in 63 or 64 with 90k miles so I dought the motor was changed before it came to the previous owner. Any help would be appreciated. Quote Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/ Share on other sites More sharing options...
theakerstwo Posted October 4, 2011 Share Posted October 4, 2011 Show us some close up photos of the engine and we can tell you what you got. glenn Quote glenn akers Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87530 Share on other sites More sharing options...
burnin oil Posted October 4, 2011 Author Share Posted October 4, 2011 Which side do you need Glenn? Its mostly grimm under the hood. I can snap a couple tommorow when its light out. Quote Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87532 Share on other sites More sharing options...

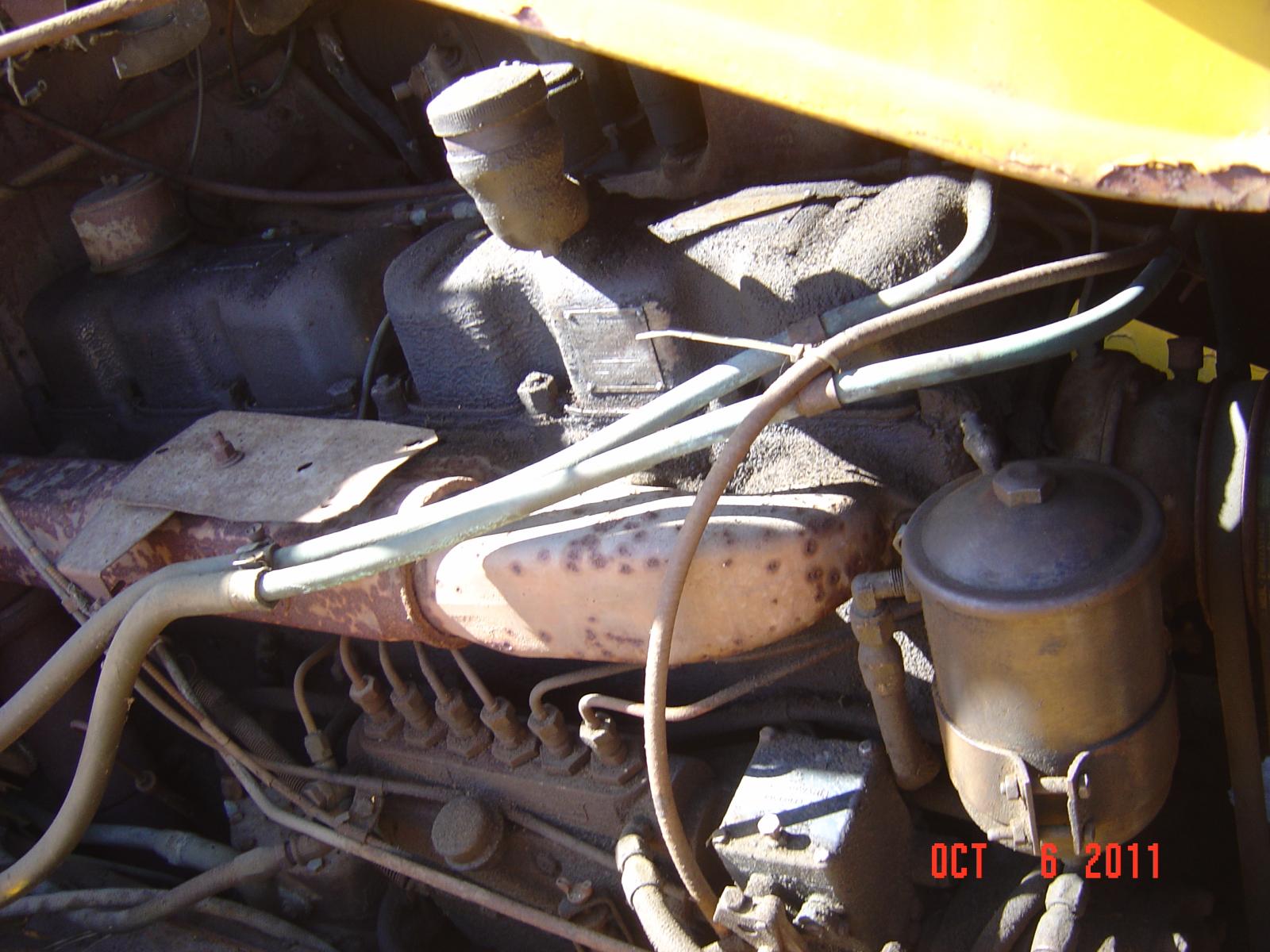

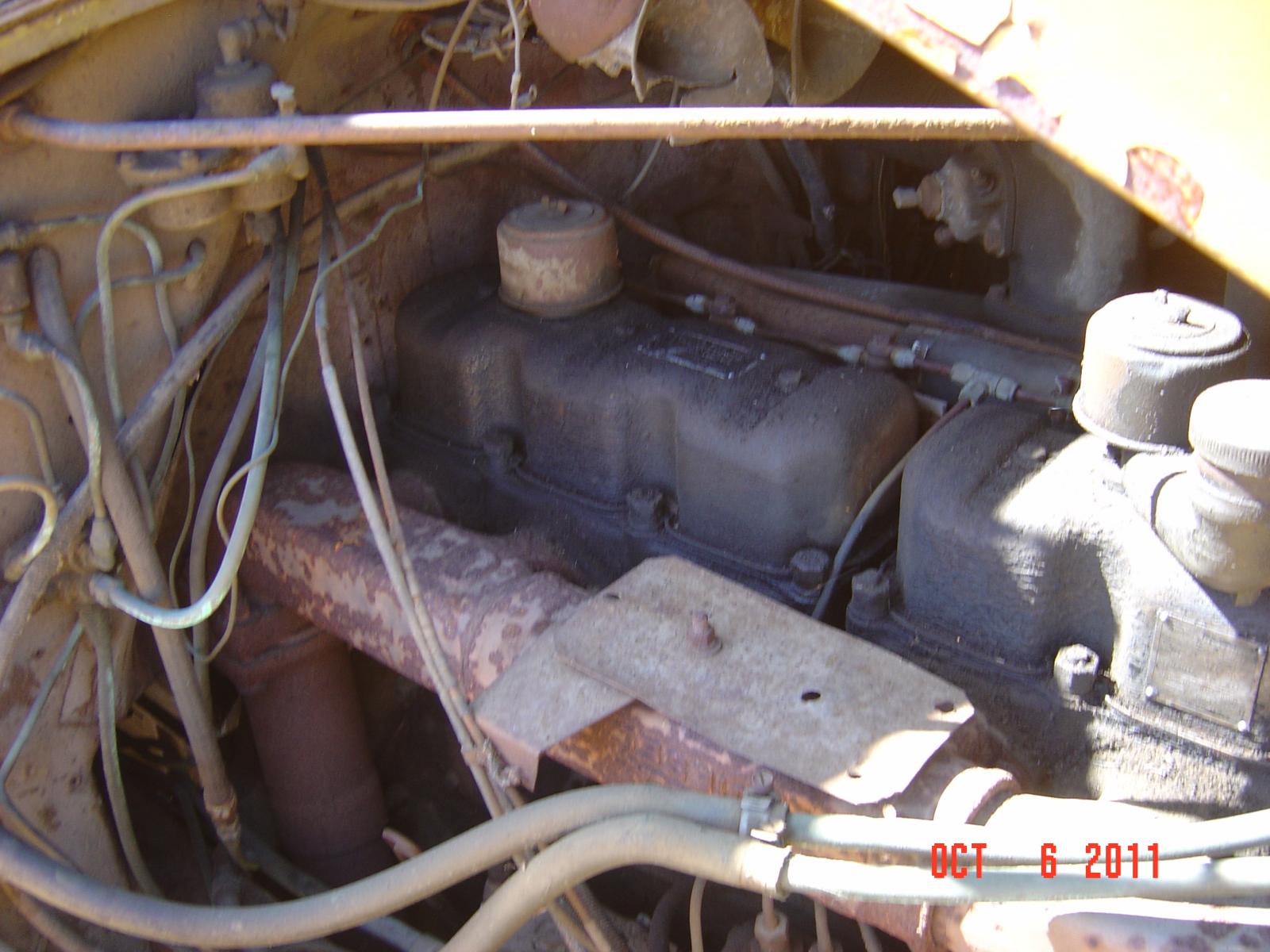

burnin oil Posted October 7, 2011 Author Share Posted October 7, 2011 got a few pics. I hope this is what ya need. Quote Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87786 Share on other sites More sharing options...

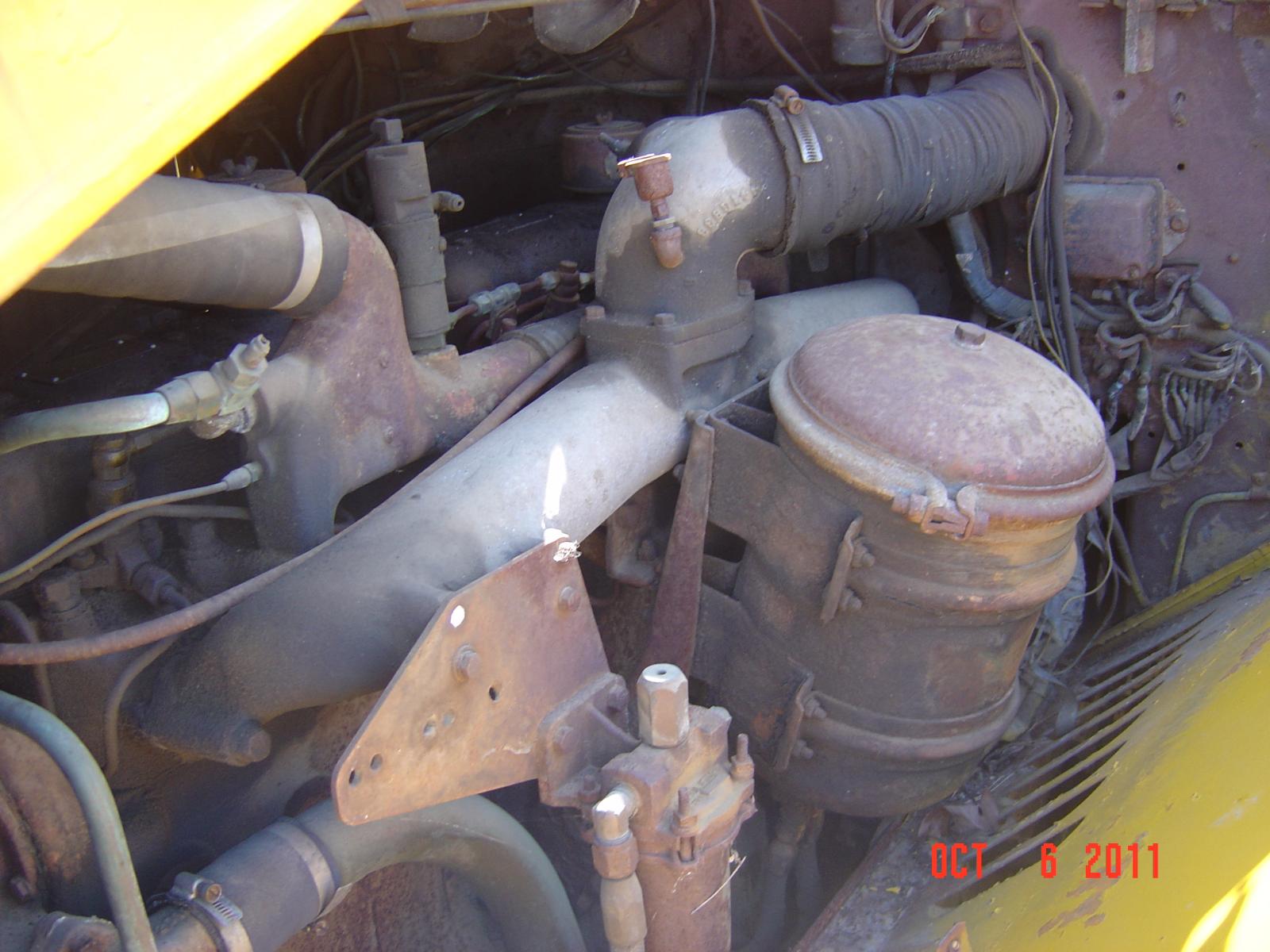

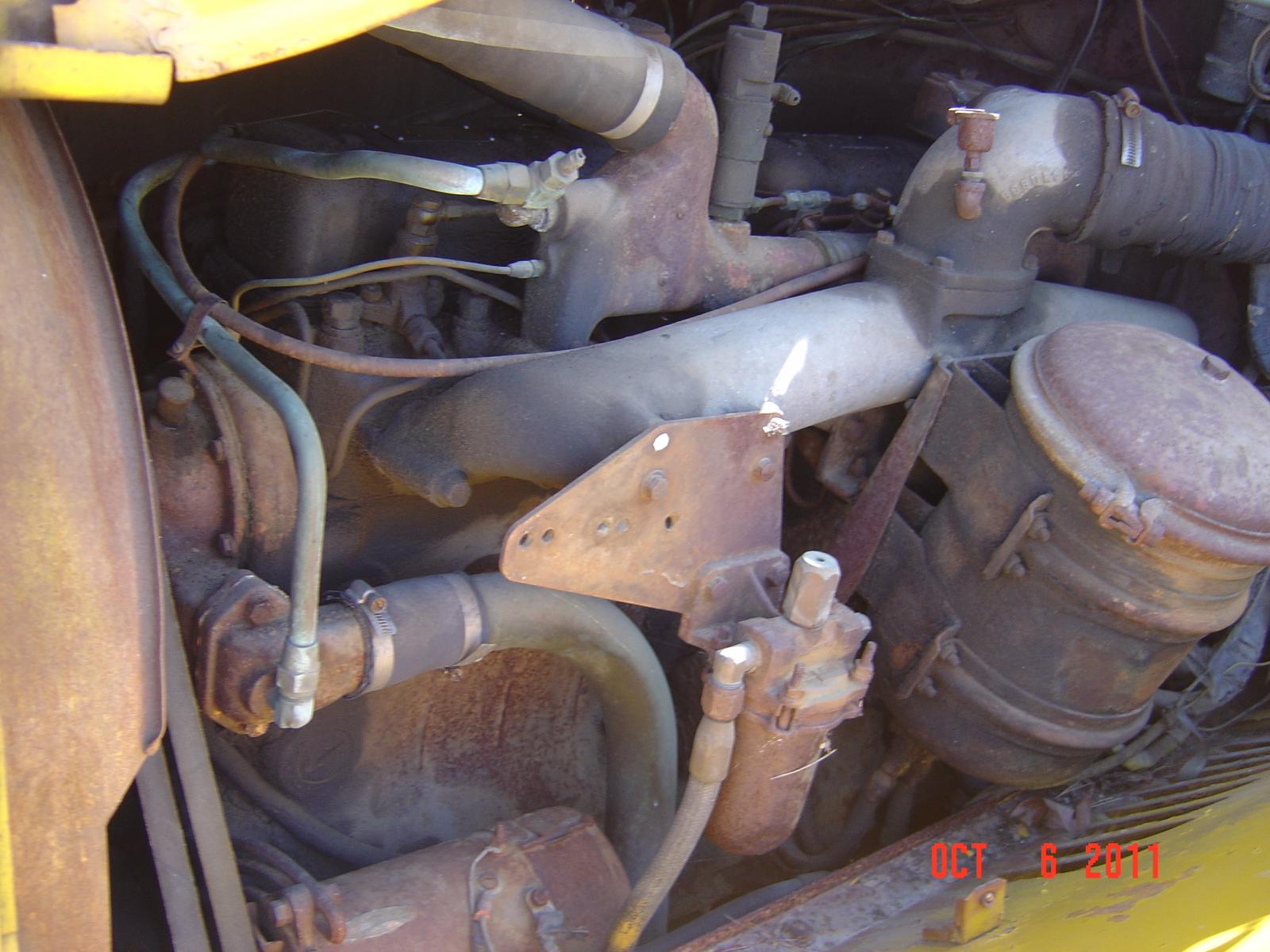

burnin oil Posted October 7, 2011 Author Share Posted October 7, 2011 And 2 more. Quote Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87787 Share on other sites More sharing options...
Rob Posted October 7, 2011 Share Posted October 7, 2011 That appears to be as you suspect an END-673 Mack diesel engine. First natural aspirated one I've seen with a Woodward hydraulic governor however.I've seen a few END-672 engines and they look pretty much the same to me as an END-673.All the Lanova engines I've seen are an END-510.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87798 Share on other sites More sharing options...
burnin oil Posted October 7, 2011 Author Share Posted October 7, 2011 Thanks. Where the 672's marked as 672 or 673? The motor does say Thermodyne on the valve cover. Quote Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87820 Share on other sites More sharing options...
Rob Posted October 7, 2011 Share Posted October 7, 2011 Thanks. Where the 672's marked as 672 or 673? The motor does say Thermodyne on the valve cover.The END-672 engines were stamped just like the END-673 series. From what I've seen in the exact place of the timing covers housing. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87821 Share on other sites More sharing options...
shortstack Posted October 7, 2011 Share Posted October 7, 2011 I'm not as familiar with the older Macks. What is a Lanova engine? Trey Quote Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87824 Share on other sites More sharing options...
burnin oil Posted October 7, 2011 Author Share Posted October 7, 2011 Lanova's were the first mack engines from the 30's. There was a 510 and 672 motor. I don't know anything about the 510 but the 672 had indirect injection rated at 150HP. When they upgraded the motor in 53 it got direct injection and became known as END-673. probably a few other small differences also. Quote Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87827 Share on other sites More sharing options...
Rob Posted October 7, 2011 Share Posted October 7, 2011 On the END-510 engine the injectors were side mounted like a 220 Cummins. They injected fuel into a precombustion chamber that was the patented "Lanova" design. I have heard the END-672 engine was similar but as I've said it looked very similar to an END-673 to me. Can't say I paid too much attention as to injector placement, but it's been several years since I've even seen one.A friend has an END-510 in an A-51 chassis and it really does not look like an END-672, or END-673.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87829 Share on other sites More sharing options...
shortstack Posted October 7, 2011 Share Posted October 7, 2011 Thanks! That was my next question as to when Mack started making their own engines. Rob now that you mention it, seems I've heard somewhere before about the precombustion chamber design just can't remember where. Trey Quote Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87847 Share on other sites More sharing options...
Rob Posted October 8, 2011 Share Posted October 8, 2011 I got the 51 LJT home this weekend and checked the engine serial number. It should be a Lanova but the serial number is END 673 164 93. Shouldn't a Lanova be an END 672? I bought the truck from the second owners son who swears the motor is original. I found some records in the truck showing the heads where swapped in 63 or 64 with 90k miles so I dought the motor was changed before it came to the previous owner. Any help would be appreciated.The Lanova design is spoken of about midway down the page in the "Air Cell Design" of indirect injection.Robhttp://en.wikipedia.org/wiki/Indirect_injection Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/20867-can-someone-verify-this-engine-serial-number/#findComment-87883 Share on other sites More sharing options...
