leversole Posted December 28, 2011 Share Posted December 28, 2011 What are the main differences between the RW6's and RW7's? And within the series, as the numbers go up does that mean more heavy duty?Thanks Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/ Share on other sites More sharing options...
Rob Posted December 28, 2011 Share Posted December 28, 2011 What are the main differences between the RW6's and RW7's? And within the series, as the numbers go up does that mean more heavy duty?ThanksBout all I know is the RW6 series used 9" frame rails, and the RW7 series used 10" rails.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95698 Share on other sites More sharing options...
David Posted December 28, 2011 Share Posted December 28, 2011 The RW6xx has 1/4" rails and the RW7xx has 3/8". Both had a second member option. Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95710 Share on other sites More sharing options...
Pawel Posted December 28, 2011 Share Posted December 28, 2011 Now that's very interesting! Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95757 Share on other sites More sharing options...
David Posted December 28, 2011 Share Posted December 28, 2011 The RW6xx has 1/4" rails and the RW7xx has 3/8". Both had a second member option.This applies to the Superliner II. I don't know if there was a RW7xx for the early models. Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95766 Share on other sites More sharing options...
Superdog Posted December 28, 2011 Share Posted December 28, 2011 This applies to the Superliner II. I don't know if there was a RW7xx for the early models.The early Superliners were all RW7xx models.They were RWS7xx for the steel frame and RWL7xx for the aluminum frame. Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95775 Share on other sites More sharing options...
Pawel Posted December 29, 2011 Share Posted December 29, 2011 Really cool info here! Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95840 Share on other sites More sharing options...
shortstack Posted December 29, 2011 Share Posted December 29, 2011 What's the easiest way to tell a Superliner I from a II just at a glance? Is that when they went to square headlights or are there other ways to tell? Trey Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95861 Share on other sites More sharing options...
Rob Posted December 29, 2011 Share Posted December 29, 2011 The hood for certain but the frame, and the steering gear mounting was different. The Superliner 1 used a steering axle mounted steering gear. The Superliner II used a frame mounted steering gear along with rectangular headlamps.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95874 Share on other sites More sharing options...
David Posted December 29, 2011 Share Posted December 29, 2011 The holes in the bumper are very different because of the tow pins located in the spring hangers on the Superliner II. Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95884 Share on other sites More sharing options...
shortstack Posted December 29, 2011 Share Posted December 29, 2011 What is it about the hood that's different? I was wondering if you couldn't get real close to one other than the headlights if there was a way to tell them apart. Trey Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95896 Share on other sites More sharing options...
David Posted December 29, 2011 Share Posted December 29, 2011 What is it about the hood that's different? I was wondering if you couldn't get real close to one other than the headlights if there was a way to tell them apart. TreyThe hoods appearance is the same. The holes in the bumpers for the tow hooks are different enough that you can tell from a distance. Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95899 Share on other sites More sharing options...
shortstack Posted December 30, 2011 Share Posted December 30, 2011 Okay thanks! I'm guessing since the frame is wider they are just further apart? Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95940 Share on other sites More sharing options...

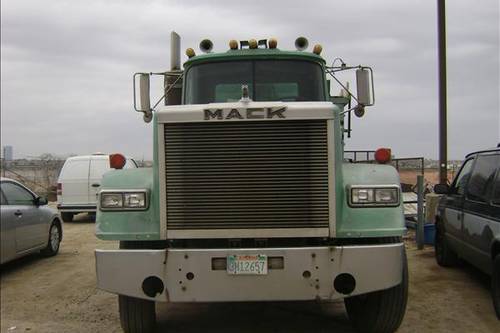

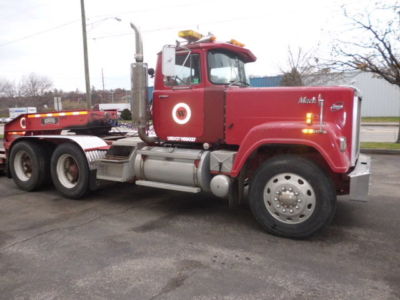

David Posted December 30, 2011 Share Posted December 30, 2011 The second picture is Superliner II headlights and a Superliner I bumper. Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95957 Share on other sites More sharing options...
David Posted December 30, 2011 Share Posted December 30, 2011 The "Deep" or "Extended" bumper on the Superliner II is the exception. It covers the tow pin on the front of the spring hanger. Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95963 Share on other sites More sharing options...
shortstack Posted December 30, 2011 Share Posted December 30, 2011 Thanks David. I can see the difference now and I sure enjoyed seeing more pictures! Trey Quote Link to comment https://www.bigmacktrucks.com/topic/22349-superliner-models/#findComment-95985 Share on other sites More sharing options...
