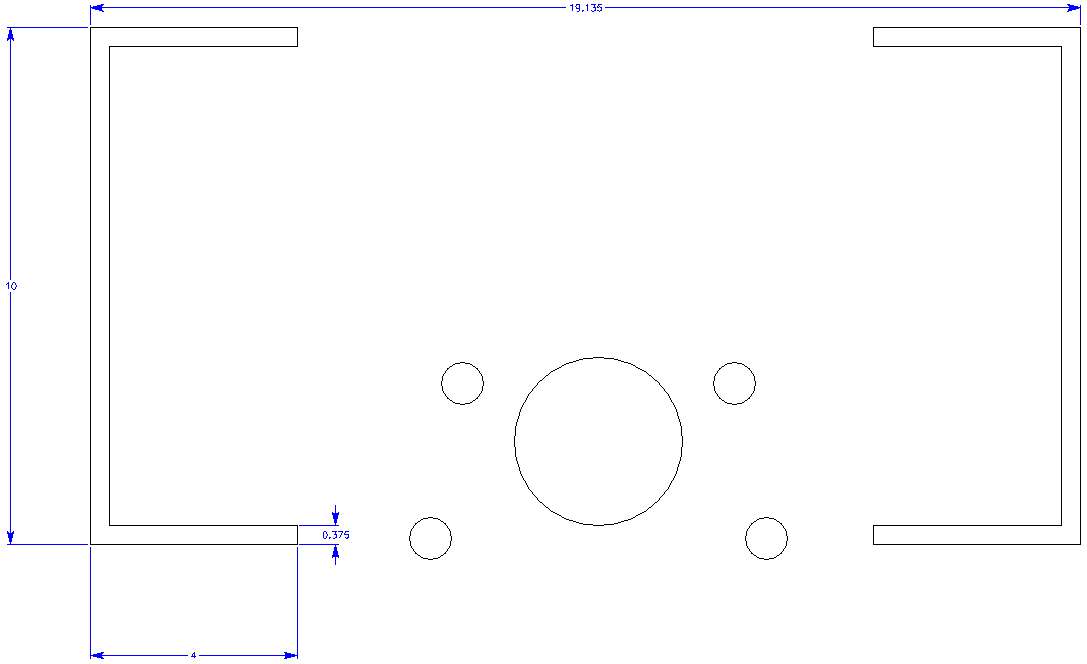

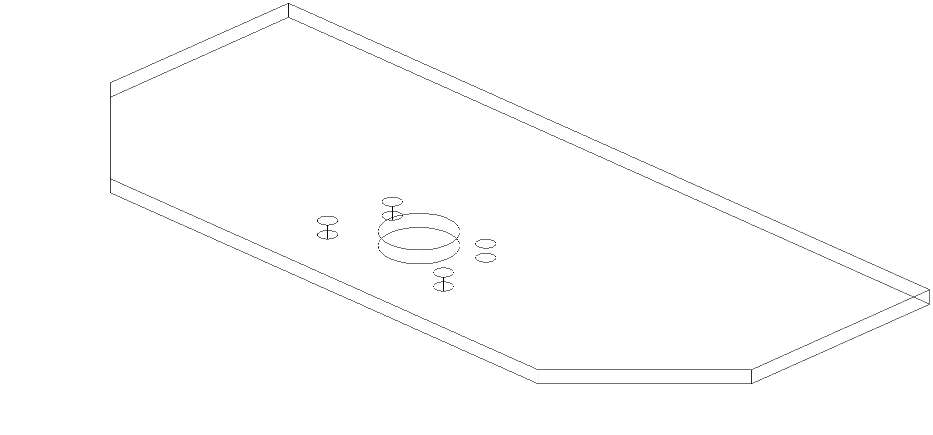

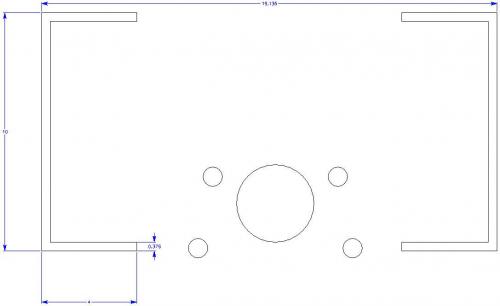

ThaddeusW Posted February 17, 2012 Share Posted February 17, 2012 Hey everyone,I got my hands on a really nice drafting program here at work, called Graphite and its developed by Ashlar Vellum. I figure I can start designing a few things for the truck. I am not going to be home this weekend so I cant measure my trucks rails.I need to know the following for a B61:-Outside width between the rails-Rail height-Rail thickness-Rail flange widthExample frame rail cross section I want to make (ignore the hole pattern in the middle I was copying one from a Holland data sheet.)Example Pintle hook plate (I know you can buy these prefabbed but this is more of an exercise for me) Quote -Thad What America needs is less bull and more Bulldog! Link to comment https://www.bigmacktrucks.com/topic/23318-b-model-frame-dimensions/ Share on other sites More sharing options...
ThaddeusW Posted February 18, 2012 Author Share Posted February 18, 2012 Aw come on nobody can give me a single dimension! Stop harassing Rob and Randy and post some numbers! Quote -Thad What America needs is less bull and more Bulldog! Link to comment https://www.bigmacktrucks.com/topic/23318-b-model-frame-dimensions/#findComment-102737 Share on other sites More sharing options...
Rob Posted February 18, 2012 Share Posted February 18, 2012 Aw come on nobody can give me a single dimension! Stop harassing Rob and Randy and post some numbers!Hi Tad, go back to my post about the 359 rails as there is a drawing in there with the dimensions of my B61. Most B model I've seen have a nine inch frame with a 3.25" flange top and bottom if single frame models. My B62SX has the same out dimensions but it double framed front to rear.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/23318-b-model-frame-dimensions/#findComment-102743 Share on other sites More sharing options...
ThaddeusW Posted February 19, 2012 Author Share Posted February 19, 2012 Hi Tad, go back to my post about the 359 rails as there is a drawing in there with the dimensions of my B61. Most B model I've seen have a nine inch frame with a 3.25" flange top and bottom if single frame models. My B62SX has the same out dimensions but it double framed front to rear.RobThanks Rob, appreciate it. Quote -Thad What America needs is less bull and more Bulldog! Link to comment https://www.bigmacktrucks.com/topic/23318-b-model-frame-dimensions/#findComment-102754 Share on other sites More sharing options...
ThaddeusW Posted February 19, 2012 Author Share Posted February 19, 2012 Any of the frame rail spacing? Quote -Thad What America needs is less bull and more Bulldog! Link to comment https://www.bigmacktrucks.com/topic/23318-b-model-frame-dimensions/#findComment-102767 Share on other sites More sharing options...
Rob Posted February 19, 2012 Share Posted February 19, 2012 Any of the frame rail spacing?33.5" Outside to Outside measurements on all of them.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/23318-b-model-frame-dimensions/#findComment-102769 Share on other sites More sharing options...
