leversole Posted February 15, 2013 Share Posted February 15, 2013 I bought a new thermocouple for the turbo, it has a short pigtail with two eye terminals...I have about thirty pictures of E6 Engines and all of them have been "spliced" and taped directly into the wire that ruins to the gauge...Does anyone have a photo of a factory setup with what it is supposed to tie too? It looks like it would run to a terminal block or something?!?Thanks Quote Link to comment https://www.bigmacktrucks.com/topic/29957-turbo-exhaust-thermocouple/ Share on other sites More sharing options...

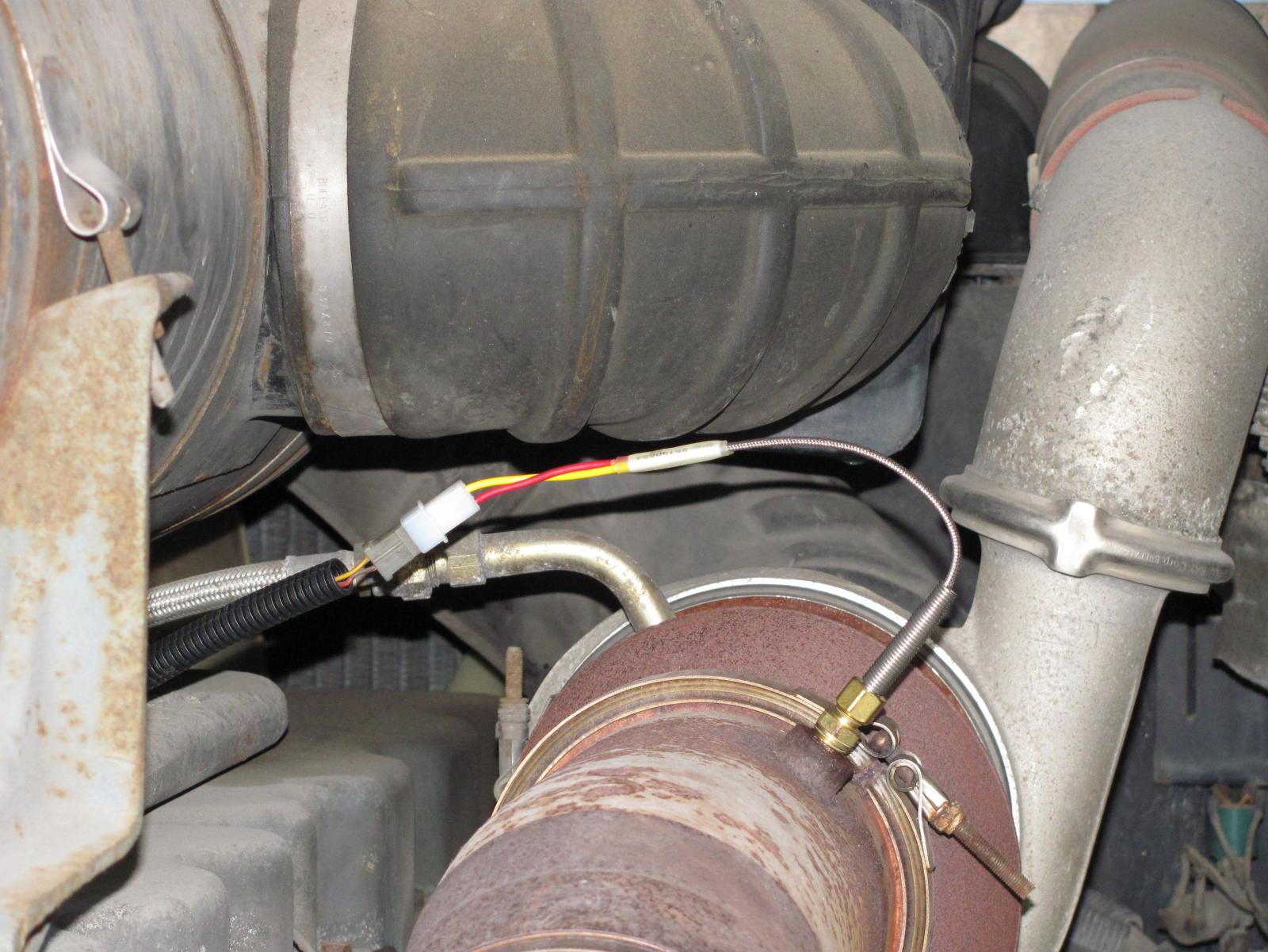

farmer52 Posted February 15, 2013 Share Posted February 15, 2013 My MH has a similar thermocouple connector. The wire from the dash to the engine has the mating connector. If your wire is okay, buy a mating connector and put it on the end of the gauge wire at the engine. Quote Ken PRR Country and Charter member of the "Mack Pack" Link to comment https://www.bigmacktrucks.com/topic/29957-turbo-exhaust-thermocouple/#findComment-164522 Share on other sites More sharing options...
leversole Posted February 15, 2013 Author Share Posted February 15, 2013 Looks good and can do that, just wondering what the factory setup looks like!Thanks Ken Quote Link to comment https://www.bigmacktrucks.com/topic/29957-turbo-exhaust-thermocouple/#findComment-164523 Share on other sites More sharing options...
rw613 Posted February 15, 2013 Share Posted February 15, 2013 I bought a new thermocouple for the turbo, it has a short pigtail with two eye terminals...I have about thirty pictures of E6 Engines and all of them have been "spliced" and taped directly into the wire that ruins to the gauge...Does anyone have a photo of a factory setup with what it is supposed to tie too? It looks like it would run to a terminal block or something?!?ThanksI bought a new thermocouple for the turbo, it has a short pigtail with two eye terminals...I have about thirty pictures of E6 Engines and all of them have been "spliced" and taped directly into the wire that ruins to the gauge...Does anyone have a photo of a factory setup with what it is supposed to tie too? It looks like it would run to a terminal block or something?!?Thanksthe harness looks just like the probe you screw them together Quote Link to comment https://www.bigmacktrucks.com/topic/29957-turbo-exhaust-thermocouple/#findComment-164526 Share on other sites More sharing options...
