oldspwr Posted October 26, 2007 Share Posted October 26, 2007 Hi...Does anyone have a picture of the intake manifold side of a Mack 707 gas engine? I am trying to help identify an intake manifold and it looks similar to a Continental 572 I have in a '46 260XW Brockway. Any help would be appreciated. I was told it was for the 707 but really need a pic to help identify it.Thanks,Tom Millard Quote Link to comment https://www.bigmacktrucks.com/topic/3015-mack-707-intake-manifold-question/ Share on other sites More sharing options...
DWaits Posted October 26, 2007 Share Posted October 26, 2007 Tom,I may be wrong so if I am someone correct me.The 707 is similar to the 510, if you have an updraft carburetor the intake manifold will be a three piece system, a right or front half, a left or rear half and a center piece that joins the two halves.I have a picture somewhere and I will see if I can get it for you ASAP.I hope this helps!David Quote 1948 Mack Pumper Link to comment https://www.bigmacktrucks.com/topic/3015-mack-707-intake-manifold-question/#findComment-14716 Share on other sites More sharing options...

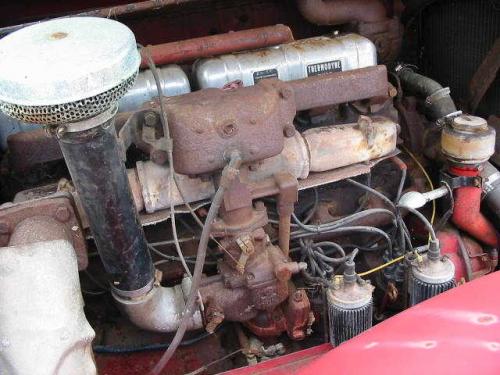

DWaits Posted October 26, 2007 Share Posted October 26, 2007 Hi...Does anyone have a picture of the intake manifold side of a Mack 707 gas engine? I am trying to help identify an intake manifold and it looks similar to a Continental 572 I have in a '46 260XW Brockway. Any help would be appreciated. I was told it was for the 707 but really need a pic to help identify it.Thanks,Tom MillardOk I found the picture I was looking for, this is a ENF510A which is very close to the 707 (I think) anyway you can see what I am telling you about the three peice intake setup. Quote 1948 Mack Pumper Link to comment https://www.bigmacktrucks.com/topic/3015-mack-707-intake-manifold-question/#findComment-14717 Share on other sites More sharing options...
oldspwr Posted October 27, 2007 Author Share Posted October 27, 2007 Ok I found the picture I was looking for, this is a ENF510A which is very close to the 707 (I think) anyway you can see what I am telling you about the three peice intake setup.Hi,Thanks for the picture, I appreciate it...So it looks like the intake manifold has bolt on flanges? The manifold I am trying to identify has large flat washers that go over the outside of it and clamp down between itself and the exhaust manifold.Thanks, Tom Quote Link to comment https://www.bigmacktrucks.com/topic/3015-mack-707-intake-manifold-question/#findComment-14729 Share on other sites More sharing options...
sbrem Posted October 27, 2007 Share Posted October 27, 2007 Here are a few pictures I just took of my 707. If you need a closer picture of anything let me know and I'll get it for you. Quote Link to comment https://www.bigmacktrucks.com/topic/3015-mack-707-intake-manifold-question/#findComment-14734 Share on other sites More sharing options...
