umodelnut Posted March 1, 2013 Share Posted March 1, 2013 Hey Vinster,At a guess, a M-30X or M-35X. Not big enough to be a M-35AX (they were fitted with 18:00x33 tires, 12v71 road oilers & a bigger rad), and too wide in the front to be a M-25X or smaller.RickOh ok. Thank you Rick. Quote Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-168836 Share on other sites More sharing options...
Popular Post daveigou Posted March 1, 2013 Popular Post Share Posted March 1, 2013 Nice thread, Yeah man, 57BCR! not overwhelmed, but certainly enjoying the heck out of it all. Sorry, been very busy in my shop with work for clients, other wise i would have been all over this one from the beginning. The M series was the last of the Mack mining line. Now lets see the predecessor of the M, the LR! The LR chassis replaced the FCSW & FK, FW, with both single & tandem drive units. The LR's also introduced Mack's new "Planidrive" axles. Models included: LR, LV, LVX, LVXT, LRX, LRSW, LRVSW, LYSW.RickAycock LRVSW 4 Quote See my Flickr photostream page http://www.flickr.com/photos/96692978@N05/ Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-168862 Share on other sites More sharing options...
Popular Post MACK MAN Posted March 1, 2013 Popular Post Share Posted March 1, 2013 I took thises pics last year we went to the Link truck auction t bid on this 1972 M 75 SX,old Corbett truck out of NJ.Just to give you a idea my girlfriend is 5'11 standing next to the rear tires AL 1 7 Quote Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-168866 Share on other sites More sharing options...
Gmerrill0516 Posted March 1, 2013 Share Posted March 1, 2013 How cool does a set of stacks coming up through the middle of the hood look? Oh yah! What is the engine in that LRVSW? Quote Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-168872 Share on other sites More sharing options...
mackdaddy Posted March 2, 2013 Share Posted March 2, 2013 Here is a baby M sitting in Southern Oregon. There was a fleet of Mack M's at the old Hanna Nickel Mine in Riddle, OR. Quote Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-168876 Share on other sites More sharing options...
Chuck P Posted March 2, 2013 Share Posted March 2, 2013 "The biggest problem with having one as a show truck is that you have to haul it wherever you take it".No problem, just have the show around the truck! 2 Quote "If it's all the sime to you... I'll droyve that tankah" Max Rockatansky (The Road Warrior) Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-168880 Share on other sites More sharing options...
daveigou Posted March 2, 2013 Share Posted March 2, 2013 How cool does a set of stacks coming up through the middle of the hood look? Oh yah! What is the engine in that LRVSW? Cummins NVHB, V-12 1486 cu in natural @ 400 hp. I believe trans is 9 spd w/ torque converter Quote See my Flickr photostream page http://www.flickr.com/photos/96692978@N05/ Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-168889 Share on other sites More sharing options...
Popular Post daveigou Posted March 2, 2013 Popular Post Share Posted March 2, 2013 Bigge M45(by the way, I post only pictures I have taken, please feel free to enjoy and share as you like) 5 Quote See my Flickr photostream page http://www.flickr.com/photos/96692978@N05/ Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-168890 Share on other sites More sharing options...
ap40rocktruck Posted March 2, 2013 Share Posted March 2, 2013 Here is a baby M sitting in Southern Oregon. There was a fleet of Mack M's at the old Hanna Nickel Mine in Riddle, OR.Nice little M-20XRick Quote Richard MarkOwner / Master Model Maker Industrial Model DesignAp40rocktruck Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-168912 Share on other sites More sharing options...
REOGasMackDiesel Posted March 2, 2013 Share Posted March 2, 2013 Were these trucks all rear wheel drive ? ! Or did some come as 6x6 configuration as well ? !Why did they use Cummins and Detroit power plants ? ! These seemed to peak out at 450-500hp, Couldn't Mack hit those numbers yet ? !Why NOT just build an Mack diesel just for these trucks ? They offered them long enough.Mike Quote 1953 REO M48.1962 GMC 3000.1969 AMC AMX-390.1983 AMC Eagle SX/4.1988 AMC Jeep Comanche. Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-168950 Share on other sites More sharing options...
ap40rocktruck Posted March 2, 2013 Share Posted March 2, 2013 Were these trucks all rear wheel drive ? ! Or did some come as 6x6 configuration as well ? !Why did they use Cummins and Detroit power plants ? ! These seemed to peak out at 450-500hp, Couldn't Mack hit those numbers yet ? !Why NOT just build an Mack diesel just for these trucks ?They offered them long enough.MikeYes, well almost every one was rear wheel drive only. The exception being the M-404X or Mack-Pack, it was a 4x4 pivot steer,During the development of the LR series of off highway haulers, and the use of Cummins or DDC power instead of Mack developing new bigger engine all comes down to economics. Since the projected sales of the off highway trucks was & would always be limited, the need to "re-invent the wheel" of big power was simply not cost effective. Thus installing Cummins or DDC power of much larger displacement & horse power (of that time period) made the most sense. Also, please understand that for that time, it was less about the HP of the engine, but rather the torque needed to power thru the planetary axles when hauling the maximum load. Yes, it would seem that the M-series was offered long enough in terms of years, but thet were never produced (or planned to be produced) in the quantities of a B-61. Keep in mind that when the B model hit the market, the engine, transmission, chassis & running gear had already been in production for many years, and had been constantly improved upon . This is normal for high volume production of any product, trucks or otherwise. The LR & M series were just not a high enough volume to warrant the development of bigger engines & transmissions. Mack did pioneer the development of the Planidrive axle, which started out as the wheel end hub reduction added to the largest of time Mack top load axle as used in the LR's. When the M series appeared, the wheel end hub reduction "planidrive" had been improved with the addition of the all new Mack designed & manufactured off highway axle where the diff was now a front load type.Hope this helps,Rick Quote Richard MarkOwner / Master Model Maker Industrial Model DesignAp40rocktruck Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169006 Share on other sites More sharing options...
ap40rocktruck Posted March 2, 2013 Share Posted March 2, 2013 Bigge M45(by the way, I post only pictures I have taken, please feel free to enjoy and share as you like)Dave,Super shots of 1 of the 2 M-45SX's in the Bigge fleet. PM-1 & PM-2, both were originally rock trucks, painted red. Both have DDC 16v-71 for power.Thanks for sharing.Rick Quote Richard MarkOwner / Master Model Maker Industrial Model DesignAp40rocktruck Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169007 Share on other sites More sharing options...
bbigrig Posted March 2, 2013 Share Posted March 2, 2013 MacungieM series were also built in Oakville, Canada along side of the CL350 Quote Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169008 Share on other sites More sharing options...
ap40rocktruck Posted March 2, 2013 Share Posted March 2, 2013 M series were also built in Oakville, Canada along side of the CL350Correct, Those had slipped my mind at the time. The CL-350 is a discussion all to it's own. One of my favorites to wear the Mack name.Rick 1 Quote Richard MarkOwner / Master Model Maker Industrial Model DesignAp40rocktruck Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169011 Share on other sites More sharing options...
other dog Posted March 2, 2013 Share Posted March 2, 2013 Yes, well almost every one was rear wheel drive only. The exception being the M-404X or Mack-Pack, it was a 4x4 pivot steer,During the development of the LR series of off highway haulers, and the use of Cummins or DDC power instead of Mack developing new bigger engine all comes down to economics. Since the projected sales of the off highway trucks was & would always be limited, the need to "re-invent the wheel" of big power was simply not cost effective. Thus installing Cummins or DDC power of much larger displacement & horse power (of that time period) made the most sense. Also, please understand that for that time, it was less about the HP of the engine, but rather the torque needed to power thru the planetary axles when hauling the maximum load. Yes, it would seem that the M-series was offered long enough in terms of years, but thet were never produced (or planned to be produced) in the quantities of a B-61. Keep in mind that when the B model hit the market, the engine, transmission, chassis & running gear had already been in production for many years, and had been constantly improved upon . This is normal for high volume production of any product, trucks or otherwise. The LR & M series were just not a high enough volume to warrant the development of bigger engines & transmissions. Mack did pioneer the development of the Planidrive axle, which started out as the wheel end hub reduction added to the largest of time Mack top load axle as used in the LR's. When the M series appeared, the wheel end hub reduction "planidrive" had been improved with the addition of the all new Mack designed & manufactured off highway axle where the diff was now a front load type.Hope this helps,RickI drove an old Euclid at a quarry for a short while, first job I had when I graduated from high school in 1974, and it had a 4-71 in it. I just hauled rock from the quarry up to the crusher. It had a 10 speed transmission in it, like a duplex, but you never needed but 2 gears, take off in 1st. low and shift to second low and hold it wide open up out of the quarry. Go dump and do it again...and again...and again. Every once in a while i'd get up to 3rd. gear going back down the hill. It was slow, but it got the job done. Quote Producer of poorly photo-chopped pictures since 1999. Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169051 Share on other sites More sharing options...

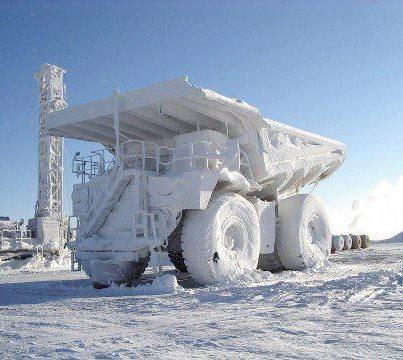

other dog Posted March 2, 2013 Share Posted March 2, 2013 From Facebook- looks chilly there, eh? 1 Quote Producer of poorly photo-chopped pictures since 1999. Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169070 Share on other sites More sharing options...
ap40rocktruck Posted March 2, 2013 Share Posted March 2, 2013 I drove an old Euclid at a quarry for a short while, first job I had when I graduated from high school in 1974, and it had a 4-71 in it. I just hauled rock from the quarry up to the crusher. It had a 10 speed transmission in it, like a duplex, but you never needed but 2 gears, take off in 1st. low and shift to second low and hold it wide open up out of the quarry. Go dump and do it again...and again...and again. Every once in a while i'd get up to 3rd. gear going back down the hill. It was slow, but it got the job done.AHHH That would have been a 10UD, small cab, able to carry 10 ton or so.Rick Quote Richard MarkOwner / Master Model Maker Industrial Model DesignAp40rocktruck Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169080 Share on other sites More sharing options...

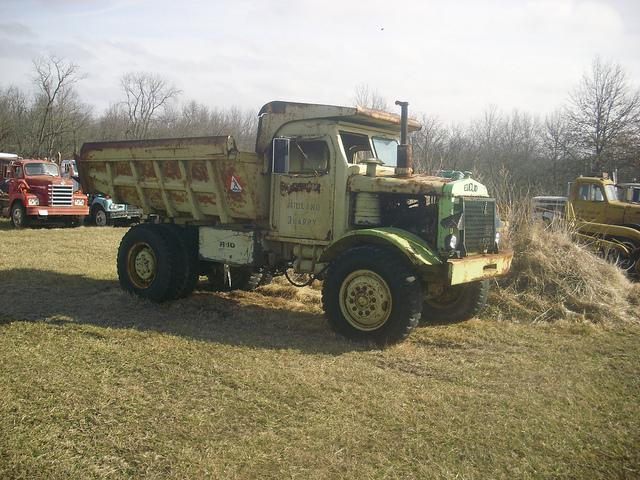

other dog Posted March 2, 2013 Share Posted March 2, 2013 AHHH That would have been a 10UD, small cab, able to carry 10 ton or so.RickI had no idea. It was very small by today's standards though, wish i'd known what a camera was back then. I just did a google image search for Euclid trucks, and this looked most like what I remember. The one I drove had the stack coming through the hood- no muffler,just a straight pipe,about 2 feets tall. Quote Producer of poorly photo-chopped pictures since 1999. Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169082 Share on other sites More sharing options...
ap40rocktruck Posted March 3, 2013 Share Posted March 3, 2013 I had no idea. It was very small by today's standards though, wish i'd known what a camera was back then. I just did a google image search for Euclid trucks, and this looked most like what I remember. The one I drove had the stack coming through the hood- no muffler,just a straight pipe,about 2 feets tall.Euc55.jpgYep, that is all UD, little 10 toner. 1 Quote Richard MarkOwner / Master Model Maker Industrial Model DesignAp40rocktruck Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169124 Share on other sites More sharing options...
REOGasMackDiesel Posted March 3, 2013 Share Posted March 3, 2013 That looks like the truck I seen a GMC 478ci V6 gasser in !Mike Quote 1953 REO M48.1962 GMC 3000.1969 AMC AMX-390.1983 AMC Eagle SX/4.1988 AMC Jeep Comanche. Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169370 Share on other sites More sharing options...

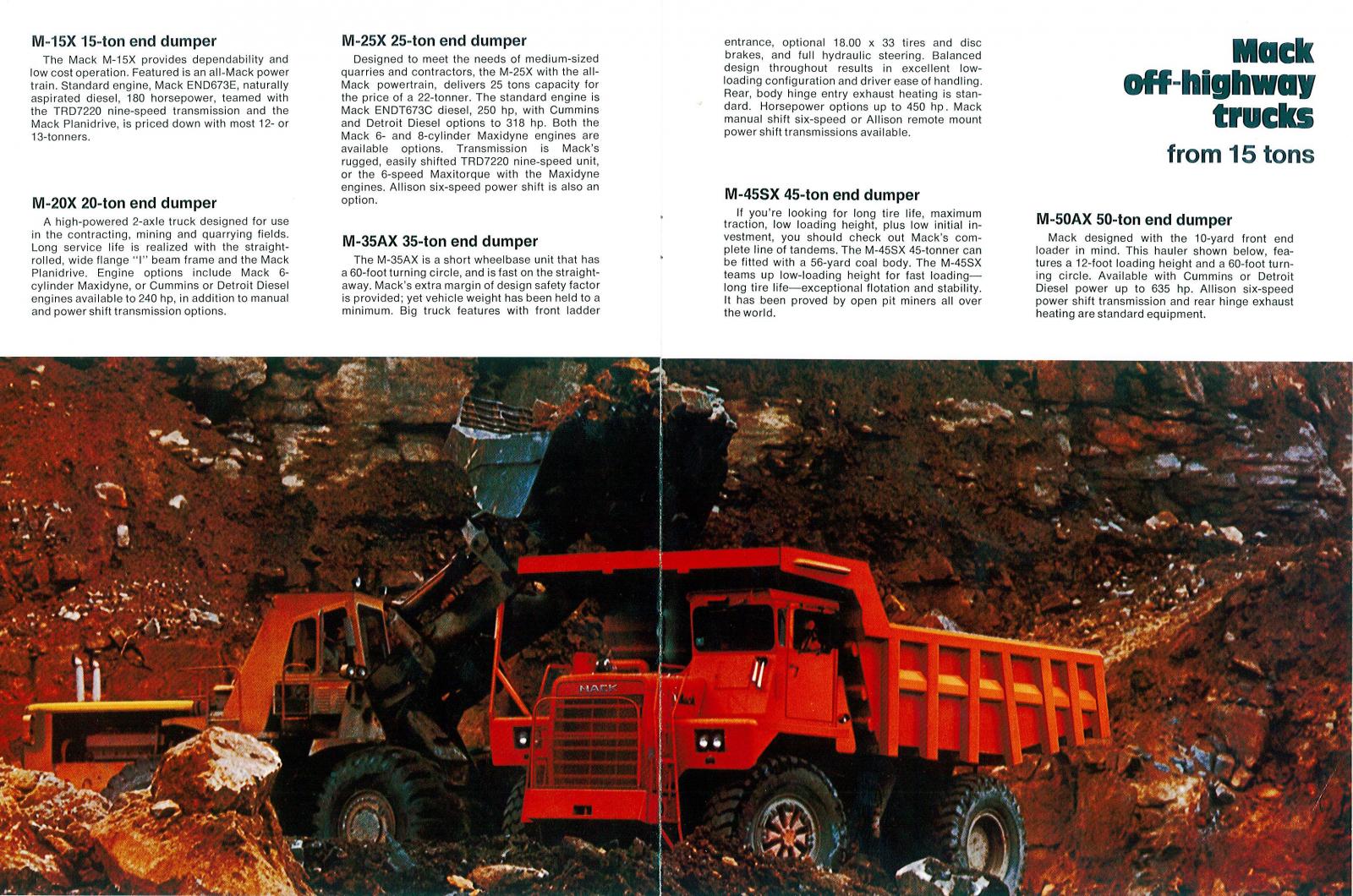

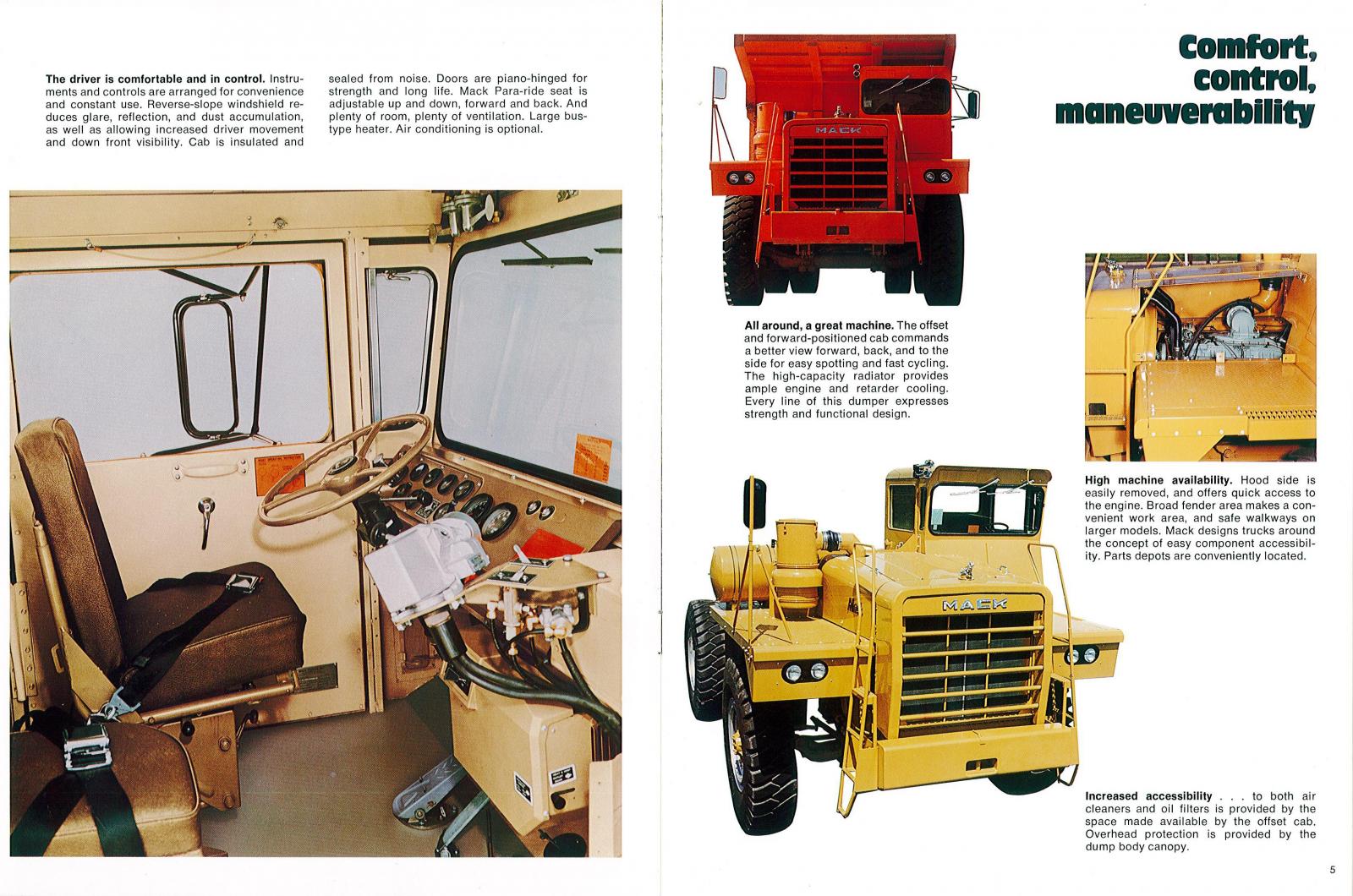

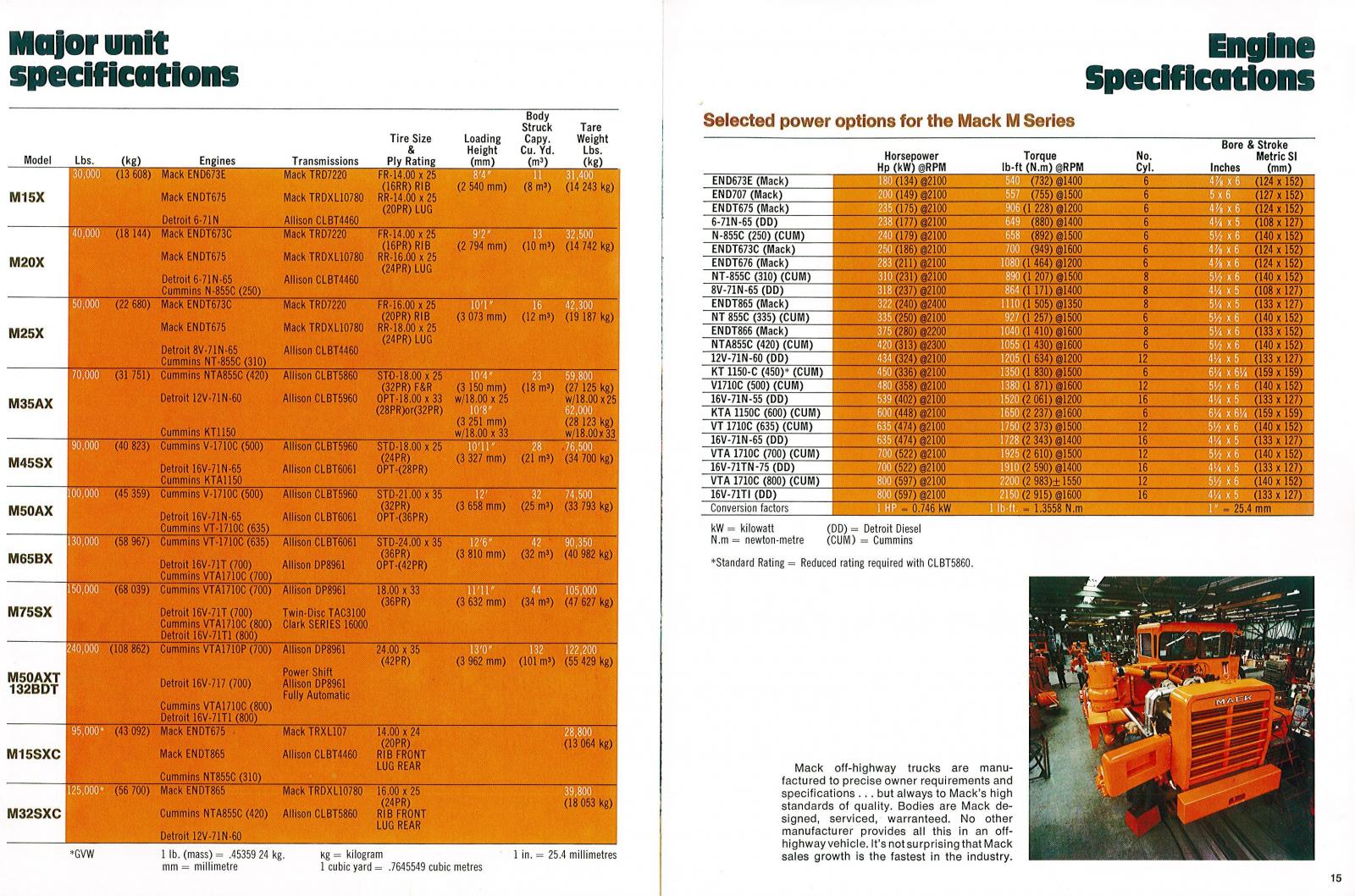

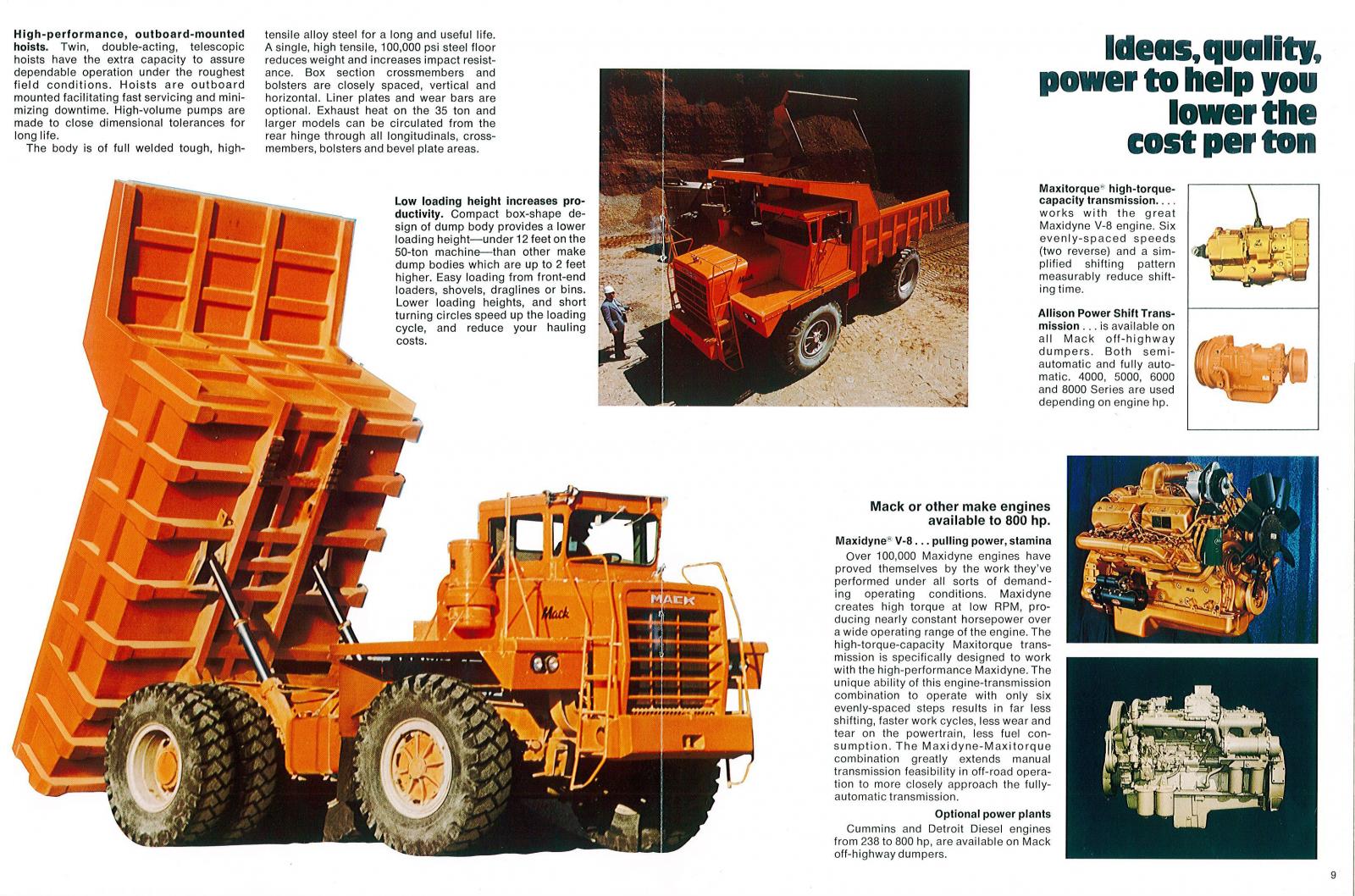

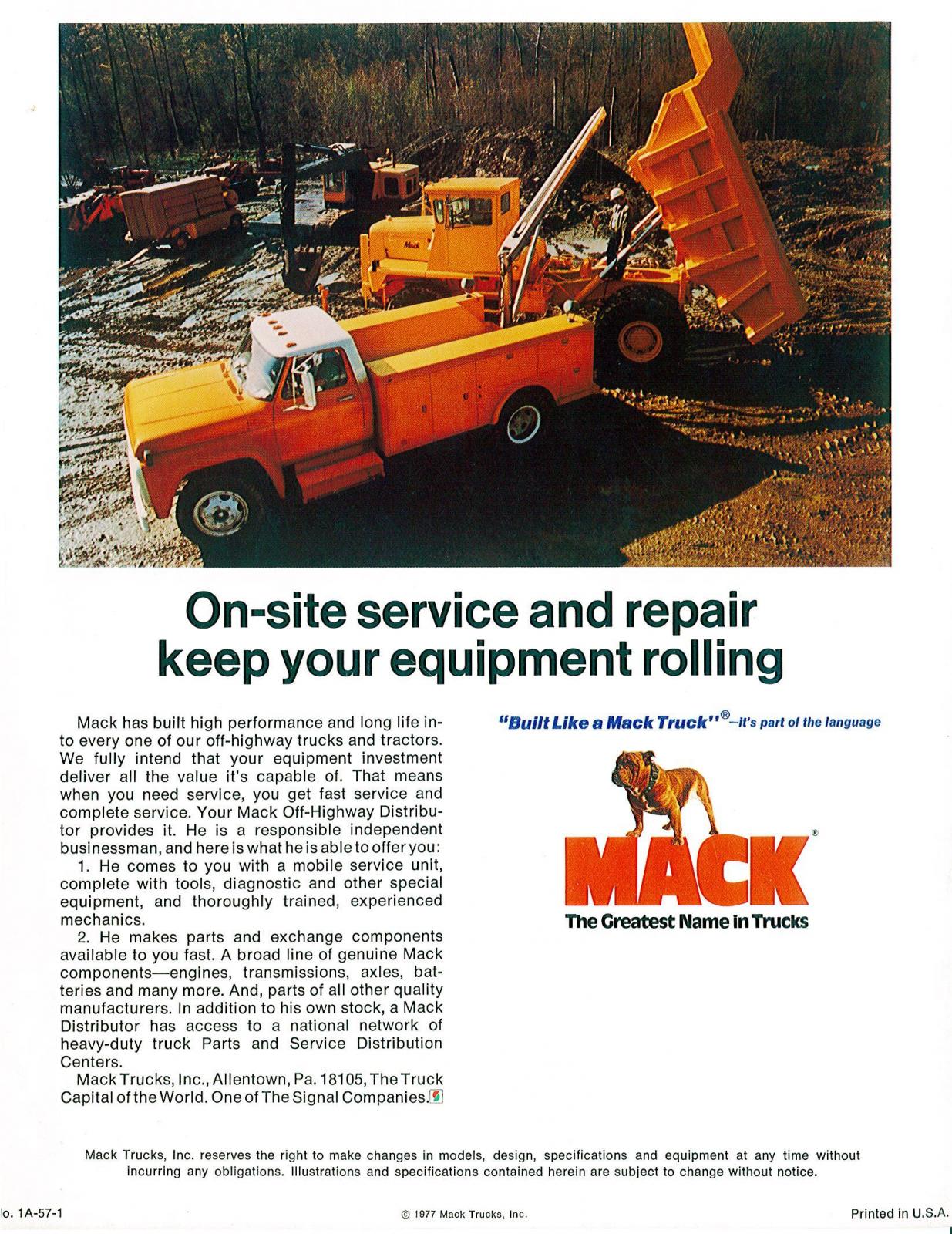

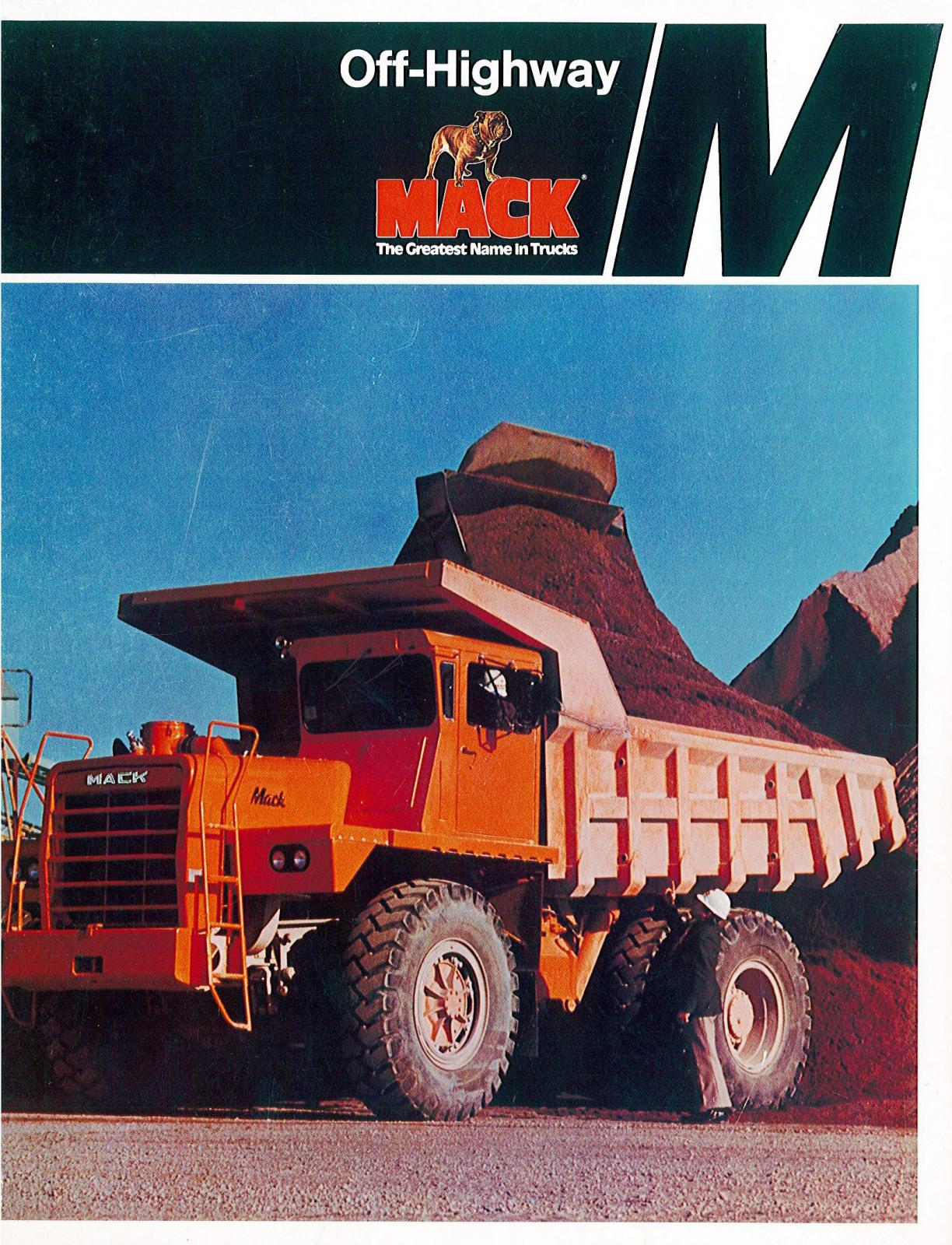

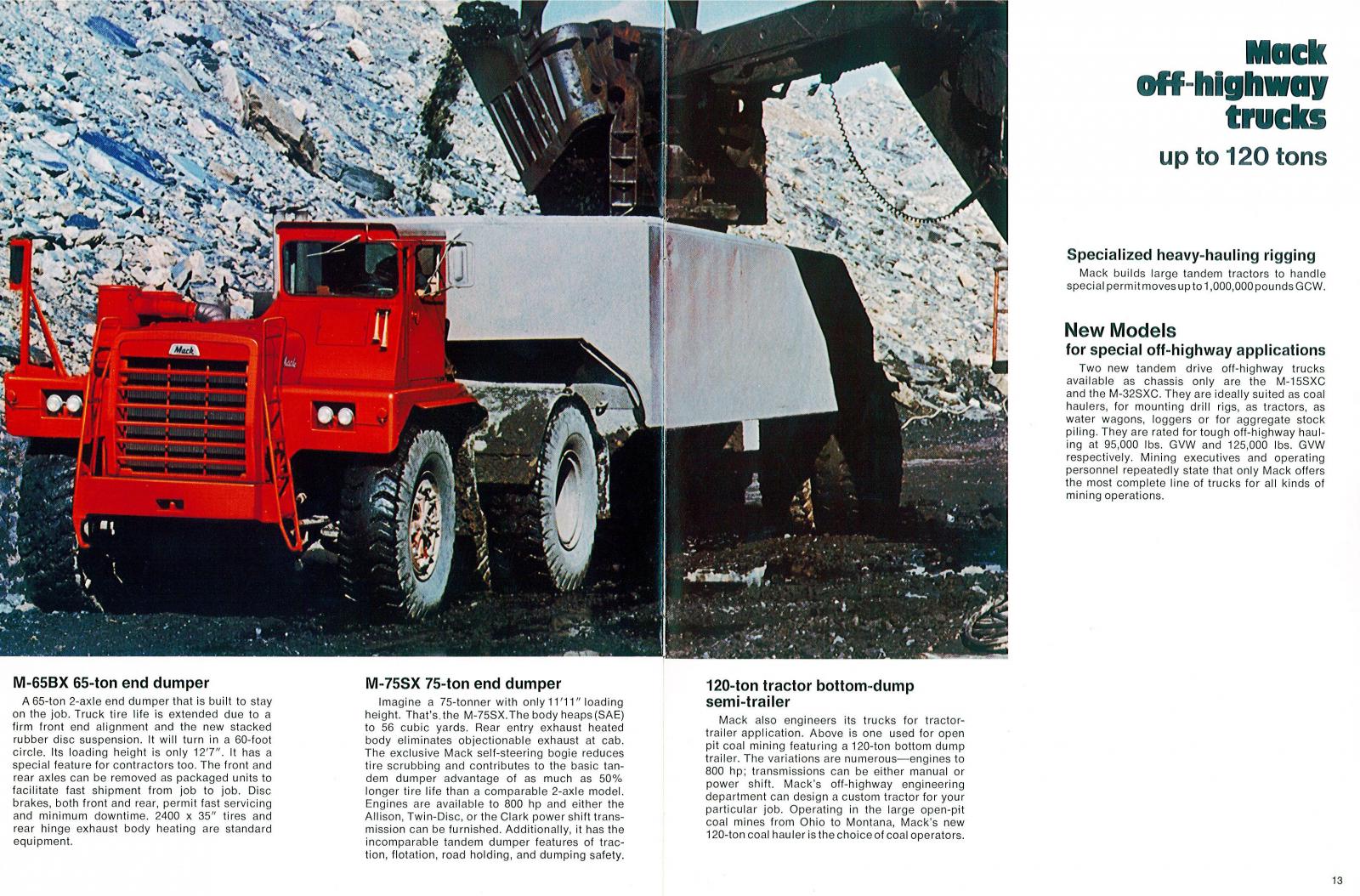

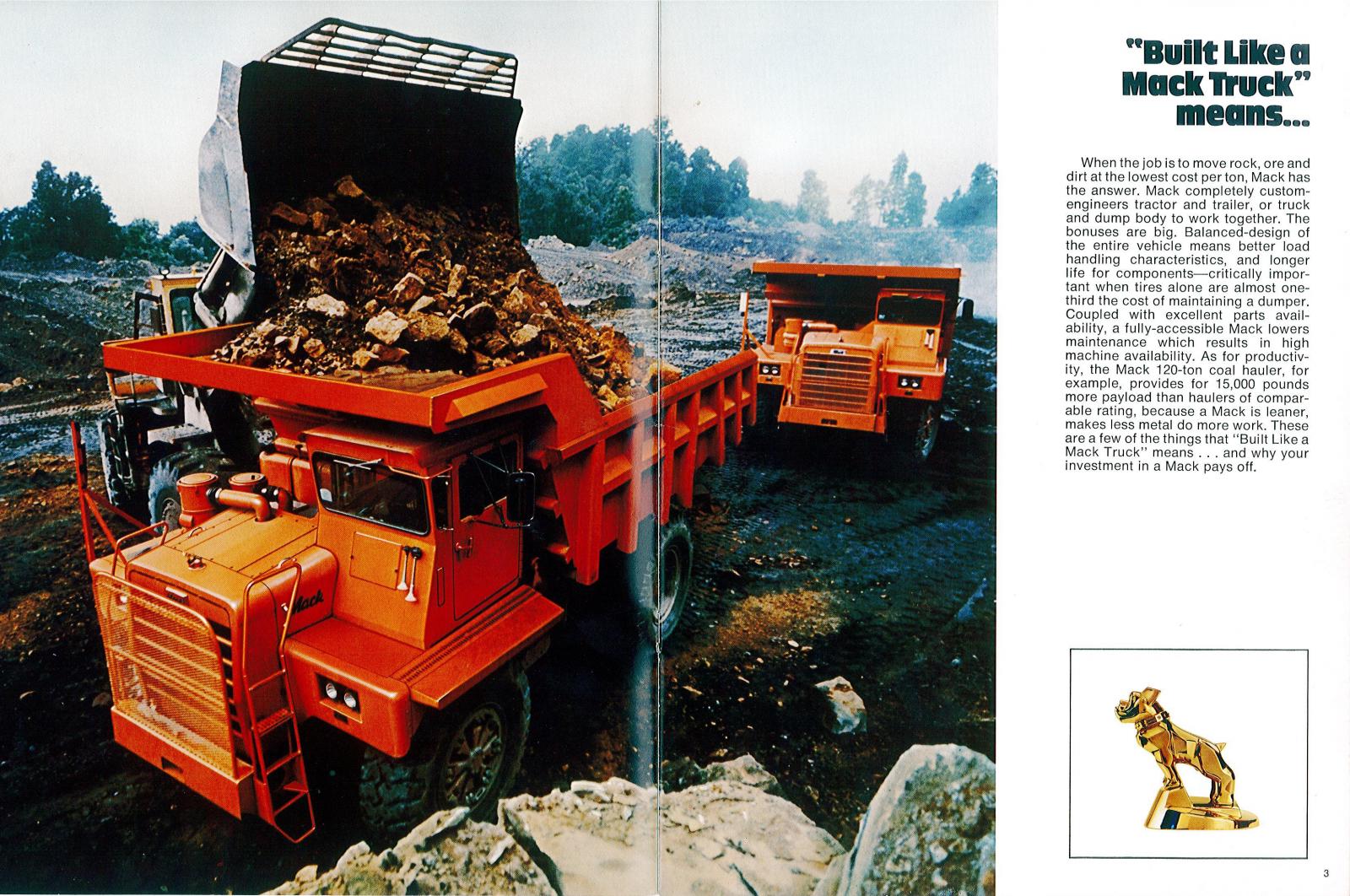

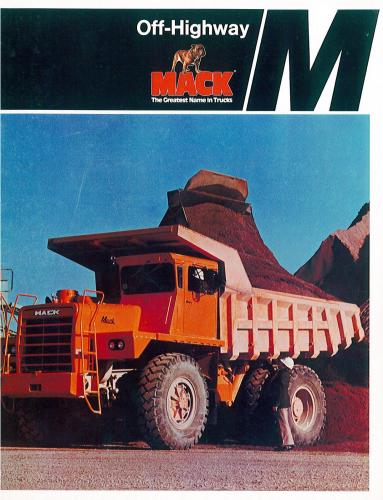

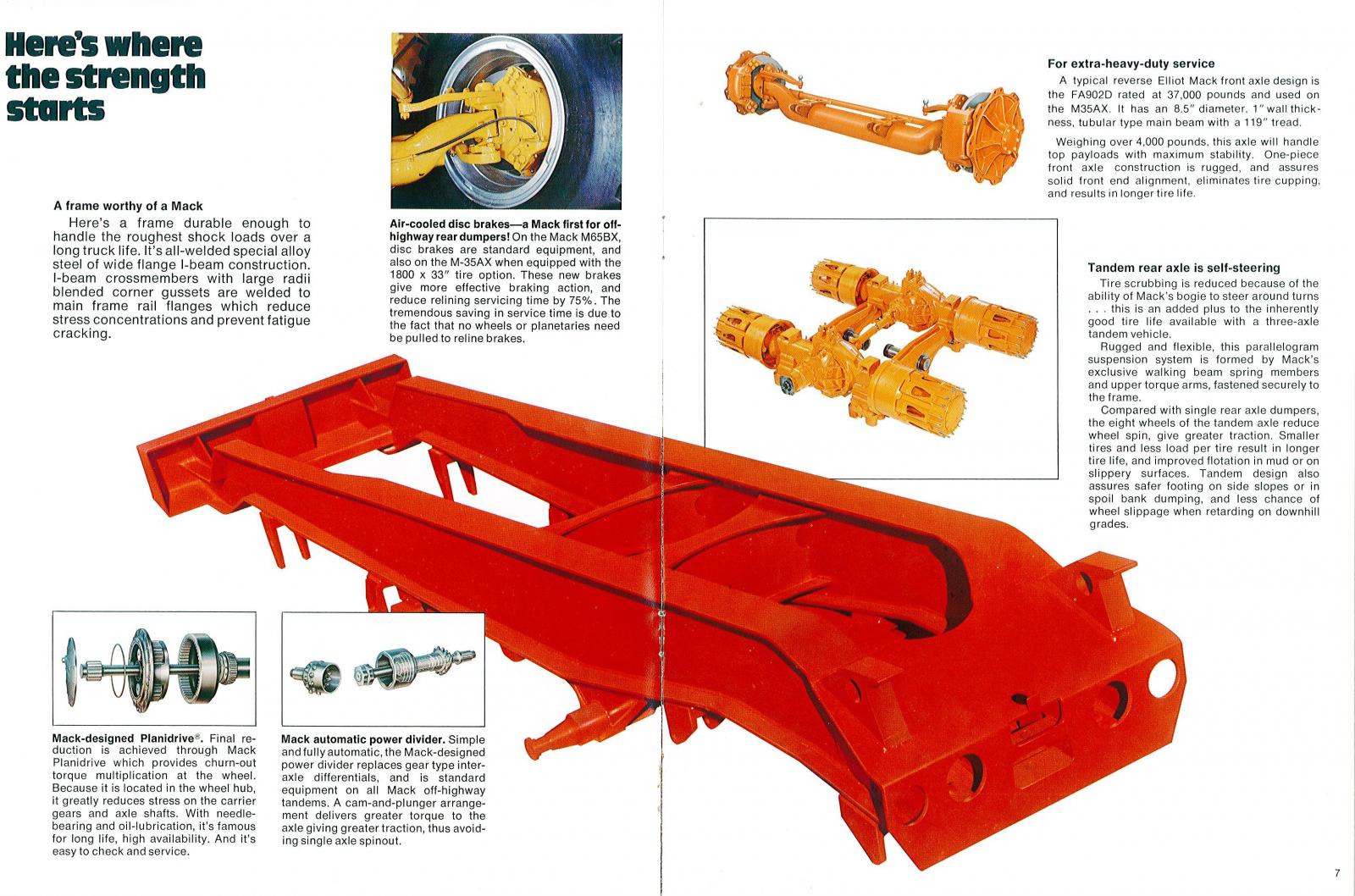

Popular Post kscarbel Posted March 5, 2013 Author Popular Post Share Posted March 5, 2013 The Mack M-series is indicative of the engineering and industrial prowess that gave Mack Trucks an earned position as a titan in America's truck industry.Mack's core strength was trucks, but the company also recognized the potentials of diversification. This was evident in the company's decades-long off-highway, fire apparatus and municipal bus endeavors.The company of course was always probing new potential markets. The "rail bus" segment is a good example (Mack Trucks, I feel, was a visionary pioneer in the concept now known as "light rail").Our government said that Ford, GM and Chrysler were too big and important to America for us to allow them to fail. Mack Trucks, like the Big 3, once provided employment to thousands of Americans. But today, Volvo employs a mere fraction of the once mighty Mack Trucks. Why did our government find it acceptable for Mack Trucks to fail, and fall into foreign ownership?Mack Trucks, "The Greatest Name in Trucks", was not worth our government's time and investment, but a bankrupt Chrysler was on no less than two occasions?Why does our government find it acceptable for the U.S. truck industry to be dominated by foreign truckmakers?A strong American-owned car and truck industry equates to an economically strong America. 5 Quote Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169765 Share on other sites More sharing options...
mackniac Posted March 5, 2013 Share Posted March 5, 2013 this is a nice pamphlet you shared with us , those minning trucks make me drool ! Quote Makniac , collector and customizer of die-cast model in 1/50th scale Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-169890 Share on other sites More sharing options...
REOGasMackDiesel Posted March 6, 2013 Share Posted March 6, 2013 Didn't you hear ? Chrysler did fail ! They are now OWN by Fiat-USA ;o)Yep 65% Fiat / 35% UAW / Chrysler 0%Chrysler/Dodge/Ram all just name plates now, Well since the 2011 actually. Fiat started buying them up in 2009 by 2011 they owned all of Chrysler's shares and a few of the UAW's ;o)Not that I give 2 shits about Chrysler, They have been a failure since 1928 were it was founded on the ashes of the tanked maxwell company ! ! !Yep Maxwell a product of good ol'Walter P Chrysler . . .Mike Quote 1953 REO M48.1962 GMC 3000.1969 AMC AMX-390.1983 AMC Eagle SX/4.1988 AMC Jeep Comanche. Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-170215 Share on other sites More sharing options...
REOGasMackDiesel Posted March 6, 2013 Share Posted March 6, 2013 Now as for Mack they seem to be doing OK today, Still being ran as separate operation their still a registered trade mark and copy write of Mack Trucks INC NOT AB-Volvo. If they weren't the Copy writes would read "AB-Volvo" NOT "Mack trucks inc"Now be all of that as it may, I think your pointing the wrong finger here, These mining trucks ? Long gone by 2000 much less 2002 when Volvo bought Mack.So I think you need to blame Renault ! Actually, Notice Renault also did in American Motors as well ! ! So they are on my HATE list for what they did to both Mack and AMC ! ! !Renault sold their 49% of AMC to Chrysler, Chrysler merged the remaining 51% and shut them down stealing Jeep !Now Mack seems more difficult, There must be still Mack ownership of Mack other wise why would Volvo keep the brand running as a separate company ? Much less spinning Mack Defense LLC off as its own separate operation too ? ? Mack still seems more Mack than Chrysler is Mopar lol lots of "New" Chrysler products seem to be rebadged Fiat/Ferrari/Maserati . . . Alfa too ? Mike Quote 1953 REO M48.1962 GMC 3000.1969 AMC AMX-390.1983 AMC Eagle SX/4.1988 AMC Jeep Comanche. Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-170217 Share on other sites More sharing options...
REOGasMackDiesel Posted March 8, 2013 Share Posted March 8, 2013 Looks like scrap to ME sorry ! I'm the anti-chrysler ;o)Mike Quote 1953 REO M48.1962 GMC 3000.1969 AMC AMX-390.1983 AMC Eagle SX/4.1988 AMC Jeep Comanche. Link to comment https://www.bigmacktrucks.com/topic/30224-your-mack-off-highway-truck-line/page/2/#findComment-170548 Share on other sites More sharing options...
