REOGasMackDiesel Posted March 4, 2013 Share Posted March 4, 2013 What models were the V8s ? What year range were they produced ? ? And what did they crank out for engine power ? ? ?Mike Quote 1953 REO M48.1962 GMC 3000.1969 AMC AMX-390.1983 AMC Eagle SX/4.1988 AMC Jeep Comanche. Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/ Share on other sites More sharing options...
2stacksuperdog Posted March 4, 2013 Share Posted March 4, 2013 Superliner and CL, MH:Had the E9s which produced 400-550hlDM800, U700, R700, B615, B815, etc. had:ENDT865? they produced 325-375hp some also had no turbo, twin turbo or single turbo Quote Matt Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-169643 Share on other sites More sharing options...
fuzzy buzzard Posted March 4, 2013 Share Posted March 4, 2013 Early V-8 were END 864, started in '63 or '64 - think '64 - horsepower 250 I think, have to look up to be sure. Problem was they were all smoke and noise!!!!!!Over and out from Ignorant Ridge Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-169646 Share on other sites More sharing options...
39 Baby Mack Posted March 4, 2013 Share Posted March 4, 2013 Here's a partial list:END-864 255-270 H.P.ENDD-864 237 H.P.ENDT-864 320 H.P.ENDT-865 325 H.P. MaxidyneENDT-866 375 H.P.EM9-400 400 H.P. MaxidyneE9-400 400 H.P.E9-440 440 H.P.E9-500 500 H.P. Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-169647 Share on other sites More sharing options...
Superdog Posted March 4, 2013 Share Posted March 4, 2013 There was a 285 hp version on the ENDT865 anda 350 hp version of the ENDT866 also,the predecessor to the E9 was the ENDT1005 Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-169661 Share on other sites More sharing options...
REOGasMackDiesel Posted March 4, 2013 Author Share Posted March 4, 2013 Wow so there were a few different V8s.Some over lap with I6s to I see. So NOT all Mack 350s were I6s as well as 237 ?Mike Quote 1953 REO M48.1962 GMC 3000.1969 AMC AMX-390.1983 AMC Eagle SX/4.1988 AMC Jeep Comanche. Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-169688 Share on other sites More sharing options...
b61mack Posted March 5, 2013 Share Posted March 5, 2013 Early V-8 were END 864, started in '63 or '64 - think '64 - horsepower 250 I think, have to look up to be sure. Problem was they were all smoke and noise!!!!!!Over and out from Ignorant RidgeHi Tom glad to hear from you. about 2-3 years ago i was at the Portland, Indiana tractor show and saw your B 61 wrecker and was looking for you, never did find you. do you still have your V8 powered B model???. havent seen you at Macungie for a while. hope you are doing alright, take care. Ron Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-169695 Share on other sites More sharing options...
jeffmackb Posted March 7, 2013 Share Posted March 7, 2013 This might seem petty to some here, but the Twin Turboed END864 is not an ENDT864, it is an END864T.Later engines were ENDT's, but not the 864. 1 1 Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170345 Share on other sites More sharing options...
other dog Posted March 7, 2013 Share Posted March 7, 2013 Early V-8 were END 864, started in '63 or '64 - think '64 - horsepower 250 I think, have to look up to be sure. Problem was they were all smoke and noise!!!!!!Over and out from Ignorant Ridgeholy mackle, where you been so long? Quote Producer of poorly photo-chopped pictures since 1999. Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170348 Share on other sites More sharing options...
39 Baby Mack Posted March 7, 2013 Share Posted March 7, 2013 This might seem petty to some here, but the Twin Turboed END864 is not an ENDT864, it is an END864T.Later engines were ENDT's, but not the 864.I don't think so.Ron Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170381 Share on other sites More sharing options...
Superdog Posted March 8, 2013 Share Posted March 8, 2013 I don't think so.RonI'm with you,Ron.I'm looking right at a spec sheet for a R719 right now and it says ENDT864. Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170467 Share on other sites More sharing options...
rsb502 Posted March 8, 2013 Share Posted March 8, 2013 There was a 285 hp version on the ENDT865 anda 350 hp version of the ENDT866 also,the predecessor to the E9 was the ENDT1005I found an ENDT1005 in a junk yard back when I was just getting into trucking and I thought "man what a boat anchor", now Id give lots of body parts to have it, I dont know how many were made but I have heard less than 250. Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170473 Share on other sites More sharing options...
daveigou Posted March 8, 2013 Share Posted March 8, 2013 This topic came up before. Somebody posted this list from Don Schumaker at the Mack Museum.doc037.pdf Quote See my Flickr photostream page http://www.flickr.com/photos/96692978@N05/ Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170480 Share on other sites More sharing options...
Gmerrill0516 Posted March 8, 2013 Share Posted March 8, 2013 My truck had the 864 and I believe it was rated 255 HP. Its long gone. I understand that the injector pumps were a funky design and prone to failure and are now scarce like hens teath. Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170482 Share on other sites More sharing options...

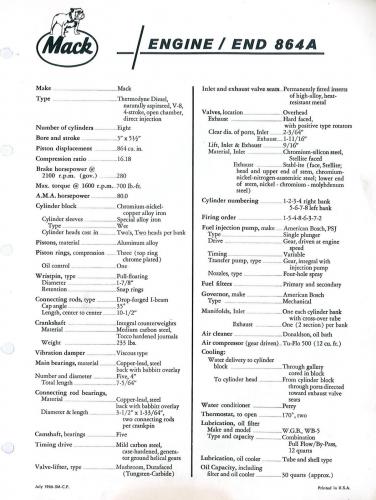

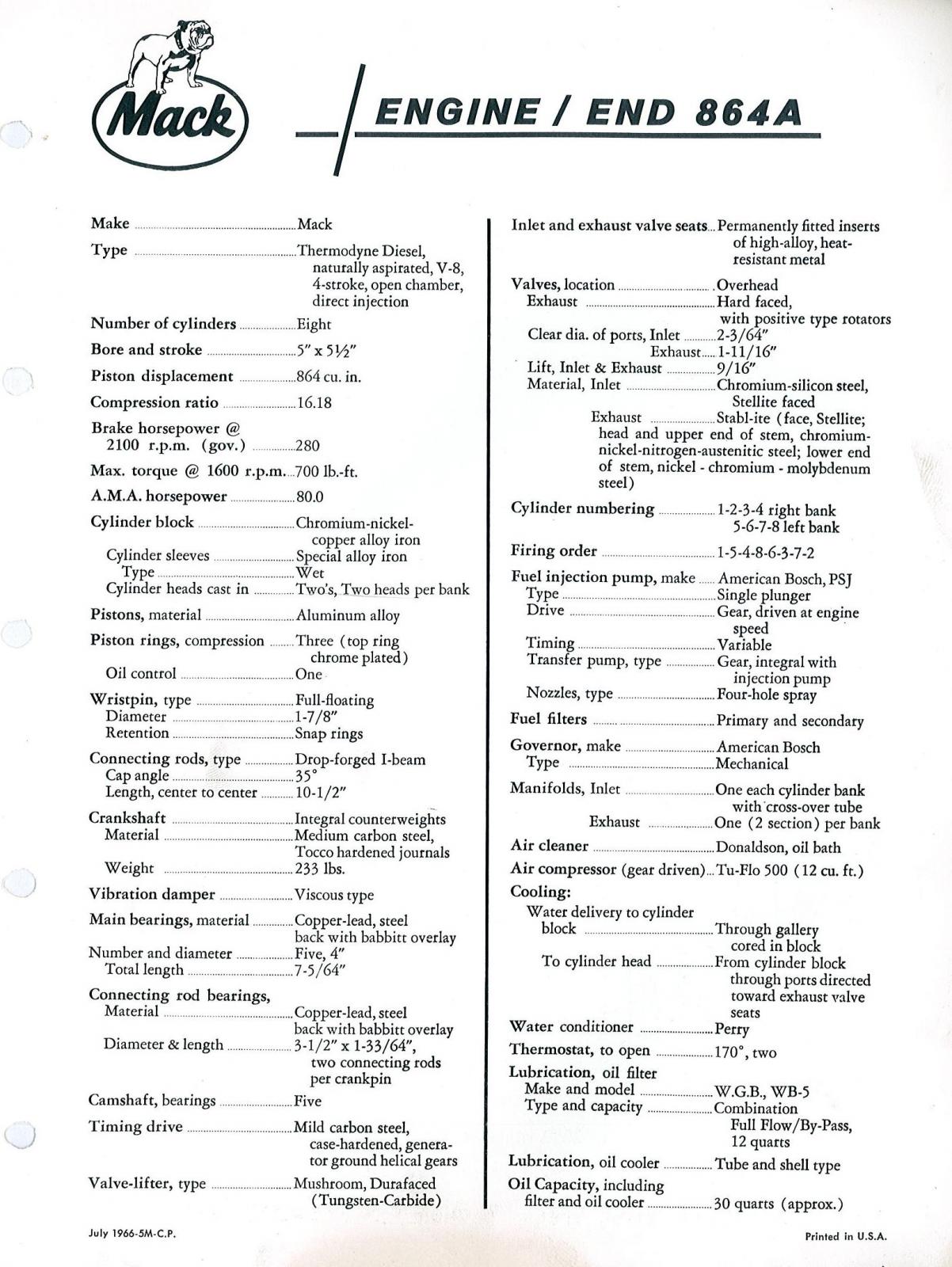

kscarbel Posted March 8, 2013 Share Posted March 8, 2013 Here's a partial list:END-864 255-270 H.P.ENDD-864 237 H.P.ENDT-864 320 H.P.ENDT-865 325 H.P. MaxidyneENDT-866 375 H.P.EM9-400 400 H.P. MaxidyneE9-400 400 H.P.E9-440 440 H.P.E9-500 500 H.P.Plus the END864A rated at 280hp. My understanding is the V-8s from the 864 were developed with Scania.Note the performance is certified by none other that Mr. Win Pelizzoni, co-inventor (along with Mr. Walter May) of the high-torque rise Maxidyne engine technology. Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170484 Share on other sites More sharing options...
39 Baby Mack Posted March 8, 2013 Share Posted March 8, 2013 My truck had the 864 and I believe it was rated 255 HP. Its long gone. I understand that the injector pumps were a funky design and prone to failure and are now scarce like hens teath.The first 864's used PSJ or PSM Ambac pumps which were single plunger pumps with a distributing head on it like a distributor.Later ones used APE style pumps APE8VBB, this when I think the normal H.P. rating went from 255 H.P. to 270 H.P. These were multiple plunger pumps and looked like a little baby V-8 engine sitting on top of a big V-8 engine!These motors also used a later style intake manifold.I don't think, or would know how, these pumps would have ever been used on the turbocharged 864's. There just wasn't enough room, I think they were all built with the single plunger pumps.On another V-8 note the first N/A 864's had an aluminum tube that joined the two intake manifolds together, the ports for this tube were located on topof the intake manifolds in front of where the fresh air ports were.These were balancing tubes to provide for "smokeless operation"There were also two different sets of these tubes low ones and high ones! When they made the ENDT-864 they used the same early manifolds and used plates to block off the ports.Ron 1 Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170491 Share on other sites More sharing options...
REOGasMackDiesel Posted March 8, 2013 Author Share Posted March 8, 2013 280hp@2100rpm ? ! So they the V8s ran about the same rev's as the I6s ? !Meaning both hit peak HP@2100 ?Mike Quote 1953 REO M48.1962 GMC 3000.1969 AMC AMX-390.1983 AMC Eagle SX/4.1988 AMC Jeep Comanche. Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170551 Share on other sites More sharing options...
39 Baby Mack Posted March 8, 2013 Share Posted March 8, 2013 The V-8's I'm familiar with were rated at 2300 R.P.M.END-864 and ENDT-864Ron Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170552 Share on other sites More sharing options...
Superdog Posted March 8, 2013 Share Posted March 8, 2013 the 865's were rated at 2400 rpm Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170567 Share on other sites More sharing options...
rsb502 Posted March 8, 2013 Share Posted March 8, 2013 Ha 27 1005's built and I called it a boat anchor and walked away. Head/wall, repeat! 1 Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170569 Share on other sites More sharing options...
39 Baby Mack Posted March 8, 2013 Share Posted March 8, 2013 the 865's were rated at 2400 rpmMike Thanks for posting I didn't know they ran that fast. We never had any, we were through being guinea pigs by the time they came out.We had five F-715's with N/A 864's, five 400 series Brockways with V8-265 Cummins, six 400 series Brockways with 8V71 Detroits, and one F-719 with the turbocharged 864.After that we came to the conclusion that the best V-8's were the ones that came in cans and contained vegetable juice!Ron Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170598 Share on other sites More sharing options...
Superdog Posted March 8, 2013 Share Posted March 8, 2013 I hate to doubt the museum,but as I said when that sheet was first posted,there were a whole lot more 719's built than 34.If there were only 34 ENDT864's made,what did the other 719's have for engines????? Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170619 Share on other sites More sharing options...
39 Baby Mack Posted March 8, 2013 Share Posted March 8, 2013 I know what you mean Mike,Our "F" model was F719T-1093 that would make it the 93rd one made.There's got to be something wrong with that list.Ron Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170622 Share on other sites More sharing options...

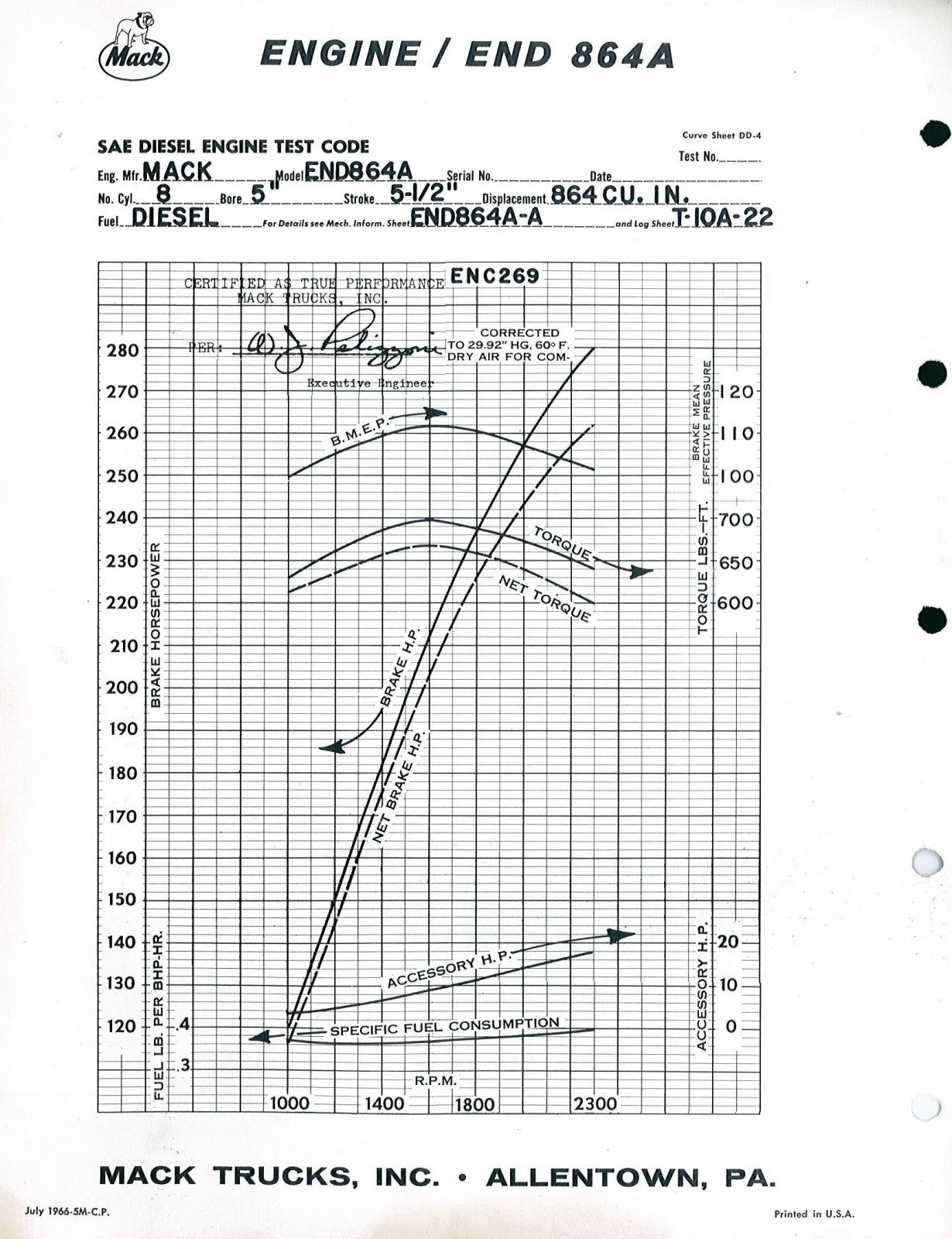

REOGasMackDiesel Posted March 8, 2013 Author Share Posted March 8, 2013 The above photo shows 280hp@2100rpm ? !It shows 700tq@1600rpm ? !So it looked like the torque is up in the revs but the HP was shown as to be at 2100rpms . . . So I had to ask ;o)Mike Quote 1953 REO M48.1962 GMC 3000.1969 AMC AMX-390.1983 AMC Eagle SX/4.1988 AMC Jeep Comanche. Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-170667 Share on other sites More sharing options...
Jacob Hudson Posted March 14, 2013 Share Posted March 14, 2013 I have an M123A1C with a V8-300 Cummins. It is a '68, so it was when Mack went back to producing them, after CONDEC had taken over that line for a little while. Quote Link to comment https://www.bigmacktrucks.com/topic/30286-mack-v8-s/#findComment-171990 Share on other sites More sharing options...
