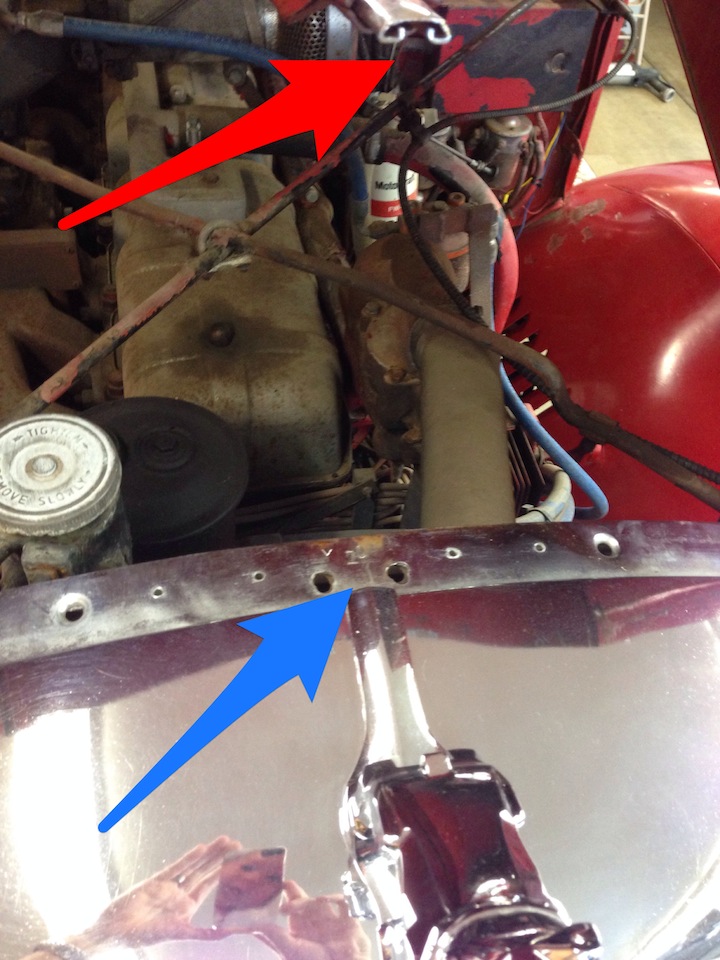

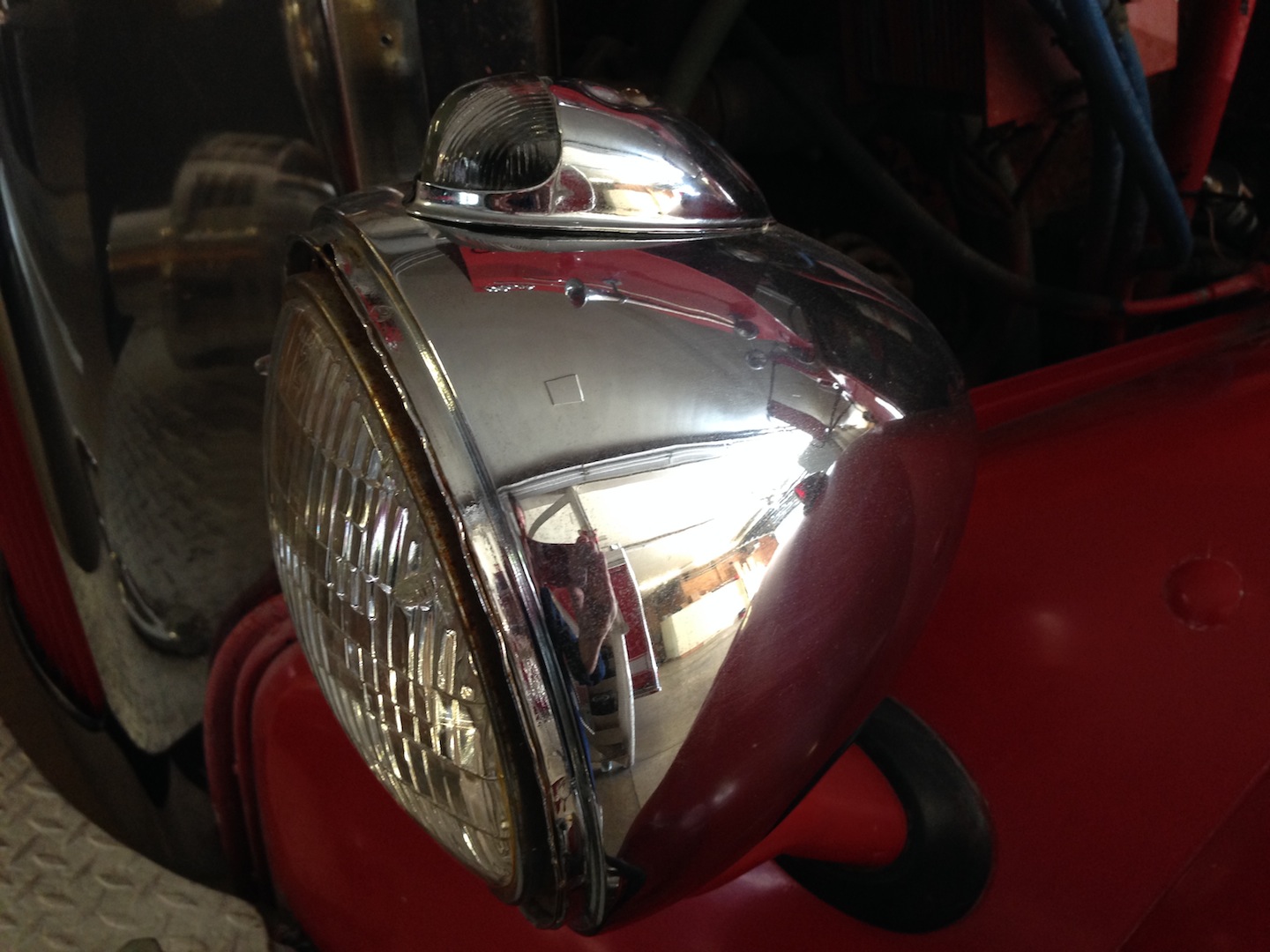

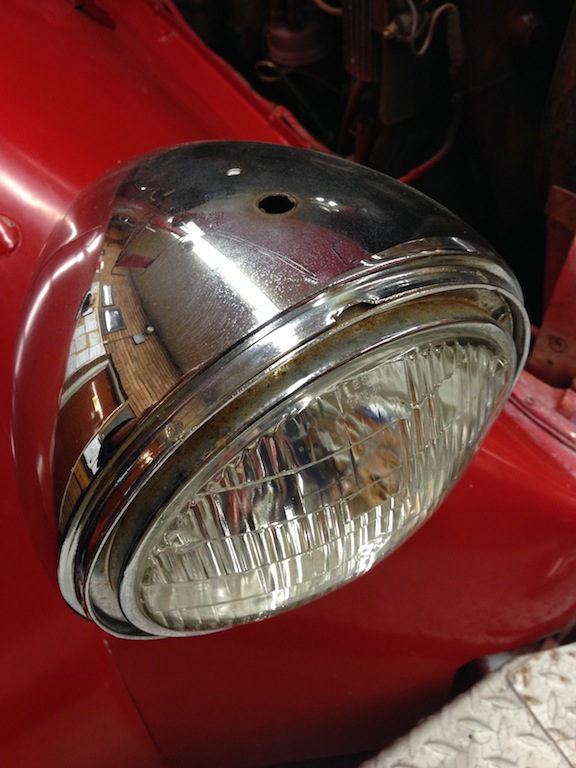

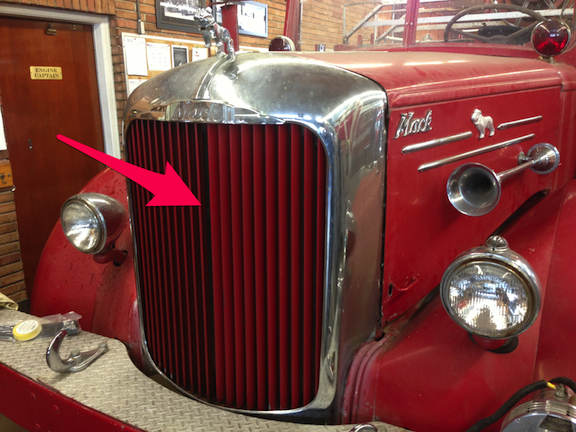

SMFire History Posted September 28, 2013 Share Posted September 28, 2013 Hi guys-Just starting to piece together what we are missing on our rig and thought I would post up some needs and see if you have suggestions on who may be able to assist. I apologize if I'm not using the proper terminology. Is there an online schematic breakdown of parts somewhere?Here's what I know we need for now...-Windshield frame trim (drivers side) both top and bottom pieces. -Front hood hold down bracket (see pic below: blue arrow indicates where it goes and red arrow indicates what it holds down. Probably easily fabricated if they are hard to find.-Front grill chrome trim piece (maybe says 125 near the top like some of the 95's?) See pic below for where it goes.-Font headlight outer trim ring (drivers and passengers side).-Top mini light on top of the passenger side headlight (see pic)-Turn signal switch internals. I cracked ours open and opened the switch, cleaned and regreased but it only works on one side.-Mack Mirrors (West Coast Style?)Other items I will contact our retirees about locating:-Original Mack Bell-Original growlerI will add to the list as things change but any suggestions are appreciated.Thanks,Domhistory@smfire.org Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/ Share on other sites More sharing options...
BOB DINGSDALE Posted September 28, 2013 Share Posted September 28, 2013 there are two lenghts of the park lite and I presume yours is the short one.also there are two types of lenses show picture of other side lens.the hood hold down brackets for the hood stripe are avalable from mack. same as whats used on rd steel hoods.head lite ring are easy to find at swap meets.I would put one mirror on the drivers side and use the old fashion (ones that came with truck)arm style. Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-208826 Share on other sites More sharing options...
BOB DINGSDALE Posted September 28, 2013 Share Posted September 28, 2013 part numbers for hood hinge brackets are:73RU11842P1-- 73RU11843P1--73RU11842P3.they are also used on the DM models.Same hinge stripe on them all rite back to EQs,LJs.Let me know if you can get them back there. Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-208833 Share on other sites More sharing options...

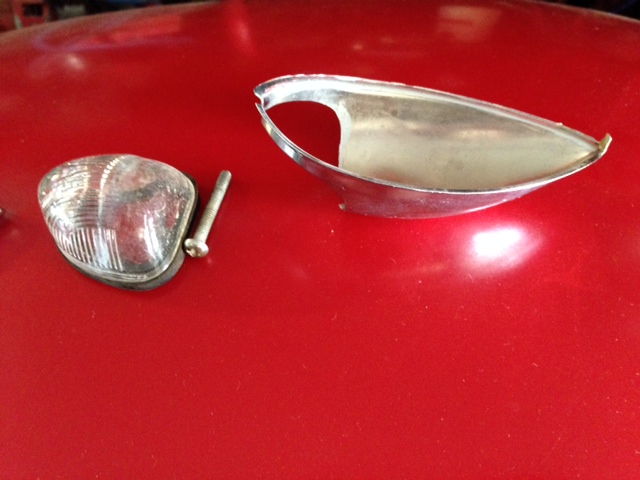

SMFire History Posted September 28, 2013 Author Share Posted September 28, 2013 Bob-Thanks for the info. I've included a pic of the other sides park lite. I didn't realize there are 3 hood hinge brackets. We have one at the rear near the windshield and one (I assumed) at the grill? I appreciate the part #'s. Is the strip in the center of the louvres something I will most likely find online?Thanks again,Dom Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-208856 Share on other sites More sharing options...
fxfymn Posted September 30, 2013 Share Posted September 30, 2013 The "125" should be a small shield shaped badge that goes just below the Mack script on the vertical center piece of the radiator shell. They are basically impossible to find, but it should be fairly easy for a jeweler/engraver to make a replacement. I have an original headlight bucket with the marker light you need. Check the bottom of the head lights to see if they still have the "twist and push in" type of connectors that were stock to see if the headlights are original or replacements. If they are replacements the best route will be to find the vendors name on the light to track down the marker light. I also have the trim ring, but it will need to be plated. Quote Money, sex, and fire; everybody thinks everyone else is getting more than they are! Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209132 Share on other sites More sharing options...
1958 F.W.D. Posted September 30, 2013 Share Posted September 30, 2013 I think those are the same style parking light modules on the headlights of my 1958 F.W.D. and if so, I might have some extra chrome pieces laying around, lemme take a look and get back to you. Quote TWO STROKES ARE FOR GARDEN TOOLS Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209190 Share on other sites More sharing options...
Charlie Hatfield Posted September 30, 2013 Share Posted September 30, 2013 You can find the headlight pieces at www.otbgear.com in California. they have a website and are very knowledgable and friendly. Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209206 Share on other sites More sharing options...
Charlie Hatfield Posted September 30, 2013 Share Posted September 30, 2013 http://www.otbgear.com/ Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209208 Share on other sites More sharing options...
fxfymn Posted October 1, 2013 Share Posted October 1, 2013 You can find the headlight pieces at www.otbgear.com in California. they have a website and are very knowledgable and friendly That's who I used for my replacement lights. Nice lights and very close to original. Quote Money, sex, and fire; everybody thinks everyone else is getting more than they are! Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209402 Share on other sites More sharing options...
609albert Posted October 2, 2013 Share Posted October 2, 2013 cal little was reproducting the badges for the center strip on the MACKS ,he is listed on the mack parts list from the mack museum,he is in Hummelstown ,PA. Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209529 Share on other sites More sharing options...
609albert Posted October 2, 2013 Share Posted October 2, 2013 cal also has tons of mack fire truck parts, call him with your list. Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209531 Share on other sites More sharing options...
BOB DINGSDALE Posted October 3, 2013 Share Posted October 3, 2013 not sure on it but check with the other guys to see if the chrome stripe down the shudders is the same as the hood hinge .I never looked at one real close but maybe. Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209724 Share on other sites More sharing options...
SMFire History Posted October 3, 2013 Author Share Posted October 3, 2013 Thanks for all the info guys. I'll take a look at the lights Friday to see if they are original or have a look for a venders name. It looks like otbgear.com is another good option.fxfymn- thanks for the offer on parts. I'll try to drop you a PM. We are missing the entire grill vertical along with the 125 shield. I'll look up Cal once we have a more thorough list of what we're missing.Are you guys getting axle seals from a special vendor or just a local trucking company?Thanks again for the assistance,Dom Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209778 Share on other sites More sharing options...
fxfymn Posted October 3, 2013 Share Posted October 3, 2013 I ordered seals through Rock Auto once I had the PN. When it comes to mechanical items you can almost always locate items on the net if you have a vendor's PN. Keep everything you remove and check it carefully for a PN, search the PN and you will most likely come up with a source. Even Amazon has parts for the old dogs! A big part of re-doing a rig is being organized. Make a place to store all of the old parts permanently, because you never know when you might need to check them for a PN or have one re-furbed in the future when a new part becomes NLA. I keep a bag with any hard to find items I am trying to match in it that I carry to flea markets so I can match them up. Every axe holder, bell mount, etc. are unique and you really want to find the "right" one that matches the existing holes. The badges Cal sells are not engraved, just flat printed. Your choice. Quote Money, sex, and fire; everybody thinks everyone else is getting more than they are! Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209853 Share on other sites More sharing options...
609albert Posted October 4, 2013 Share Posted October 4, 2013 NAPA will also have axle seals , also check the vent on top of your rear axle that it is not blocked ,if it's blocked the pressure will push oil out the wheel seals ...... NOT GOOD Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-209961 Share on other sites More sharing options...
SMFire History Posted October 5, 2013 Author Share Posted October 5, 2013 Excellent suggestions. Once we have the seals out I'll order up what we need. The breather was gummed up with crap so I've cleared that. Maybe that will help for now. I'm going to clean up the wheel and see if its still leaking now that that is clear. We decided to go with newer Toyo radials instead of the old nylon tires so those will be ordered up soon. Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-210224 Share on other sites More sharing options...
BOB DINGSDALE Posted October 5, 2013 Share Posted October 5, 2013 have you tried the mack dealer for hood hinges and if so how did you make out Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-210234 Share on other sites More sharing options...
j hancock Posted October 5, 2013 Share Posted October 5, 2013 Sadly, the hood hinge (4QM12P23) has not been available for a couple of years. That was the DM800 part number and it could be cut to length. It was the same profile so it worked on A, E, L, B etc. Quote JimIt doesn't cost anything to pay attention. Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-210238 Share on other sites More sharing options...
BOB DINGSDALE Posted October 6, 2013 Share Posted October 6, 2013 jhancock;I was refering to the end caps.they might not be available either but its worth a try. Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-210256 Share on other sites More sharing options...
j hancock Posted October 6, 2013 Share Posted October 6, 2013 jhancock;I was refering to the end caps.they might not be available either but its worth a try.Sorry, I was thinking of the hinge strip. Caps are still available. About $100.00 for the set of four Quote JimIt doesn't cost anything to pay attention. Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-210257 Share on other sites More sharing options...
SMFire History Posted October 10, 2013 Author Share Posted October 10, 2013 have you tried the mack dealer for hood hinges and if so how did you make outBob-I have not had time to drive the 20 miles to the local dealer. My 9 month old daughter is taking up most of my time. I'll let you know once I make the trip. Quote Link to comment https://www.bigmacktrucks.com/topic/32942-parts-needed-1952-125ls/#findComment-211009 Share on other sites More sharing options...
