leversole Posted October 8, 2013 Share Posted October 8, 2013 Okay I took a ton of detailed pics at Lititz of all the different ways to dual out a Superliner...problem is, I didnt talk to anyone and get manufacturer/part numbers!I want to run 6" at least to under the cab, but I cannot find anyone that makes a 6" chrome elbows less than 45 degrees...If I go from 6 to 5 on the stack, I have seen a bunch of one piece multi elbow 5" chrome that gets you inder the cab and turned toward the center like this...It looks like a 90-30-45 degree bend...anyone know the manufactuer? I have been thru the Grand Rock Catalog...UNless they are kw or pete parts or something...Here is another that may be two pc...And anotherAnybody have any ideas? 1 Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/ Share on other sites More sharing options...

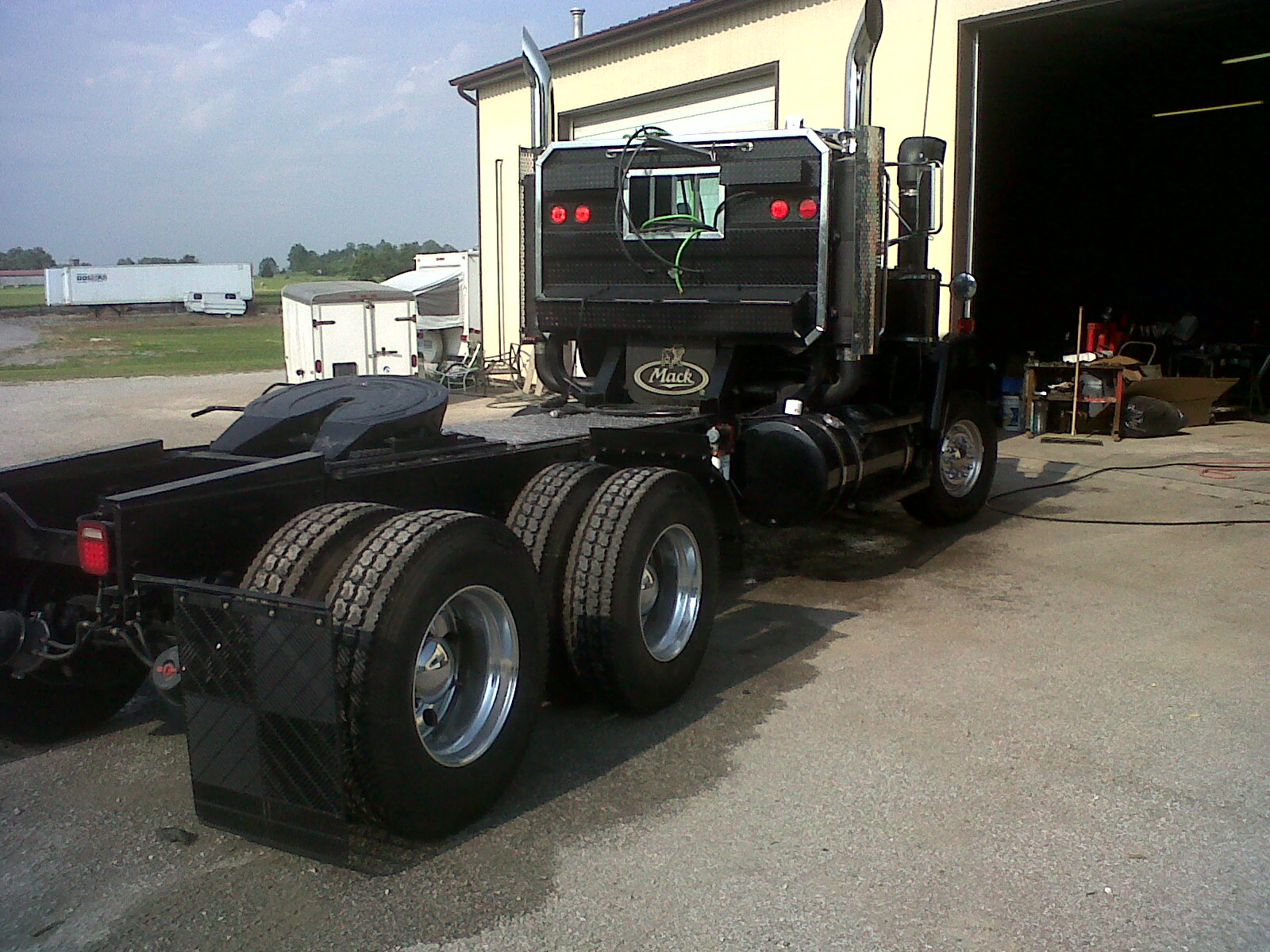

BAD DOG Posted October 9, 2013 Share Posted October 9, 2013 Here's how I ran mine I made most of it, except the 6" stacks are Lincoln Chrome. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-210822 Share on other sites More sharing options...
Back In Black Pulling Posted October 9, 2013 Share Posted October 9, 2013 Those are oem pipes , Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-210852 Share on other sites More sharing options...
David Posted October 9, 2013 Share Posted October 9, 2013 I believe this CL has 5" factory pipes that will work on a Superliner. Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-210858 Share on other sites More sharing options...
David Posted October 9, 2013 Share Posted October 9, 2013 I also have the vin for this Superliner. But they look like 4". Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-210862 Share on other sites More sharing options...
leversole Posted October 9, 2013 Author Share Posted October 9, 2013 Thanks David...I'll check it out! Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-210875 Share on other sites More sharing options...
rsb502 Posted October 9, 2013 Share Posted October 9, 2013 Mine are 6" x 96" miter cut stacks with tight radius 6" 90's sleeved in at the bottom and the 6" to 5" reducer is under the edge of the cab. I think they are dynaflex elbows. PM me you number and I'll call you when I get a minute and explain what you need. Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-210879 Share on other sites More sharing options...
bobo Posted October 9, 2013 Share Posted October 9, 2013 004138 1989 e9 with factory duals,6" ss 30deg top stacks,donaldson high flow off road mufflers, DEI ceramic paint, bobo 1 Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-210885 Share on other sites More sharing options...
rsb502 Posted October 9, 2013 Share Posted October 9, 2013 Does that truck have an aluminum frame bobo? Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-210892 Share on other sites More sharing options...
bobo Posted October 9, 2013 Share Posted October 9, 2013 nope double frame steel bobo Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-210896 Share on other sites More sharing options...
leversole Posted October 10, 2013 Author Share Posted October 10, 2013 CL exhaust is different...no go...Got some prices on the chrome 5 inch like on bobo's awesome truck....WOWSIE!The drivers side pipe (between the muffler and the crossover) is $510,the other side (which is one pices and includes the Y pipe) is $1340!Anyhow, I have the part numbers and illustration for a superliner dual systemif anyone ever needs a part number! Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211094 Share on other sites More sharing options...
mack mhe9 Posted October 10, 2013 Share Posted October 10, 2013 At those prices you could fab it out of 6 and then have it chromed? Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211101 Share on other sites More sharing options...
farmer52 Posted October 10, 2013 Share Posted October 10, 2013 Got some prices on the chrome 5 inch like on bobo's awesome truck....WOWSIE!The drivers side pipe (between the muffler and the crossover) is $510,the other side (which is one pices and includes the Y pipe) is $1340!If you want to play, you have to pay! Quote Ken PRR Country and Charter member of the "Mack Pack" Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211102 Share on other sites More sharing options...

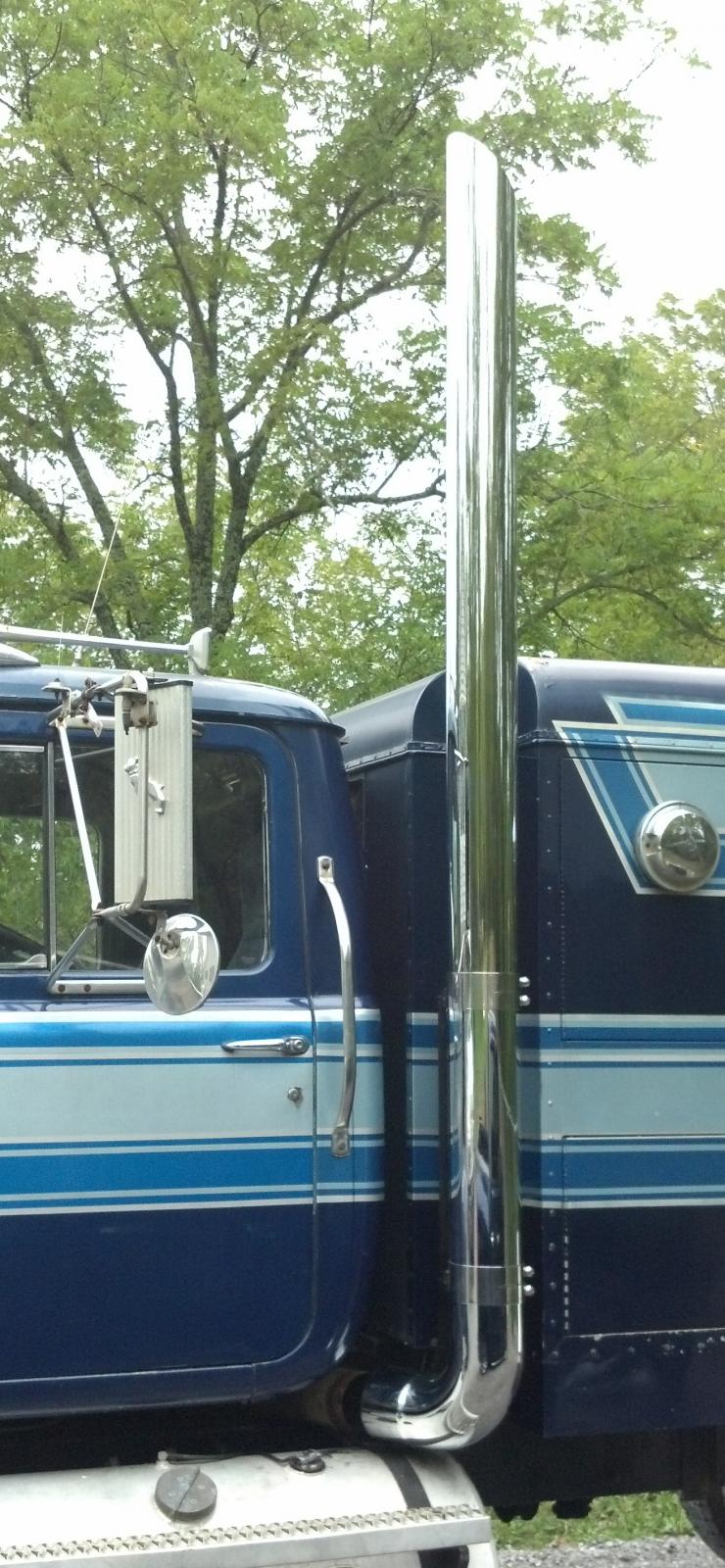

rsb502 Posted October 10, 2013 Share Posted October 10, 2013 Heres a pic of one side of mine, it drops back to 5" after the elbow before it goes under the cab so it has plenty of clearance, like I said its 6" united pacific 96" miter stack and a 6" dynaflex tight radius elbow, they are both plain end where they join and there is a sleeve inside the seam is hidden behind the bottom clamp. I think the chrome 6-5 reducer was Dynaflex too, and the clamps are Stainless wide band mounting clamps for a pete, I cut the brackets off my hangers and made my own to get the stacks where I wanted them. 1 Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211104 Share on other sites More sharing options...
rsb502 Posted October 10, 2013 Share Posted October 10, 2013 Heres a pic of one side of mine, it drops back to 5" after the elbow before it goes under the cab so it has plenty of clearance, like I said its 6" united pacific 96" miter stack and a 6" dynaflex tight radius elbow, they are both plain end where they join and there is a sleeve inside the seam is hidden behind the bottom clamp. I think the chrome 6-5 reducer was Dynaflex too, and the clamps are Stainless wide band mounting clamps for a pete, I cut the brackets off my hangers and made my own to get the stacks where I wanted them. 1 Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211108 Share on other sites More sharing options...
leversole Posted October 11, 2013 Author Share Posted October 11, 2013 Very clever...me like...I like the idea of hiding a sleeve inside...are the pipes 6 ID and you used a piece of 6 od for the splice?I am struggling with how to get back around the cab air bag and how to "create" the Y...It is about 15 deg from the support bracket, then a 45 to go under the cab, I would need a 60 degree to get back straight across the frame...Still thinking whether to go under the cab at 6 or neck down after the stack...So many choices! Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211138 Share on other sites More sharing options...
rsb502 Posted October 11, 2013 Share Posted October 11, 2013 mine is 6" id stacks and elbow, with a 6"od sleeve, the sleeve is made for this so they should know what to get, then under the cab past the reducer I have a 5" 45 on each side, going forward into a y pipe on the right and another 45 on the left, then its just a short piece of straight to tie into the y pipe, Ill have to try ot get under my truck to take some pics, I used a piece of flex on both sides and another one from the downpipe to the y so theres plenty of movement. Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211141 Share on other sites More sharing options...
leversole Posted October 15, 2013 Author Share Posted October 15, 2013 Got some prices on the chrome 5 inch like on bobo's awesome truck....WOWSIE!The drivers side pipe (between the muffler and the crossover) is $510,the other side (which is one pices and includes the Y pipe) is $1340!Anyone have a part number or a truck serial number (RW) that has duals with a plain (not chrome) y pipe? Maybe I can get it for less than $1340!Thanks Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211721 Share on other sites More sharing options...
rsb502 Posted October 15, 2013 Share Posted October 15, 2013 Last I checked there weren't any non chrome y pipes left. I talked to Grand Rock exhaust, gave them the Mack y pipe p/n and they said they would make one for $500. Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211751 Share on other sites More sharing options...
Back In Black Pulling Posted October 15, 2013 Share Posted October 15, 2013 I put a universal y under center of cab so pipes smoke at same time 1 Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211833 Share on other sites More sharing options...
mackcl96 Posted October 15, 2013 Share Posted October 15, 2013 I put a universal y under center of cab so pipes smoke at same timeGood point I forgot about ^^Even after the RW ,,,,the Mack Y pipe favored the Right side before the left. If you make smoke with the 6" pipes it will be uneven Quote Thanks for hearing me out.You can have the soap box now---------JIM Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-211842 Share on other sites More sharing options...
scottwetzel Posted December 8, 2013 Share Posted December 8, 2013 How has everyone mounted up the mufflers on the left side? My truck has a single stack so I don't have the bracket for the left side. Any ideas? I looked at r model brackets but there not the same. Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-220375 Share on other sites More sharing options...
leversole Posted December 8, 2013 Author Share Posted December 8, 2013 I got lucky...WInrock had a left hand Superliner bracket...I think they had another one or two... Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-220379 Share on other sites More sharing options...
scottwetzel Posted December 8, 2013 Share Posted December 8, 2013 I got lucky...WInrock had a left hand Superliner bracket...I think they had another one or two...I'm gonna check it out. Are they on there website or did you call them? Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-220384 Share on other sites More sharing options...
leversole Posted December 8, 2013 Author Share Posted December 8, 2013 You gotta call them...they are slow to answer emails... Quote Link to comment https://www.bigmacktrucks.com/topic/33079-superliner-exhaust/#findComment-220385 Share on other sites More sharing options...
