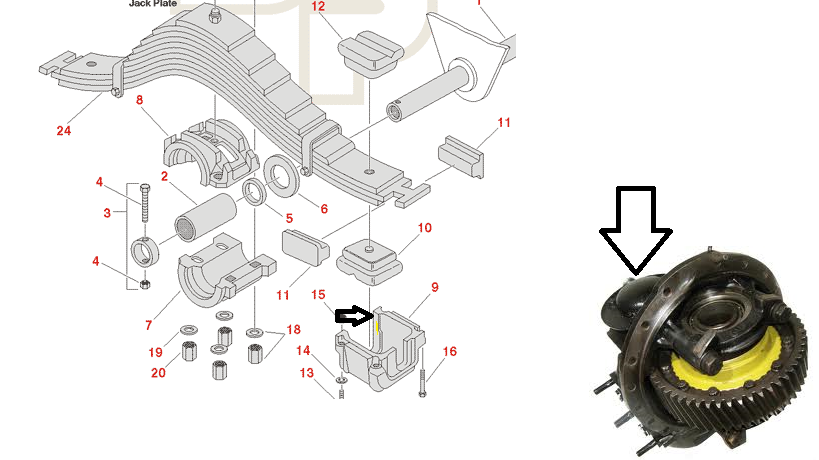

R.E.D Posted December 15, 2013 Share Posted December 15, 2013 (edited) As I mentioned before on a different tread...I purchase truck in avatar because I believe it was a great set up for the work I do.96 rd688 with a 9 speed maxitorque..my rear suspensions has a lot of side to side travel when taking a turn (as much a 6")...Thinking it would solve the prob I had the trunnion bushings replaced along with the rubber supports for the springs..but still the issue persists mostly when making a right turn....Also it looks like previous owner ran truck with bad trunnion bushings for a good while cuz all the four botton caps (see pic below) are busted in from the spring constant rubbing.Trunion has no outside cap so im guessing its 38k but im not sure.truck has a very short wheelbase which I believe contributed to this whole deal.Im running out of options and don't relly feel like spending another grand on parts and labor...things got so bad that chassis smacked against a axle side cover and cut a whole in it and oil was everywhere..please advice on this matter.thanks for your supportRED Edited December 15, 2013 by R.E.D 1 Quote Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/ Share on other sites More sharing options...
j hancock Posted December 15, 2013 Share Posted December 15, 2013 Put the body up and take some pictures of the top side of the rear diff. With that kind of movement, it sounds like the track bar is not there. Should be a bar running from the right side frame rail to a bracket bolted to the rear diff.There are two other bars, one each to the diffs that bolt to the trunnion cross member that run parallel to the frame rails.Something is really worn or broken or missing. Quote JimIt doesn't cost anything to pay attention. Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221497 Share on other sites More sharing options...
R.E.D Posted December 15, 2013 Author Share Posted December 15, 2013 ok will do first thing when I get to the yard..will keep ya posted... Quote Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221501 Share on other sites More sharing options...
rsb502 Posted December 15, 2013 Share Posted December 15, 2013 If there's no cap on the trunnion shaft its got rubber bushings and they have more movement than the bronze bushings. Like above sounds like its missing the transverse torque rod, they made that addition in the mid 80's to stop the walk of the axles. The transverse torque rod has a bracket bolted to he back of the rear carrier and the torque rod runs across to the right frame rail and bracket which has two bolts holding it in the frame. If you replaced the trunnion bushings, wedges and shock absorber pads at each end of the spring it shouldn't be able to move enough to touch the carrier to the frame. Did you replace ALL the pieces, both top and bottom rubber pads and the wedges on each side? Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221506 Share on other sites More sharing options...
rsb502 Posted December 15, 2013 Share Posted December 15, 2013 Also make sure items 7,8 and 9 in your drawing aren't cracked. Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221507 Share on other sites More sharing options...
macattack Posted December 15, 2013 Share Posted December 15, 2013 transvers torque rod. rear axle to frame. Quote Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221514 Share on other sites More sharing options...
blackdog2 Posted December 15, 2013 Share Posted December 15, 2013 Item #11 usually don't come on 38k but you can install to keep the spring from twisting in the spring cap .also item #7 can be change to a one piece steel bonded spring saddle . Ive always change and did away with rubber bushing . A little costly but well worth it. 1 Quote Ed Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221516 Share on other sites More sharing options...
R.E.D Posted December 15, 2013 Author Share Posted December 15, 2013 Can anyone post a pic of how the torque rod sits as installed in a truck...and how much am I looking at for that part.Part # 9 is severely worn where the arrow is pointing , all four of them!!...can I just run a couple weld beads to return is shape or it would not matter after the torque rod is in place.. (fyi the diagram above I took off the web to show what I was trying to say, its not an exact representation off what is in the truck).thanks in advanceRED Quote Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221574 Share on other sites More sharing options...

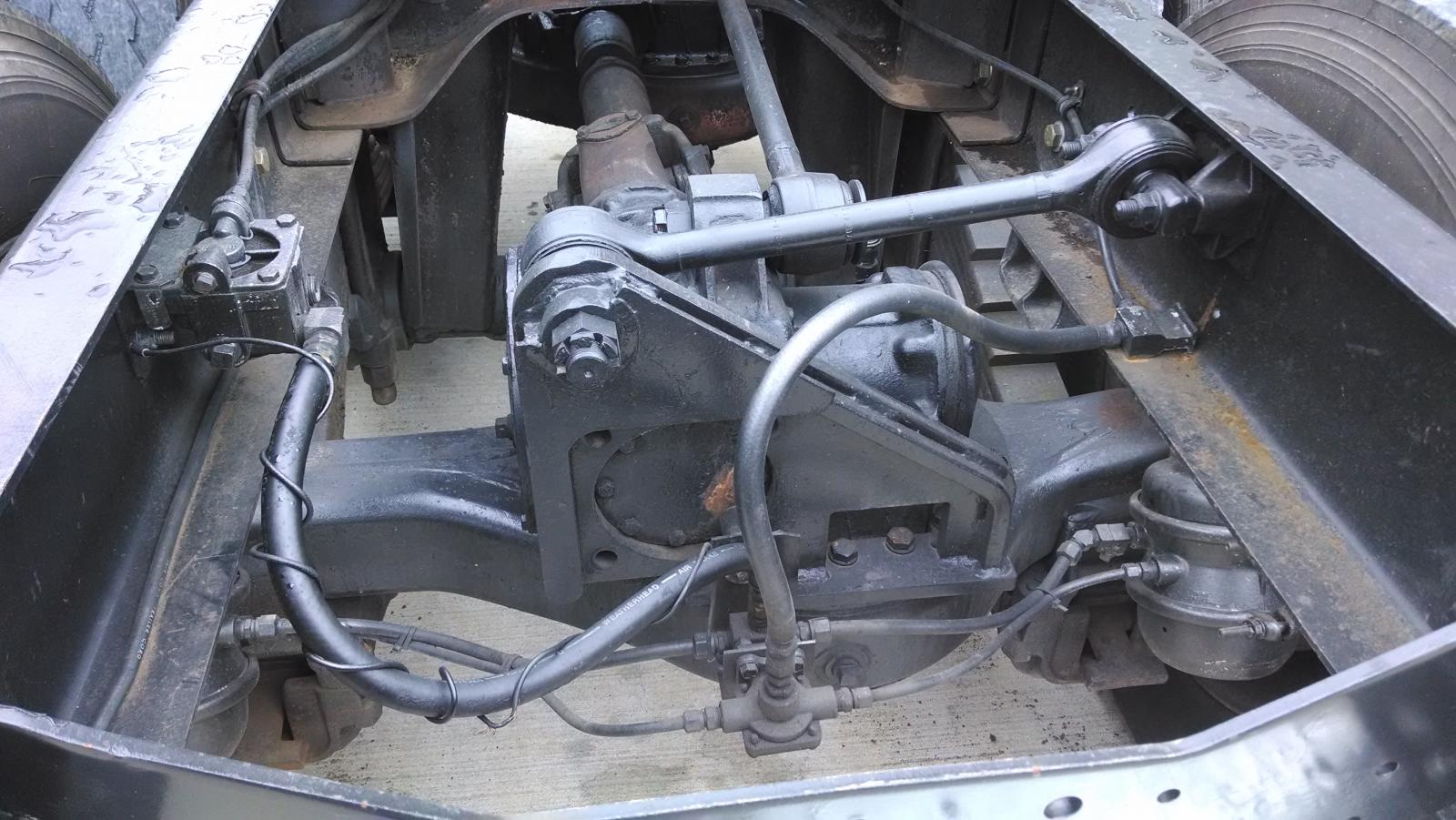

rsb502 Posted December 15, 2013 Share Posted December 15, 2013 Here's a pic of the brackets and rod, mines not bolted to the back of the carrier yet just the bottom and the frame. Global truck parts, Winrock truck parts, the list goes on should have them on the ground. Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221600 Share on other sites More sharing options...
R.E.D Posted December 15, 2013 Author Share Posted December 15, 2013 Oh man!! I definitely dont have that..that seems like it would solve the whole issue Quote Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221602 Share on other sites More sharing options...
R.E.D Posted December 15, 2013 Author Share Posted December 15, 2013 You guys have done it again!!! Thanks for all the support and help...I will start searching salvage yards for a set up like this...thanks a bunch..!!......RED Quote Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221604 Share on other sites More sharing options...
rick harper Posted December 17, 2013 Share Posted December 17, 2013 Make sure u bolts are torqued to 1700lb. ft. before you do anything else. Quote Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221887 Share on other sites More sharing options...
rick harper Posted December 17, 2013 Share Posted December 17, 2013 If the person that did the work and did it properly, the bogies should only walk out about half an inch then fall back in line when the truck is straightened out. Most people use an inch impact on the u bolts but it won't torque to 1700. One has to use a torque multiplier. Quote Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221890 Share on other sites More sharing options...
MACKS Posted December 17, 2013 Share Posted December 17, 2013 Make sure u bolts are torqued to 1700lb. ft. before you do anything else.+1,also let someone move the truck back and forward while turning hard and you get back there and see what and where its moving, take a close look at the saddle #8 where the spring sits,very possible the spring is twisting in the saddle if its worn on the sides from previous movement, the way your talking something is very very wrong, broken, or just plain worn out.Good luck Quote Link to comment https://www.bigmacktrucks.com/topic/33896-new-purchase-with-camelback-issues/#findComment-221895 Share on other sites More sharing options...
