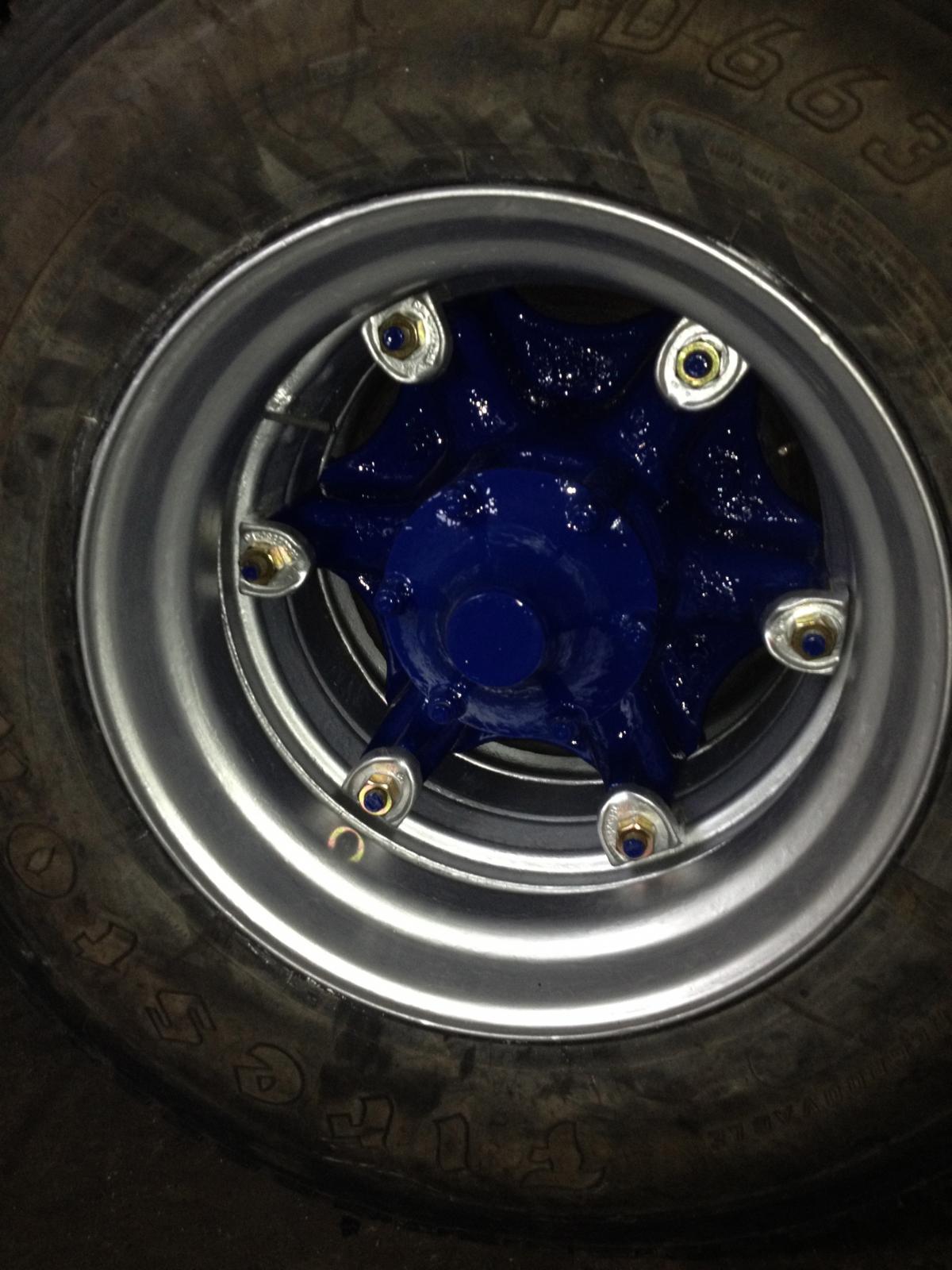

xdudebrahx Posted September 26, 2014 Share Posted September 26, 2014 It's on an 86 R. I want to buy some of those half moon hub covers and I don't want to order the wrong ones. Any tips on where to buy those? Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/ Share on other sites More sharing options...
41chevy Posted September 26, 2014 Share Posted September 26, 2014 I've always went to Speedway Motors and bought a set of Baby Moon hub caps. I set them upside down and level put a ball from a bearing and give it a rap to mark the center. Drill a 3/8 hole and Chrome Acorn nut to bolt it on to the 3/8 bolt and a stop nut that you have welded to the center of the hub. Course someone here may have an easier way to do it. Paul 1 Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261178 Share on other sites More sharing options...
doubleclutchinweasel Posted September 26, 2014 Share Posted September 26, 2014 'Bout all I can tell you about that hub is that it appears to use a double-splined axle shaft! Quote "Eagles may soar, but weasels don't get sucked into jet engines." Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261180 Share on other sites More sharing options...
xdudebrahx Posted September 26, 2014 Author Share Posted September 26, 2014 I've always went to Speedway Motors and bought a set of Baby Moon hub caps. I set them upside down and level put a ball from a bearing and give it a rap to mark the center. Drill a 3/8 hole and Chrome Acorn nut to bolt it on to the 3/8 bolt and a stop nut that you have welded to the center of the hub. Course someone here may have an easier way to do it. PaulI have one already installed on my lift axle and it has three "brackets" that fit behind the bolts of the axle shaft and then the baby moon cap snaps over those brackets. Those are the kind I want. It's a company truck so I can't do any drilling or welding :/ Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261183 Share on other sites More sharing options...
Superdog Posted September 26, 2014 Share Posted September 26, 2014 If I was you I'd just paint it up nice,then get chrome nut covers for all the nuts 2 Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261191 Share on other sites More sharing options...
xdudebrahx Posted September 26, 2014 Author Share Posted September 26, 2014 If I was you I'd just paint it up nice,then get chrome nut covers for all the nutsThat's half of the plan. I thought the baby moon hub caps would really set it off but I'm having a hard time finding anything for those style axle shafts. What are they even called? Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261193 Share on other sites More sharing options...
Superdog Posted September 26, 2014 Share Posted September 26, 2014 just your normal 44k rear set up,instead of the axle shaft being welded to the hub cap,both ends were splined,so your axle was actually 2 pieces,the shaft and the cap 1 Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261203 Share on other sites More sharing options...
doubleclutchinweasel Posted September 26, 2014 Share Posted September 26, 2014 That's half of the plan. I thought the baby moon hub caps would really set it off but I'm having a hard time finding anything for those style axle shafts. What are they even called?They're double-spline axles.Pretty sure they made 44K rears with both welded axle and double-splined axles.Those having 6 bolts, instead of 8, would suggest lighter than 44K...I do believe. Quote "Eagles may soar, but weasels don't get sucked into jet engines." Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261204 Share on other sites More sharing options...
2stacksuperdog Posted September 26, 2014 Share Posted September 26, 2014 I would do what superdog said and just put the chrome nut covers and paint it up. I personally like the look of the cone axles. 2 Quote Matt Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261205 Share on other sites More sharing options...
Superdog Posted September 26, 2014 Share Posted September 26, 2014 They're double-spline axles.Pretty sure they made 44K rears with both welded axle and double-splined axles.Those having 6 bolts, instead of 8, would suggest lighter than 44K...I do believe.I was told 6 bolts were 44's,8 bolts were 55's and 10 bolts were 65's Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261207 Share on other sites More sharing options...
2stacksuperdog Posted September 26, 2014 Share Posted September 26, 2014 My R-model with 38s has 8 bolts, our RD has 44s and 6 bolts, our superliner has 46s with 6 bolts and a Dm800 i moved has 65s with 8 bolts. 2 Quote Matt Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261209 Share on other sites More sharing options...
doubleclutchinweasel Posted September 27, 2014 Share Posted September 27, 2014 I've got 44s with 8!Maybe there's no pattern here! Quote "Eagles may soar, but weasels don't get sucked into jet engines." Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261219 Share on other sites More sharing options...
6368 Posted September 27, 2014 Share Posted September 27, 2014 I've got 44s with 8!Maybe there's no pattern here!Never seen that one . could you post a picture. thanks Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261220 Share on other sites More sharing options...
85snowdog Posted September 27, 2014 Share Posted September 27, 2014 Mine are 44,000 for sure. 6 bolts 1 Quote Keith Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261223 Share on other sites More sharing options...
Bigdogtrucker Posted September 27, 2014 Share Posted September 27, 2014 6 bolt cone for 44's,8 bolts are heavier.38K flats are 8 also I believe. Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261224 Share on other sites More sharing options...
doubleclutchinweasel Posted September 27, 2014 Share Posted September 27, 2014 Suppose the double-spline axle setup uses a different number of bolts than the flanged axle?My 8-bolt 44s are the flanged axle, not the double-spline version. Quote "Eagles may soar, but weasels don't get sucked into jet engines." Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261225 Share on other sites More sharing options...
Bigdogtrucker Posted September 27, 2014 Share Posted September 27, 2014 Think your truck has has 38's doubleclutch,5 spoke also. Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261226 Share on other sites More sharing options...
2stacksuperdog Posted September 27, 2014 Share Posted September 27, 2014 I looked through my pictures and seems all 44k/46k have 6. 38s all have 8. 58s and 65s have 8. The newer 58s have 10. 2 Quote Matt Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261229 Share on other sites More sharing options...
6368 Posted September 27, 2014 Share Posted September 27, 2014 I always thought it would be neat to send the cones out for chroming. bet it would be pricey though. 2 Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261230 Share on other sites More sharing options...
doubleclutchinweasel Posted September 27, 2014 Share Posted September 27, 2014 I can't find the document I had which gave the axle ratings for the old axle numbers. Sorry. Pretty sure I looked mine up somewhere (possibly a Euclid chart?), and it said 44s. Could be wrong, though, since I can't find the blasted thing.My springs are light. Probably 34s or 38s. So, they COULD be 38s. I just plain can't remember.They are SWDL-751s, if anybody has the numbers. Should be same rating as more common SWD-75.And, yes, these are 5-spoke wheels. That might also point to 38s... 1 Quote "Eagles may soar, but weasels don't get sucked into jet engines." Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261233 Share on other sites More sharing options...
2stacksuperdog Posted September 27, 2014 Share Posted September 27, 2014 I always thought it would be neat to send the cones out for chroming. bet it would be pricey though.Ive seen it done. Looked nice.I can't find the document I had which gave the axle ratings for the old axle numbers. Sorry. Pretty sure I looked mine up somewhere (possibly a Euclid chart?), and it said 44s. Could be wrong, though, since I can't find the blasted thing.My springs are light. Probably 34s or 38s. So, they COULD be 38s. I just plain can't remember.They are SWDL-751s, if anybody has the numbers. Should be same rating as more common SWD-75.And, yes, these are 5-spoke wheels. That might also point to 38s...Definitely sounds like 38s or lighter. Do you have the paperwork from Mack Museum? That should state the rating. Quote Matt Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261235 Share on other sites More sharing options...
doubleclutchinweasel Posted September 27, 2014 Share Posted September 27, 2014 Oh, and it's got a 92 carrier on the front & a 93 carrier on the rear, if that helps... Quote "Eagles may soar, but weasels don't get sucked into jet engines." Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261236 Share on other sites More sharing options...
doubleclutchinweasel Posted September 27, 2014 Share Posted September 27, 2014 Ive seen it done. Looked nice.Definitely sounds like 38s or lighter.Do you have the paperwork from Mack Museum? That should state the rating.Looking at it right now. The problem is that Mack had more SPRING ratings than they had AXLE ratings. Like I said, the springs are light. In fact, the build sheet only shows 32K on the rears, as well as on the trailer, as that was the legal max on tandems in 1970.Somewhere I had located the actual axle ratings, which were higher than the springs. I think I may have found it by looking at bearings. It is actually the bearings which limit the load you can put on an axle, anyway.I just can't freakin' find that blasted sheet. I think I'm finished for the night! Quote "Eagles may soar, but weasels don't get sucked into jet engines." Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261237 Share on other sites More sharing options...
41chevy Posted September 27, 2014 Share Posted September 27, 2014 I have one already installed on my lift axle and it has three "brackets" that fit behind the bolts of the axle shaft and then the baby moon cap snaps over those brackets. Those are the kind I want. It's a company truck so I can't do any drilling or welding :/That's how the fire truck Baby moon caps are mounted, but they most all run the single spline axles and not the double spline like you have. Paul Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261257 Share on other sites More sharing options...
xdudebrahx Posted September 27, 2014 Author Share Posted September 27, 2014 I guess I'll just get them painted up nice first. Probably buy a boat load of caps for the nuts. What's the best place to buy em cheapest? And does anyone know what size they are off hand? I wanna do the nuts on the cleats and the nuts that hold the spoke to the drum. Quote Link to comment https://www.bigmacktrucks.com/topic/37194-what-hub-is-this/#findComment-261261 Share on other sites More sharing options...
