Artful dodger Posted April 30 Share Posted April 30 Am I looking at the right thing? Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550702 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 FJH, I didn’t have anybody to help me check what I did do was look at it with the engine off and with the engine running so off it was the stroke was up and on the stroke was down all the way bottomed out fully extended, and I’m assuming you’re talking about the actuator on the turbo side that has the metal braided line that runs across the motor into it airline and I took the line off and started it and thumbed it actuator went up and down. I will see when I get up here and stopped if one of these other drivers will look at that actuator while I turn the key off and on, I appreciate you guys going above and beyond on this there have been a couple of blogs that I’ve gotten on to try to make sense of all of it and it seemed all they wanted to do was give people a hard time and didn’t know what they were doing appreciate it fellas 1 Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550704 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 The Hines thank you for the diagrams that helps a bunch Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550705 Share on other sites More sharing options...
The Heinz Posted April 30 Share Posted April 30 10 minutes ago, Artful dodger said: The Hines thank you for the diagrams that helps a bunch No problem, I try to help out when I can. Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550707 Share on other sites More sharing options...
fjh Posted April 30 Share Posted April 30 28 minutes ago, Artful dodger said: FJH, I didn’t have anybody to help me check what I did do was look at it with the engine off and with the engine running so off it was the stroke was up and on the stroke was down all the way bottomed out fully extended, and I’m assuming you’re talking about the actuator on the turbo side that has the metal braided line that runs across the motor into it airline and I took the line off and started it and thumbed it actuator went up and down. I will see when I get up here and stopped if one of these other drivers will look at that actuator while I turn the key off and on, I appreciate you guys going above and beyond on this there have been a couple of blogs that I’ve gotten on to try to make sense of all of it and it seemed all they wanted to do was give people a hard time and didn’t know what they were doing appreciate it fellas Ok So Get the engine warmed up to temp! If you have a Boost gauge! Watch the boost! Rev the engine to max rpm! And feather it back and forth drop back 300- 500 rpm and back up to max top rpm do this half a dozen times see what kind of boost it generates! It should make around 15-20 psi just sitting there doing this! if so If its working as it should! It should sound like a kirby vacuam cleaner While you do this!🤣 Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550709 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 No boost gauge so I’ll have to either put one in it or find somebody that can watch that actuator and see if it’s going in and out. I wish I knew how many I was running a boost though that would help a lot aftermarket boost gauge shouldn’t be hard to come by I think I found the VGT it’s down inside the frame rail, kinda up by the steering box between the oil filters and the steering box I think that’s what it is anyway it’s covered in so much shit that need to spray everything down Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550716 Share on other sites More sharing options...

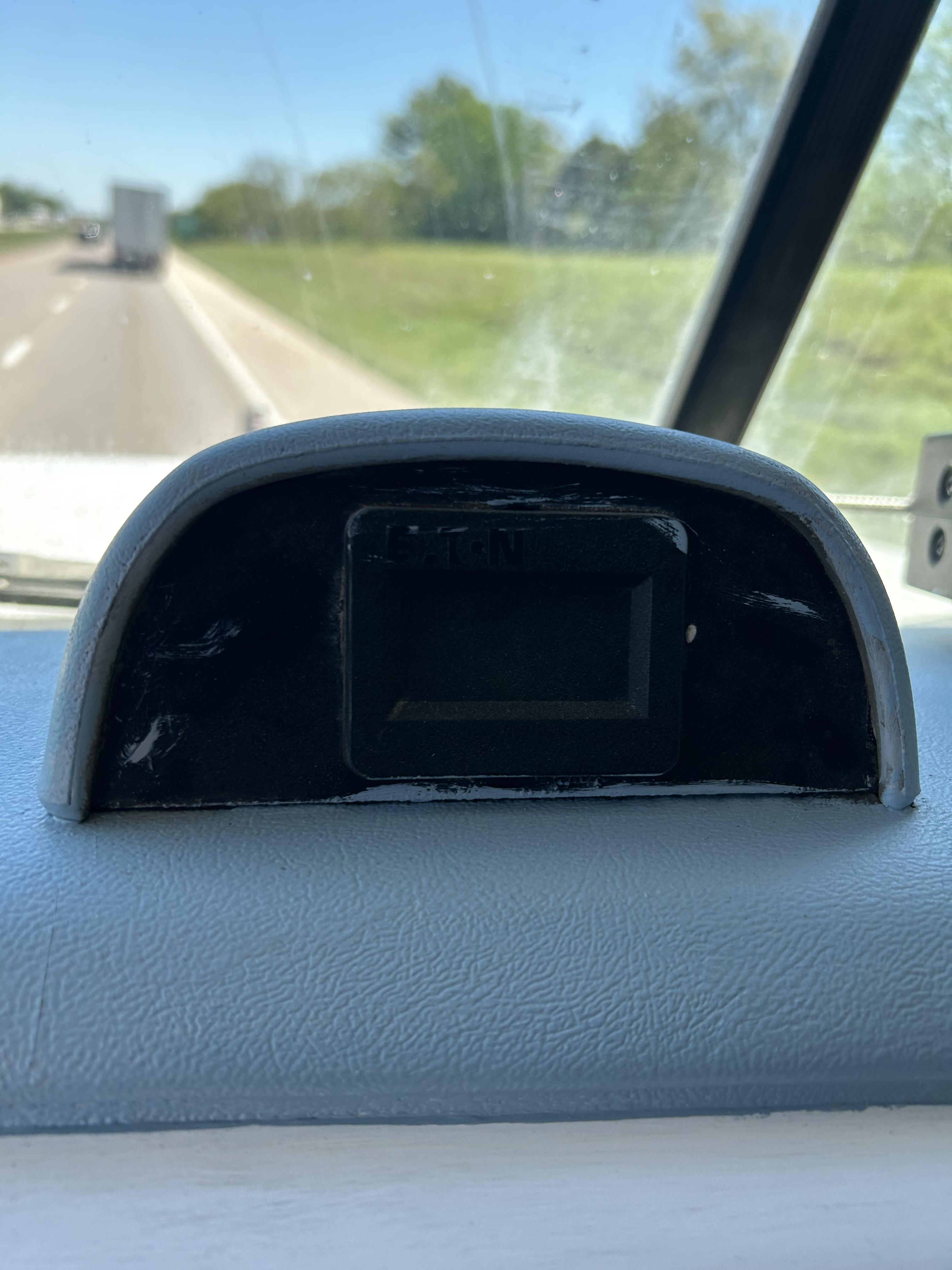

Artful dodger Posted April 30 Share Posted April 30 What was this originally used for in this truck? I could probably stick a boost gage in that Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550717 Share on other sites More sharing options...
fjh Posted April 30 Share Posted April 30 Copilot I believe! Is there no screen in it? Is there no boost gauge to your left in the gauge cluster there? If that had a screen you would have had an option to look at boost oil pressure and some other vitals . Mpg ect! Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550718 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 Ya this thing is honestly a shit show no boost there’s coolant volts oil psi oil temp now oil temp is up to 230 red lines at 250 not sure why intercooler is where it is but can’t change that I really want this damn thing to run right goin to try and find a filter is where I described the vgt the right place you think? Inside frame rail between oil filters and gearbox Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550721 Share on other sites More sharing options...
fjh Posted April 30 Share Posted April 30 Should be directly below the controller! Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550725 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 I’m under truck now on the motor or frame Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550727 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 U under the ecm right Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550728 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 I can’t find it man Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550729 Share on other sites More sharing options...

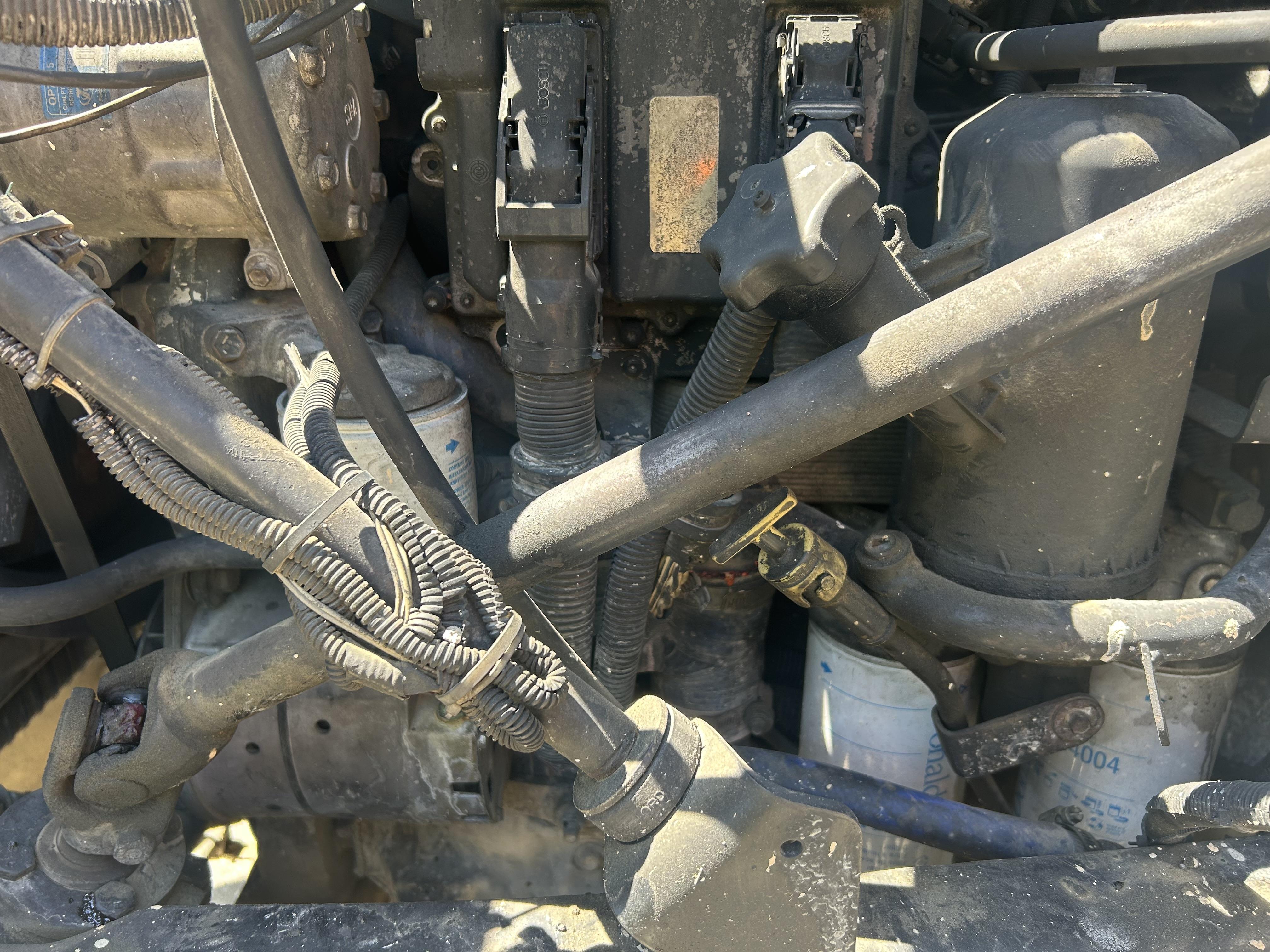

The Heinz Posted April 30 Share Posted April 30 8 minutes ago, Artful dodger said: U under the ecm right It was behind the oil filters on the driver's side of the engine block on the CXU in our shop. I can only imagine it would be the same for yours. It's a very shallow but wide filter. Looks like the below. Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550730 Share on other sites More sharing options...
fjh Posted April 30 Share Posted April 30 19 minutes ago, Artful dodger said: I’m under truck now on the motor or frame Motor Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550731 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 Ya this thing is honestly a shit show no boost there’s coolant volts oil psi oil temp now oil temp is up to 230 I hope I’m telling you guys the correct motor I’m goin off paperwork I have and what vin pulled up and what that idiot told me looking at the diagram I followed hose that I’m guessing goes to it and idk man I’m lost and frustrated as hell Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550732 Share on other sites More sharing options...

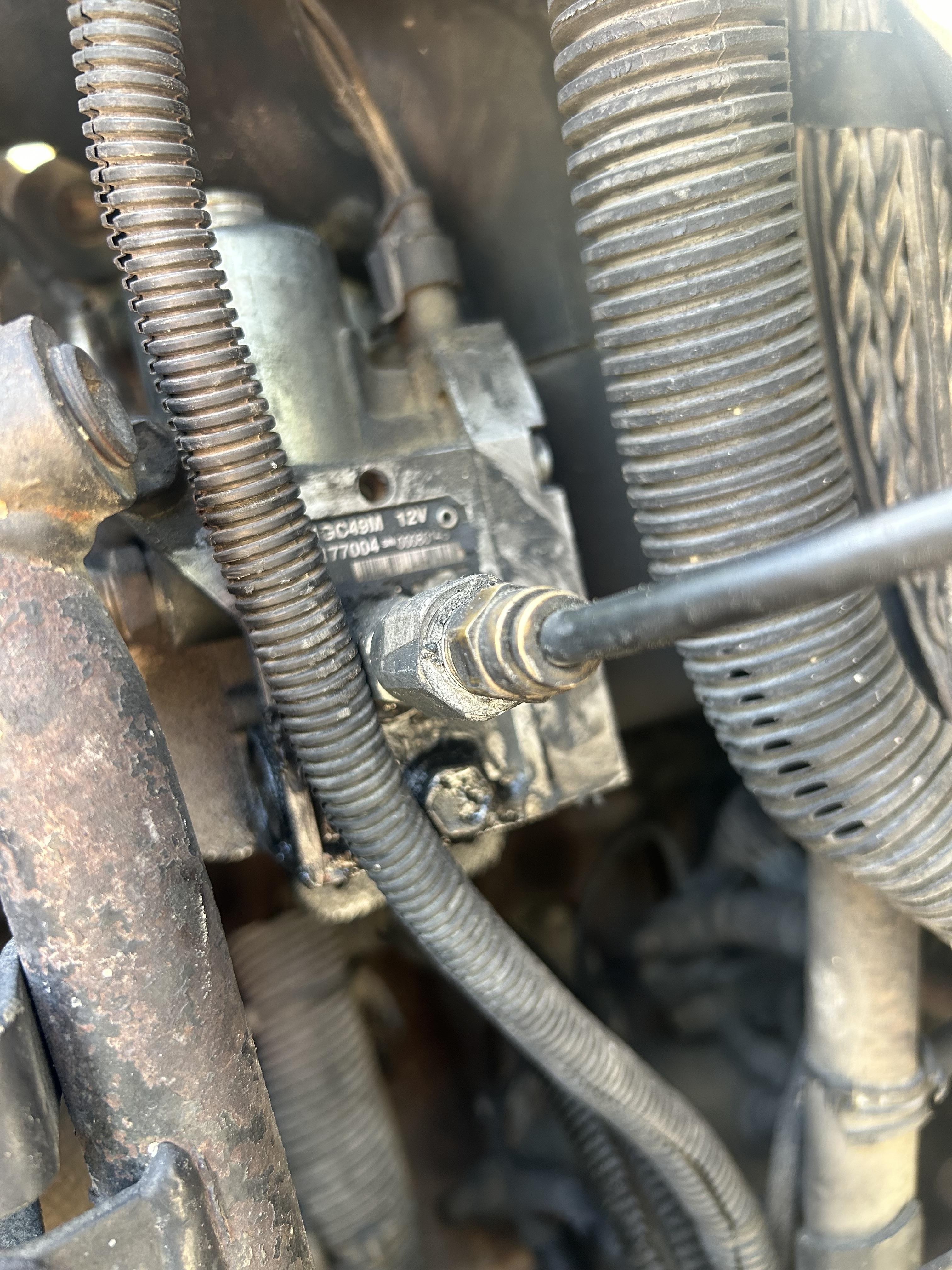

Artful dodger Posted April 30 Share Posted April 30 Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550733 Share on other sites More sharing options...
fjh Posted April 30 Share Posted April 30 Behind the oil filter s Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550734 Share on other sites More sharing options...
fjh Posted April 30 Share Posted April 30 Where does that plastic line go? It normally goes down to the filter if it hasn’t been deleted? Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550735 Share on other sites More sharing options...
fjh Posted April 30 Share Posted April 30 Dodger do you know where the egr valve is? Unplug it and see if the truck drives better! Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550736 Share on other sites More sharing options...
Joey Mack Posted April 30 Share Posted April 30 Its probably covered in dirt and oil . Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550737 Share on other sites More sharing options...
fjh Posted April 30 Share Posted April 30 4 minutes ago, Joey Mack said: It’s probably covered in dirt and oil . Probably and it maybe stuck open! If it’s stuck open it won’t let the turbo spool up! 1 Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550738 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 Egr valve is passenger side behind turbo up on the motor correct Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550739 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 There’s all manner of shit behind oil filters but I can’t see a filter I’ll an oil filter off this trucks so messed up man everytime I turn around it something else bout ready to just buy new e7 from big bear and put it in or I’ve got a c-13 cat sitting too Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550740 Share on other sites More sharing options...
Artful dodger Posted April 30 Share Posted April 30 Eye valve is unplugged has been Quote Link to comment https://www.bigmacktrucks.com/topic/37225-2005-chn613-aset-427-powertorqueboost-loss-please-help/page/3/#findComment-550741 Share on other sites More sharing options...
