thanks BC mack...would you have an pictures of the top of your engine showing the fuel pump hosing and routing? I'm doing a V pump to in-line pump conversion and it's hard to find anything on the Internet...I appreciate your help

my E9 is in an MH cabover so I have to assume is different in hose layout than your Super... but not sure. Of all the pics I have there are only two of the pump area.. however, if you give me an idea of which hoses you are interested in I can take pics of it next week... they are pretty snug in there and may be hard to photo... let me know if I can help

BC Mack

The E9 with the Robert Bosch pump I have came out of a 92 MH and it had cable driven Tach it drives off the fuel pump gear on the front just like the AMBAC pump I have. On my other E9. So they must have went to electric tach in 93.

thanks BC mack...would you have an pictures of the top of your engine showing the fuel pump hosing and routing? I'm doing a V pump to in-line pump conversion and it's hard to find anything on the Internet...I appreciate your help

I got some photos for you today... trust it is what you need.

I hope I got the hose direction right, pretty crowded in there...!!!

BC Mack

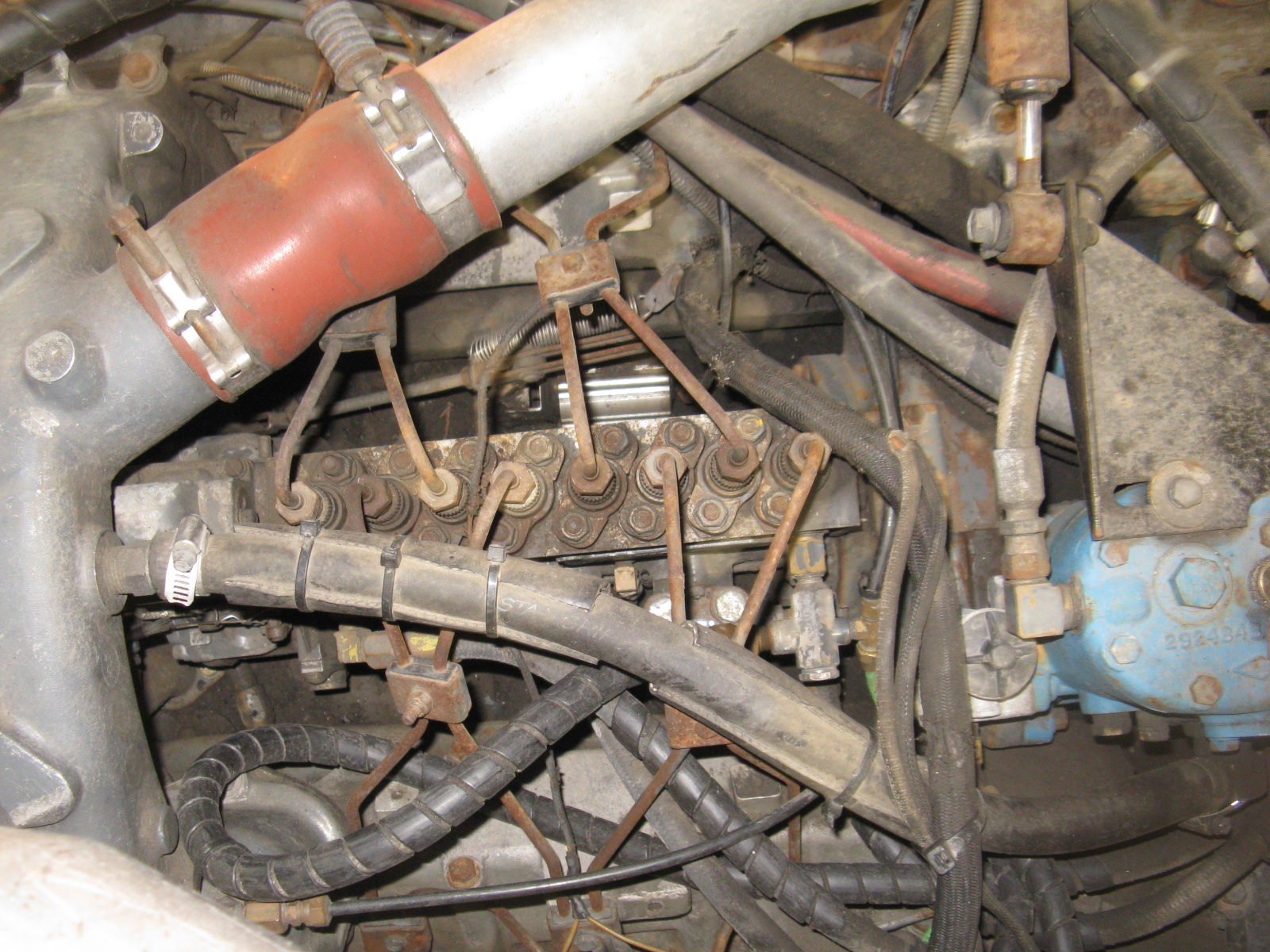

1. general view of top

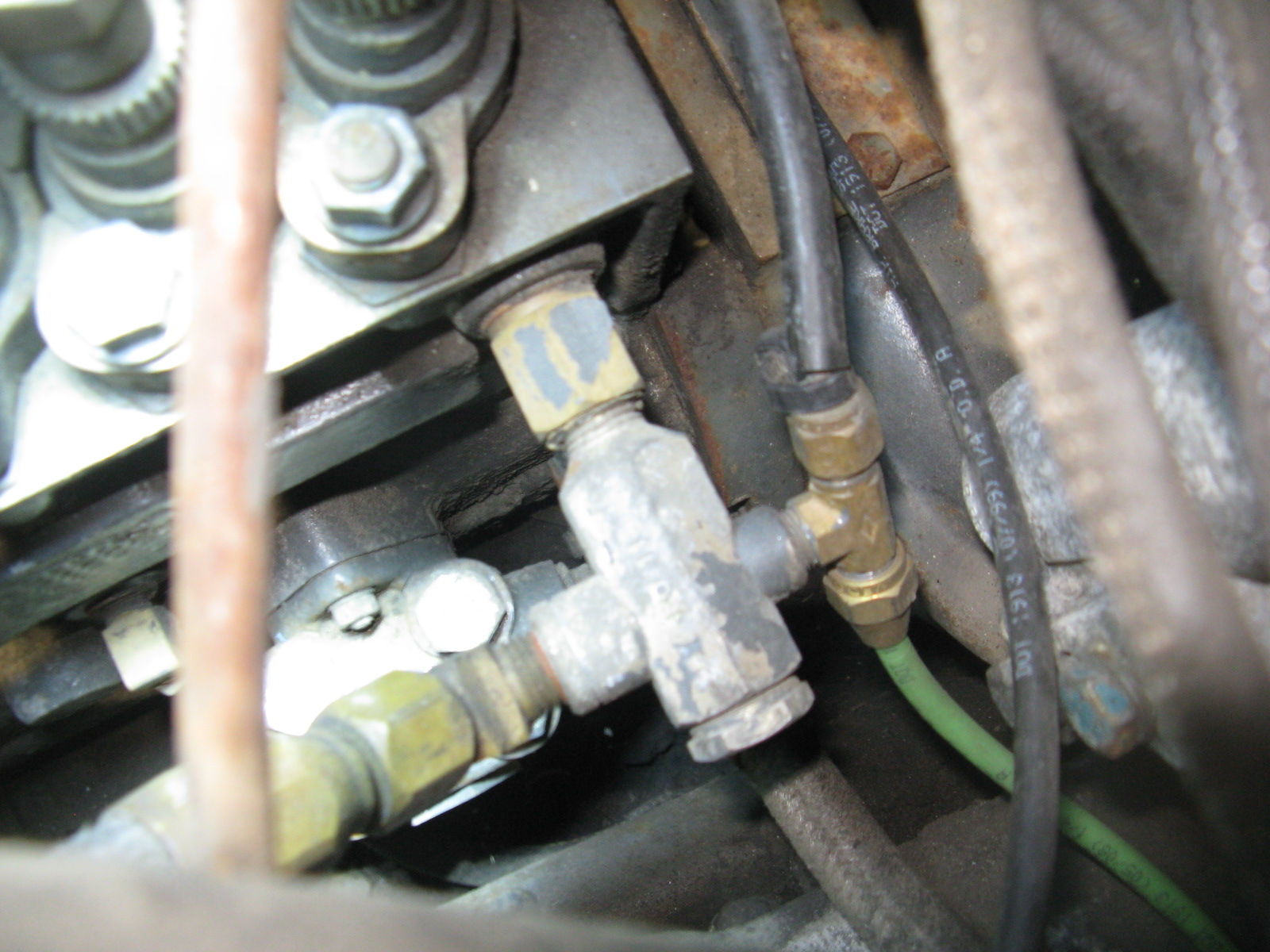

2. outlet from pump and injectors, return to tank

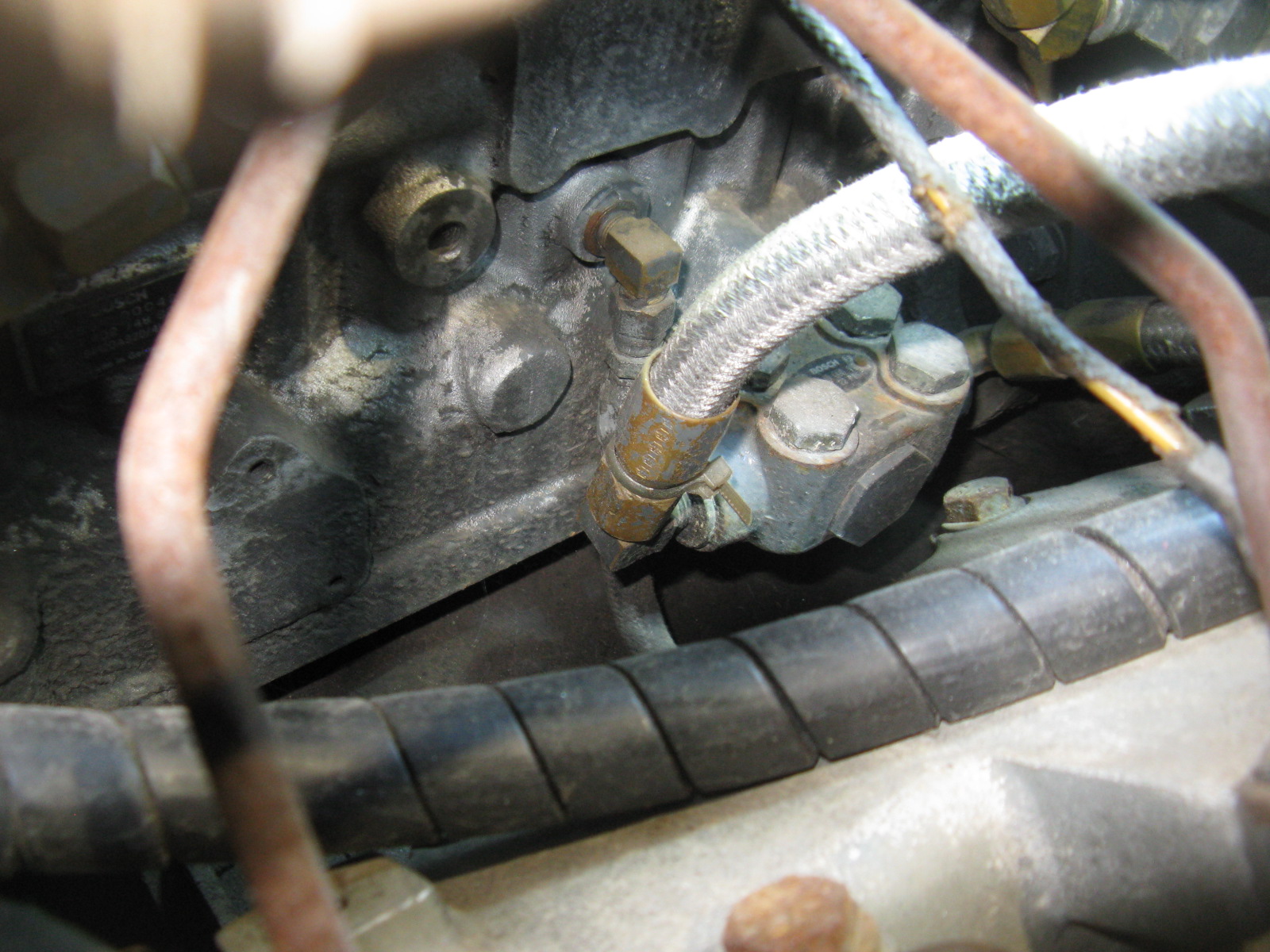

3. lift pump, aft fitting goes to secondary filter, front is from primary filter

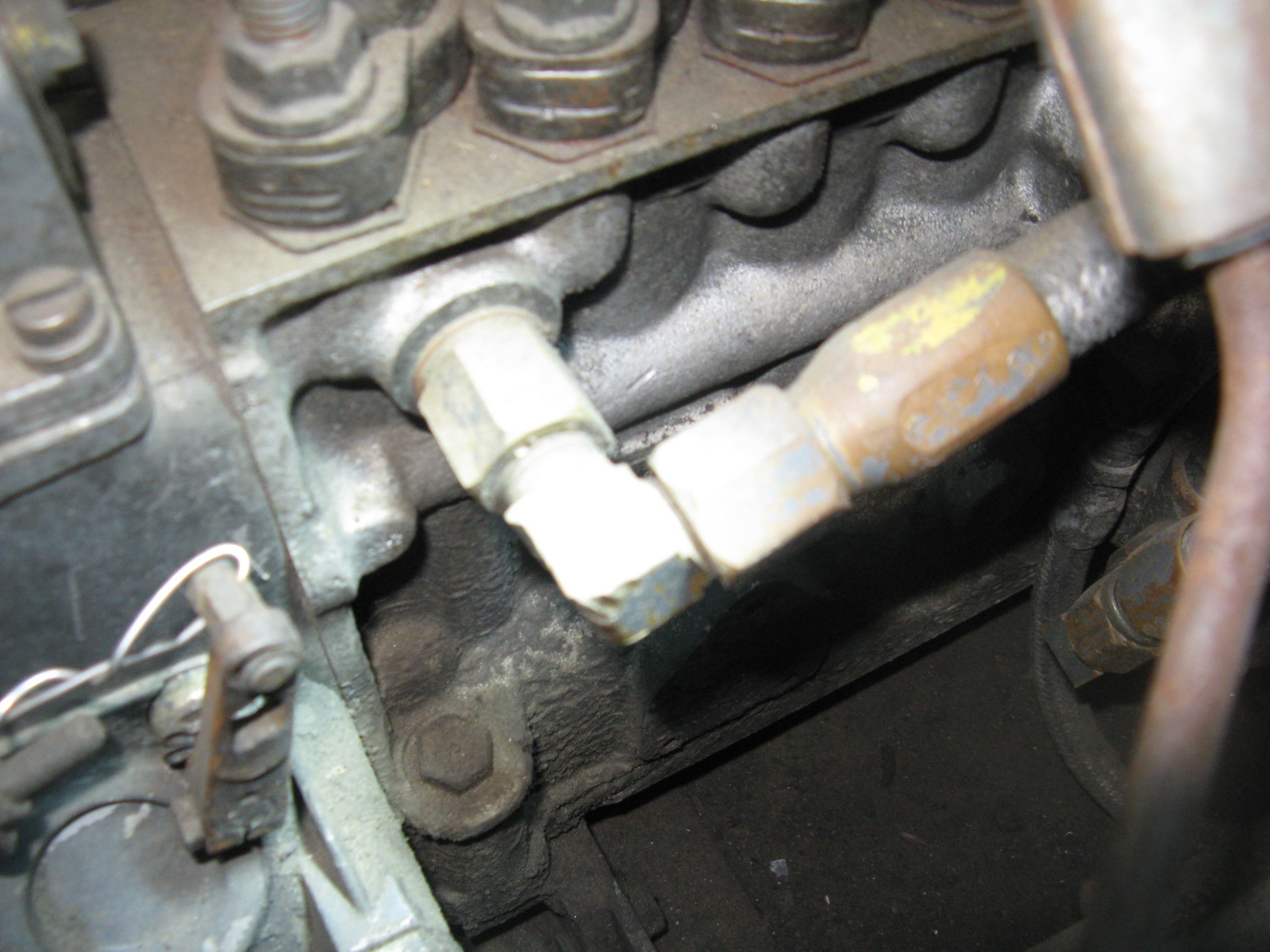

4. inlet to pump from sec filter

5. stop cable

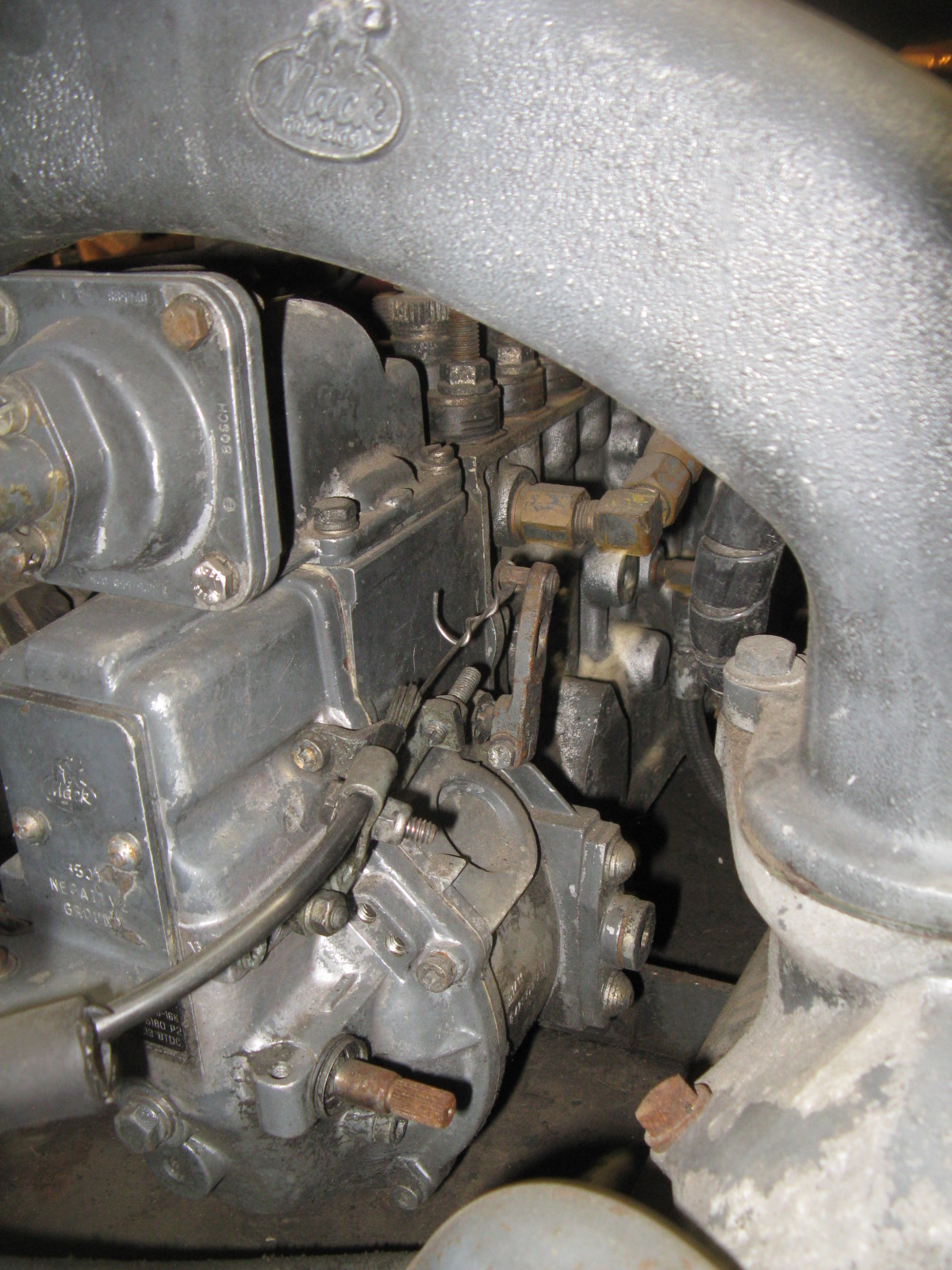

6. dynatard switch and torque reduction for low-low

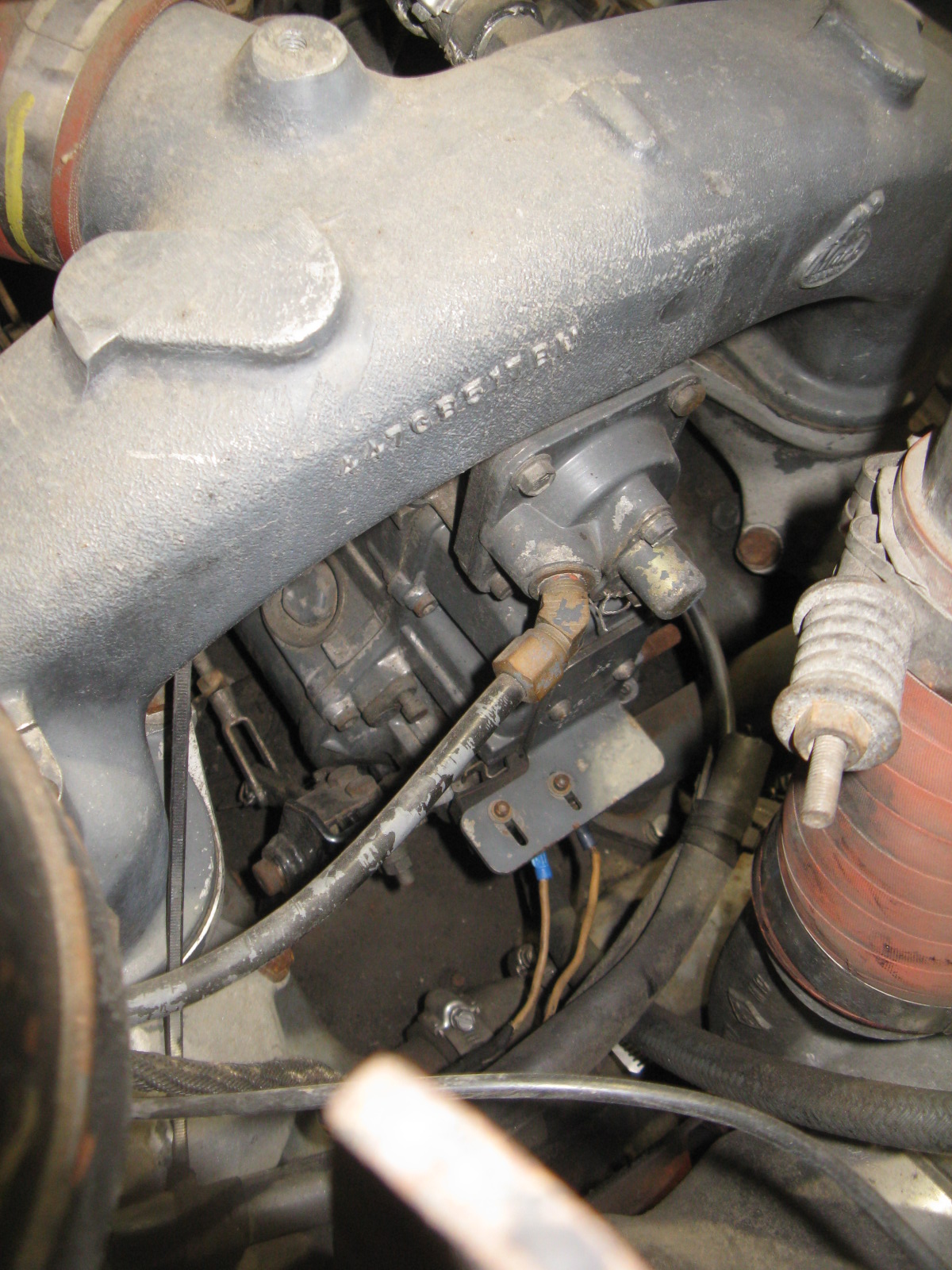

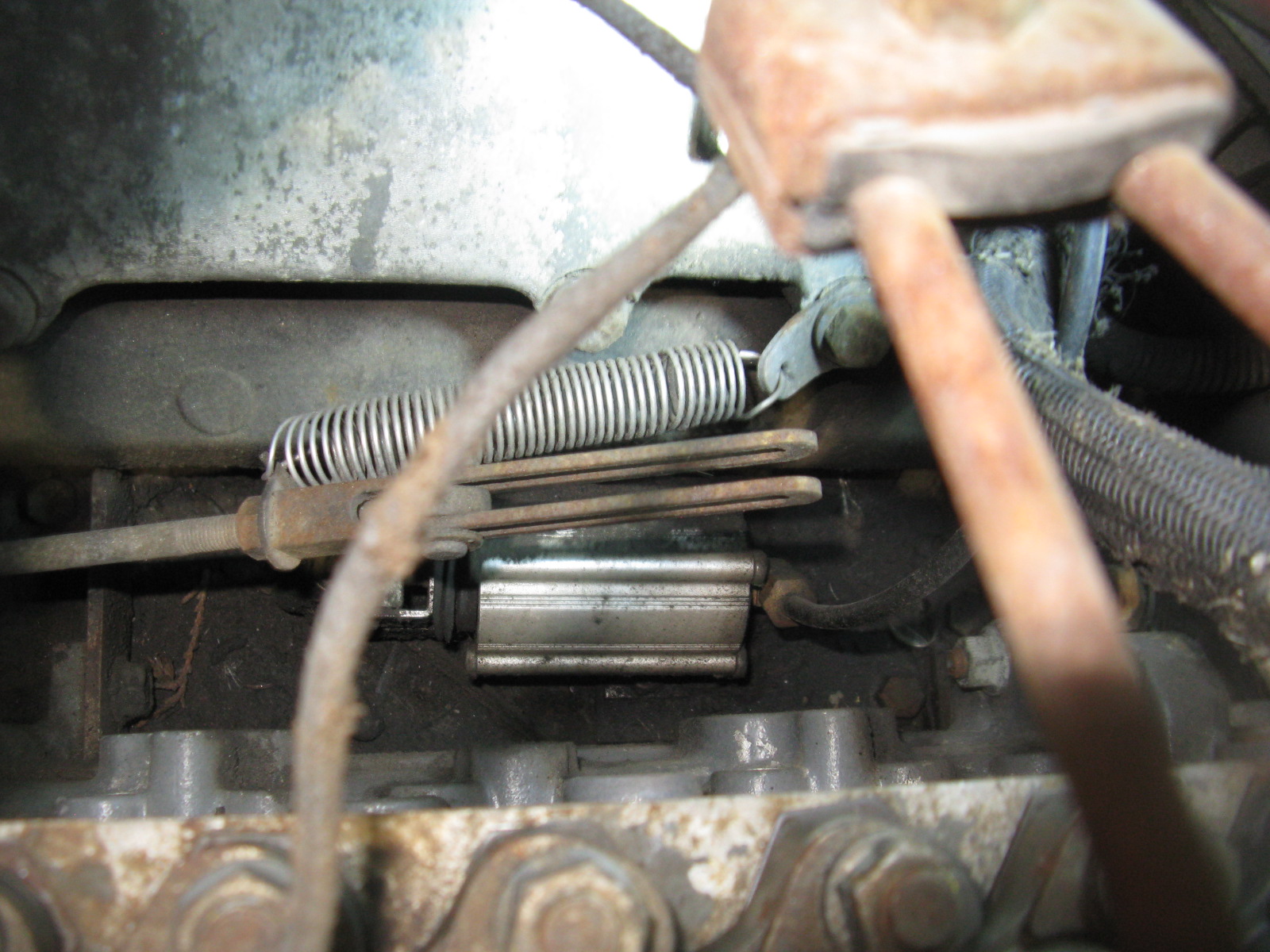

7. air throttle cylinder

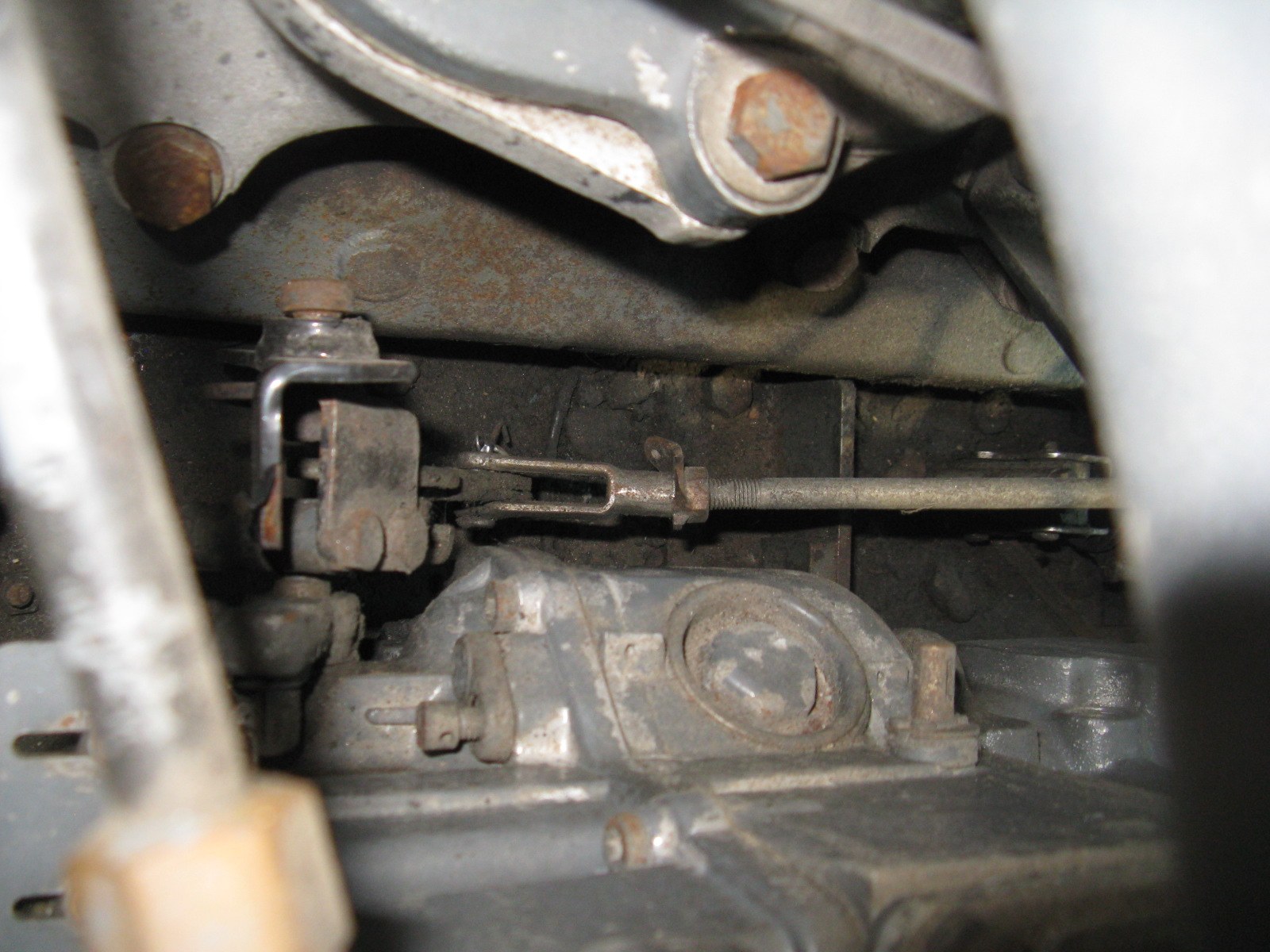

8. hand throttle lever (my cable is off)

post-10384-0-81565800-1446169312_thumb.j

post-10384-0-38518800-1446169344_thumb.j

post-10384-0-02467000-1446169366_thumb.j

post-10384-0-38557600-1446169394_thumb.j

post-10384-0-68180100-1446169415_thumb.j

post-10384-0-99887900-1446169440_thumb.j

post-10384-0-15157600-1446169459_thumb.j

post-10384-0-95238200-1446169474_thumb.j
