SMFire History Posted December 26, 2015 Share Posted December 26, 2015 Can anyone post up what a mechanical backup alarm would (or could) have been on our 52 L Model Mack?Pic or model # would be great!Thanks and Merry Christmas.Dom Quote Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/ Share on other sites More sharing options...

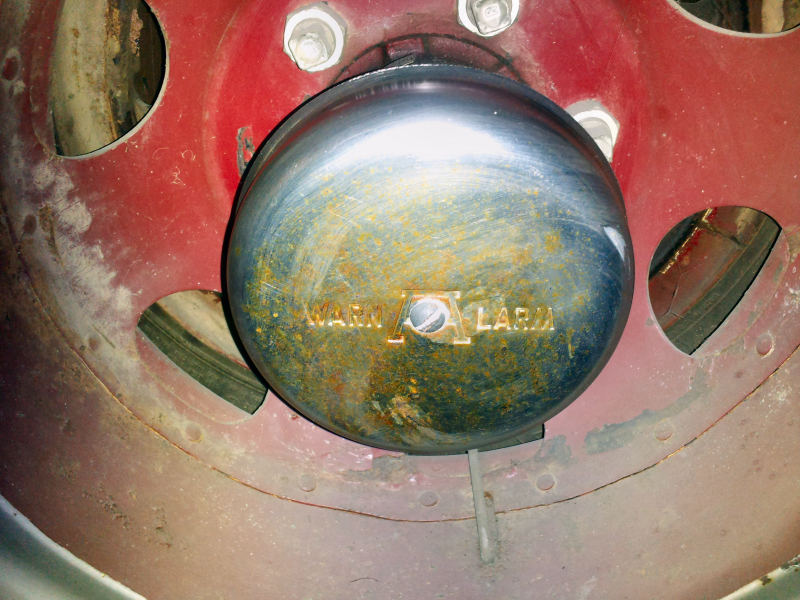

thomastractorsvc Posted December 26, 2015 Share Posted December 26, 2015 Wouldn't that be an axle bell?? 1 Quote Robert"I reject your reality and substitute my own." Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-317426 Share on other sites More sharing options...
fxfymn Posted December 26, 2015 Share Posted December 26, 2015 Most likely none other than the guy on the back step operating a buzzer in the cab by pushing a button mounted near the grab rail. One stop; two go; three back up. It was their job to make sure no one was in the way. Quote Money, sex, and fire; everybody thinks everyone else is getting more than they are! Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-317446 Share on other sites More sharing options...
Charlie Hatfield Posted December 27, 2015 Share Posted December 27, 2015 how many are you looking for? Quote Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-317519 Share on other sites More sharing options...
SMFire History Posted December 27, 2015 Author Share Posted December 27, 2015 Thanks for the replies. I was under the impression that there was a mechanical bell version I could install on the inside of the wheel. We do have the buzzer which was used when it was in service but would like something audible for its new life as a fundraiser/special event rig. It will be around kids a lot and a bell would be nice. We would just need one. Quote Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-317605 Share on other sites More sharing options...
m16ty Posted December 27, 2015 Share Posted December 27, 2015 The one like Thomas posted should fill the bill. They aren't very loud though. You might consider a electric one if you are worried about kids in the way. Quote Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-317609 Share on other sites More sharing options...
Charlie Hatfield Posted December 28, 2015 Share Posted December 28, 2015 They are not very loud. I took one off a 49 L fire truck because it rang all the time. I still have it somewhere. Quote Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-317658 Share on other sites More sharing options...
fxfymn Posted December 28, 2015 Share Posted December 28, 2015 If you are concerned about safety during public events I would put a back up camera on the truck. The cameras are quite small so they will not take away from the truck's appearance and the screen can be set up so it is removable if you want to keep a factory look in the cab.I use one for the front of my 52 to help me load the truck on the trailer. Just remember to hook it up correctly; I ran a separate wire to the control unit directly from the battery and isolated the unit from the truck to keep it from shorting out.As for the back up alarm I'd go with a modern unit since that is what today's folks associate with a truck backing up. And the wheel bells are immensely annoying as they rattle and ding all the time. Quote Money, sex, and fire; everybody thinks everyone else is getting more than they are! Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-317679 Share on other sites More sharing options...
41chevy Posted December 28, 2015 Share Posted December 28, 2015 As for the back up alarm I'd go with a modern unit since that is what today's folks associate with a truck backing up. And the wheel bells are immensely annoying as they rattle and ding all the time.At a local show ENFD's 1952 MACK has a Back-up Bell, it actually attracted kids and some adults to the rear of the truck. Most people and kids today associate a bell with the Ice Cream Truck not a unit backing up.I also would go with a modern Back Up Alarm. Paul Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-317700 Share on other sites More sharing options...
609albert Posted December 31, 2015 Share Posted December 31, 2015 what type of backup alarm is their for a standard trans, I've seem what looks like a rod assembly switch ,but what does it connect to energize the alarm ? Quote Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-318021 Share on other sites More sharing options...
41chevy Posted December 31, 2015 Share Posted December 31, 2015 The ENFD 1952 has marine sealed momentary toggle switch (spring loaded so when it is released it automatically shuts off) mounted so when the gear shift lever goes into reverse the switch is pushed on by the gear lever it self. It is under the floor board on an L bracket so it is not obtrusive. Paul 1 Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-318024 Share on other sites More sharing options...
SMFire History Posted December 31, 2015 Author Share Posted December 31, 2015 Thank you for all the input guys. I'd like to at least try the bell and go from there. If we can add an unobtrusive screen to the cab then I think the backup camera is a great idea as well. Quote Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-318036 Share on other sites More sharing options...
fxfymn Posted December 31, 2015 Share Posted December 31, 2015 If we can add an unobtrusive screen to the cab then I think the backup camera is a great idea as well. I mounted the screen to a small piece of plywood which I attached a couple of pieces of flat stock bent into a hook shape to hang over the windshield. I plug it into the control box, hang it on the windshield while I load the truck, and then disconnect it and stash it away when I'm done. Quote Money, sex, and fire; everybody thinks everyone else is getting more than they are! Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-318055 Share on other sites More sharing options...

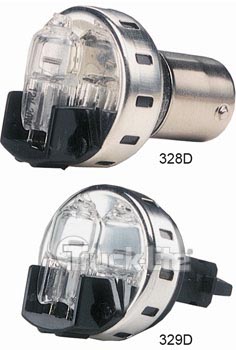

41chevy Posted December 31, 2015 Share Posted December 31, 2015 My Gabrielle MACK parts guru told me about these. If you have reverse lights this is simple and easy install. 87 decibels http://www.truck-lite.com/webapp/wcs/stores/servlet/ProductDisplay?storeId=10001&productId=29247 1 Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-318081 Share on other sites More sharing options...
SMFire History Posted January 4, 2016 Author Share Posted January 4, 2016 ^^^^^ I like these light bulbs. Unfortunately we don't have any back up lights. Certainly something to consider adding... Quote Link to comment https://www.bigmacktrucks.com/topic/43260-mechanical-back-up-alarm/#findComment-318520 Share on other sites More sharing options...
