AL Terek Posted January 5, 2016 Share Posted January 5, 2016 Can anyone tell me where the fuse for the radio is on a 2012 Mack? Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/ Share on other sites More sharing options...
Turker Posted January 6, 2016 Share Posted January 6, 2016 I am not an expert but I have friend has new granite .he was working on his radio and he had plastic cover top of the dashboard open.He told me all fuses are there.I hope it is some help. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-318767 Share on other sites More sharing options...
Challenger Posted January 6, 2016 Share Posted January 6, 2016 2 fuse box locations.1-Center top dash under the removable triangle shaped plastic cover2-To the left of the clutch pedal or brake pedal Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-318860 Share on other sites More sharing options...
OneBadTrucker Posted October 2, 2019 Share Posted October 2, 2019 On 1/6/2016 at 3:41 PM, Challenger said: 2 fuse box locations. 1-Center top dash under the removable triangle shaped plastic cover 2-To the left of the clutch pedal or brake pedal no diagram to tell me which one is which Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-433213 Share on other sites More sharing options...

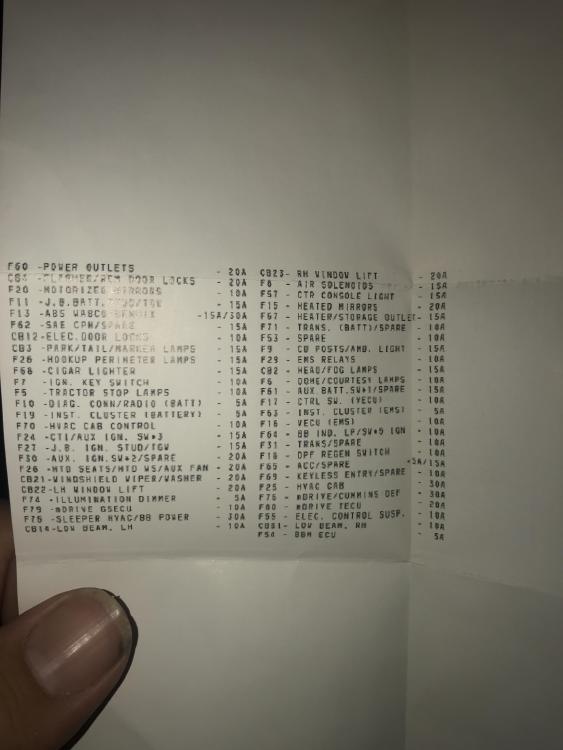

MackTech Posted November 16, 2019 Share Posted November 16, 2019 There should be a folded up piece of paper under the pie plate. The radio first would be under there. The plastic pouch may have fallen off the underside of the pie plate and may be laying inside. Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-436041 Share on other sites More sharing options...
white_HULK Posted November 17, 2019 Share Posted November 17, 2019 4 hours ago, MackTech said: There should be a folded up piece of paper under the pie plate. The radio first would be under there. The plastic pouch may have fallen off the underside of the pie plate and may be laying inside. What is the pie plate? Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-436067 Share on other sites More sharing options...
MackTech Posted November 17, 2019 Share Posted November 17, 2019 39 minutes ago, white_HULK said: What is the pie plate? Sorry, the triangular plate on the middle top of the dash. Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-436071 Share on other sites More sharing options...
white_HULK Posted November 18, 2019 Share Posted November 18, 2019 19 hours ago, MackTech said: Sorry, the triangular plate on the middle top of the dash. Do you know which fuse it is? Or where I can get a diagram? Mine is gone. Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-436138 Share on other sites More sharing options...
Saif_mustafa Posted September 29, 2020 Share Posted September 29, 2020 Hi I have Mack chu613 2015 I want to know where’s the radio fuse location Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-461585 Share on other sites More sharing options...
Jyd6722 Posted October 5, 2020 Share Posted October 5, 2020 F10 is the fuse for the battery wire for radio Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-461914 Share on other sites More sharing options...
Jyd6722 Posted October 5, 2020 Share Posted October 5, 2020 F9 is the ignition wire for the radio( what turns radio on and off) when you shut the truck down Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-461916 Share on other sites More sharing options...
Jyd6722 Posted October 5, 2020 Share Posted October 5, 2020 2015 Mack but should be about the same Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-461917 Share on other sites More sharing options...
Jyd6722 Posted October 5, 2020 Share Posted October 5, 2020 I hope this helps Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-461918 Share on other sites More sharing options...

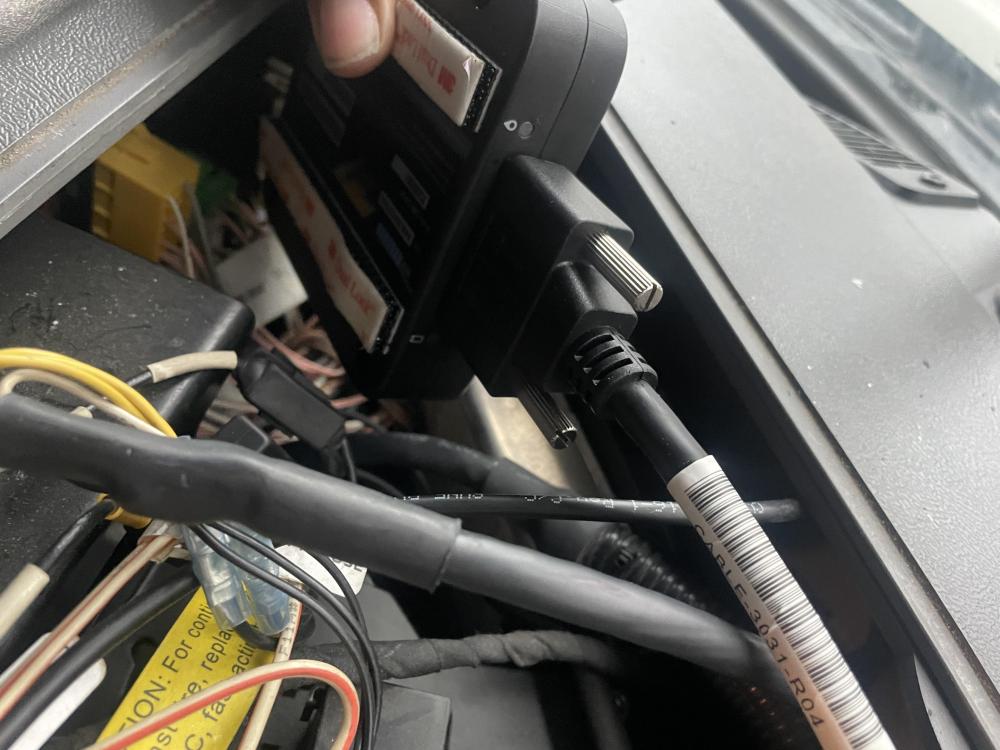

chrger1970 Posted August 5, 2021 Share Posted August 5, 2021 I want to put a camera in my 2018 Mack Pinnacle. It needs an ignition hot, a hot and a ground. What would be the best fuse to use, is there a spare ignition one I could use? Thanks guys. Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-477975 Share on other sites More sharing options...

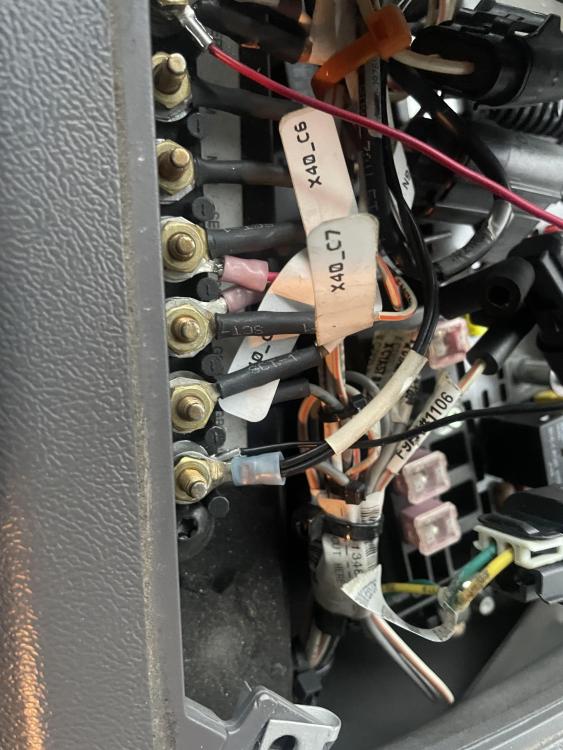

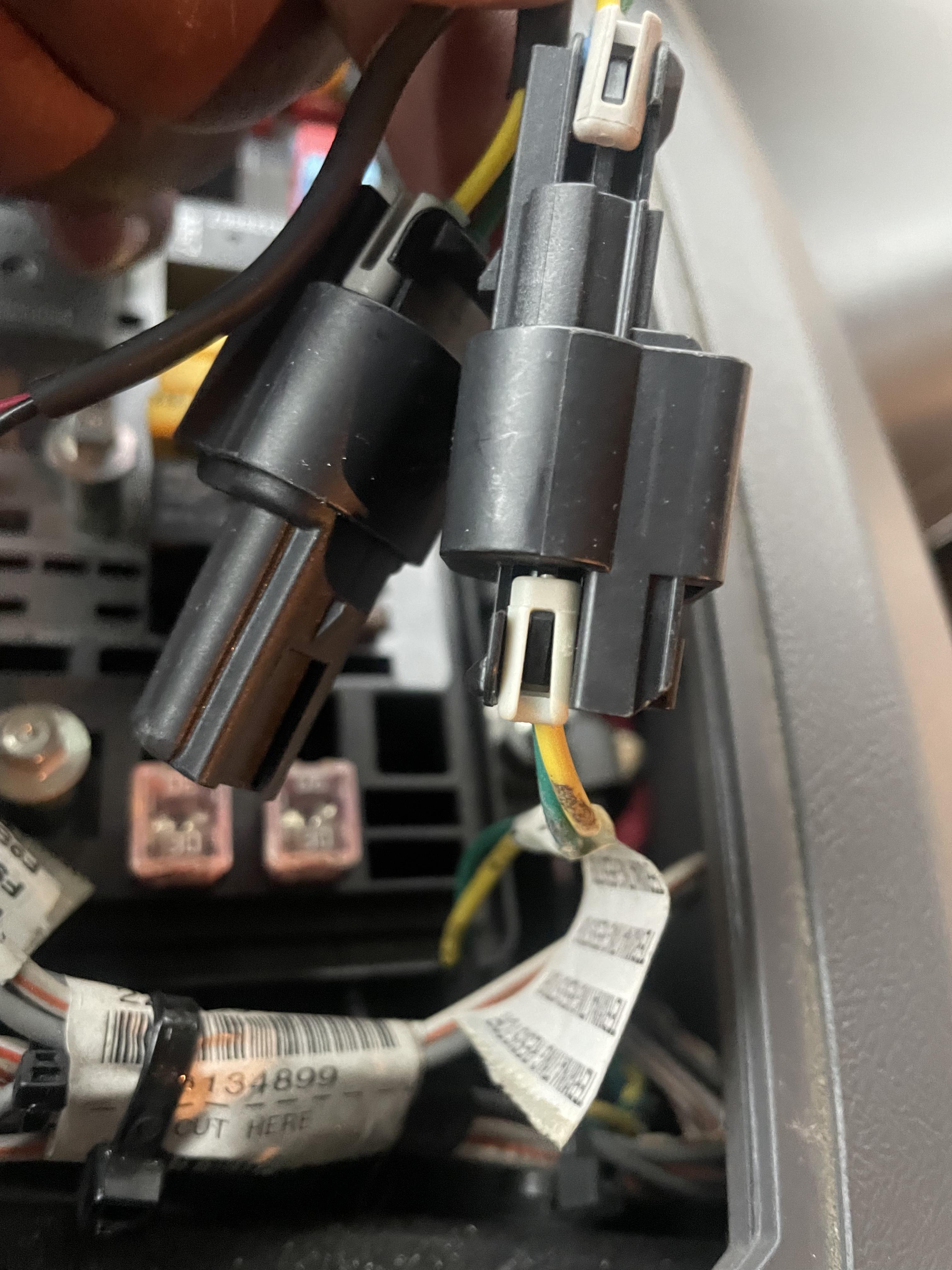

Joey Mack Posted August 6, 2021 Share Posted August 6, 2021 it's easy... just pull the triangular top panel, look down to see the buss bar.. it is labeled really well. you can use any of those post's... Key"off" Key "on".. just put a good fuse holder from the post to the,,,,,, camera or whatever.... and install the recommended fuse... ATM/ATC type or whatever you like.. keep some circuit breaker's of the same amp, and type of plug, in the tool box. just in case you have an issue... jojo 1 Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-477998 Share on other sites More sharing options...
drivingcrazy70 Posted October 5, 2021 Share Posted October 5, 2021 Where is the fuse for the radio on a 2017 pinnacle I don’t have the diagram for it Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-480885 Share on other sites More sharing options...
Joey Mack Posted October 5, 2021 Share Posted October 5, 2021 top triangular panel on the dash,,, under the C.B. jojo Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-480887 Share on other sites More sharing options...
johnw Posted December 1, 2021 Share Posted December 1, 2021 Can anybody direct me to a place or web site for the wiring diagram in 2012 mack granite series truck? Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-483805 Share on other sites More sharing options...
Joey Mack Posted December 1, 2021 Share Posted December 1, 2021 www.macktrucks.com/parts-and-services/ Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-483807 Share on other sites More sharing options...
Joey Mack Posted December 1, 2021 Share Posted December 1, 2021 I think you can access "E-Media" from there.. Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-483808 Share on other sites More sharing options...
johnw Posted December 3, 2021 Share Posted December 3, 2021 hey i found it,,,under top cover of dash it is fuse f 9 and f 10 Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-483999 Share on other sites More sharing options...
Joey Mack Posted December 3, 2021 Share Posted December 3, 2021 I told you way back. Oct. 5th.. jojo Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-484011 Share on other sites More sharing options...
Tay Posted March 9, 2022 Share Posted March 9, 2022 (edited) On 9/29/2020 at 2:16 PM, Saif_mustafa said: Hi I have Mack chu613 2015 I want to know where’s the radio fuse location Hey my eld is not working and its hooked up right, is there a fuse to the battery, wire, or terminator resister? Its getting no power and its new Edited March 9, 2022 by Tay More info Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-491360 Share on other sites More sharing options...
Mike R Posted July 4, 2022 Share Posted July 4, 2022 On 11/16/2019 at 5:47 PM, MackTech said: There should be a folded up piece of paper under the pie plate. The radio first would be under there. The plastic pouch may have fallen off the underside of the pie plate and may be laying inside. Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-502016 Share on other sites More sharing options...
Mike R Posted July 4, 2022 Share Posted July 4, 2022 On 11/16/2019 at 11:00 PM, MackTech said: I really need help my Radio is not working I have Mack 2022 I opened a plastic cover triangle ship I don’t see anything wrong I check all the fuses so now I just checked the fuse boxes near my bed when you have all the buttons to control you EC when you going to bed I checked abuses number five is not working I put a new one again not working can anybody help me please Quote Link to comment https://www.bigmacktrucks.com/topic/43395-radio-fuse-location/#findComment-502019 Share on other sites More sharing options...
