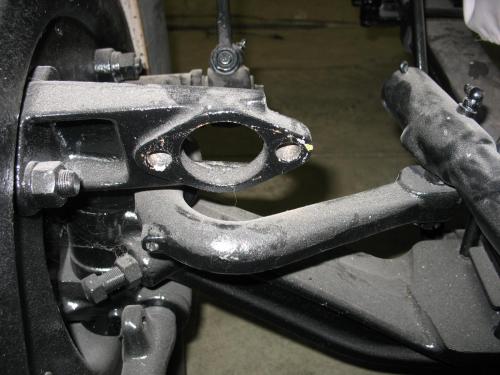

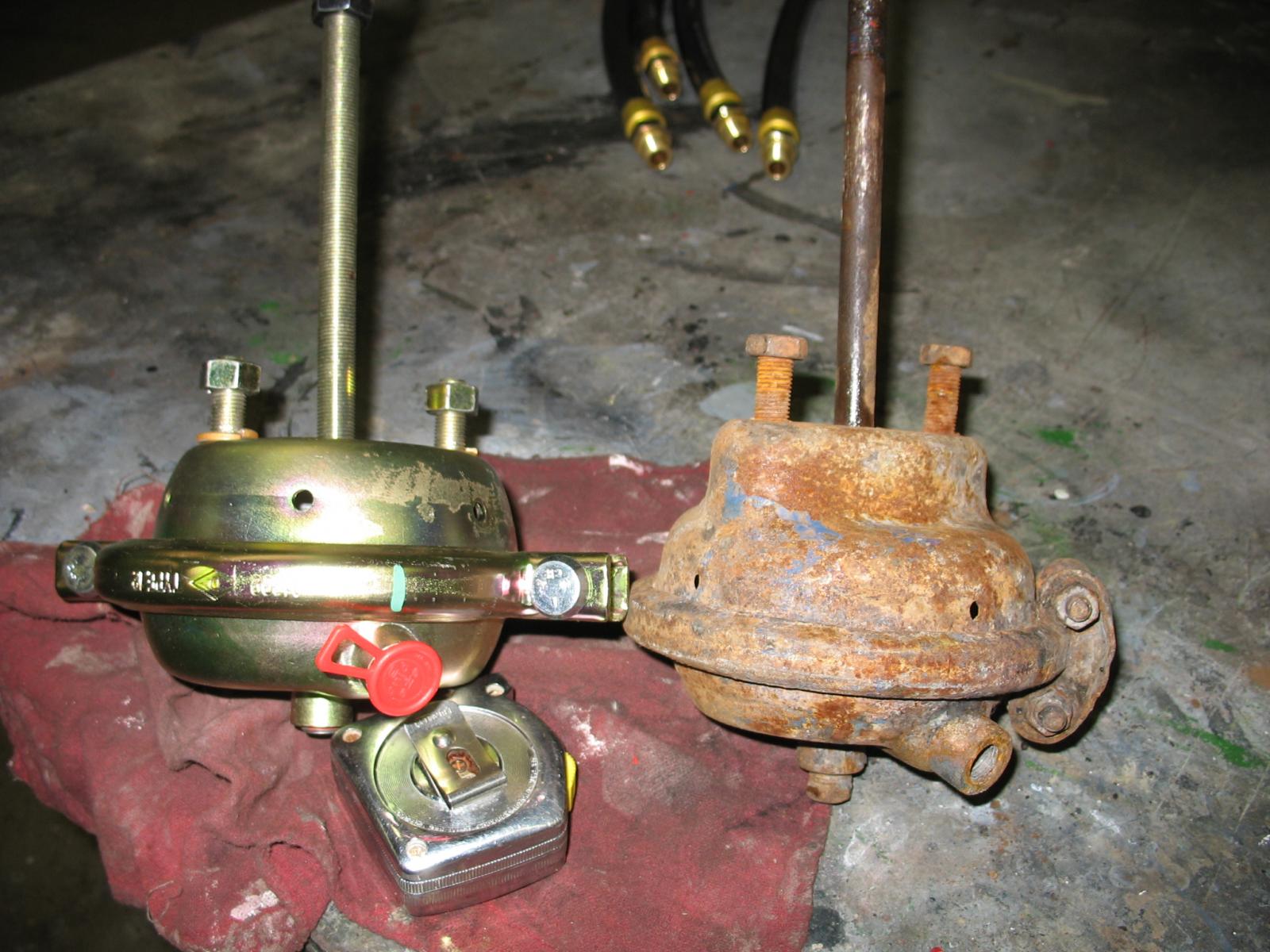

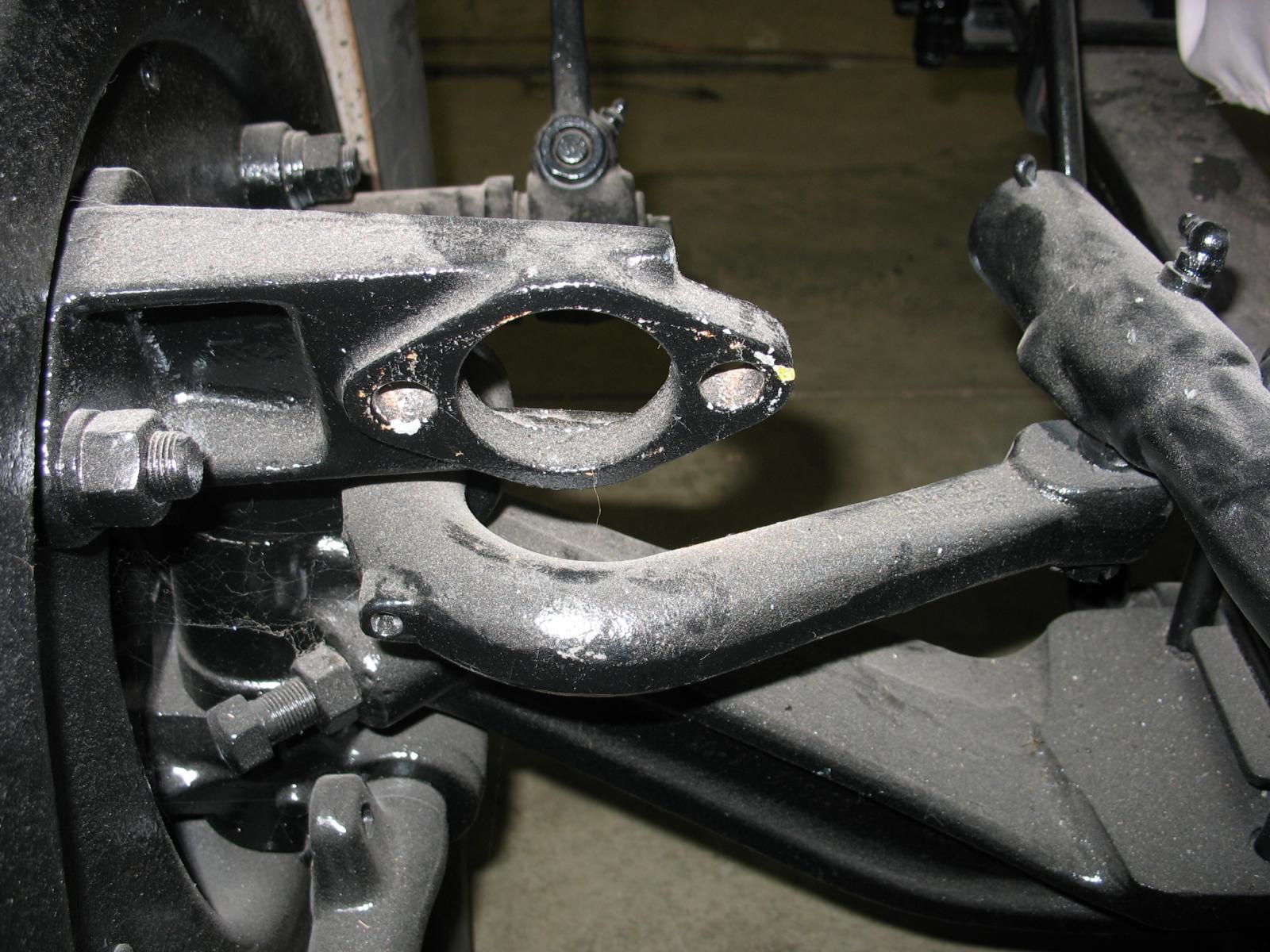

eddeere Posted January 26, 2016 Share Posted January 26, 2016 Bought 2 new T 12 chambers today. The left side chamber hits the arm out of the steering knuckle. Anyone know of the part # of one that will fit, or a safe fix. Quote Link to comment https://www.bigmacktrucks.com/topic/43722-b61-front-brake-chambers/ Share on other sites More sharing options...
b61mack Posted January 26, 2016 Share Posted January 26, 2016 I put a 12000# axle under my B61 and the smaller chambers fit, but don't know the part#s I looked at mine and the holes are up-down yours are sideways. my new chambers look like the ones you took off. the only problem I had was on the auto slack adjuster was tight on the driver side. Quote Link to comment https://www.bigmacktrucks.com/topic/43722-b61-front-brake-chambers/#findComment-321736 Share on other sites More sharing options...
carlotpilot Posted January 26, 2016 Share Posted January 26, 2016 fwiw i would take that old one apart clean it up put the guts out the new one in the old one paint and replace it 2 Quote Link to comment https://www.bigmacktrucks.com/topic/43722-b61-front-brake-chambers/#findComment-321737 Share on other sites More sharing options...
thomastractorsvc Posted January 28, 2016 Share Posted January 28, 2016 If you cant find the smaller diameter ones do like what carlotpilot said, just clean it up replace the pancake for about $2 and you should be good.Take the old one with they should be able to cross it if they know what they are doingI found this looks like yours but I would have them measure it SC09 by HALDEXService Chamber - Size T09http://www.finditparts.com/products/370839/haldex-sc09?srcid=CHL01SCL010-Npla-Dmdt-Gusa-Svbr-Mmuu-K370839&gclid=CjwKEAiA8qG1BRDz0tmK0pufw3QSJACfn6olNNIdb7sA40EQ7qOYipO7F2C_4s50yRiQh5GhhfK-lhoC0X7w_wcB Quote Robert"I reject your reality and substitute my own." Link to comment https://www.bigmacktrucks.com/topic/43722-b61-front-brake-chambers/#findComment-321943 Share on other sites More sharing options...
eddeere Posted January 29, 2016 Author Share Posted January 29, 2016 Thanks. I started with carlotpilot's idea. When I got the old ones apart the springs were broken. The new ones were too short. With the link from thomastractorvc I orded 2 Haldex SC 12 chambers. They will come from California and are temporary out of stock. If any one needs a type 12 as pictured let me know. Priced very reasonable. Quote Link to comment https://www.bigmacktrucks.com/topic/43722-b61-front-brake-chambers/#findComment-322169 Share on other sites More sharing options...
