Wobblin-Goblin Posted February 24, 2016 Share Posted February 24, 2016 The B81 I recently purchased didn't have any hood support arms, so I'm in the process of making something work. As it turns out, after making arms and connections just like a B61, I have found that the geometry is apparently different between the arms on a B61 vs. a B81.Can someone post pics of an open hood (specifically the arms) of a B81 so I can fill in the blanks? Also, are the support arms for the B81 the exact same arms that are on a B61? I attempted to install the same ones on my B81 and the geometry is not the same. It's as if the B81 needs shorter versions of the support arms.Thanks. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/ Share on other sites More sharing options...
hicrop10 Posted February 25, 2016 Share Posted February 25, 2016 I may have a pic of what you want.Mine would be of a B87,it all apart now but I think I have a pic of what you want before I removed the hood.I may be up at my friend's in the morning and he has a B81 dump, let me know if you need any other pics. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325637 Share on other sites More sharing options...
Wobblin-Goblin Posted February 25, 2016 Author Share Posted February 25, 2016 Sure. Post 'em up. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325684 Share on other sites More sharing options...
Gmerrill0516 Posted February 25, 2016 Share Posted February 25, 2016 My supports were gone too. I found a set from a B-83 but I've not put them on yet. I think they are in the garage. I'll see if I can locate them and post pictures of them on here. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325685 Share on other sites More sharing options...
Wobblin-Goblin Posted February 25, 2016 Author Share Posted February 25, 2016 I found supports that are identical to what's on my B61. Yesterday I installed them on my B81 (with home-made bolt-on connectors), and they didn't work due to the distance/geometry being different. Apparently the pieces that attach the arms to the hood and firewall are not the same on a B81. At least, that's what I'm thinking. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325686 Share on other sites More sharing options...
fxfymn Posted February 25, 2016 Share Posted February 25, 2016 if you contact the Museum they will send you the original shop drawings of the part so you can make them. Quote Money, sex, and fire; everybody thinks everyone else is getting more than they are! Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325690 Share on other sites More sharing options...
Kansas farmer Posted February 25, 2016 Share Posted February 25, 2016 I have original parts books. I will look this evening and see if there is a picture. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325699 Share on other sites More sharing options...
Wobblin-Goblin Posted February 25, 2016 Author Share Posted February 25, 2016 After messing with it again today, perhaps the support arms are shorter on a B81. Something's different, I know that much. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325717 Share on other sites More sharing options...
Gmerrill0516 Posted February 26, 2016 Share Posted February 26, 2016 Mine measure 11.5" collapsed and 17" in the extended locked position when I square up the ends. I believe they are shorter than 60 series parts but don't have a set to look at. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325721 Share on other sites More sharing options...
Wobblin-Goblin Posted February 26, 2016 Author Share Posted February 26, 2016 Mine measure 11.5" collapsed and 17" in the extended locked position when I square up the ends. I believe they are shorter than 60 series parts but don't have a set to look at.Well, that's it then. The arms I have are 13.25" collapsed and 22.5" in the extended locked position. That's what the problem is. I'll have to cut them down to the dimensions you posted.Thank you for that information, bud. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325722 Share on other sites More sharing options...
thomastractorsvc Posted February 26, 2016 Share Posted February 26, 2016 Can you just relocate the cowl mount? Quote Robert"I reject your reality and substitute my own." Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325724 Share on other sites More sharing options...
Gmerrill0516 Posted February 26, 2016 Share Posted February 26, 2016 Before you cut, let me attach a picture or two to make sure we are on the same page...better safe than sorry...I'll see if I can do it now. Ok, hope this works. Pictures are all a little tough so scrutinize the angles etc to get better measurements. I tried to make the brackets square...hopefully this helps...I've not had these on my truck but they did come off of a B-83. Good luck Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325725 Share on other sites More sharing options...
Wobblin-Goblin Posted February 26, 2016 Author Share Posted February 26, 2016 Can you just relocate the cowl mount?By six inches? Nope. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325726 Share on other sites More sharing options...
Wobblin-Goblin Posted February 26, 2016 Author Share Posted February 26, 2016 Thanks a bunch for the pics. Precisely what I was looking for. I have to cut these arms down. They came off an International Loadstar and looked like a virtual match for the ones on my B61. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325730 Share on other sites More sharing options...
Kansas farmer Posted February 26, 2016 Share Posted February 26, 2016 I took a look and no good pictures of what you need. Hopefully the pics these guys have help you out. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325741 Share on other sites More sharing options...
Maddog13407 Posted February 26, 2016 Share Posted February 26, 2016 how about some pictures of under your hood and cowl so we can see your problem Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325747 Share on other sites More sharing options...
Wobblin-Goblin Posted February 26, 2016 Author Share Posted February 26, 2016 how about some pictures of under your hood and cowl so we can see your problemThe arms I have are too long. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325752 Share on other sites More sharing options...
fxfymn Posted February 26, 2016 Share Posted February 26, 2016 I have original parts books. I will look this evening and see if there is a pictureIt always helps to send the Museum the PN of what you are looking for.It does take a couple of weeks to get the drawings, but they are an absolute godsend if you have to make a missing part.I have used them to re-create the valve springs for my AB and a hose holder for the 52 among other items. Quote Money, sex, and fire; everybody thinks everyone else is getting more than they are! Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325760 Share on other sites More sharing options...
hicrop10 Posted February 26, 2016 Share Posted February 26, 2016 Call me at 215-669-1252 Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325763 Share on other sites More sharing options...
Maddog13407 Posted February 27, 2016 Share Posted February 27, 2016 can you flip the angle bracket that mounts to the cowl down instead of up? most guys mount them in the up position to get a the hood up a little higher to work under them. they were mounted down from the factory. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325809 Share on other sites More sharing options...
hicrop10 Posted February 27, 2016 Share Posted February 27, 2016 I was at my friend's place this morning and my camera failed.Will be back there in the morning.He did tell me that his are from a b61,just moved their position on the hood.If you want call me around 7-730 and I should be there by then and you can tell me what pic and measurements you need. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325815 Share on other sites More sharing options...
Wobblin-Goblin Posted February 27, 2016 Author Share Posted February 27, 2016 My solution was to cut the arms down and re-drill them. I will post pics later today. Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325829 Share on other sites More sharing options...

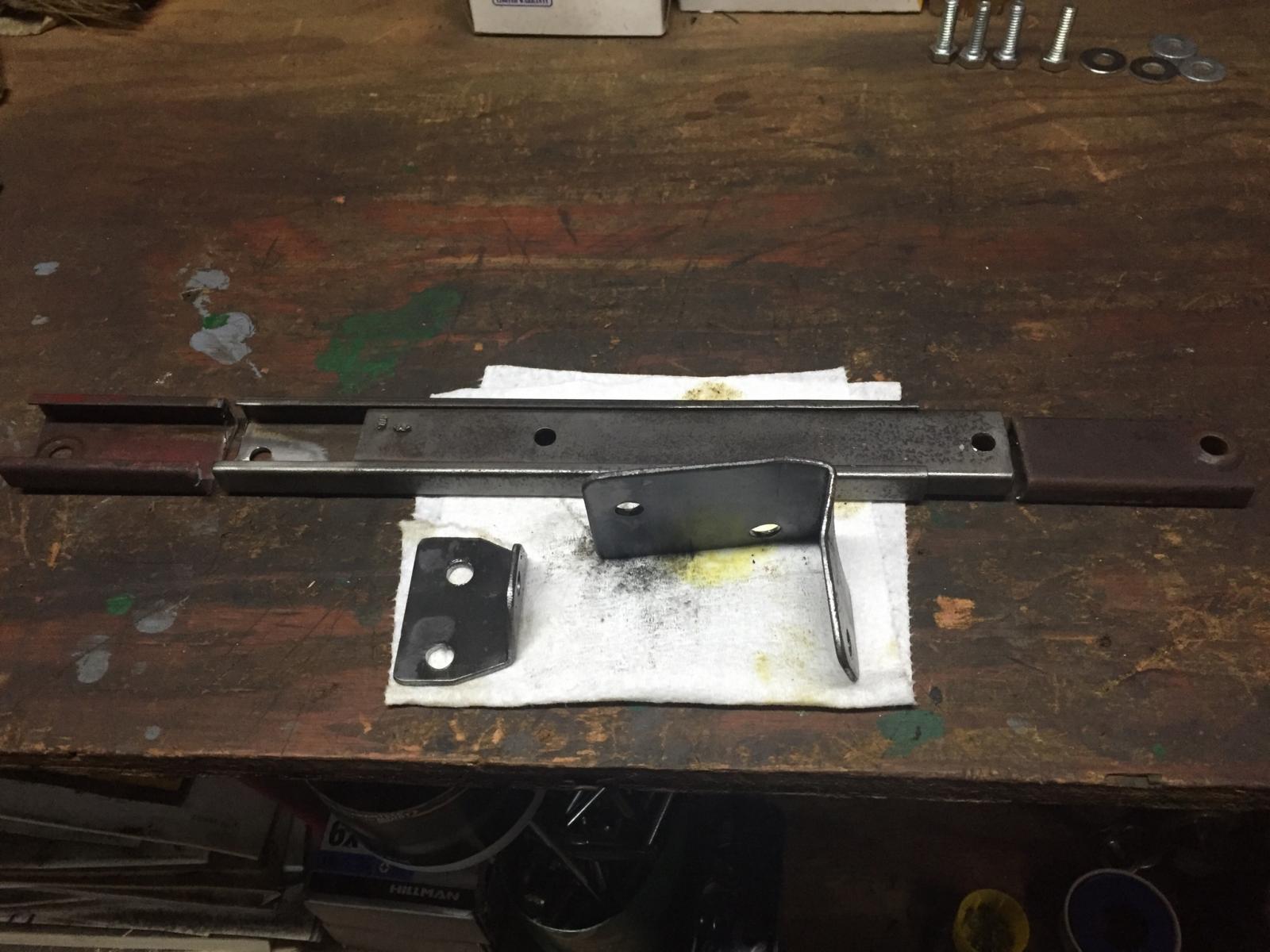

Wobblin-Goblin Posted February 28, 2016 Author Share Posted February 28, 2016 Arms cut down and re-drilled. Bolt-on "feet" fabricated to be nearly identical to factory. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/44134-need-photos-of-a-b81-with-its-hood-openhelp-me-obi-wan-youre-my-only-hope/#findComment-325944 Share on other sites More sharing options...
