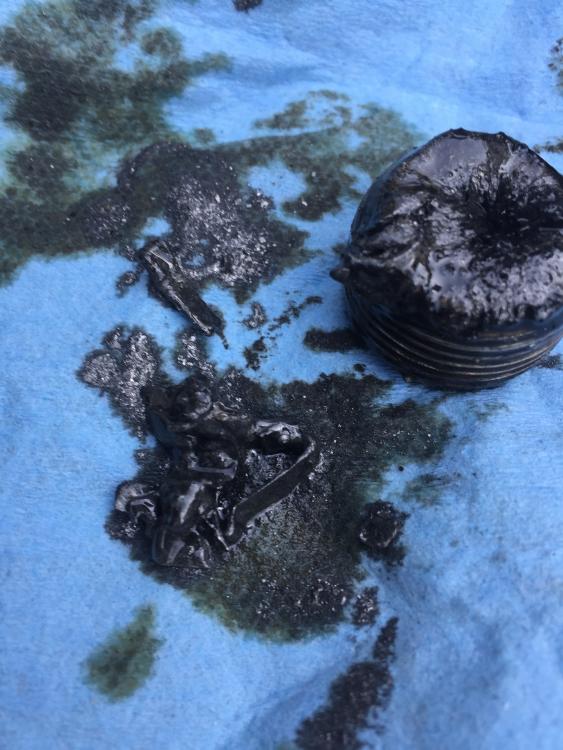

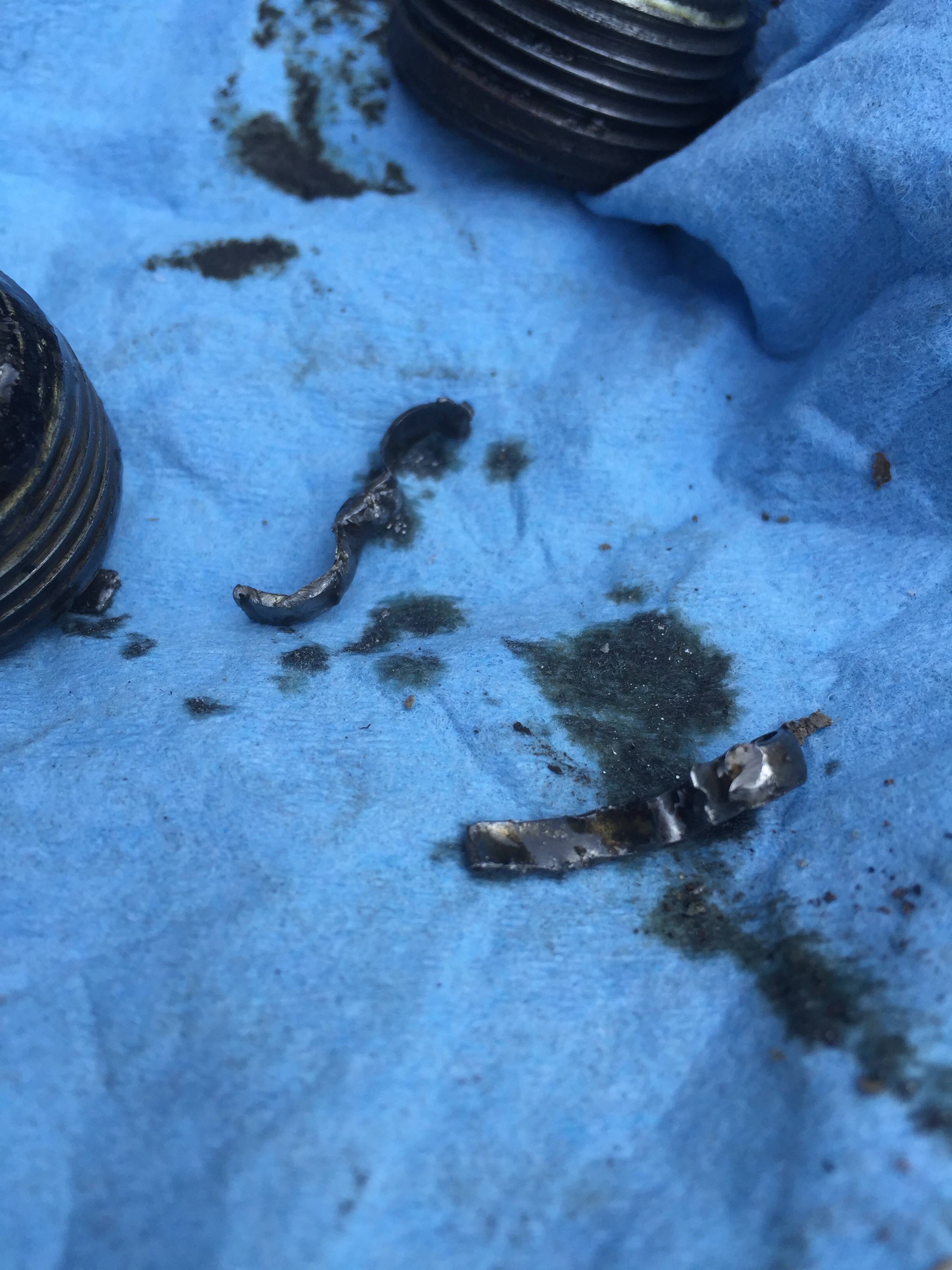

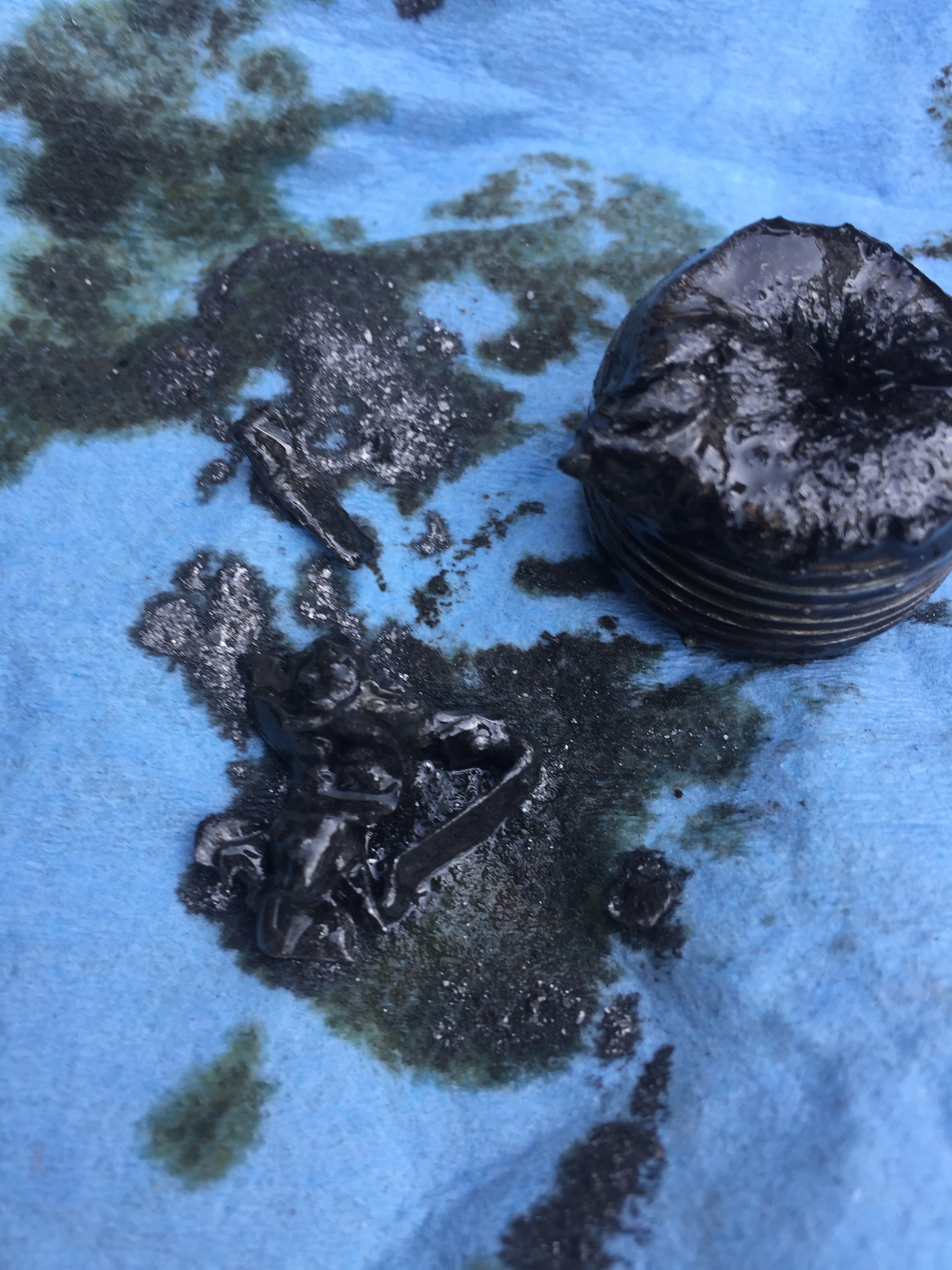

brenner Posted April 2, 2016 Share Posted April 2, 2016 Anybody got any clue where these pieces came from? I thought maybe a bearing race but the shape and size of them doesn't seem to fit any bearing that would be in this tranny. These came out of a T310MLR Quote Link to comment https://www.bigmacktrucks.com/topic/44626-chunks-of-metal-on-the-tranny-drain-plug/ Share on other sites More sharing options...
theakerstwo Posted April 3, 2016 Share Posted April 3, 2016 That is brg separator for a roller brg.There is many in the thrans and also does the trans have a pto on it. Quote glenn akers Link to comment https://www.bigmacktrucks.com/topic/44626-chunks-of-metal-on-the-tranny-drain-plug/#findComment-329330 Share on other sites More sharing options...
brenner Posted April 3, 2016 Author Share Posted April 3, 2016 (edited) Yeah the tranny has a pro on it. I thought maybe it was part of the cage for a roller bearing but the 1/4" half loops with a pin in the centre didn't look right to me Edited April 3, 2016 by brenner Quote Link to comment https://www.bigmacktrucks.com/topic/44626-chunks-of-metal-on-the-tranny-drain-plug/#findComment-329331 Share on other sites More sharing options...
Gmerrill0516 Posted April 3, 2016 Share Posted April 3, 2016 Whatever the source, you have a problem that is not going to get better with time. I'd pull it and overhaul it as soon as possible, while it is still repairable and relatively cheap. Quote Link to comment https://www.bigmacktrucks.com/topic/44626-chunks-of-metal-on-the-tranny-drain-plug/#findComment-329332 Share on other sites More sharing options...
fjh Posted April 3, 2016 Share Posted April 3, 2016 (edited) Zak are you having any range issues? there is a small ball bearing on the range pack shaft Edited April 3, 2016 by fjh Quote Link to comment https://www.bigmacktrucks.com/topic/44626-chunks-of-metal-on-the-tranny-drain-plug/#findComment-329353 Share on other sites More sharing options...
brenner Posted April 3, 2016 Author Share Posted April 3, 2016 (edited) No range shift issues or any noises from the trans. Hoping it came from the pto. If it is the bearing on the range shift would there be any play in the output shaft? Or would I be able to pull the top cover at the back of the trans and see it? Edited April 3, 2016 by brenner Quote Link to comment https://www.bigmacktrucks.com/topic/44626-chunks-of-metal-on-the-tranny-drain-plug/#findComment-329356 Share on other sites More sharing options...
fjh Posted April 3, 2016 Share Posted April 3, 2016 (edited) No the Out put shaft is supported by the Big rear Case ball bearing the range pack hub is supported off the tail shaft by the small ball bearing! The rest are tapper roller. That is really the only small ball bearing in the trans that I can think of. Hopefully Glenn is correct and its pto related! Edited April 3, 2016 by fjh Quote Link to comment https://www.bigmacktrucks.com/topic/44626-chunks-of-metal-on-the-tranny-drain-plug/#findComment-329381 Share on other sites More sharing options...
