Hobert62 Posted June 10, 2016 Share Posted June 10, 2016 I got my front seal and rubber front motor mount from Watt's. any tips or tricks in installing the rubber in the front motor mount on my b67? Is it going to be easier to unbolt the mount from crossmember and install the rubber in that first? Then the entire mount onto the motor. Quote Link to comment https://www.bigmacktrucks.com/topic/45592-motor-mount/ Share on other sites More sharing options...

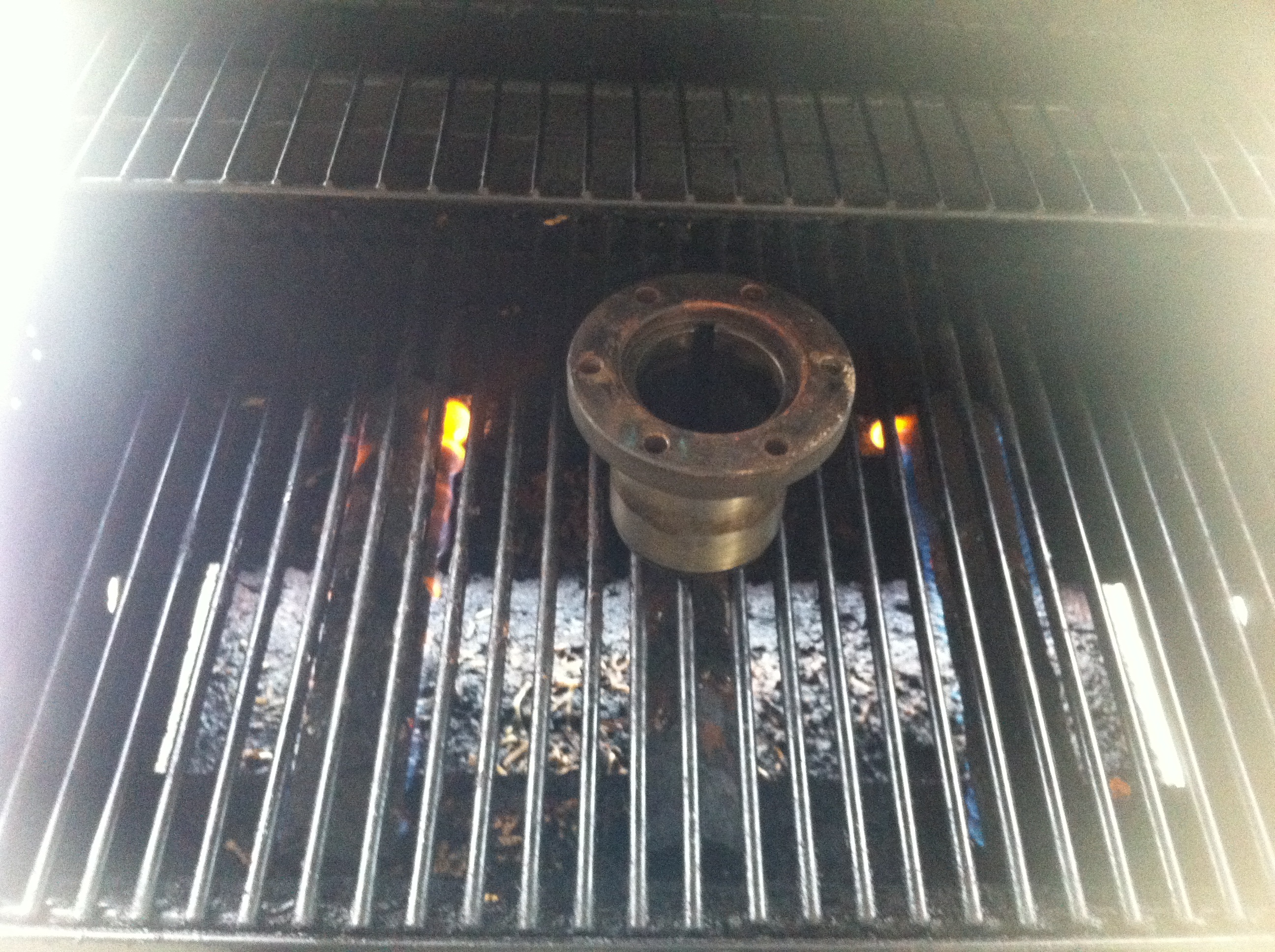

Freightrain Posted June 10, 2016 Share Posted June 10, 2016 Well, I just had mine apart, I would suggest jacking the motor up and sliding the mount off and repairing it and sliding it back on. For reinstalling the front hub, I just put it in the oven at about 200* or so for about 1/2 hour(it didn't stink up the house at that temperature). It slipped on effortlessly. Don't want it too hot as it will overheat the seal and possibly distort it. 2 Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment https://www.bigmacktrucks.com/topic/45592-motor-mount/#findComment-336074 Share on other sites More sharing options...
Hobert62 Posted June 10, 2016 Author Share Posted June 10, 2016 Thanks. That's what I was planning. How tight of a fit is the mount going to be? What hold the rubber in place? Quote Link to comment https://www.bigmacktrucks.com/topic/45592-motor-mount/#findComment-336080 Share on other sites More sharing options...
eddeere Posted June 10, 2016 Share Posted June 10, 2016 I unbolted the mount from the cross member cleaned it up . Was was able to get the rubber in. The hardest part was getting the mount on the motor, I had painted the motor and had to take some paint off. With some pry bars, soap, and a rubber mallet I was able to get it on. Heating like Larry said would help. I had to drop the engine and mount down on the cross member a couple times to get the holes to line up. Evert thing stayed together. Luck I guess. I would rather be lucky than good. Quote Link to comment https://www.bigmacktrucks.com/topic/45592-motor-mount/#findComment-336097 Share on other sites More sharing options...
Freightrain Posted June 10, 2016 Share Posted June 10, 2016 I didn't change the rubber portion, so mine just slipped on/off real easy like. I was surprised as I've heard they get beat up and loose. I was pleasantly surprised when mine was in nice shape. I just changed the front hub due to the 237 having a different set up then the 673. I had to put my 673 hub/balancer on the 237. I didn't heat the mount, only the hub for the balancer. Like I said, don't over heat it as it could melt the rubber seal/mount after it soaks in. The old manual I have says don't use a torch. Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment https://www.bigmacktrucks.com/topic/45592-motor-mount/#findComment-336099 Share on other sites More sharing options...

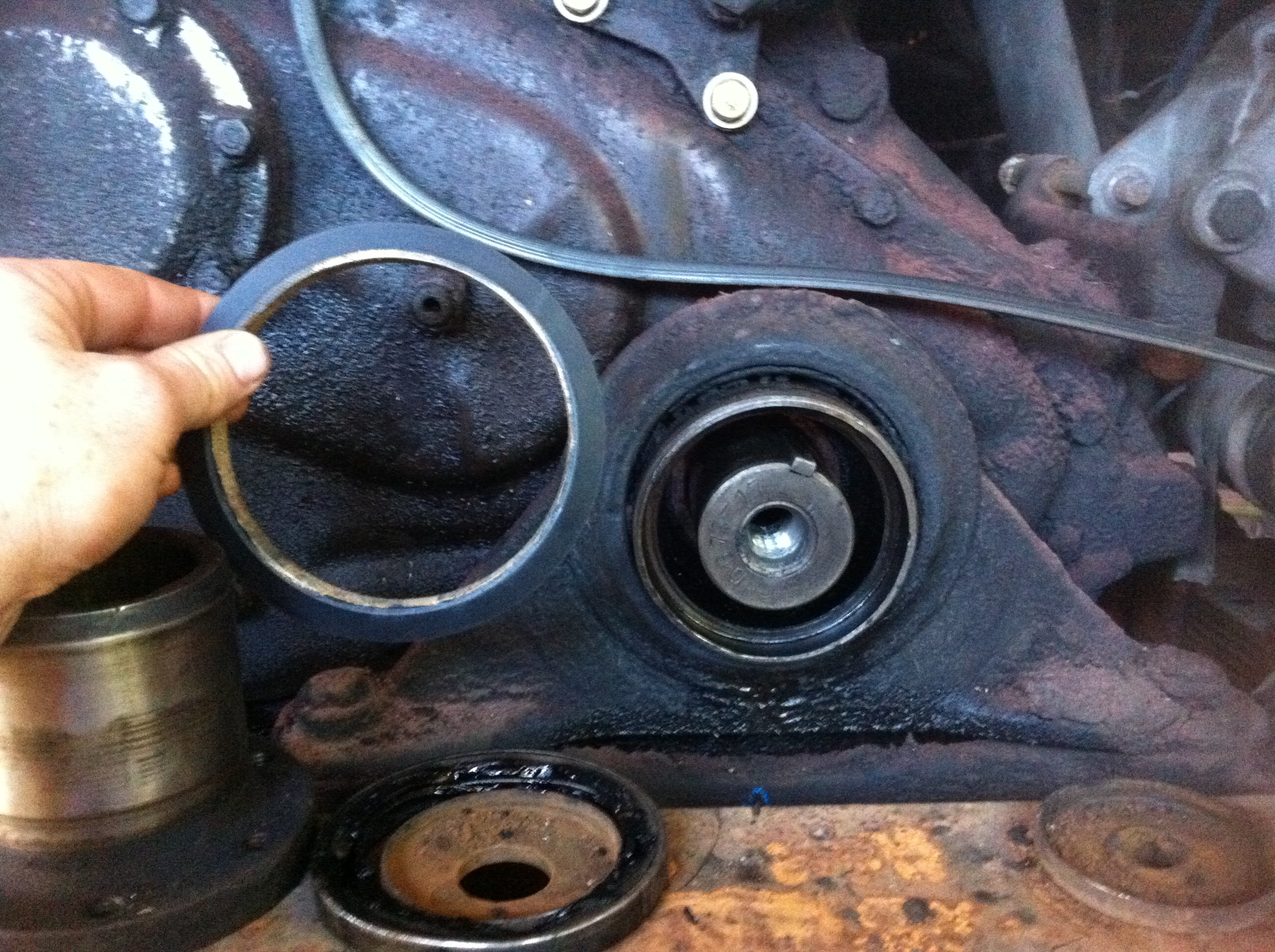

Hobert62 Posted June 12, 2016 Author Share Posted June 12, 2016 Rubber portion got inside of mount like a backwards v-belt. It went together very easy. Then got front seal in and installed hub pulley and balancer. No working on mounting alternator. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/45592-motor-mount/#findComment-336259 Share on other sites More sharing options...

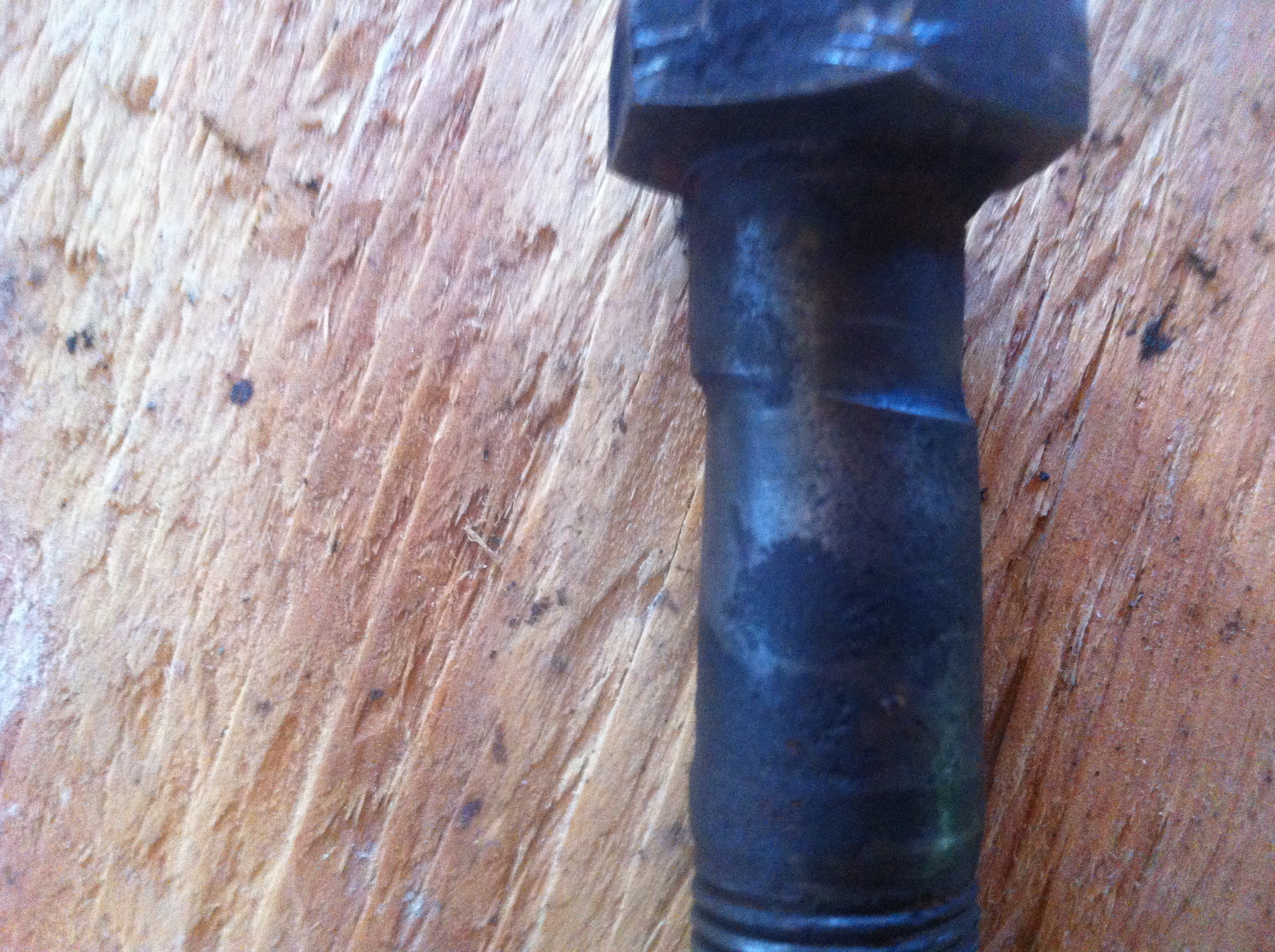

Hobert62 Posted June 12, 2016 Author Share Posted June 12, 2016 My high horsepower 673 was eating away at the motor mount bolts. I didn't realize it was such a torque monster. 2 Quote Link to comment https://www.bigmacktrucks.com/topic/45592-motor-mount/#findComment-336379 Share on other sites More sharing options...
j hancock Posted June 12, 2016 Share Posted June 12, 2016 A Hot Rod B67....... Quote JimIt doesn't cost anything to pay attention. Link to comment https://www.bigmacktrucks.com/topic/45592-motor-mount/#findComment-336388 Share on other sites More sharing options...
