B67 Cabs

[Plowboy]

Are B67 cabs the same dimensions as a B61 cab? Were they available with the same engine options?

[j hancock]

Some of the dimensions are the same but the B67 has the contour cab back panel as well as a large doghouse in the firewall to accommodate the motor.  Also, some of the motor options were the same between the two models but a B67 mounted the motor rotated toward the pass. side.

[Hobert62]

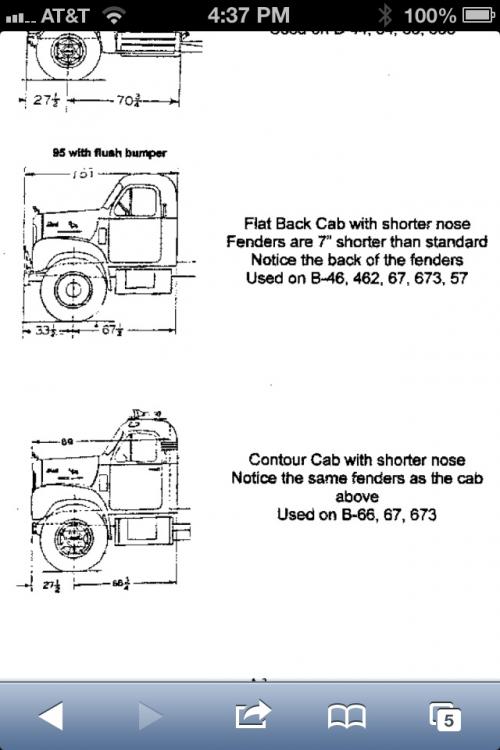

I only saved this part the the picture but somewhere on here is the rest of it with the demensions of the B series.    The 67 could have flat or contour cab

[j hancock]

Sorry, I forgot that flat back was available.  Seen so many B67 with the contour compared to seeing very few with the flat.

[Hobert62]

5 hours ago, j hancock said:

Sorry, I forgot that flat back was available.  Seen so many B67 with the contour compared to seeing very few with the flat.

I'd like to turn my back wall inside out and weld it back in.

[carlotpilot]

2 hours ago, Hobert62 said:

I'd like to turn my back wall inside out and weld it back in.

cutting torch and a a welder+couple big hammers

[Vladislav]

On 29.11.2016 at 6:51 AM, j hancock said:

 a B67 mounted the motor rotated toward the pass. side.

Is the engine positioned offset to the right or is it biased over the cranckshaft axle line?

[j hancock]

Crank stays in its position but the head is over to the right side.

[Vladislav]

Who would have thunk...

Thakns, Jim.

[41chevy]

Geez you cut the rear panel out and reverse it it'll look like it has a big blister seeing as it will go from concave to convex.

[carlotpilot]

40 minutes ago, 41chevy said:

Geez you cut the rear panel out and reverse it it'll look like it has a big blister seeing as it will go from concave to convex.

would sure help a long legged fellow though

[41chevy]

1 hour ago, carlotpilot said:

would sure help a long legged fellow though

or a tail.

[Hobert62]

I'm thinking it would be nice to not hit my elbo of the back wall when shifting.

[Maddog13407]

contour cab back was available on B61's and B42's as well

[57 bcr]

7 hours ago, Maddog13407 said:

contour cab back was available on B61's and B42's as well

And also on the B-65.    Al

[Maddog13407]

yup B65's were a rare bird that you rarely come across. Red Star Express had a bunch of B65T's out of their Utica Ny terminal

[mowerman]

growing up in the eastcoast ,,, i dont remember seeing that many of them,,,,,kinda funky looking .....never really thought about the cab space issue.....bob

[Joe Ditchkus]

I have a 1962 B-67 with the standard flat back cab that was an option on the spec sheet. My B-67 has a smaller steering wheel also maybe 20". It helps when you are 300 lbs.
