Popular Post superdog405 Posted January 1, 2017 Popular Post Share Posted January 1, 2017 Some pics of my progress so far. Rebuilding a '87 RW713 into a RW753. This truck left PA in '88 and spent the last 29 years in Montana. What a difference it made in this trucks life ! Almost new in alot of ways. 3 Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/ Share on other sites More sharing options...

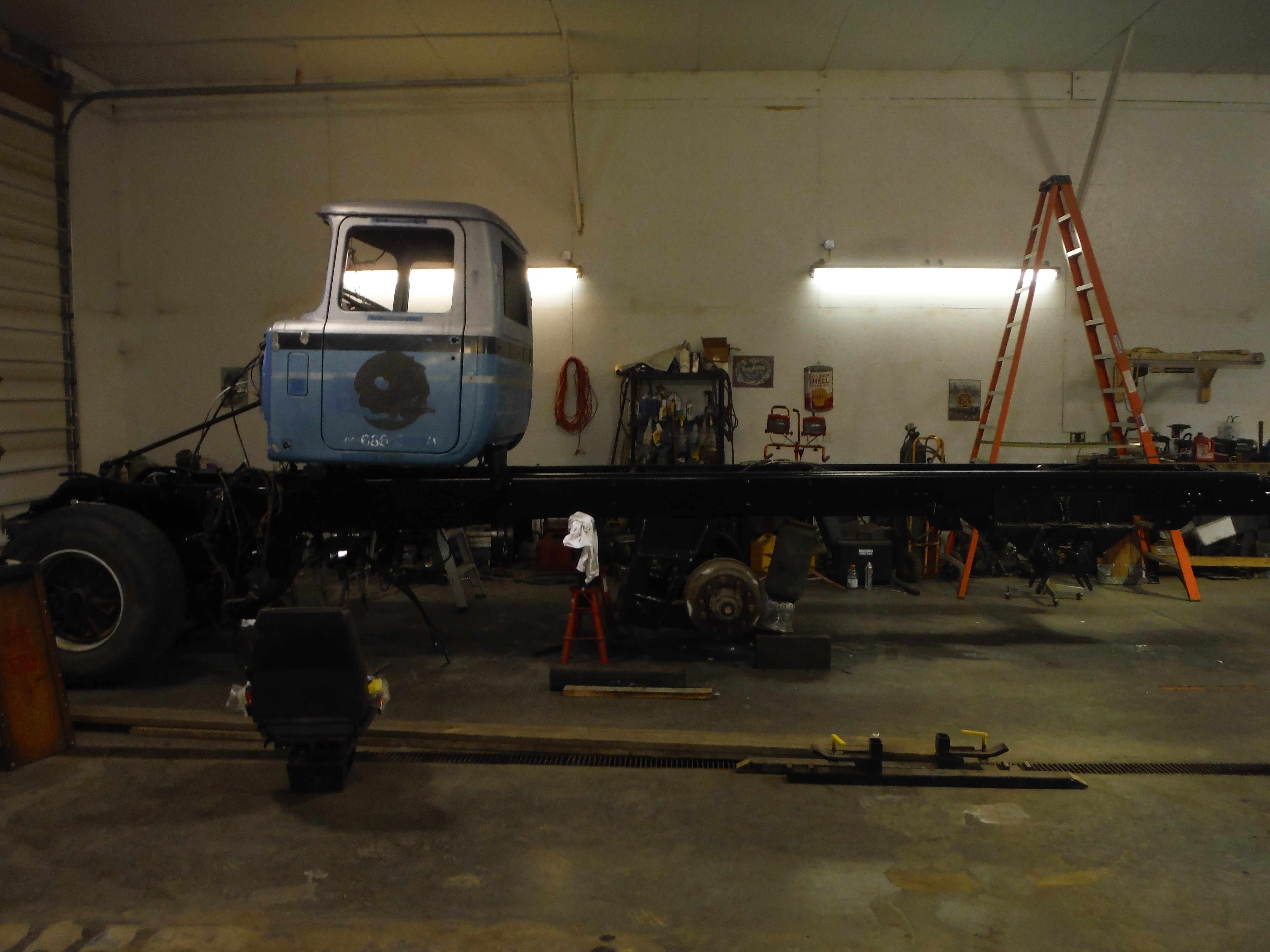

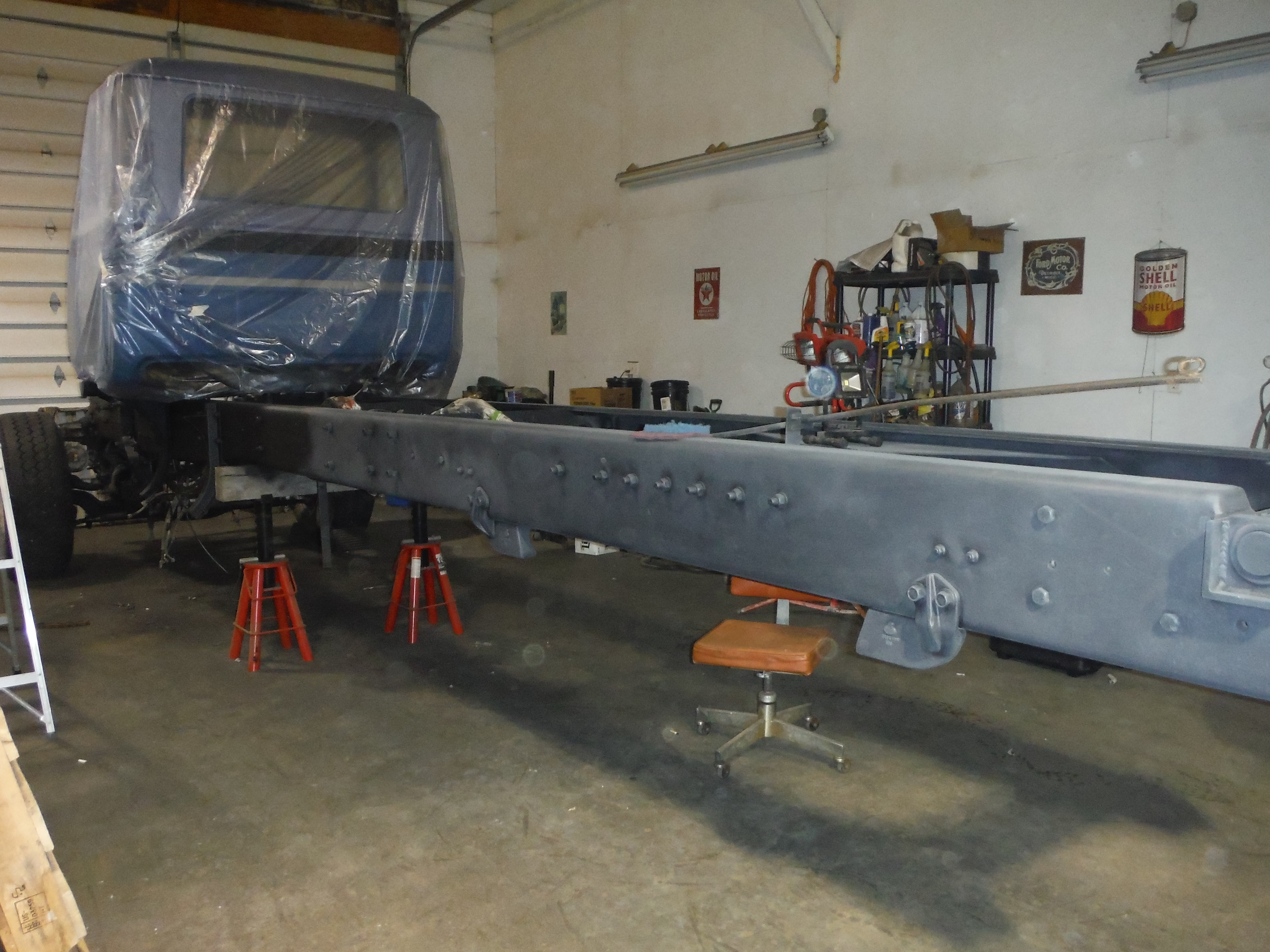

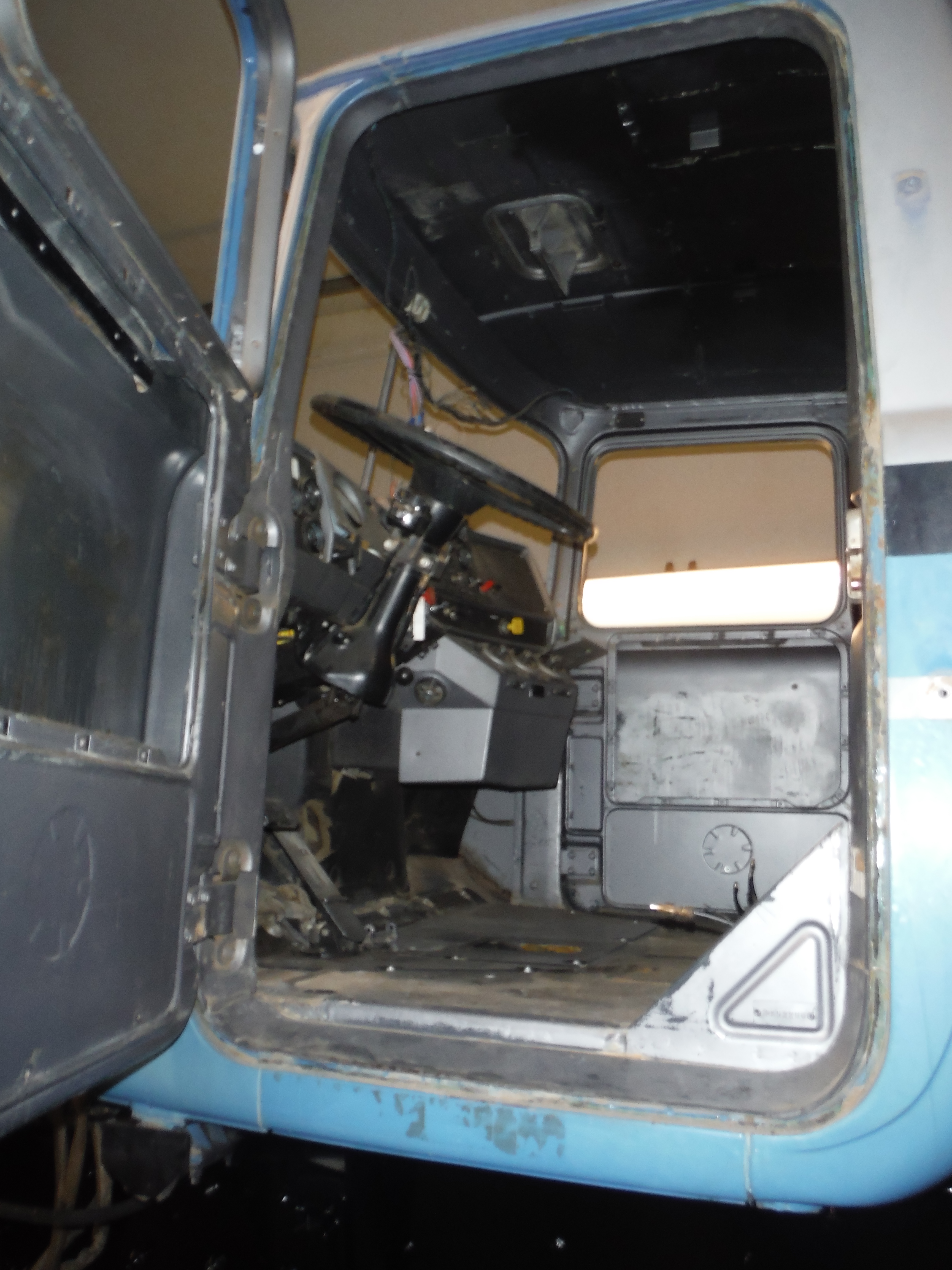

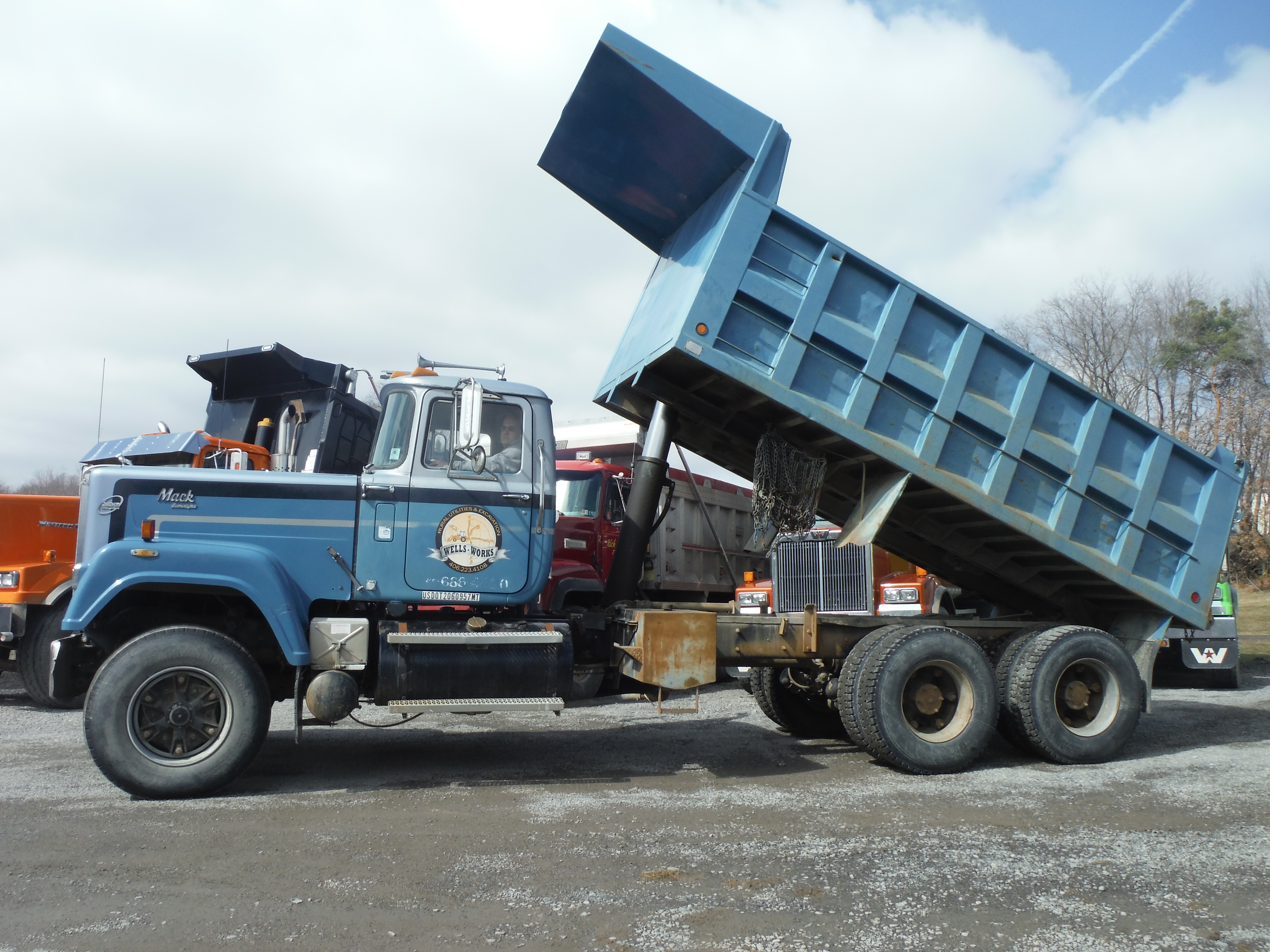

Popular Post superdog405 Posted January 1, 2017 Author Popular Post Share Posted January 1, 2017 They loaded backwards, but you can figure out what I started with and where we are now. Stripped the cab of all interior and glass, adding dynamat inside and getting paint under all those rubber gaskets around the glass. Stripped down to frame, welded susp. bolt holes shut,sanded ,primed with epoxy and painted gloss black. 1 2 Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356692 Share on other sites More sharing options...

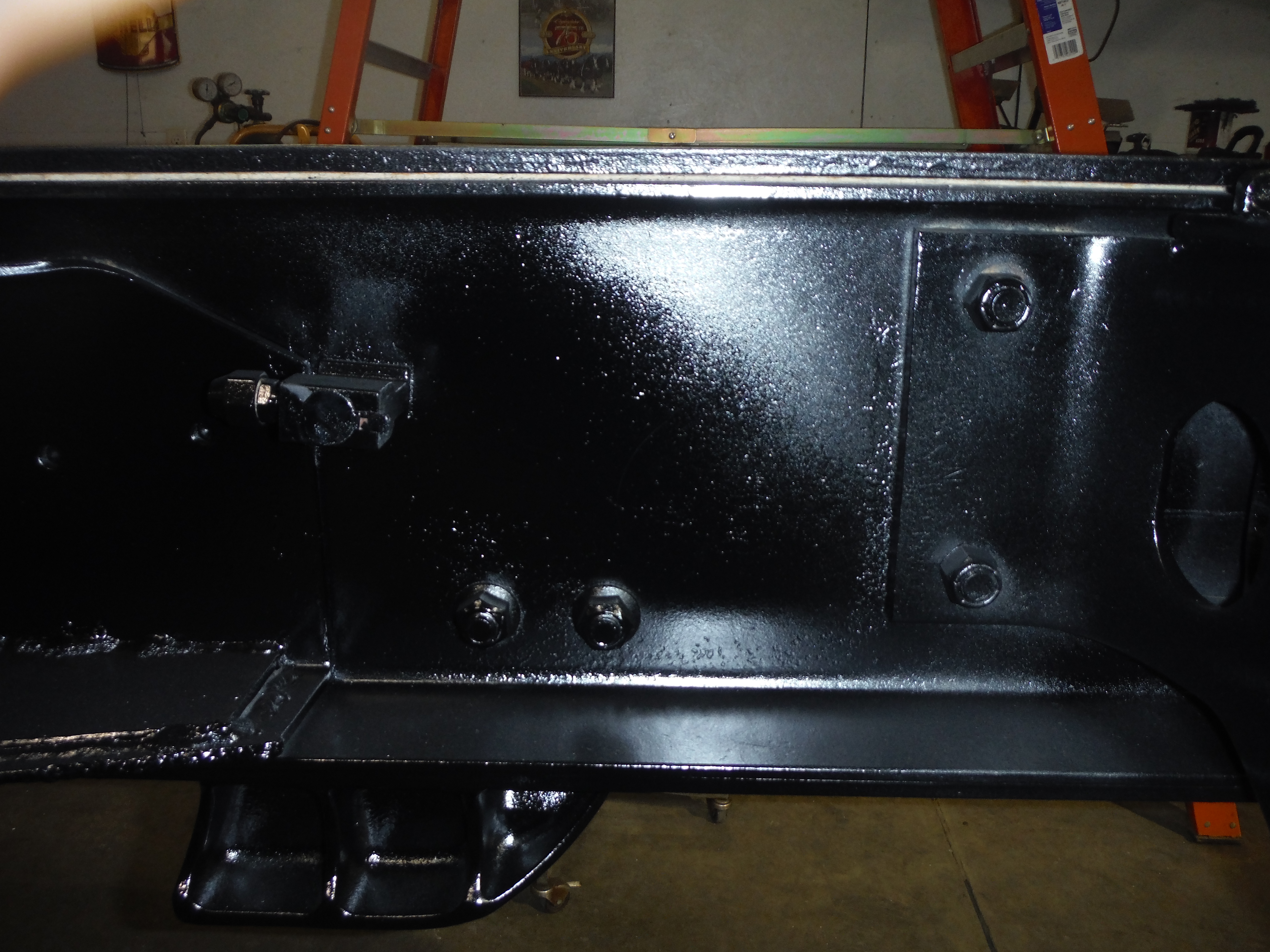

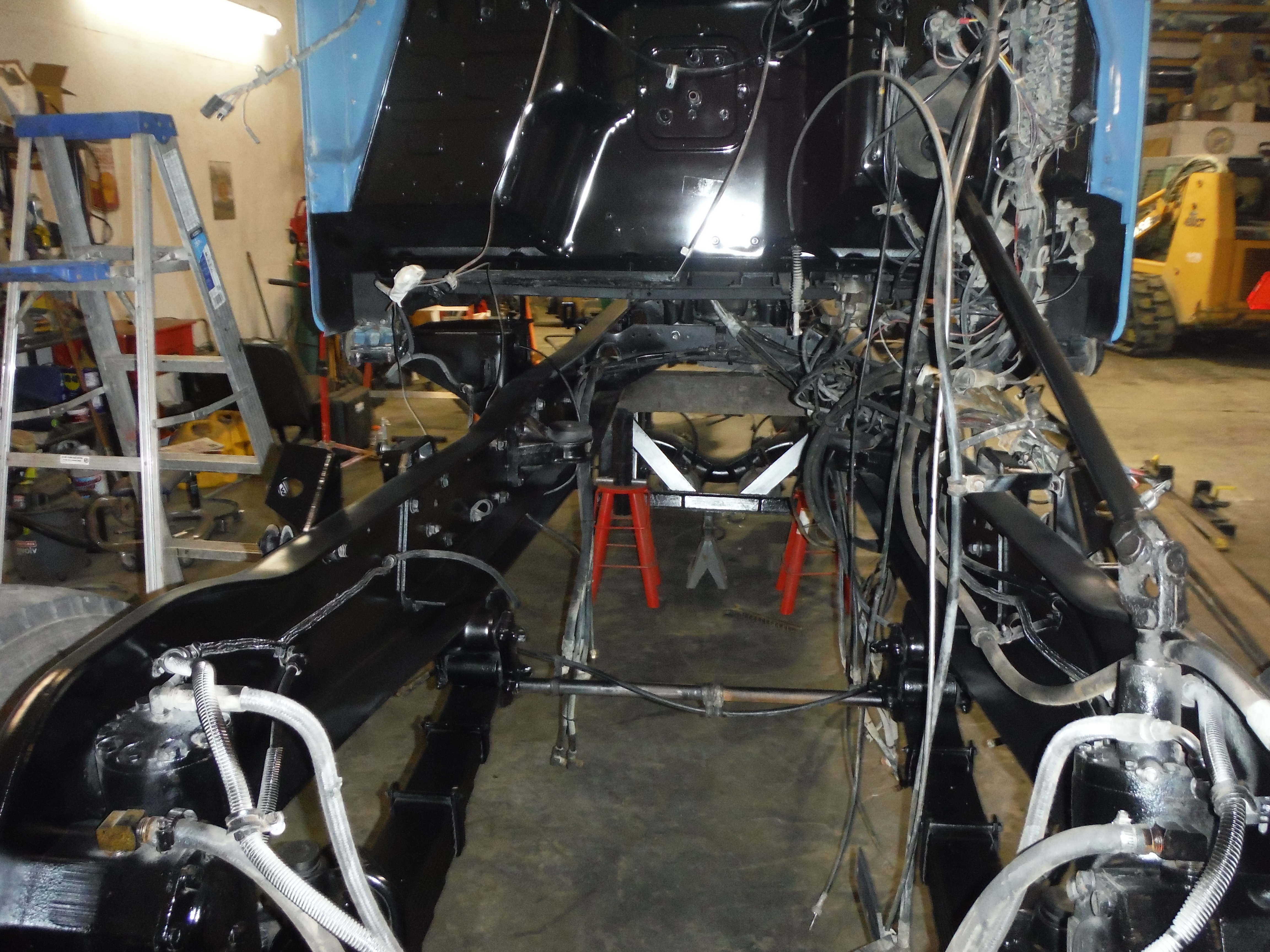

Popular Post superdog405 Posted January 1, 2017 Author Popular Post Share Posted January 1, 2017 Frame on this truck is like new, been drilling for my new rear susp. and tag axle last couple days, and no rust between rails makes it nice! Took out the old Hend. rubber block and installing the better riding up dated rubber block. 1 4 Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356693 Share on other sites More sharing options...

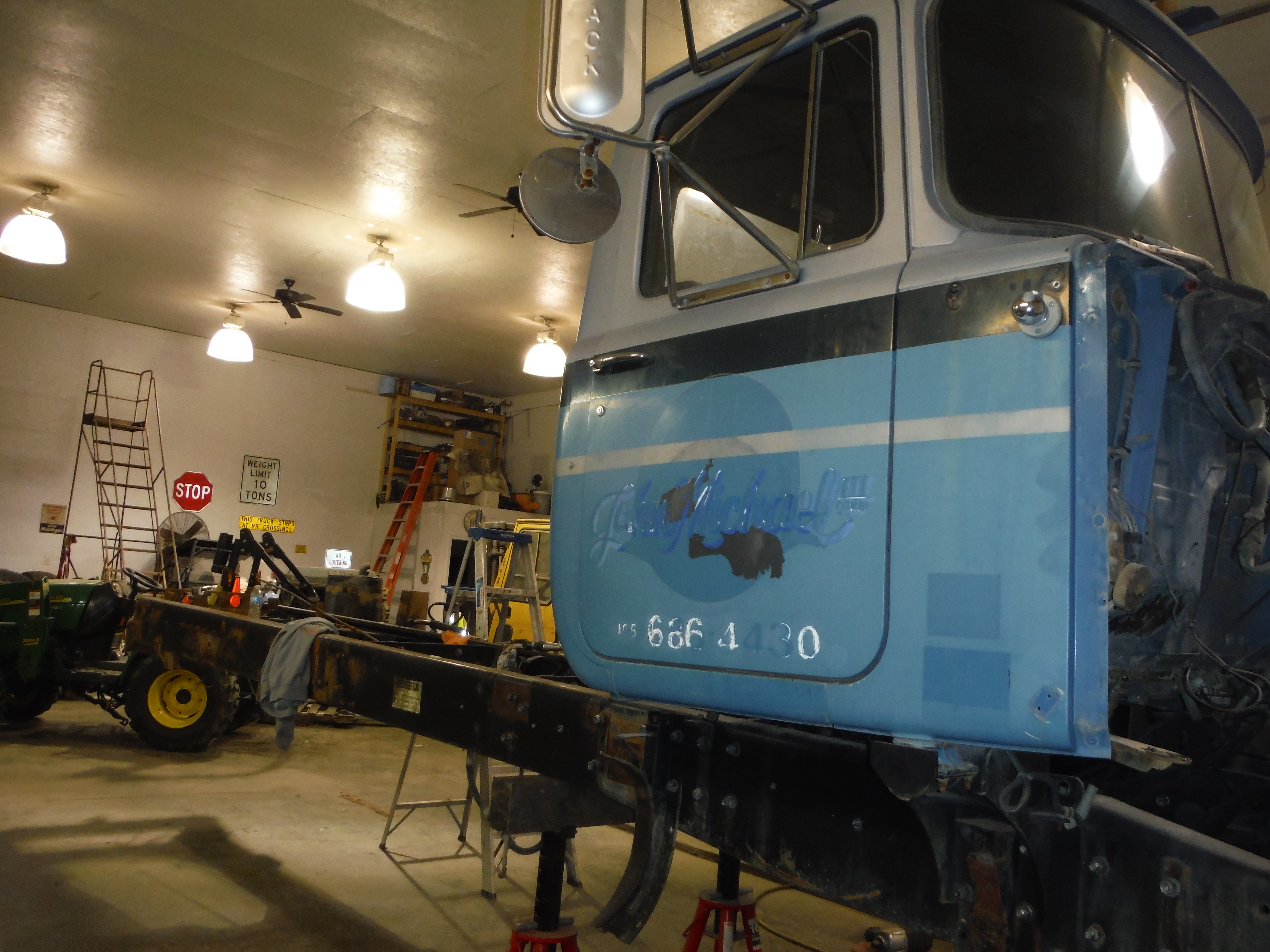

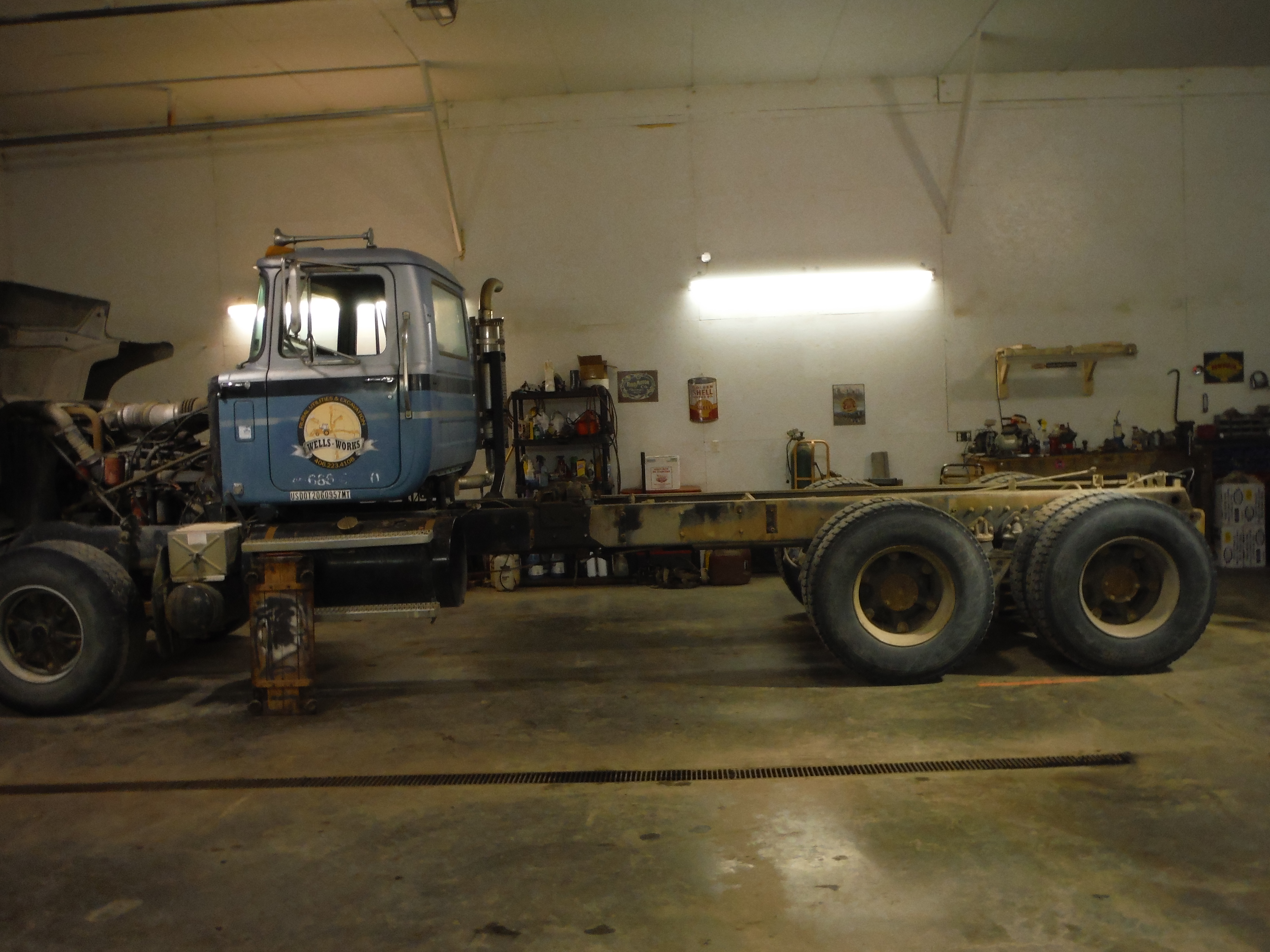

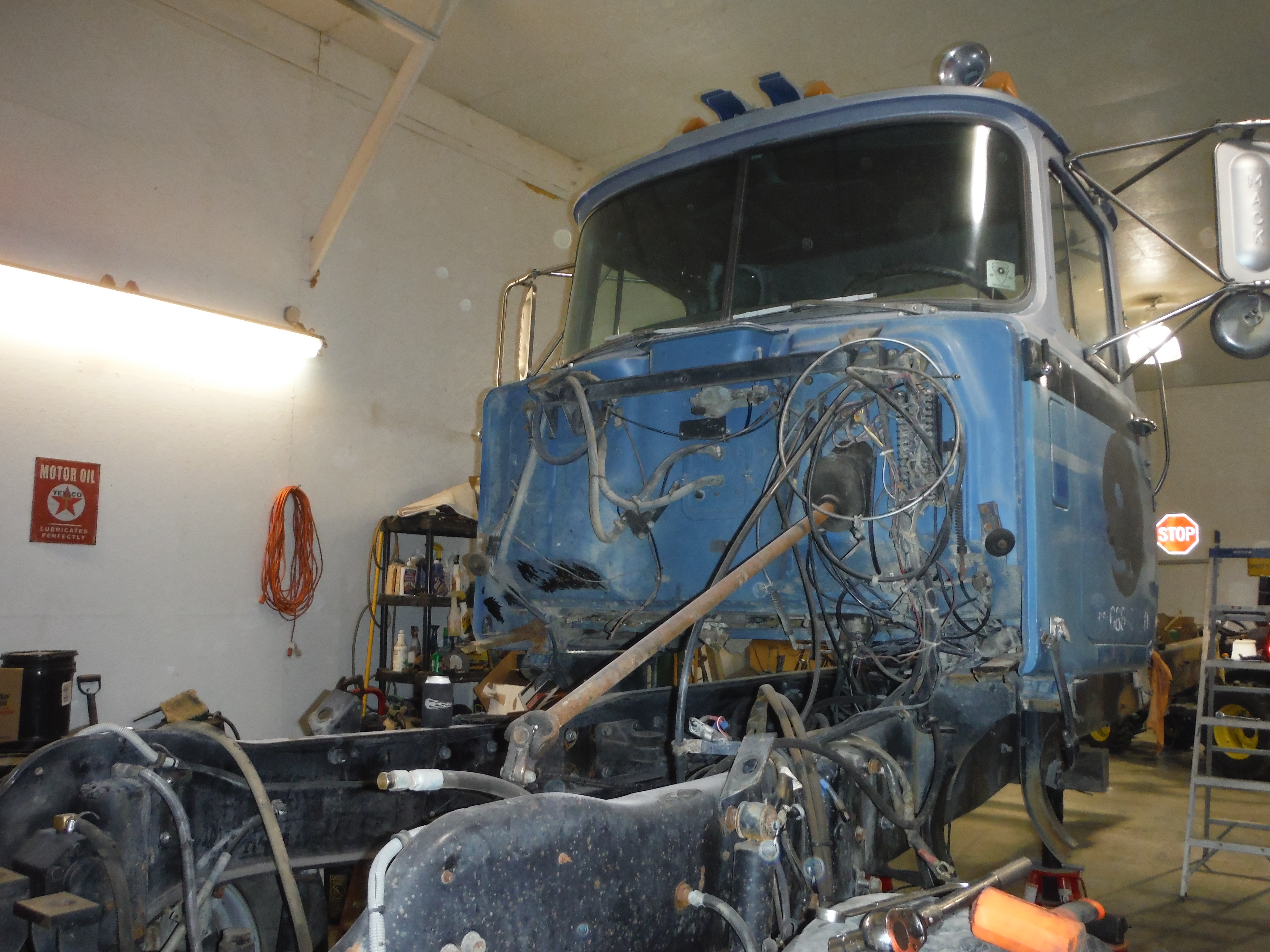

Popular Post superdog405 Posted January 1, 2017 Author Popular Post Share Posted January 1, 2017 Couple random shots of it torn down. 3 Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356694 Share on other sites More sharing options...
superdog405 Posted January 1, 2017 Author Share Posted January 1, 2017 Another random shot from last year, I'll take some more this week and post. 2 Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356695 Share on other sites More sharing options...
Vladislav Posted January 1, 2017 Share Posted January 1, 2017 Looks like a lot of progress is done and still plenty of job in the future. Good luck on the project! If you will make some more pictures the other day please post a couple of views of the chassis very front crossmember. I'd like to see the difference of them between MH (I have) and Superliner. And also the way a RWII hood attaches to. Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356697 Share on other sites More sharing options...

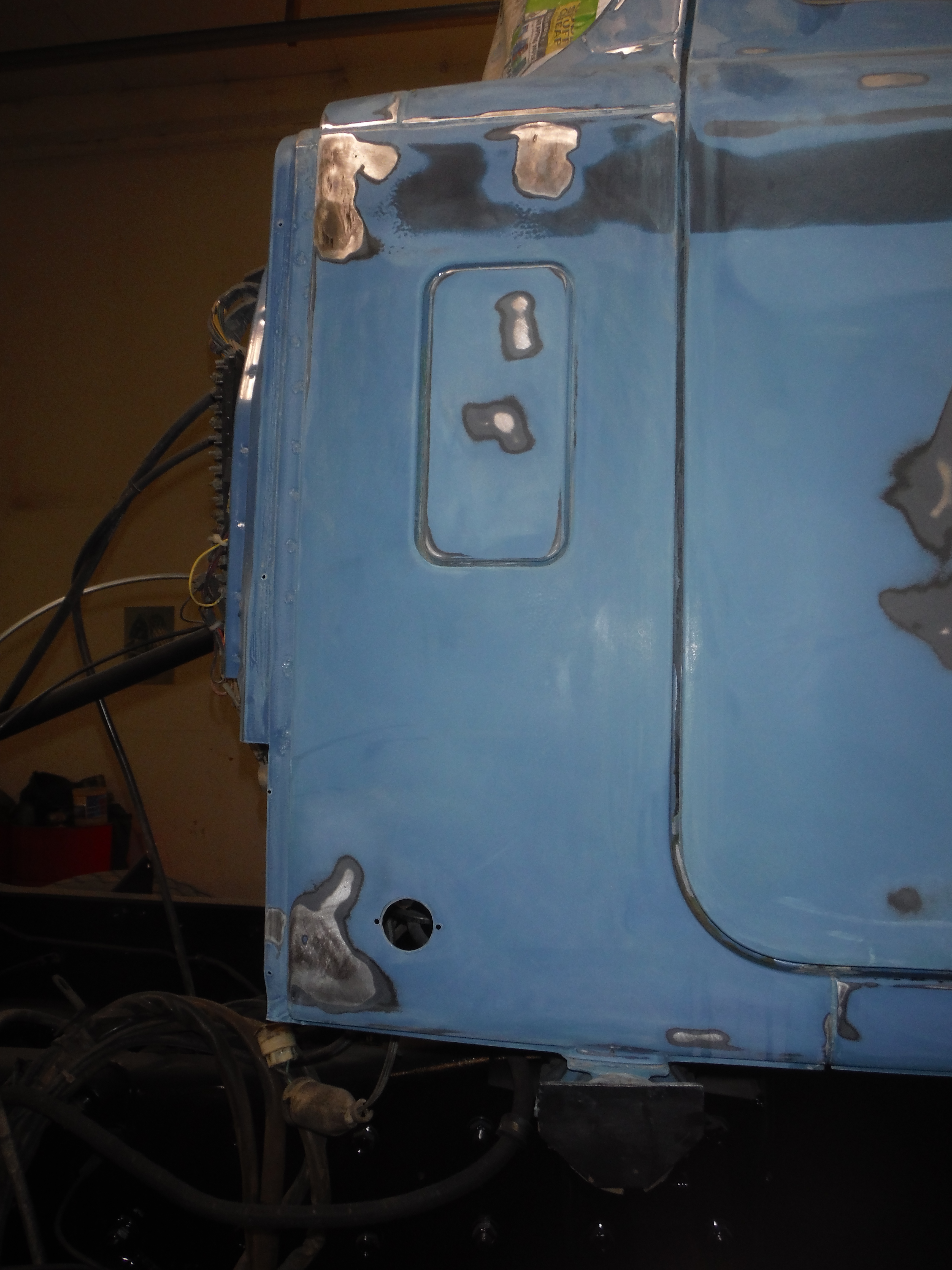

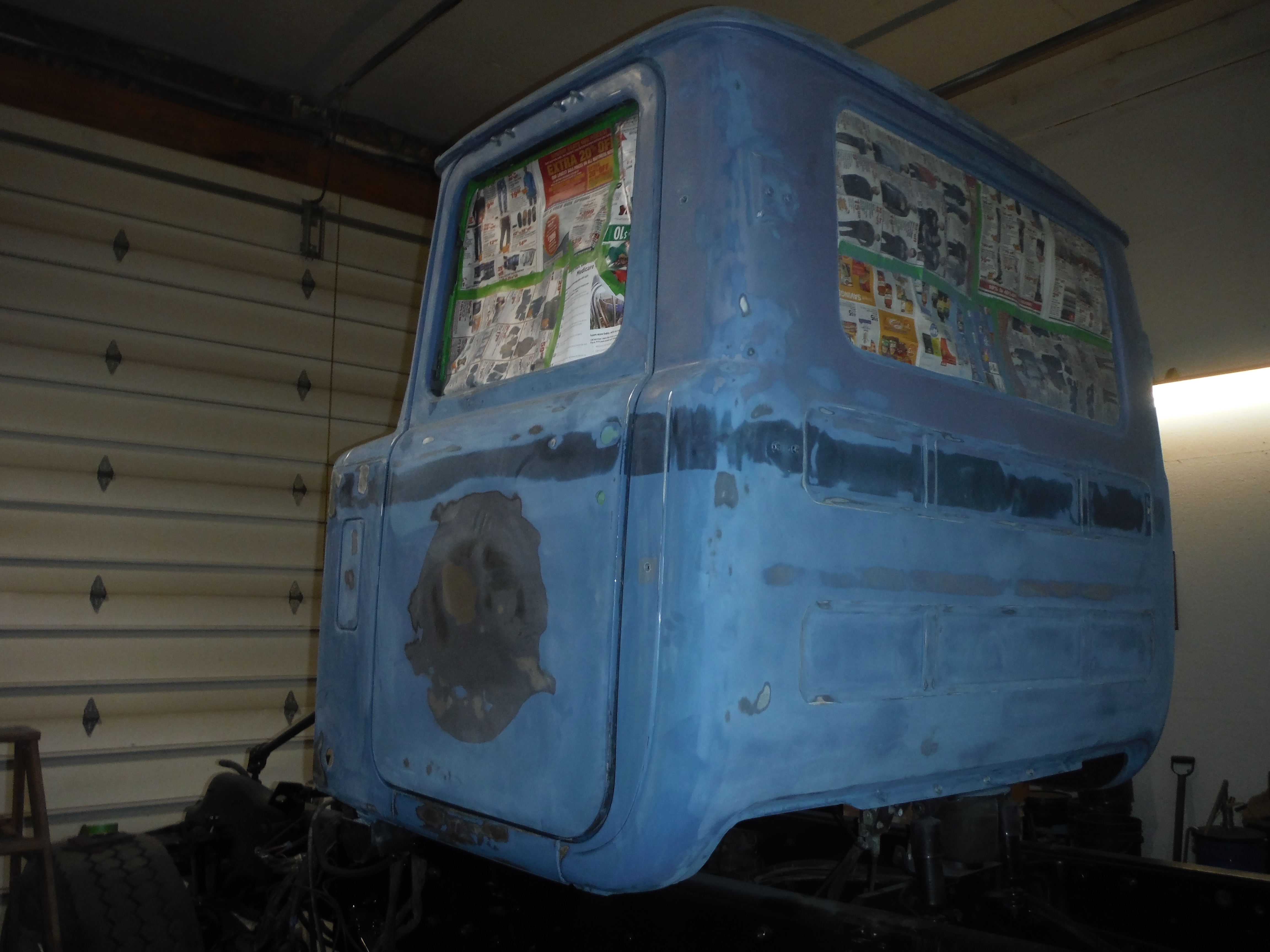

superdog405 Posted January 1, 2017 Author Share Posted January 1, 2017 I'll do Vlad ! Thanks for the support. Pic of cab ready for paint, I'm adding dual air cleaners to this so we welded the extra holes in cab shut. 2 Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356699 Share on other sites More sharing options...

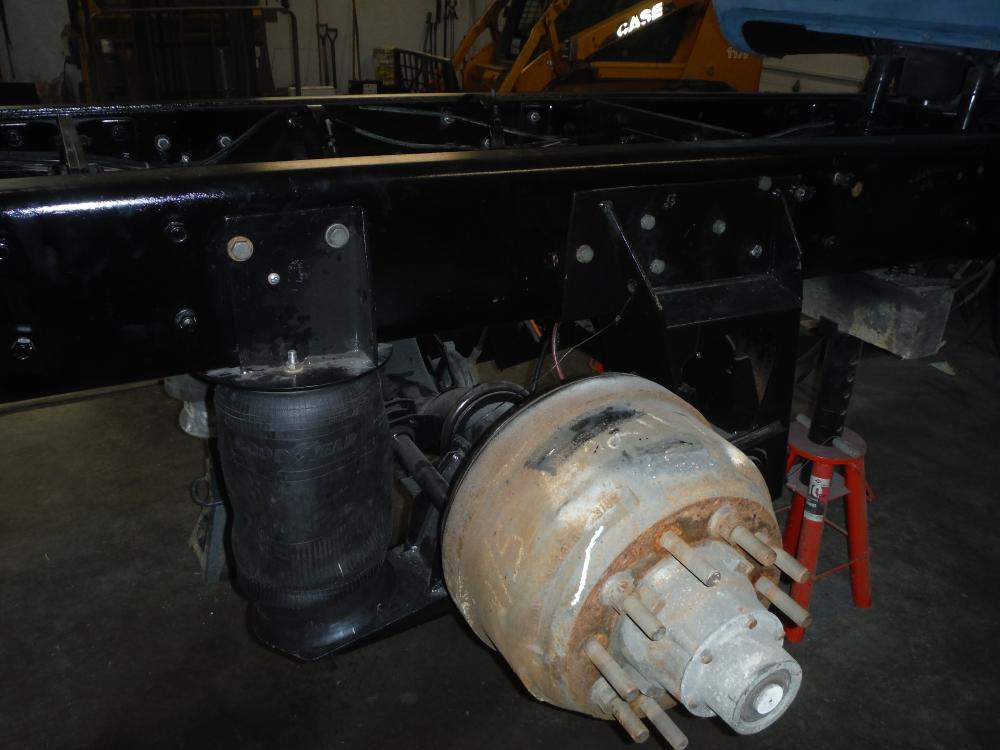

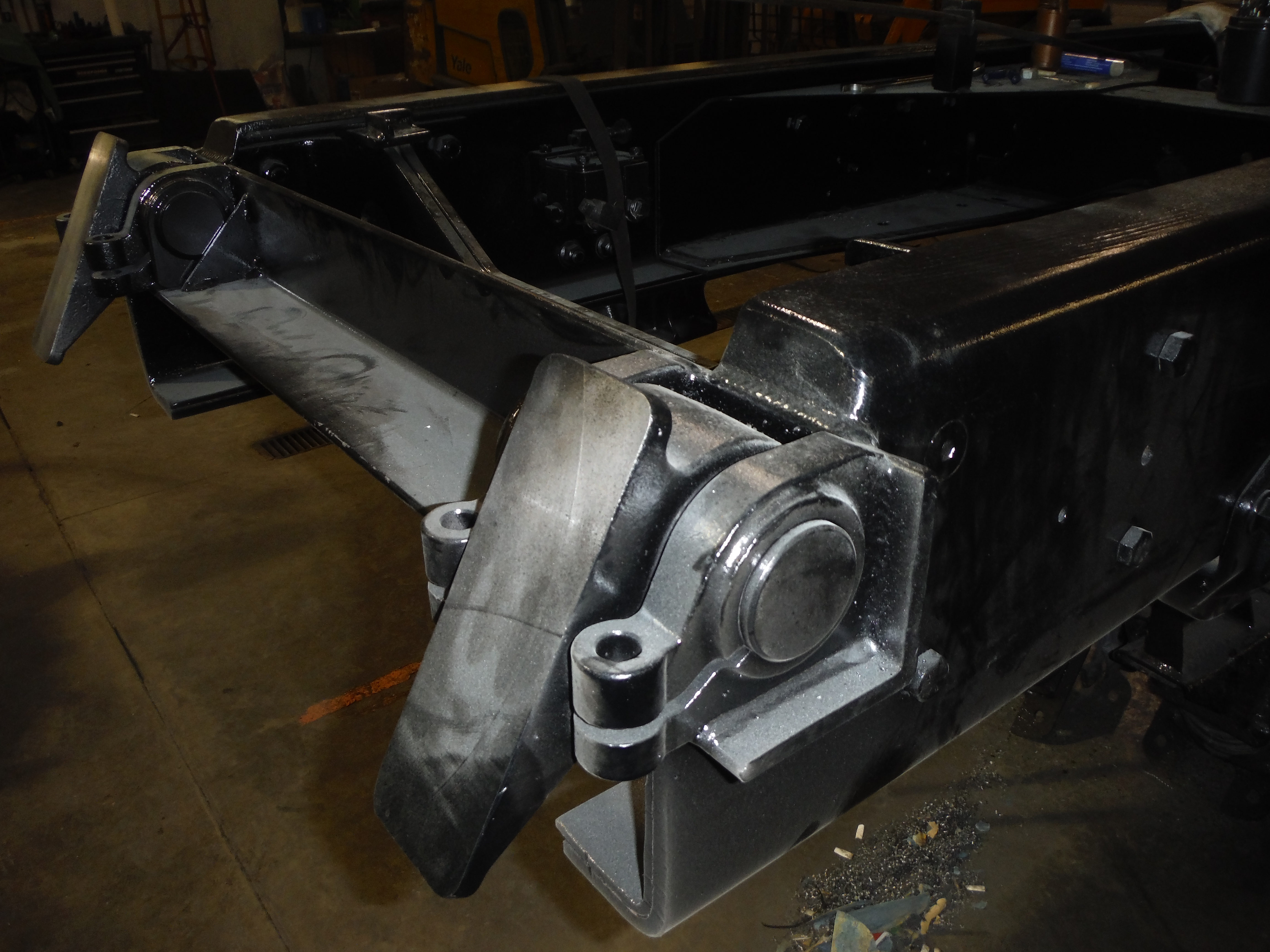

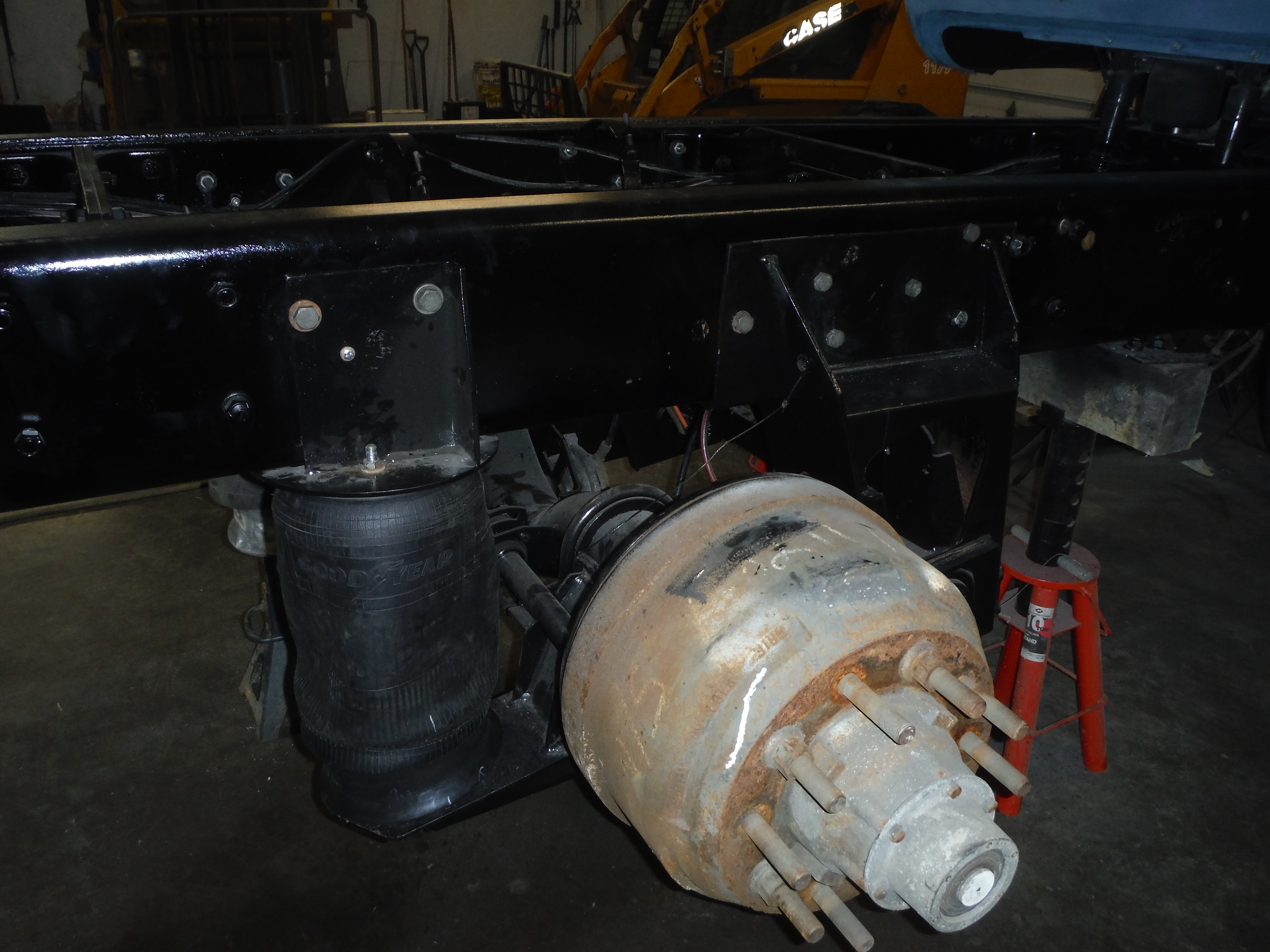

superdog405 Posted January 1, 2017 Author Share Posted January 1, 2017 New bed hinges welded in and lift axle installed. Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356700 Share on other sites More sharing options...

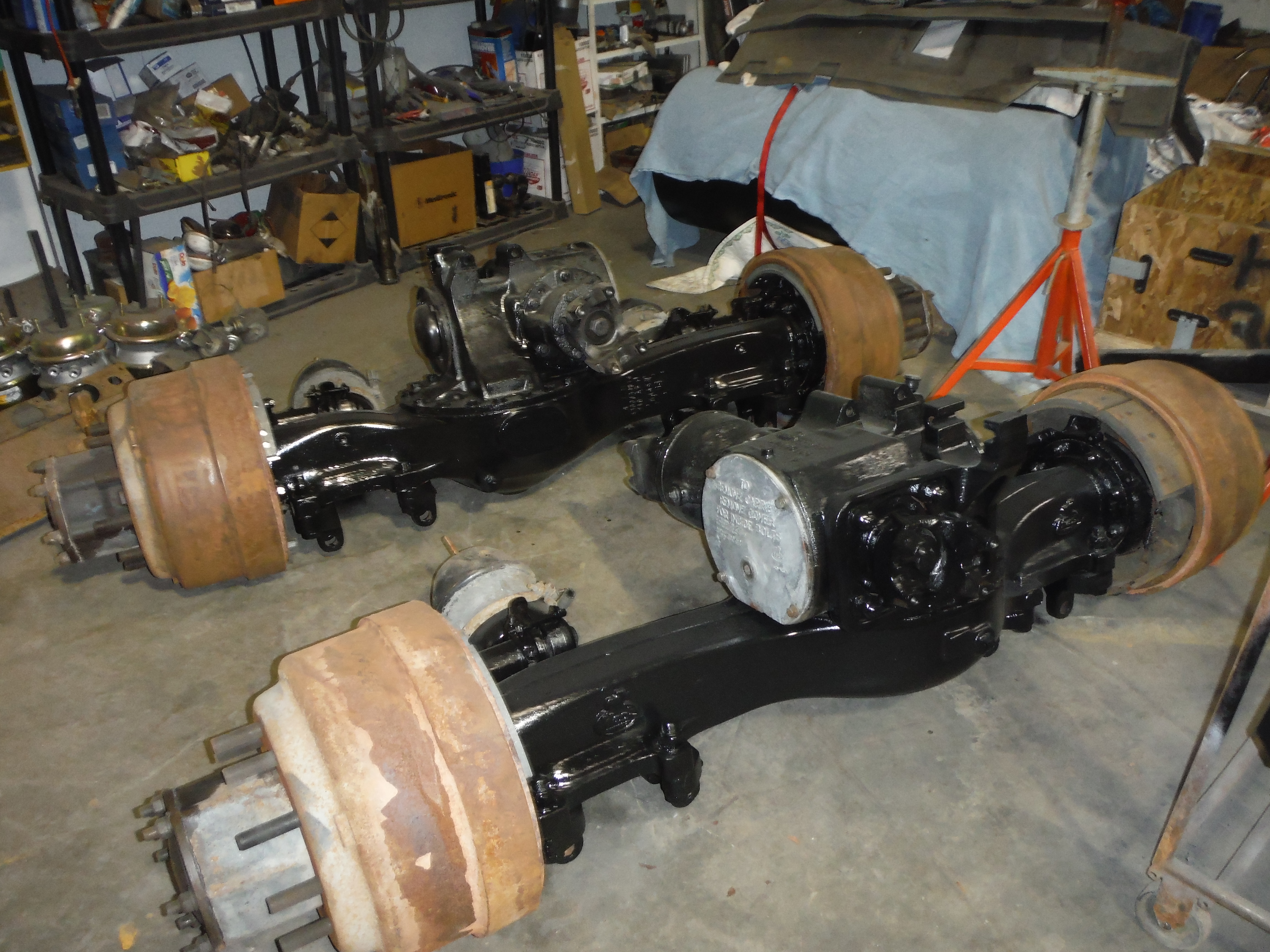

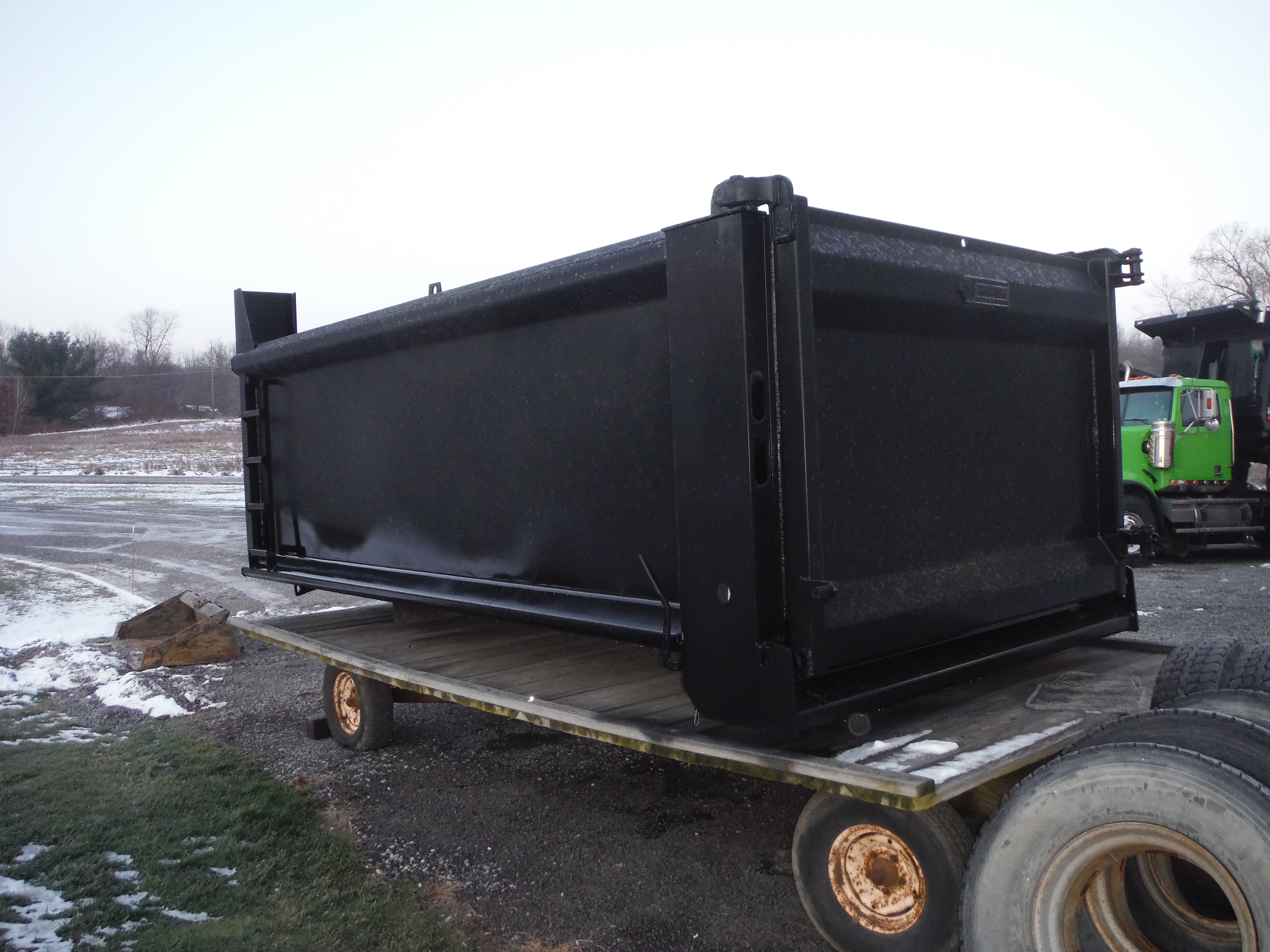

superdog405 Posted January 1, 2017 Author Share Posted January 1, 2017 We've been at it prepping, priming and painting all the parts. My bed got painted back in Nov. when it got delivered and axles are rebuilt and painted. Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356703 Share on other sites More sharing options...

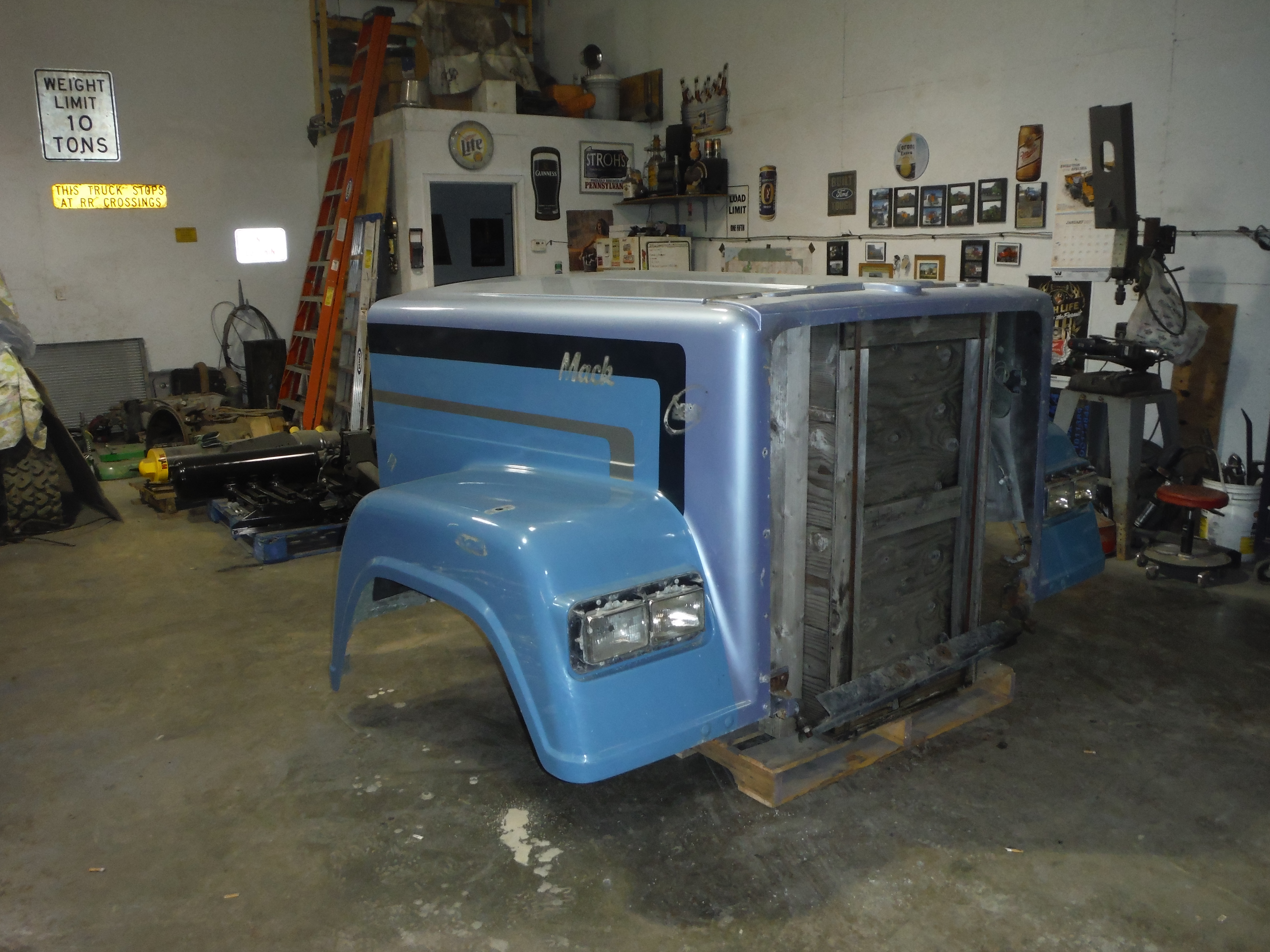

superdog405 Posted January 1, 2017 Author Share Posted January 1, 2017 Hood torn down and ready to be sanded, some other parts painted and ready to install. 1 1 Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356704 Share on other sites More sharing options...
Vladislav Posted January 1, 2017 Share Posted January 1, 2017 Can't wait to see the cab and hood painted. Whonder which color. Superdogs are damn attractive and many colors absolutely take them apart from other rigs. Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356711 Share on other sites More sharing options...
Back In Black Pulling Posted January 1, 2017 Share Posted January 1, 2017 Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356724 Share on other sites More sharing options...
Yoos Brothers Construction Posted January 1, 2017 Share Posted January 1, 2017 Awesome! Looking really good! Josh Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356726 Share on other sites More sharing options...
j hancock Posted January 1, 2017 Share Posted January 1, 2017 Fantastic! Quote JimIt doesn't cost anything to pay attention. Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356730 Share on other sites More sharing options...
jackb61sx Posted January 1, 2017 Share Posted January 1, 2017 Very impressed at what you have done to it since you got it, was definitely a very sound tractor when you got it. So if your going to an RW 753 you putting a 3406B in it like I have or a different variant or a Cat. Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356734 Share on other sites More sharing options...
57 bcr Posted January 1, 2017 Share Posted January 1, 2017 Going to town!!! Looking good! Al Quote IF YOU BOUGHT IT, A TRUCK BROUGHT IT..AND WHEN YOU'RE DONE WITH IT, A TRUCK WILL HAUL IT AWAY!!! Big John Trimble,WRVA Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356779 Share on other sites More sharing options...
mrgumby Posted January 1, 2017 Share Posted January 1, 2017 did you get that body from a company in vermont that hinge mount looks like theirs Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356793 Share on other sites More sharing options...
Timmyb Posted January 1, 2017 Share Posted January 1, 2017 Wasting no time on that! It will be an impressive truck once it's done. Good job! Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356801 Share on other sites More sharing options...
keg1 Posted January 2, 2017 Share Posted January 2, 2017 Looking good Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356823 Share on other sites More sharing options...
Popular Post superdog405 Posted January 2, 2017 Author Popular Post Share Posted January 2, 2017 Thanks every one ! It is going to be Omaha orange with a black stripe, I have already had the fuel and air tanks sand blasted and powder coated black. Had a custom 10" s.s. drop visor made for it , and will be adding dual 7" straight pipes with internal mufflers. Have all the parts (and a good bumper) to change it over to the big center tow pin style, and will be adding the dual s.s. air cleaners mentioned before. It will be the superliner I wanted but could not find when I'm done. Mack built them this way so why can't I. Dual exhaust, air cleaners and a big front bumper with a CAT that is. We will be using a 3406C @ 600 hp mated to a fuller 18 spd putting power to a set of 46k Mack rears @ 4:42 ratio on hendrickson HN susp. The bed is a new Brandon hardox steel body from Quebec. Hope I answered a couple questions and happy new year ! 1 3 Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356845 Share on other sites More sharing options...
terry Posted January 2, 2017 Share Posted January 2, 2017 Should be quite the dump truck! Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-356855 Share on other sites More sharing options...
55deere70 Posted January 3, 2017 Share Posted January 3, 2017 Looking Great!! Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-357026 Share on other sites More sharing options...
superdog405 Posted January 4, 2017 Author Share Posted January 4, 2017 Ok, so I took a couple of pics for Vlad yesterday but the website keeps telling me they are to big. max 1.71mb it says, these pics are 3.8 or so. How in the world do you change this ? Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-357098 Share on other sites More sharing options...
fxfymn Posted January 4, 2017 Share Posted January 4, 2017 Bring the pics up in the computer; click select all (top right); click save to and then pick where you want to save to (create a separate folder from the original) and it should give you an option of saving in original format or a smaller format. Quote Money, sex, and fire; everybody thinks everyone else is getting more than they are! Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-357112 Share on other sites More sharing options...

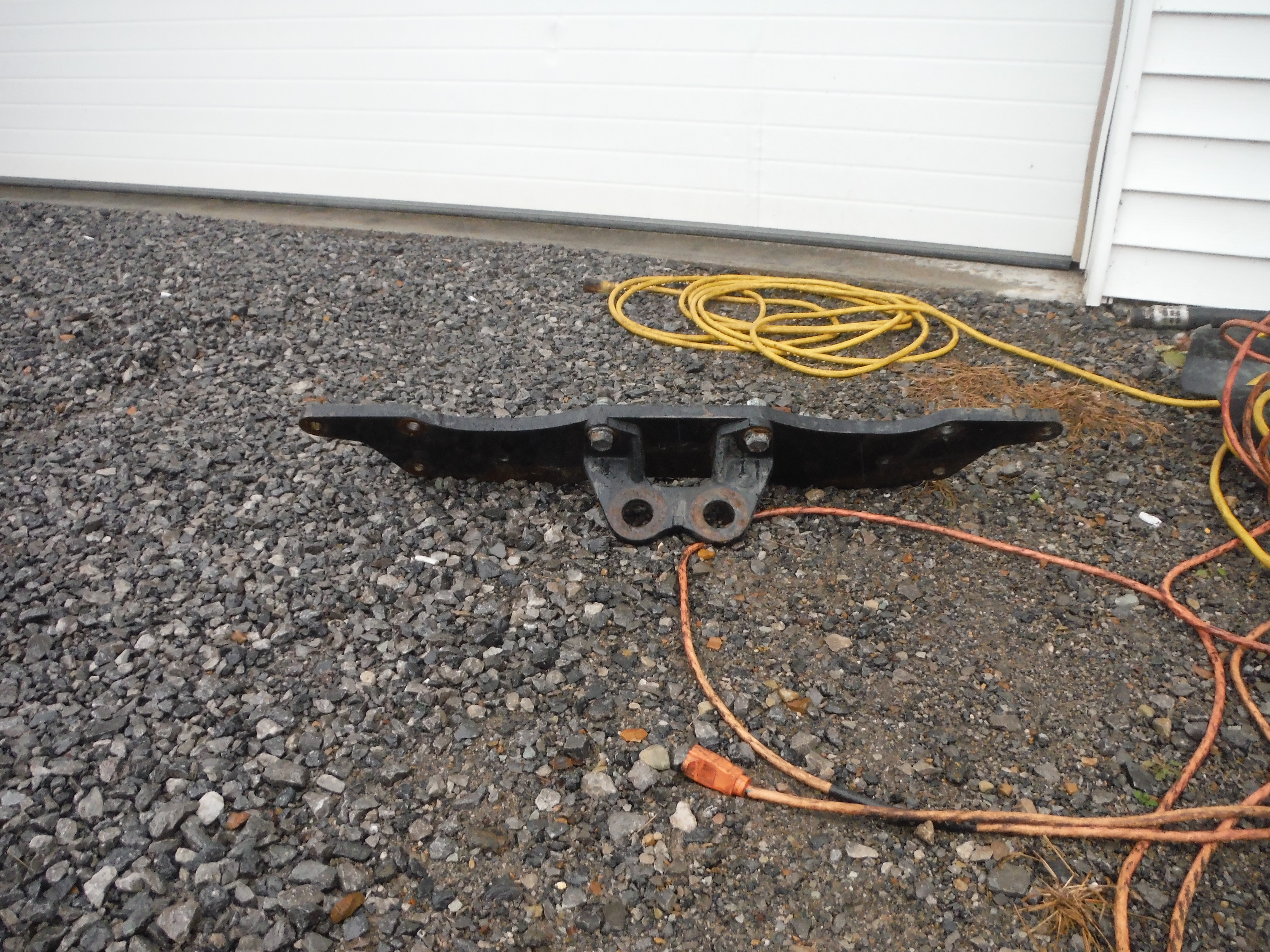

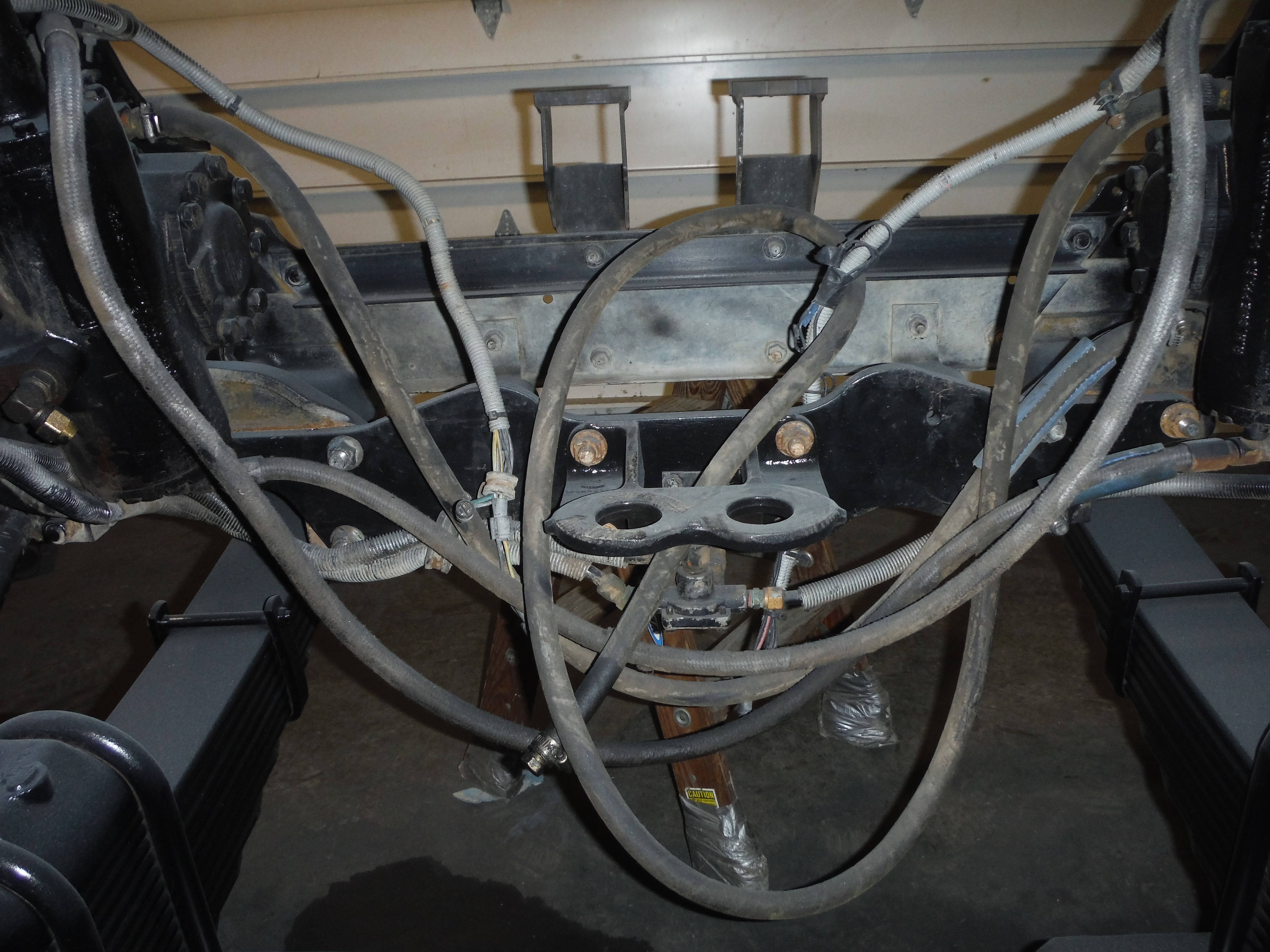

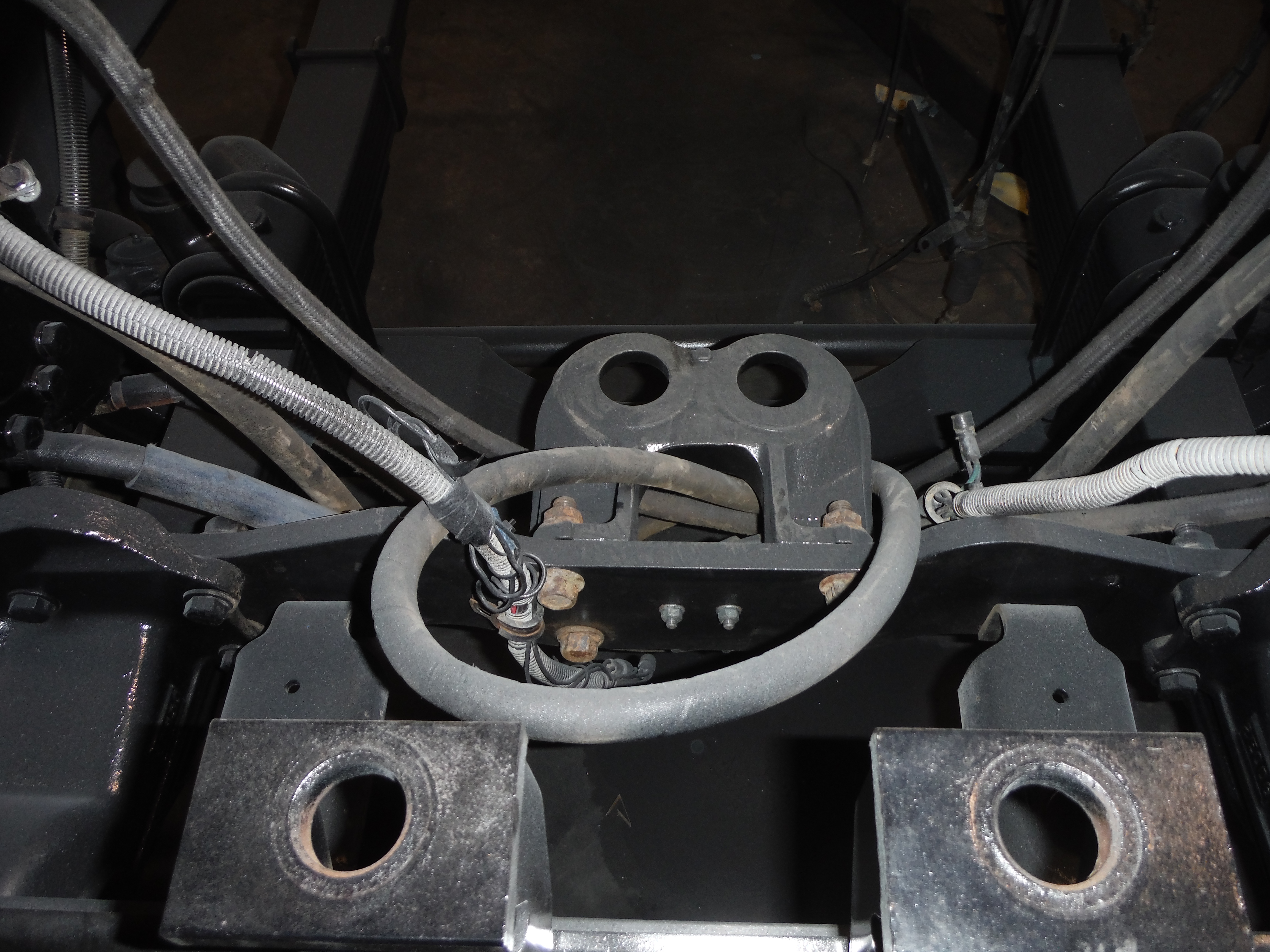

superdog405 Posted January 5, 2017 Author Share Posted January 5, 2017 Ok Vlad, here are some pics of front engine mount and of hood mount for ya, cross member and front engine mount in truck are out of a RW753 for a CAT and the one one the ground came out of truck for an E-6. The hood mount would be the two holes at the bottom of the one pic and the two stand looking brackets at thr top of the other. Hope this helps. Quote Link to comment https://www.bigmacktrucks.com/topic/48171-another-superliner-rebuild/#findComment-357215 Share on other sites More sharing options...
