rvi Posted April 28, 2017 Share Posted April 28, 2017 My truck will not crank over at all. The heater grid light will light then go out as normal, but turning the key further does not start the truck, except for a relay click under the dash. It is a 2001 Freedom XXL. I am getting error messages as follows: VECU 0 00629 31 127 Also EECU failure 58 And finally A photo of a key with the letters "AT" There are no blink codes, as nothing is blinking. The truck ran perfectly when I last drove it, but I removed the batteries to properly recharge them since I was away for awhile. The fully charged batteries were placed back in the truck, only to result in a no crank situation. I checked all the fuses I could find, and none are popped. Does anyone have an idea what may be wrong? Is the photo of the key for an immobilizer? I searched for an explanation of the error messages, and found nothing. Thanks! (I posted this in another section, but this section may be more correct. Apologies in advance) Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/ Share on other sites More sharing options...
Mackpro Posted April 29, 2017 Share Posted April 29, 2017 I wish I could help but , I've been at this mack dealership for 29 years and have only seen one Freedom truck. The shop bought a bunch of manuals up but we never had one to work on. Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368629 Share on other sites More sharing options...
rvi Posted April 29, 2017 Author Share Posted April 29, 2017 Thanks for the reply, and I appreciate you trying to help! By chance, does your shop still have any of the manuals? I rechecked the codes after a hard battery reset/disconnect, and the same messages pop up. I should add the there was a blink code, it is the picture of a key and the letters "AT" as I wrote in the first post. I just did not consider it a blink code, but going through the gauge cluster it does read that is a blink code. Also, the gauge cluster's self test appears to function. I did go through the entire owners manual as well (zero help with the codes), and the truck does seem to have vmac III. Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368638 Share on other sites More sharing options...
Mackpro Posted May 1, 2017 Share Posted May 1, 2017 I hope this helps. Only paper manuals I have are for air conditioning and engine overhaul Freedome V-MAC Diagnostic Service Manual.pdf Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368784 Share on other sites More sharing options...
rvi Posted May 1, 2017 Author Share Posted May 1, 2017 Thanks for sharing! I will dig all throughout it, and report back. Interesting regarding the manuals. Two more than I have! Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368791 Share on other sites More sharing options...
rvi Posted May 1, 2017 Author Share Posted May 1, 2017 Excellent information! I am still reading the document in detail as time permits, but I scanned the whole thing. Now I have confirmed what I thought AT meant, Anti Theft or the immobilizer. It seems I need to reprogram the key with the code from the vehicle document? I wish I knew what "failure 58" means as I did not find any reference to 58 or a 5-8 in the document manual. Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368825 Share on other sites More sharing options...
41chevy Posted May 3, 2017 Share Posted May 3, 2017 On 5/1/2017 at 4:12 PM, rvi said: Excellent information! I am still reading the document in detail as time permits, but I scanned the whole thing. Now I have confirmed what I thought AT meant, Anti Theft or the immobilizer. It seems I need to reprogram the key with the code from the vehicle document? I wish I knew what "failure 58" means as I did not find any reference to 58 or a 5-8 in the document manual. Here is what an ex Renault tech told me (the Freedom is Renault Midlum) The normal immobilizer problem fix is, the reverse lights run off the same fuse as the immobilizer, check the fuse for the reverse lights. Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368907 Share on other sites More sharing options...
Mackpro Posted May 3, 2017 Share Posted May 3, 2017 I hope your getting close to getting it figured out. I have a few more manuals to send you and if I have time tomorrow, I'll send your some vehicle specific info on your Freedom Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368911 Share on other sites More sharing options...
rvi Posted May 3, 2017 Author Share Posted May 3, 2017 11 hours ago, 41chevy said: Here is what an ex Renault tech told me (the Freedom is Renault Midlum) The normal immobilizer problem fix is, the reverse lights run off the same fuse as the immobilizer, check the fuse for the reverse lights. You may be onto something, as when I tried to attempt the manual method to input the 4 digit anti theft immobilizer code, the anti theft light on the instrument cluster did not flash at all. Zero response! I will recheck the reverse light fuse, and test the plug at the anti theft unit making sure it is getting power. Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368925 Share on other sites More sharing options...
rvi Posted May 3, 2017 Author Share Posted May 3, 2017 8 hours ago, Mackpro said: I hope your getting close to getting it figured out. I have a few more manuals to send you and if I have time tomorrow, I'll send your some vehicle specific info on your Freedom I think I am definitely getting somewhere! A massive thanks to Mackpro! He sent me advice and manuals, plus one of the message codes was cracked, the EECU Failure 58 Refers to degraded or absent information from the CAN bus line going to (or from?) the EECU. Since the immobilizer does send data to both the EECU and the VECU, it's possible the immobilizer is not working. Or the CAN bus line is cut somehow. Both possibilities will be checked. Thank you all for your help! Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368927 Share on other sites More sharing options...
Mackpro Posted May 3, 2017 Share Posted May 3, 2017 Here is an actual copy of some of the part serial numbers and options on your truck as it came from the factory. There might be some info in there you could use. Freedom print out.pdf Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368930 Share on other sites More sharing options...
rvi Posted May 3, 2017 Author Share Posted May 3, 2017 Brilliant! I feel like I am getting closer and closer. Huge thanks again Mackpro! Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-368942 Share on other sites More sharing options...
rvi Posted May 4, 2017 Author Share Posted May 4, 2017 I'm tracking down something I will report on tomorrow hopefully. Getting closer... The reverse light and anti theft/immobilizer fuse checks out, unfortunately. Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-369009 Share on other sites More sharing options...

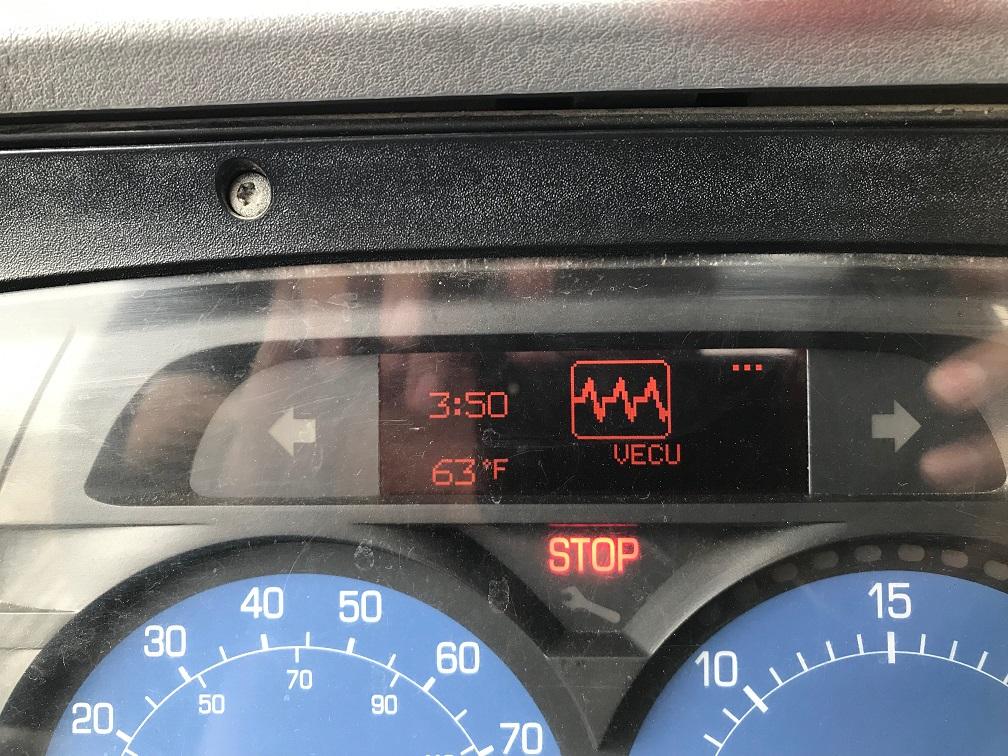

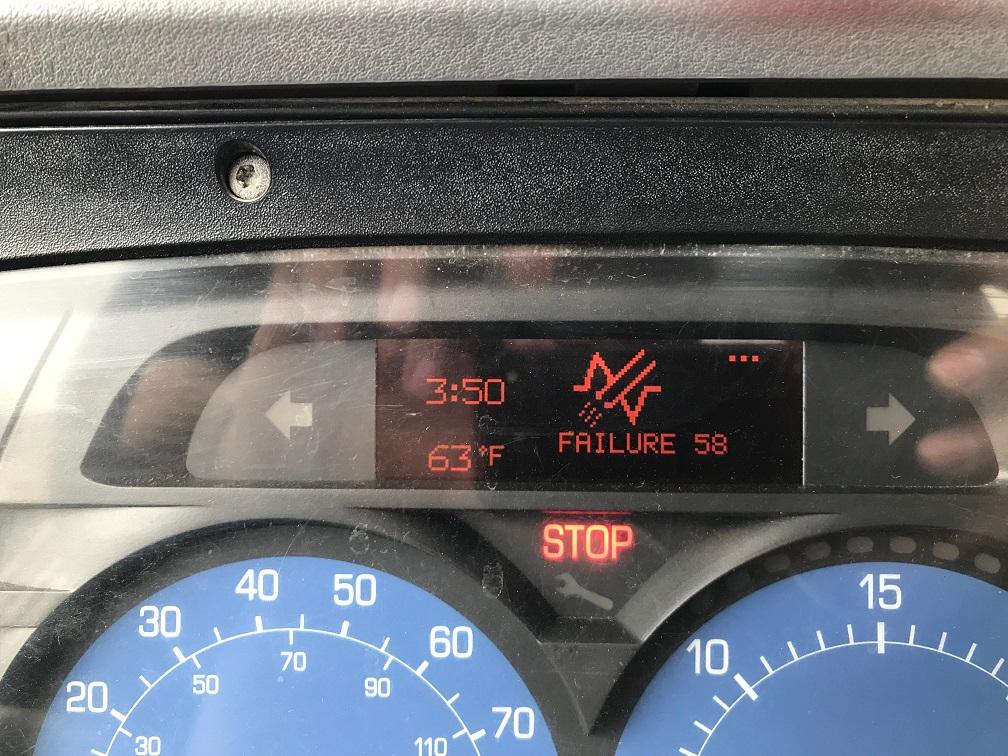

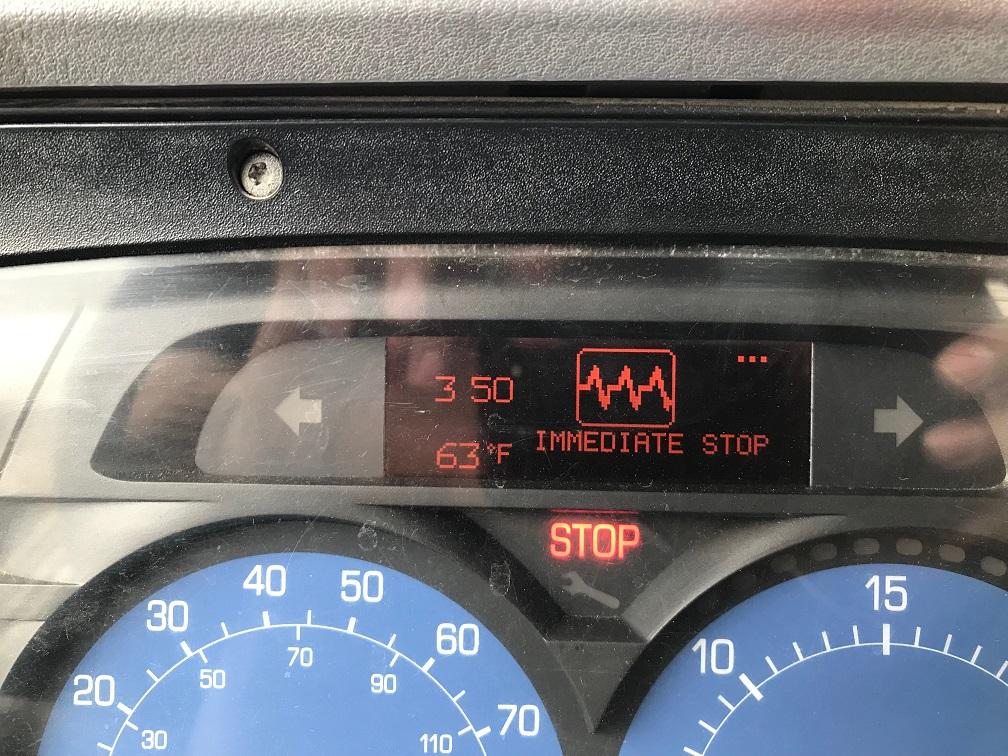

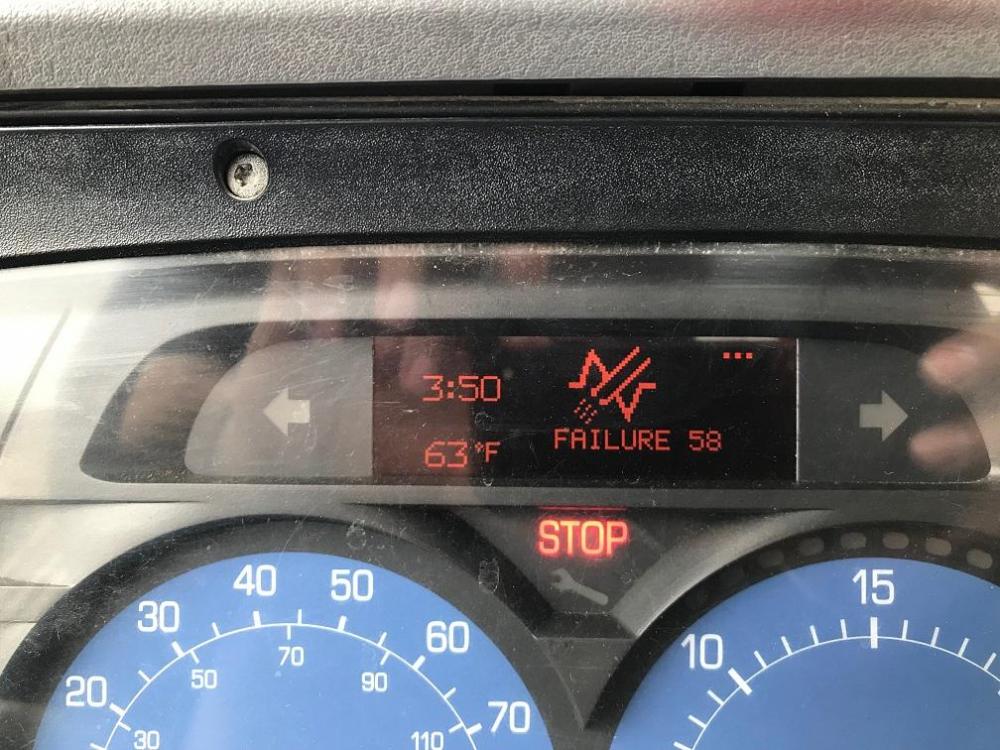

Samm Posted April 9, 2019 Share Posted April 9, 2019 (edited) I have a 2002 Mack freedom MV200 truck like yours and ran into a similar issue. The Mack dealership here doesn't have the software for this model and they couldn't find what is wrong without a Medium duty service software. They say it's made by Renault and can't be diagnosed with the new software they have as it is outdated and I have to scrap the truck. I called around a few dealerships in nearby cities and none of them have this software. It was running fine till yesterday and when I started this morning I had VECU FAILURE 58 IMMEDIATE STOP on the dash. The accelerator won't work but the truck moves like 5 -10 miles an hour when in gear with no working accelerator. Other than this the truck was running solid without any issues. It would be of great help if you can update your solution here. If anyone else can help with this it would be highly appreciated. Thanks Edited April 9, 2019 by Samm Quote Link to comment https://www.bigmacktrucks.com/topic/49678-fault-codes-and-no-cranking/#findComment-420189 Share on other sites More sharing options...
