Vladislav Posted March 7, 2018 Share Posted March 7, 2018 A quick question - does anybody have CRD92/93 carrier parts list handy? Beeing needing to identify the bearing cups (races) of the ones the interwheel differential turns in. Are they Mack 64AX176/46AX177 and Timken/SKF/Bower 47622W / 47622BW ? Or different? Just dont want to part out a carrier with only a reason to recognize the bearings. Thanks in advance, Vlad Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment https://www.bigmacktrucks.com/topic/52736-need-help-with-bearing-pn/ Share on other sites More sharing options...

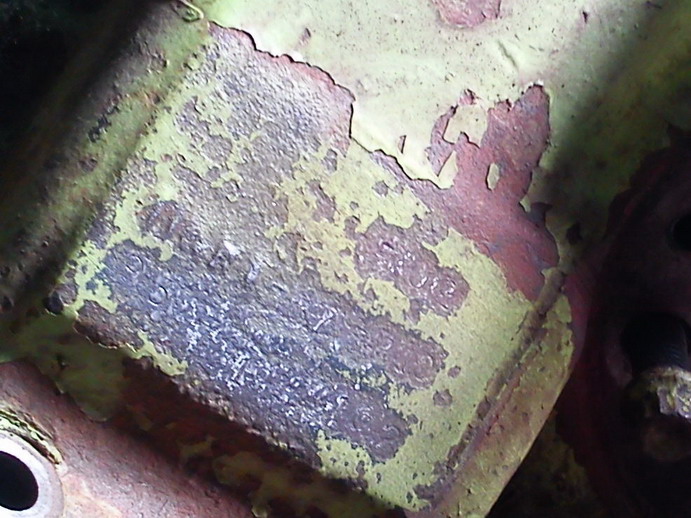

KKERGALL Posted March 10, 2018 Share Posted March 10, 2018 what is the " 11KHA " stamped on flat machined surface on carrier? Rich Quote Link to comment https://www.bigmacktrucks.com/topic/52736-need-help-with-bearing-pn/#findComment-393842 Share on other sites More sharing options...
Vladislav Posted March 10, 2018 Author Share Posted March 10, 2018 (edited) 2 hours ago, KKERGALL said: what is the " 11KHA " stamped on flat machined surface on carrier? Rich It's KHA 5444 P10 on CRD93. I have another one of the same time frame but that one is impossible to read. But I can tell for sure there's also P10 in the end. The banjo stamping is 1QF51218P6 S441C, just for some reason. Edited March 10, 2018 by Vladislav Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment https://www.bigmacktrucks.com/topic/52736-need-help-with-bearing-pn/#findComment-393851 Share on other sites More sharing options...

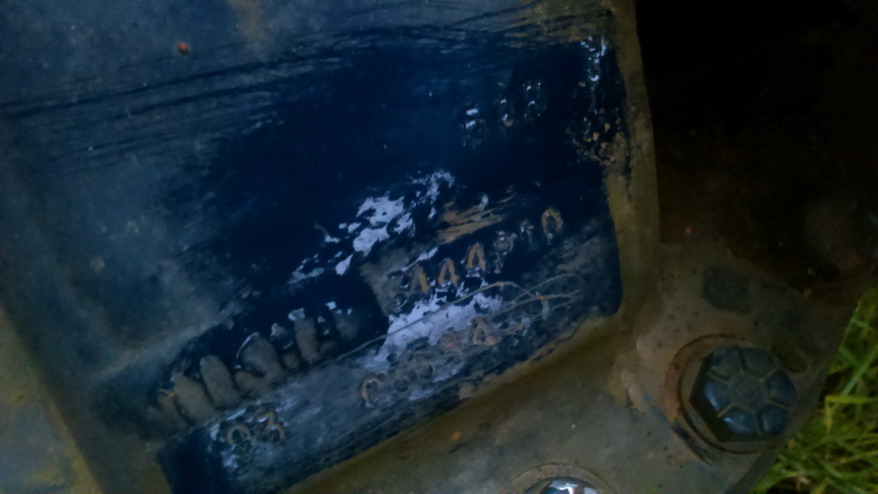

KKERGALL Posted March 11, 2018 Share Posted March 11, 2018 A trick my Polish unit man showed my when I worked @ Mack dealer, use a paint marker go over the stamping on carrier and wipe quickly w/rag and you can make out the numbers. Quote Link to comment https://www.bigmacktrucks.com/topic/52736-need-help-with-bearing-pn/#findComment-393916 Share on other sites More sharing options...
Vladislav Posted March 24, 2018 Author Share Posted March 24, 2018 On 11.03.2018 at 10:39 PM, KKERGALL said: A trick my Polish unit man showed my when I worked @ Mack dealer, use a paint marker go over the stamping on carrier and wipe quickly w/rag and you can make out the numbers. Thank you for the advice. I'll try that for a practice. I found one of such carriers in my shed apart from the axle housing and could read the markings on the bearing cup without removing it. Didn't write the # on a paper but those are not the ones I need. Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment https://www.bigmacktrucks.com/topic/52736-need-help-with-bearing-pn/#findComment-395013 Share on other sites More sharing options...
Mack Technician Posted June 6, 2018 Share Posted June 6, 2018 Did you get your answer Vlad? I won't bother with it if you already confirmed your numbers. Quote Link to comment https://www.bigmacktrucks.com/topic/52736-need-help-with-bearing-pn/#findComment-400130 Share on other sites More sharing options...
Vladislav Posted June 6, 2018 Author Share Posted June 6, 2018 Jason, Yes, I got the data and resolved my problem either. The original need was for a pair of Timken/SKF/Bower 47622W / 47622BW to finish rebuild of CRD32/33 diffs for my WW2 Mack. It's a very long story, the reason was to get faster from 9.02 and 40mph top speed. A 5 years long search ended up with a pair of bevel gear sets off a B-model supplied by one of our fellow members. That allowed me to mosly complete the FR. But when I got myself to the RR the interwheel diff bearings were found pitted really bad. It had happened that I had two sets of the diffs what meant 4 sets of diff bearings. Unfortunately I could use one of them only. So looked for extra bearings. Having hopes to use them from CRD92/93 (look siimilar) I put this thread on here. But finally having no clear answer during some while I just pulled one CRD 92 off a deep corner and what was pleasant I could read the numbers on the race without removing it. And those numbers were different from what I was needing at the time. So I rifled through e-bay and ordered a pair of races (L and R) and a pair of cones. They were not really cheap but reasonable in relation to other options. Being honest I was surprized seeing a cost of nearly $250 for just a bearing race and $150 for the cone to add. Now the bearings are already on my bench but no time to get to the carrier. And just tomorrow I'm going to be in almost another part of the world instead. Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment https://www.bigmacktrucks.com/topic/52736-need-help-with-bearing-pn/#findComment-400136 Share on other sites More sharing options...
Mack Technician Posted June 7, 2018 Share Posted June 7, 2018 (edited) Good deal Vlad, I ran your numbers through our Corporation’s bearing supplier and came back $314.78 on the 47622W and $351.22 on the 47622BW. A “High End” bearing, probably Timken? The wait was 15 weeks. Your rolling on Gold Brother!!! Safe travels... Edited June 7, 2018 by Mack Technician Quote Link to comment https://www.bigmacktrucks.com/topic/52736-need-help-with-bearing-pn/#findComment-400188 Share on other sites More sharing options...
Vladislav Posted June 10, 2018 Author Share Posted June 10, 2018 On 6/7/2018 at 9:49 AM, Mack Technician said: Good deal Vlad, I ran your numbers through our Corporation’s bearing supplier and came back $314.78 on the 47622W and $351.22 on the 47622BW. A “High End” bearing, probably Timken? The wait was 15 weeks. Your rolling on Gold Brother!!! Safe travels... In my particular case I ended up with Bowers paying $70 for each race and $45 for a cone. You can see those figures were much friendly than the official offers. Sure NOS. And I got all that in my hands in 3 or 4 weeks, not 15 As for travels I landed at JFK safe and sound on Thursday and going to check in at Macungie showgrounds after some roaming along the East coast. 2 Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment https://www.bigmacktrucks.com/topic/52736-need-help-with-bearing-pn/#findComment-400327 Share on other sites More sharing options...
