03' Big Red Posted January 8, 2019 Share Posted January 8, 2019 I have a few questions about parts interchangeably, will a Allison 700 series bolt up to a 4000 series flywheel housing and flex plate? is a spacer needed ? If so what p/n ? also what is the tooth count on the 700 series speedometer? My Final question, will the output shaft yoke from a 4000 series fit a 700 series this is for a conversion project in a 03 Mack RD688s that currently runs a Eaton 8LL Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/ Share on other sites More sharing options...
MACKS Posted January 8, 2019 Share Posted January 8, 2019 There's a member called automatic Mack on here knows quit a bit about them but haven't seen him on in a while,maybe message him..good luck Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-412751 Share on other sites More sharing options...
BlueDogDozing Posted January 8, 2019 Share Posted January 8, 2019 3 hours ago, 03' Big Red said: I have a few questions about parts interchangeably, will a Allison 700 series bolt up to a 4000 series flywheel housing and flex plate? is a spacer needed ? If so what p/n ? also what is the tooth count on the 700 series speedometer? My Final question, will the output shaft yoke from a 4000 series fit a 700 series this is for a conversion project in a 03 Mack RD688s that currently runs a Eaton 8LL I cannot help you with part numbers and such, but I do have a 1996 Mack RD688S with an Allison HT 750 DRD in it from the factory. I can take some pictures of it if you need them. It is mated up to a E7 300. I would assume that the frames on our trucks are very similar. I am currently having some work done on the transmission, there is a company called Clarke Power that has facilities all around the United States. They specialize in Allison transmissions. You might give them a call, they’re doing my work and seem pretty knowledgeable. My local Mack has them do Allison trans work for them. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-412754 Share on other sites More sharing options...
03' Big Red Posted January 8, 2019 Author Share Posted January 8, 2019 (edited) 2 hours ago, BlueDogDozing said: I cannot help you with part numbers and such, but I do have a 1996 Mack RD688S with an Allison HT 750 DRD in it from the factory. I can take some pictures of it if you need them. It is mated up to a E7 300. I would assume that the frames on our trucks are very similar. I am currently having some work done on the transmission, there is a company called Clarke Power that has facilities all around the United States. They specialize in Allison transmissions. You might give them a call, they’re doing my work and seem pretty knowledgeable. My local Mack has them do Allison trans work for them. What axle ratio does your truck have ? Also does your trans have a rear support? I know the 4000 series requires one. i know that I need to pay close attention to tooth count on flex plate and tone ring/ speedometer gear to make things work. Edited January 8, 2019 by 03' Big Red Spelling Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-412760 Share on other sites More sharing options...
BlueDogDozing Posted January 14, 2019 Share Posted January 14, 2019 On 1/8/2019 at 5:17 PM, 03' Big Red said: What axle ratio does your truck have ? Also does your trans have a rear support? I know the 4000 series requires one. i know that I need to pay close attention to tooth count on flex plate and tone ring/ speedometer gear to make things work. Sorry for the slow reply, been busy! I went to check the axle ratio and the sticker on the cab is not readable. Do you know where else the ratio might be located? I'll have a look for you. I know sometimes they're stamped on the differential somewhere...but if you can give me a hint that would save me a lot of time...plenty places that number could be! Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-413248 Share on other sites More sharing options...

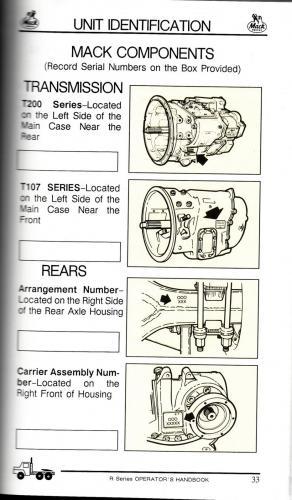

j hancock Posted January 14, 2019 Share Posted January 14, 2019 Ratio is stamped with "Carrier Assembly Number". Right front of housing. 2 Quote JimIt doesn't cost anything to pay attention. Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-413249 Share on other sites More sharing options...
BlueDogDozing Posted January 28, 2019 Share Posted January 28, 2019 On 1/8/2019 at 5:17 PM, 03' Big Red said: What axle ratio does your truck have ? Also does your trans have a rear support? I know the 4000 series requires one. i know that I need to pay close attention to tooth count on flex plate and tone ring/ speedometer gear to make things work. Sorry it took so long to get back to you. My axle ratio is a 4.17. And I don’t see a rear support. Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-414329 Share on other sites More sharing options...
03' Big Red Posted January 29, 2019 Author Share Posted January 29, 2019 thanks for the info, i run a 4:42 so my top speed will be about 55mph or so at 1900, not so bad since my work is mostly within 30 minutes and in a 55 MPH work zone. i have finally got a contact who did this swap a few times on a Mack and they are able to answer all my questions about flywheel housing,flexplates and tooth counts to keep the E tech happy. Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-414391 Share on other sites More sharing options...
AZB755V8 Posted January 30, 2019 Share Posted January 30, 2019 6 hours ago, 03' Big Red said: thanks for the info, i run a 4:42 so my top speed will be about 55mph or so at 1900, not so bad since my work is mostly within 30 minutes and in a 55 MPH work zone. i have finally got a contact who did this swap a few times on a Mack and they are able to answer all my questions about flywheel housing,flexplates and tooth counts to keep the E tech happy. Late to the party, but two things, are you considering the cable or electronic HT 750? If electronic why not a 4000 series, has 7 speeds with two overdrives and have the best of both worlds? If the old cable shift HT750 is what will work I get why. Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-414442 Share on other sites More sharing options...
03' Big Red Posted January 30, 2019 Author Share Posted January 30, 2019 the 750 drd has a much lower 1st gear than the 4000 unless you jump up to the 4700, if i go with the 4000 series then i'll need a computer and harness and the cost is much more. i dont want to get into that, i want to keep it simple. Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-414510 Share on other sites More sharing options...
AZB755V8 Posted January 31, 2019 Share Posted January 31, 2019 2 hours ago, 03' Big Red said: the 750 drd has a much lower 1st gear than the 4000 unless you jump up to the 4700, if i go with the 4000 series then i'll need a computer and harness and the cost is much more. i dont want to get into that, i want to keep it simple. Doing the same thing with a HT745CR cable shift behind an E9 at the moment for the simplicity reasons. Don't need the super low first gear but instead using the 777 high torque ratio torque converter. I start now in 5th or 6th gear with an 18 speed and have plenty of torque. Then if all works out drop the rear ratio to 3.42's or 3.11's from 4.17's Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-414527 Share on other sites More sharing options...
03' Big Red Posted January 31, 2019 Author Share Posted January 31, 2019 the big issue i find now is price, I have been told $25000-$30000 by two different shops, i don't understand how that could be possible, especially if i find a donor truck. i should be able to find a single axle RD with a E-Tech and Allison for a fair price. Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-414603 Share on other sites More sharing options...
Maxidyne Posted January 31, 2019 Share Posted January 31, 2019 Being this is a swap, I suspect the shops are just high balling the price so you won't be shocked if a lot of fabrication is needed and the labor hours take off. Oftentimes with older trucks like yours it's cheaper and a whole lot less headaches to simply sell the old truck and buy another one with the components you need. Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-414604 Share on other sites More sharing options...
AZB755V8 Posted February 1, 2019 Share Posted February 1, 2019 14 hours ago, 03' Big Red said: the big issue i find now is price, I have been told $25000-$30000 by two different shops, i don't understand how that could be possible, especially if i find a donor truck. i should be able to find a single axle RD with a E-Tech and Allison for a fair price. If that was the price I got it would be a BIG issue to. Thought my trans guy was a little high for a rebuilt dyno tested Allison at $7000. That is out right with $3000 core charge included. I do need to make an adaptor/ spacer ring between trans and engine, mount shifter. Have the drive shaft reworked for length but that is it. I am doing the trans in and out so just my time and plate of aluminum for spacer. No engine work needed as it is all mechanical. If all you are doing is swapping an existing engine/ trans into your truck that is a real high price in my book. Plus the cost of the donor truck.... No Way. Just keep you combo in that truck and put a good cut-off under the donor truck, if needed, and drive both. You'll be time and a lot of money ahead. Not to mention when you have service done in the future, no one will work on bastardized combo. Quote Link to comment https://www.bigmacktrucks.com/topic/55235-allison-automatic/#findComment-414658 Share on other sites More sharing options...
