Chris121 Posted September 11, 2019 Share Posted September 11, 2019 Looking for some help on the location of the oil temp sensor. I have a 2016 GU813 with a Mp7. I went to Mack but all they showed me was the coolant temp sensor. According to there system it says coolant/oil temp sensor but when they gave me the part number everywhere shows it’s just a coolant sensor. Any help would be very appreciated. Quote Link to comment https://www.bigmacktrucks.com/topic/58941-oil-temp-sensor-location/ Share on other sites More sharing options...
Mackpro Posted September 11, 2019 Share Posted September 11, 2019 Oil temp sensor is in the oil pan on all the MP series engines . And when I say in the oil pan , I mean you have to remove the oil pan to replace it . The oil level sensor is also part of the oil temp sensor. Quote Link to comment https://www.bigmacktrucks.com/topic/58941-oil-temp-sensor-location/#findComment-431812 Share on other sites More sharing options...

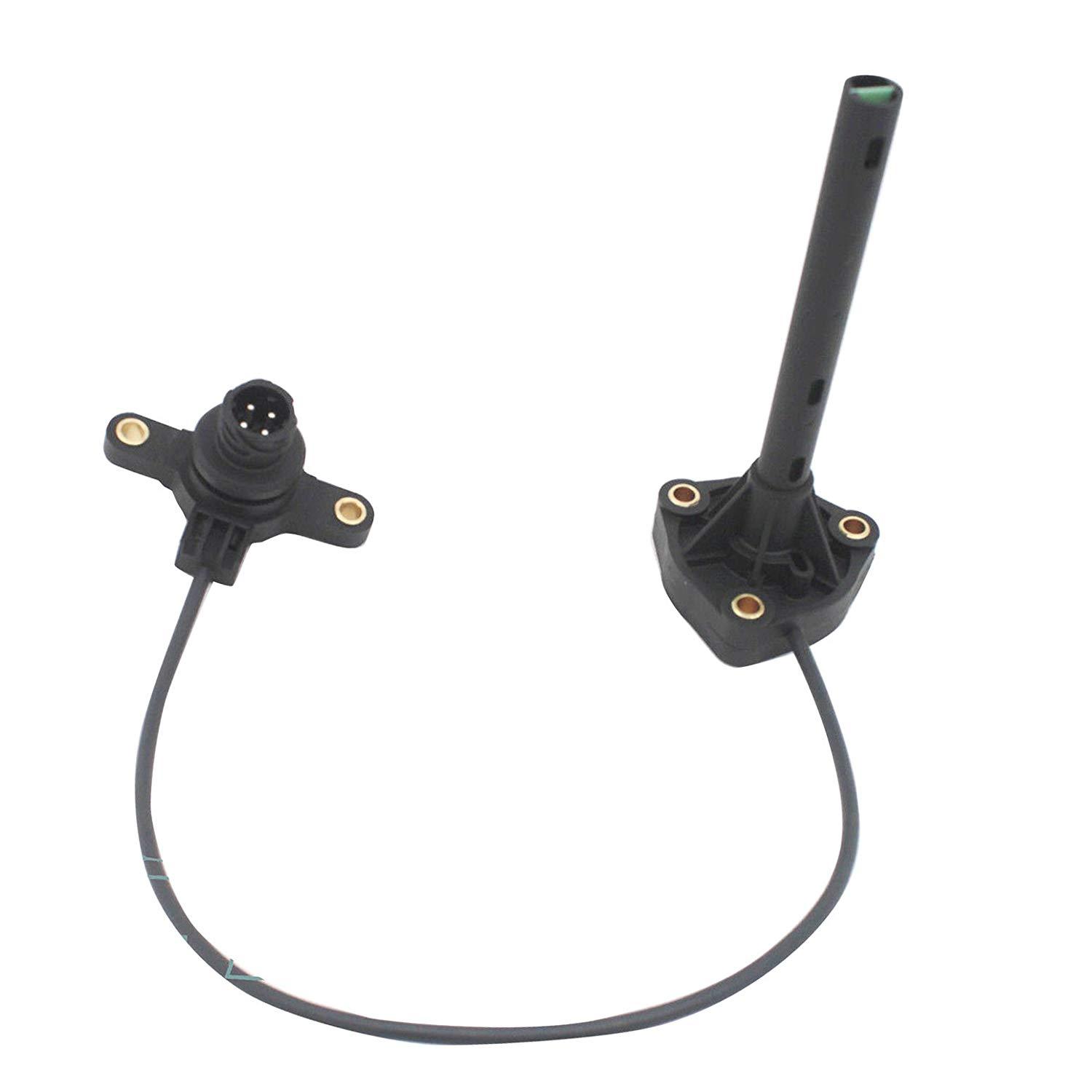

Chris121 Posted September 11, 2019 Author Share Posted September 11, 2019 Thank you so much for that info! Not sure why the dealer couldn’t tell me that. Would you know where the electrical plug comes out at? So I can locate it just to see if I have a dirty plug or bad contact. And just to be sure the sensor is this one correct? Quote Link to comment https://www.bigmacktrucks.com/topic/58941-oil-temp-sensor-location/#findComment-431819 Share on other sites More sharing options...
JoeH Posted September 11, 2019 Share Posted September 11, 2019 Looking at that tether, it's gotta be somewhere low along the crank skirt. Quote Link to comment https://www.bigmacktrucks.com/topic/58941-oil-temp-sensor-location/#findComment-431827 Share on other sites More sharing options...
Mackpro Posted September 11, 2019 Share Posted September 11, 2019 There is a pass through connector right on the driver side of the oil pan Quote Link to comment https://www.bigmacktrucks.com/topic/58941-oil-temp-sensor-location/#findComment-431839 Share on other sites More sharing options...
Mackpro Posted September 11, 2019 Share Posted September 11, 2019 And yes that is the correct sensor Quote Link to comment https://www.bigmacktrucks.com/topic/58941-oil-temp-sensor-location/#findComment-431840 Share on other sites More sharing options...
Chris121 Posted September 11, 2019 Author Share Posted September 11, 2019 Thank you for the info! Quote Link to comment https://www.bigmacktrucks.com/topic/58941-oil-temp-sensor-location/#findComment-431845 Share on other sites More sharing options...
