kscarbel2 Posted March 17, 2020 Share Posted March 17, 2020 Heavy Duty Trucking (HDT) / March 16, 2020 Mack Trucks introduced the Mack S852, an 85,000-lb. gross axle weight rating of its proprietary tandem drive axles, which is available for order now. Customers can spec it for specialized severe-duty or heavy-haul applications on Mack Granite models. For extreme loads at slow speeds, the S852 tandem drive axles have a creep rating of 105,000 lbs. Today’s Mack drive axles are engineered with a double-reduction design and include several design advantages implemented through continuous research and development efforts, according to Mack, such as the use of Durapoid bevel and helical gears. This design provides favorable gear tooth geometry that helps eliminate localized stress and loading on the gear tooth end, providing enhanced strength and longer gear life. Frictional losses are also reduced in this gear design, allowing Mack axles to deliver up to 1.5% improved fuel efficiency. “Low-traction situations can be a challenge for truck drivers, seriously impacting their productivity,” said Roy Horton, Mack Trucks director of product strategy. “To help address that issue, we offer standard inter-axle and optional inter-wheel power dividers that automatically distribute torque between the slipping and non-slipping axle or wheel respectively.” The axles also feature a top-mounted carrier design that is not only less prone to main seal leaks, but also provides more than two inches of additional ground clearance. An additional benefit of Mack’s top-mounted carrier design is improved driveline angles between the drive axles. Instead of a three and a half to eight-degree angle, Mack’s prop shaft angle is just one to two degrees. This maximizes universal joint life, allows for greater axle articulation and reduces vibrations for a smoother ride. It also reduces torque losses for improved efficiency. The new rating comes as Mack celebrates 120 years of drive axle design, engineering and manufacturing this year. “Mack has a long and rich history of engineering and manufacturing its own powertrain components, including drive axles, as it fits with our philosophy that components designed to work together, simply work better,” said Horton. “We welcome the new S852, which will broaden the applications our trucks are built to handle.” . Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/ Share on other sites More sharing options...
kscarbel2 Posted March 17, 2020 Author Share Posted March 17, 2020 No mention of it on the website..................https://www.macktrucks.com/powertrain-and-suspensions/axles/ Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445842 Share on other sites More sharing options...
6368 Posted March 17, 2020 Share Posted March 17, 2020 1 hour ago, kscarbel2 said: No mention of it on the website..................https://www.macktrucks.com/powertrain-and-suspensions/axles/ not much information there about anything really 1 Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445847 Share on other sites More sharing options...

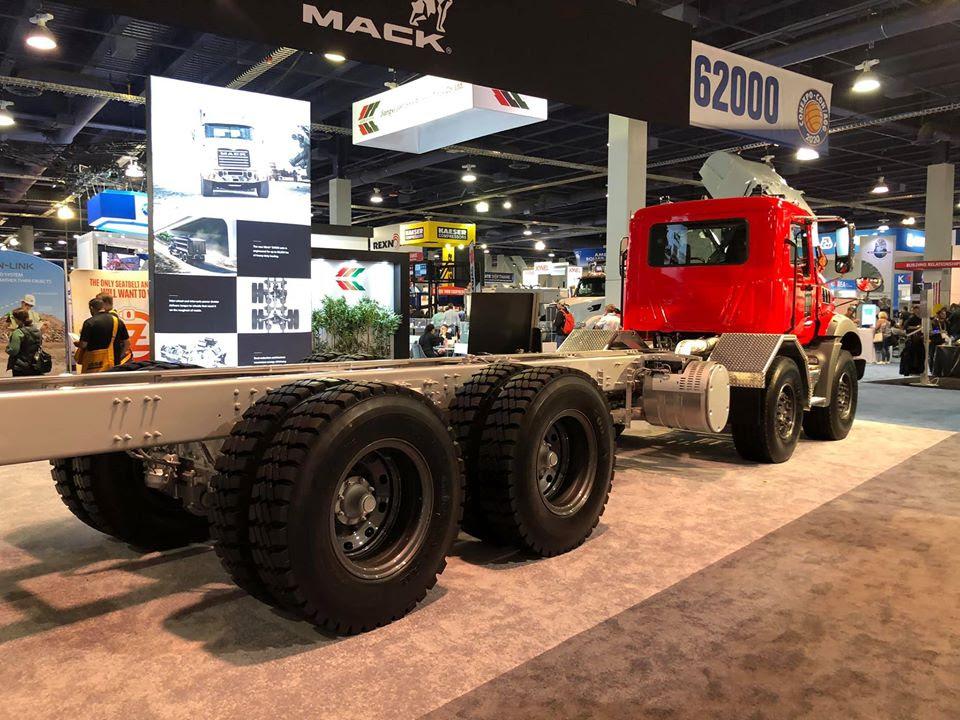

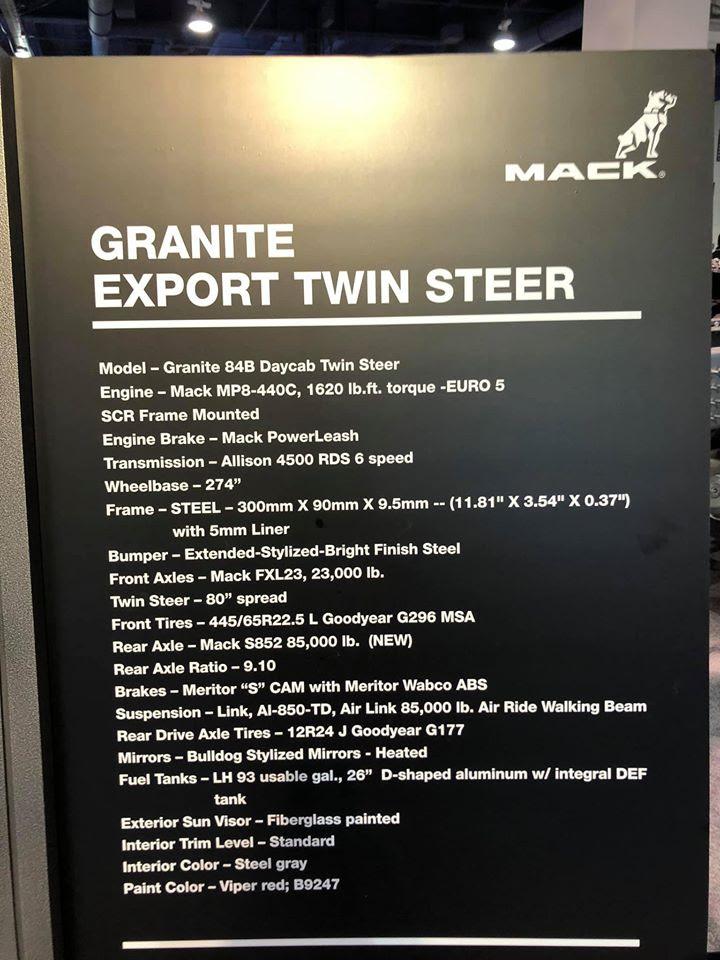

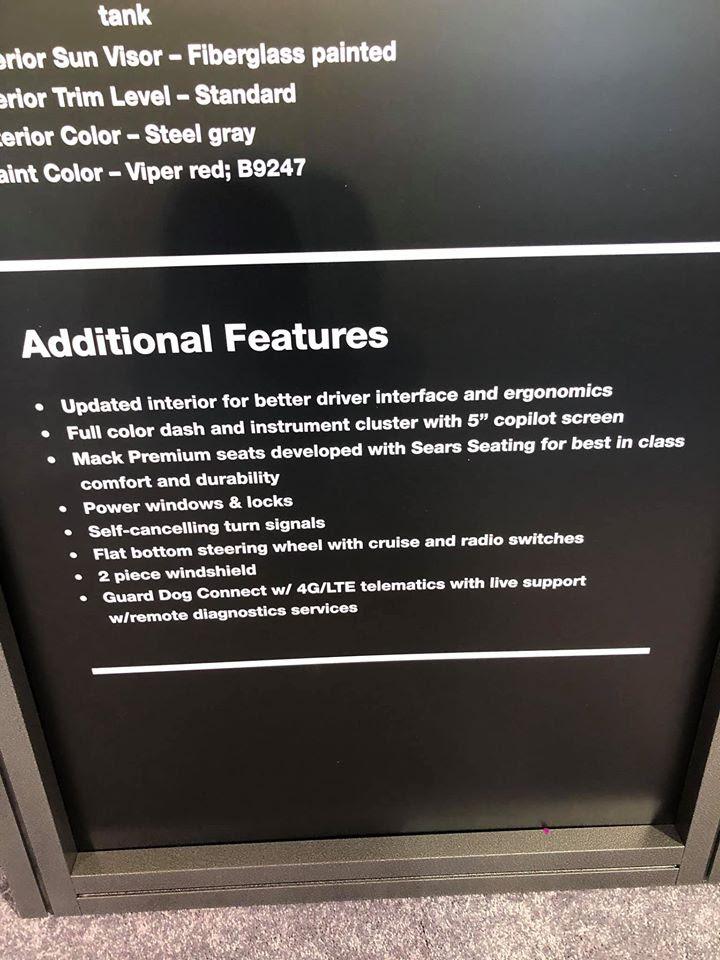

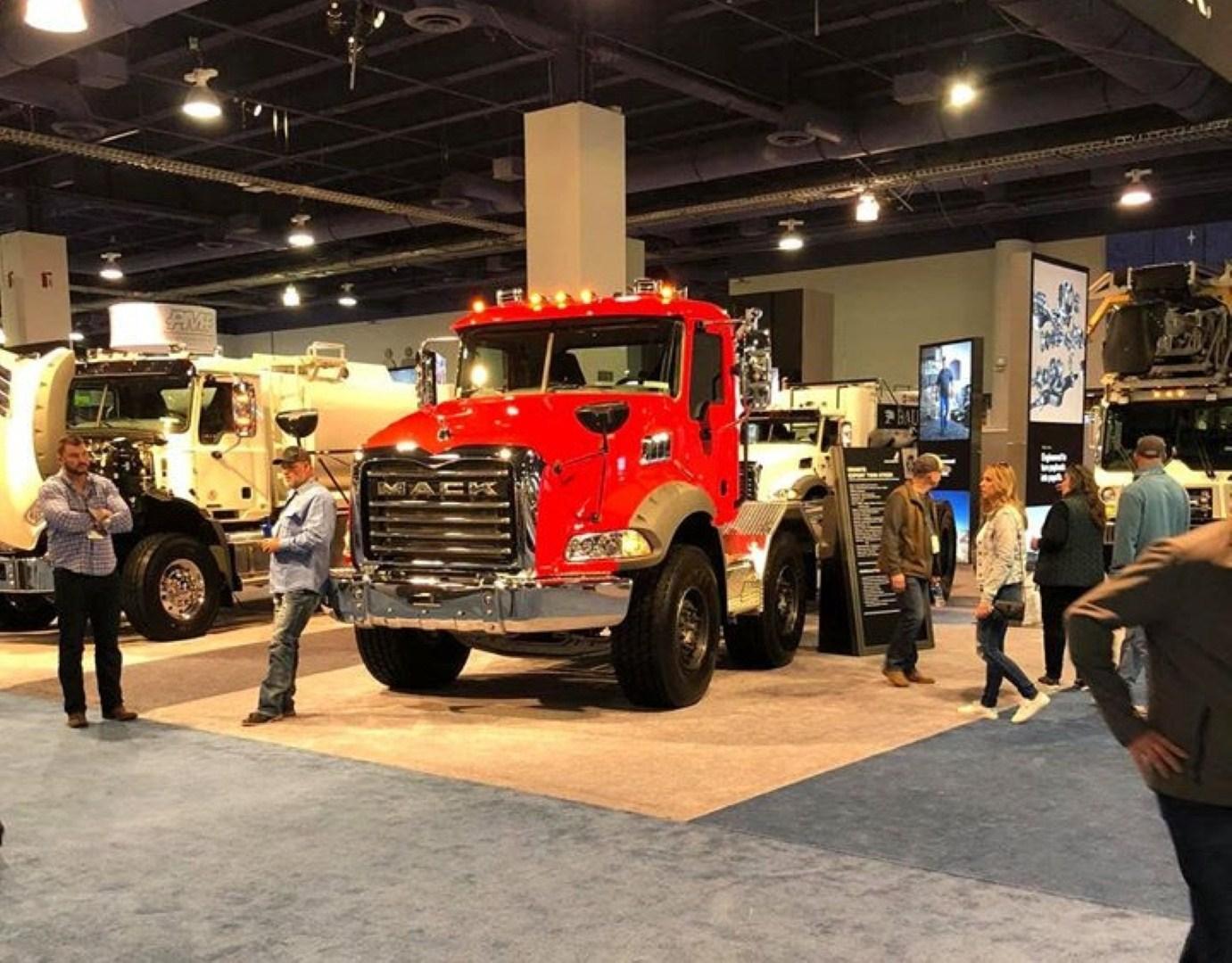

Bullheaded Posted March 17, 2020 Share Posted March 17, 2020 Now if only they offered this while they still made their manual transmissions, the North American Titan and still offered the MP10. Then maybe they could have got back some of their Northern Ontario, and Quebec logging customers. Here's one installation from Con-Expo. Not my pics. Were sent to me. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445849 Share on other sites More sharing options...

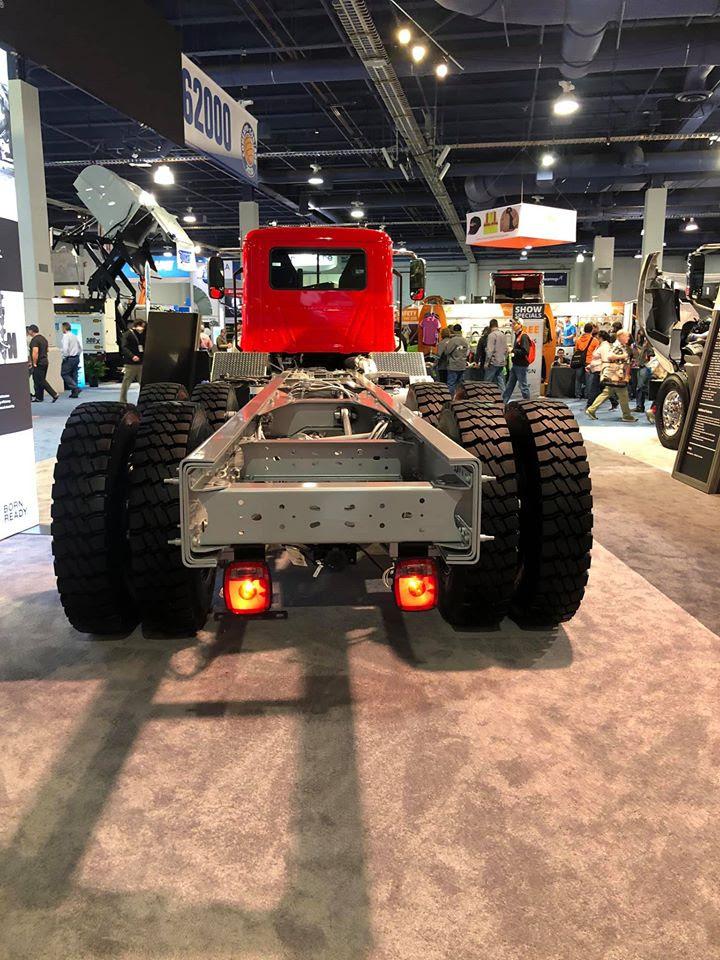

Bullheaded Posted March 17, 2020 Share Posted March 17, 2020 Not the suspension I would have guessed! 1 Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445852 Share on other sites More sharing options...

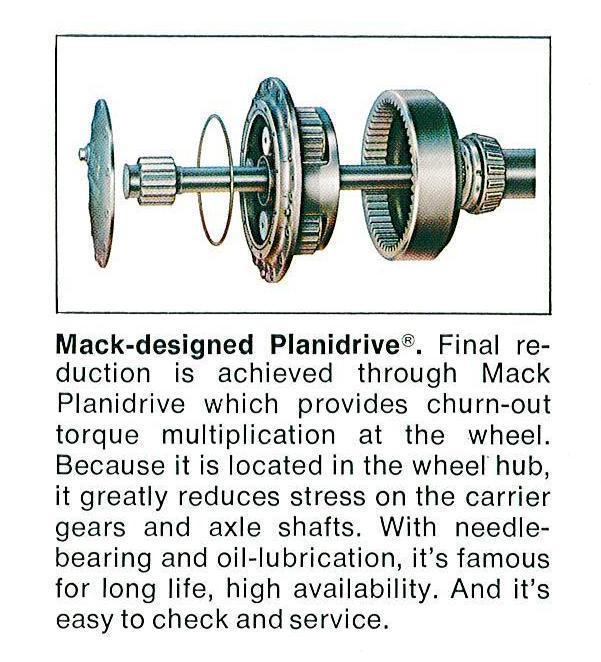

kscarbel2 Posted March 18, 2020 Author Share Posted March 18, 2020 After working around the globe, I personally want any 85,000 lb (38,555 kg) bogie to have planetary hub reduction axles. Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445857 Share on other sites More sharing options...
Bullheaded Posted March 18, 2020 Share Posted March 18, 2020 I kinda agree KS. While on this subject (I only have experience with low geared planetary rears off road) but are there speed restrictions with planetaries? Can they be used at highway speeds to 55 MPH? Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445860 Share on other sites More sharing options...
kscarbel2 Posted March 18, 2020 Author Share Posted March 18, 2020 8 minutes ago, Bullheaded said: I kinda agree KS. While on this subject (I only have experience with low geared planetary rears off road) but are there speed restrictions with planetaries? Can they be used at highway speeds to 55 MPH? They absolutely can ! Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445864 Share on other sites More sharing options...
Bullheaded Posted March 18, 2020 Share Posted March 18, 2020 OK thanks. I know Mammoet uses them on a lot of their heavy float tractors out west, but I wasn't sure what kind of speed they could be geared for on road. Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445869 Share on other sites More sharing options...
Rob Posted March 18, 2020 Share Posted March 18, 2020 All three of my Midliners were planetary hubs and I never had any problems with them. Smooth and quiet. 1 Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445870 Share on other sites More sharing options...
Bullheaded Posted March 18, 2020 Share Posted March 18, 2020 2 minutes ago, Rob said: All three of my Midliners were planetary hubs and I never had any problems with them. Smooth and quiet. A Midliner?? I never saw one of those with a planetary rear? Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445872 Share on other sites More sharing options...
Rob Posted March 18, 2020 Share Posted March 18, 2020 Just now, Bullheaded said: A Midliner?? I never saw one of those with a planetary rear? Yup. CS-300P trucks. RVI drive axles. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445873 Share on other sites More sharing options...
Bullheaded Posted March 18, 2020 Share Posted March 18, 2020 Do you have a pic Rob? Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445876 Share on other sites More sharing options...
Red Horse Posted March 18, 2020 Share Posted March 18, 2020 12R-24 rear tires??? Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445879 Share on other sites More sharing options...

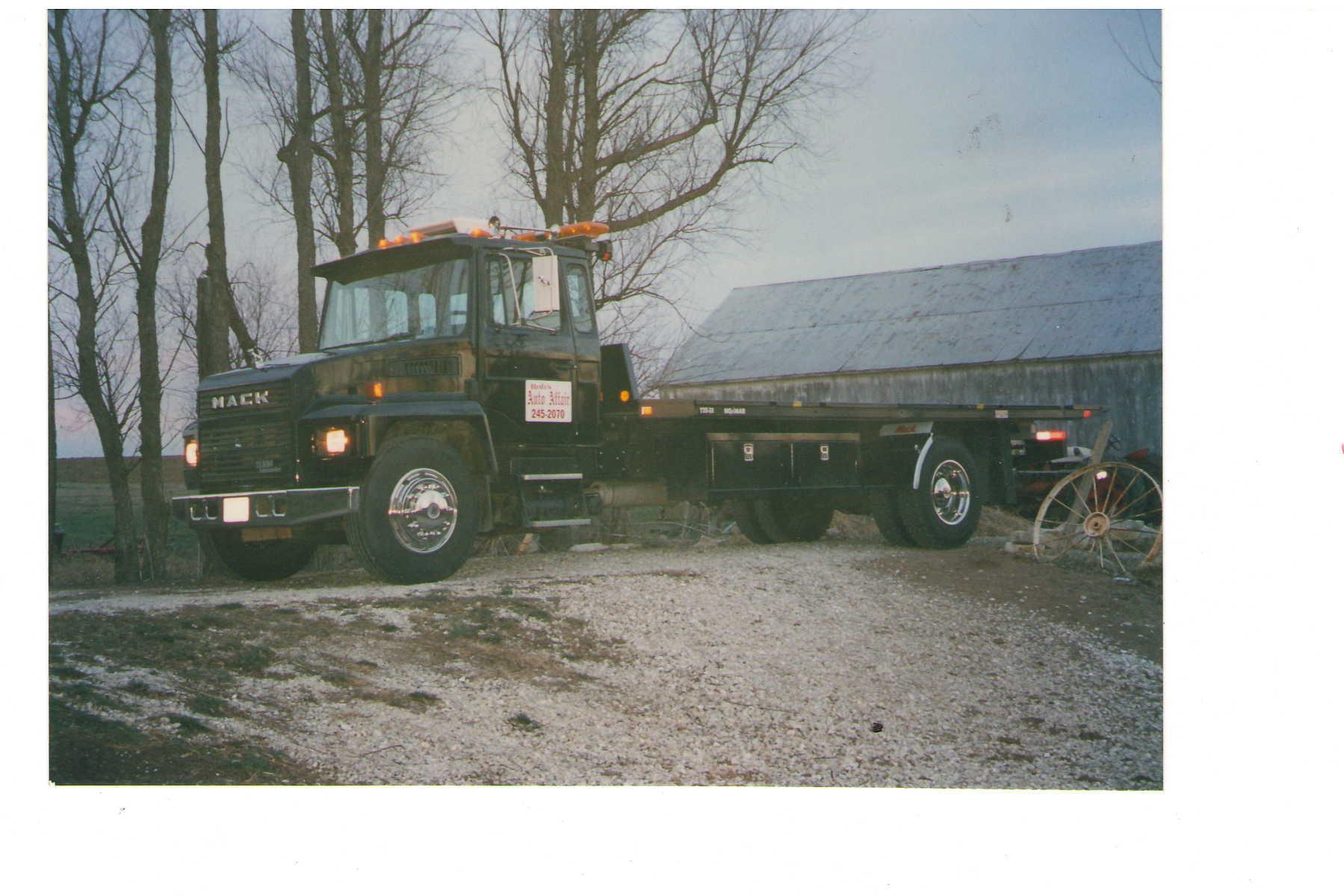

Rob Posted March 18, 2020 Share Posted March 18, 2020 3 minutes ago, Bullheaded said: Do you have a pic Rob? No, not of the axles. Don't believe I ever did photograph anything on those trucks as really never had any problems with them. This was my personal one which I kept pretty much local unless another was in for service: Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445880 Share on other sites More sharing options...
Bullheaded Posted March 18, 2020 Share Posted March 18, 2020 OK thanks. I would have never guessed that would be a planetary on that. Nice little truck. That would be handy as hell. I always wanted a rollback, but I had enough nightmares just trying to insure my F550 here in Ontario let alone a true medium duty. All the insurance companies told me "we can't insure it for personal use because it is a commercial vehicle, and we can't insure it commercial under your business because you are driving it for personal use." ????????????? LOL Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445882 Share on other sites More sharing options...
Rob Posted March 18, 2020 Share Posted March 18, 2020 1 minute ago, Bullheaded said: OK thanks. I would have never guessed that would be a planetary on that. Nice little truck. That would be handy as hell. I always wanted a rollback, but I had enough nightmares just trying to insure my F550 here in Ontario let alone a true medium duty. All the insurance companies told me "we can't insure it for personal use because it is a commercial vehicle, and we can't insure it commercial under your business because you are driving it for personal use." ????????????? LOL I hauled insurance salvage vehicles out of Chicago for years with two of the Midliners, a GMC 7500, and and two IH S1900, 4900, and S1700, 4700 series. Exited that business in 2005 when the industry collapsed and haven't looked back. Never had loans on equipment and sold everything clear and clean. The Midliners were full air brake systems and besides the occasional air compressor problem, were trouble free. The rear axle housings were funny looking in those trucks and the cap had the planetary gears with the Sun being mouted to the drive axle shaft. Only ever seen photos and never actually had one broken open myself as didn't have leaks, or broken parts to deal with. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445886 Share on other sites More sharing options...
Bullheaded Posted March 18, 2020 Share Posted March 18, 2020 I'll have to dig up my old Bulldog Magazine's from when the Midliner came out and see if they show those axles. Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445888 Share on other sites More sharing options...
Rob Posted March 18, 2020 Share Posted March 18, 2020 That black one was a 1989. The white one was a 2000, and the blue one was a 1994, or 1995. All the axles were the same and the engines were 210hp with BDSL-181 six speed transmissions. In my memories of running them they were absolute "Gems" to own being very comfortable and smooth. They were however maintained very well during my tenure. 1 Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445891 Share on other sites More sharing options...
Rob Posted March 18, 2020 Share Posted March 18, 2020 I'll have to look for Polaroid photos of the blue one as it had a drop axle, 28' bed, and stinger to haul three cars. That scan of the black one is from a Polaroid photo originally too. Didn't get a digital camera till 2000. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445892 Share on other sites More sharing options...
RoadwayR Posted March 18, 2020 Share Posted March 18, 2020 3 hours ago, kscarbel2 said: After working around the globe, I personally want any 85,000 lb (38,555 kg) bogie to have planetary hub reduction axles. A lot less stress on the shafts. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445898 Share on other sites More sharing options...

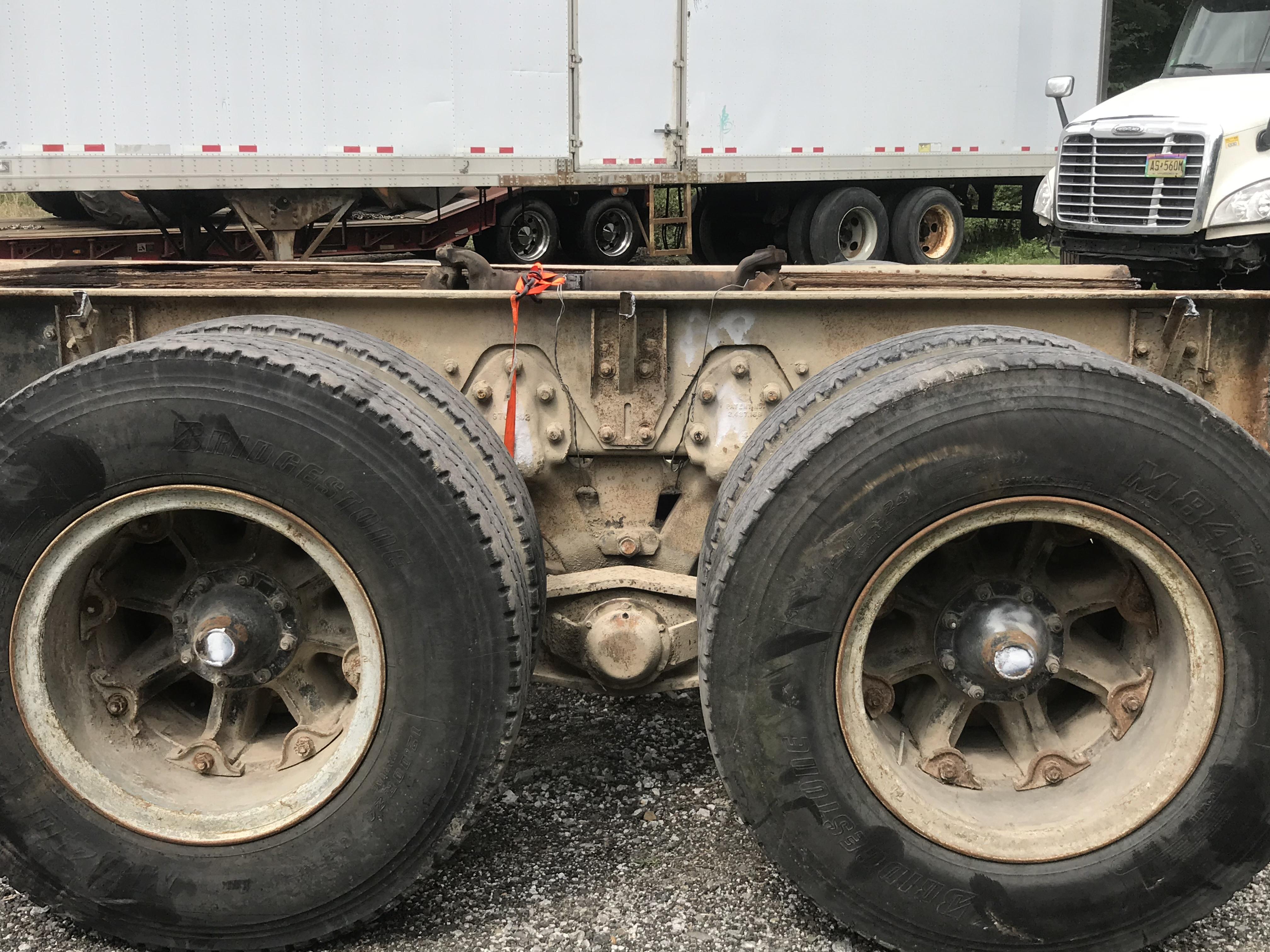

BGarofalo Posted March 18, 2020 Share Posted March 18, 2020 I’m curious for more information on these. I can’t seem to find any other info online. I have a set that’s going under the rd800 but they are about 25 years older. Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445905 Share on other sites More sharing options...

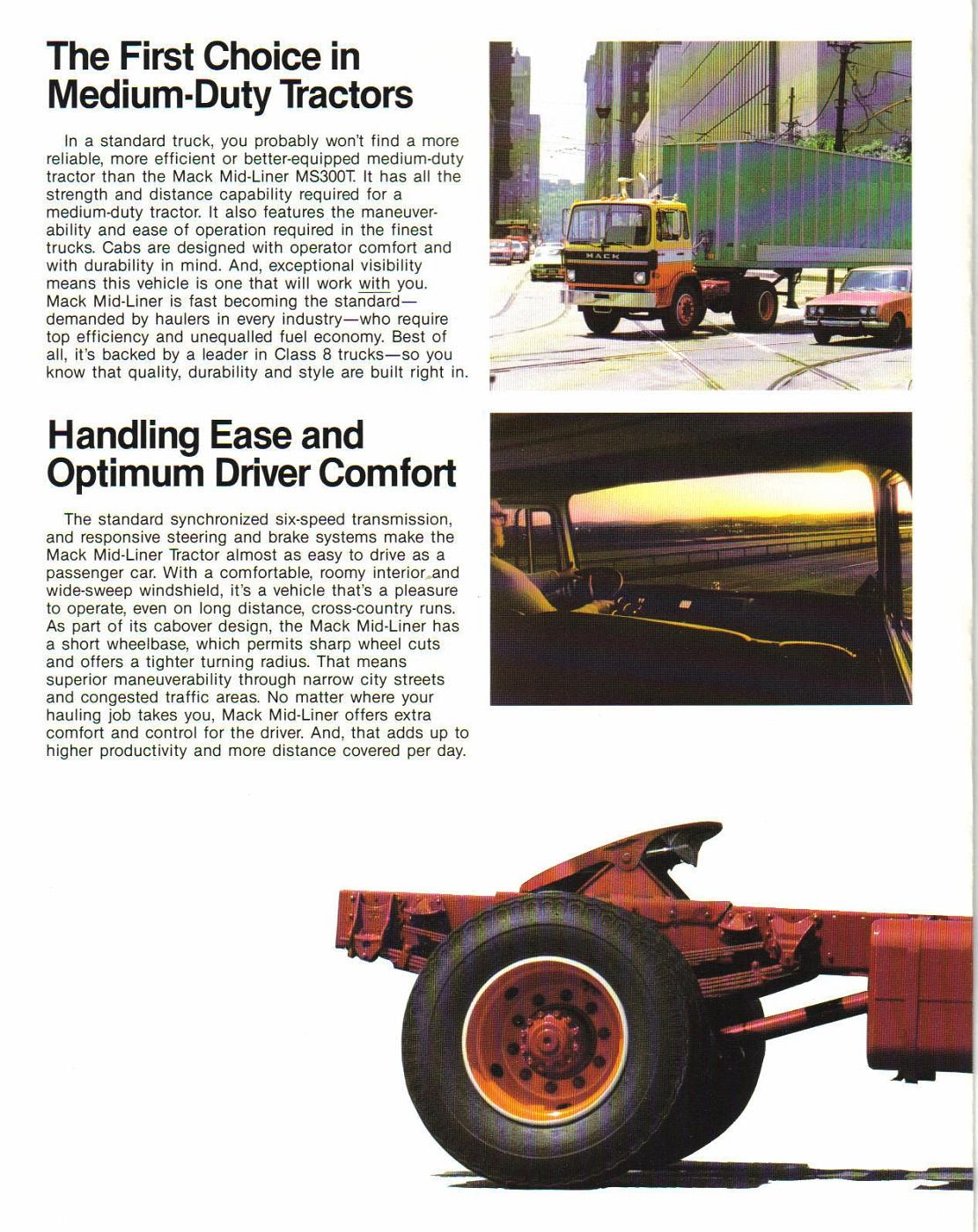

kscarbel2 Posted March 18, 2020 Author Share Posted March 18, 2020 10 hours ago, Bullheaded said: A Midliner?? I never saw one of those with a planetary rear? Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445912 Share on other sites More sharing options...
kscarbel2 Posted March 18, 2020 Author Share Posted March 18, 2020 Quote Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445913 Share on other sites More sharing options...
blackdog2 Posted March 18, 2020 Share Posted March 18, 2020 Whats are the Brakes " S " cam Disk drum diameter-width shoes I have a set of 80'000 in a DM-800 it has wedge brakes it is a lot a truck for such poor brakes ? Quote Ed Link to comment https://www.bigmacktrucks.com/topic/61515-mack-85000-pound-tandem-axles-available/#findComment-445919 Share on other sites More sharing options...
