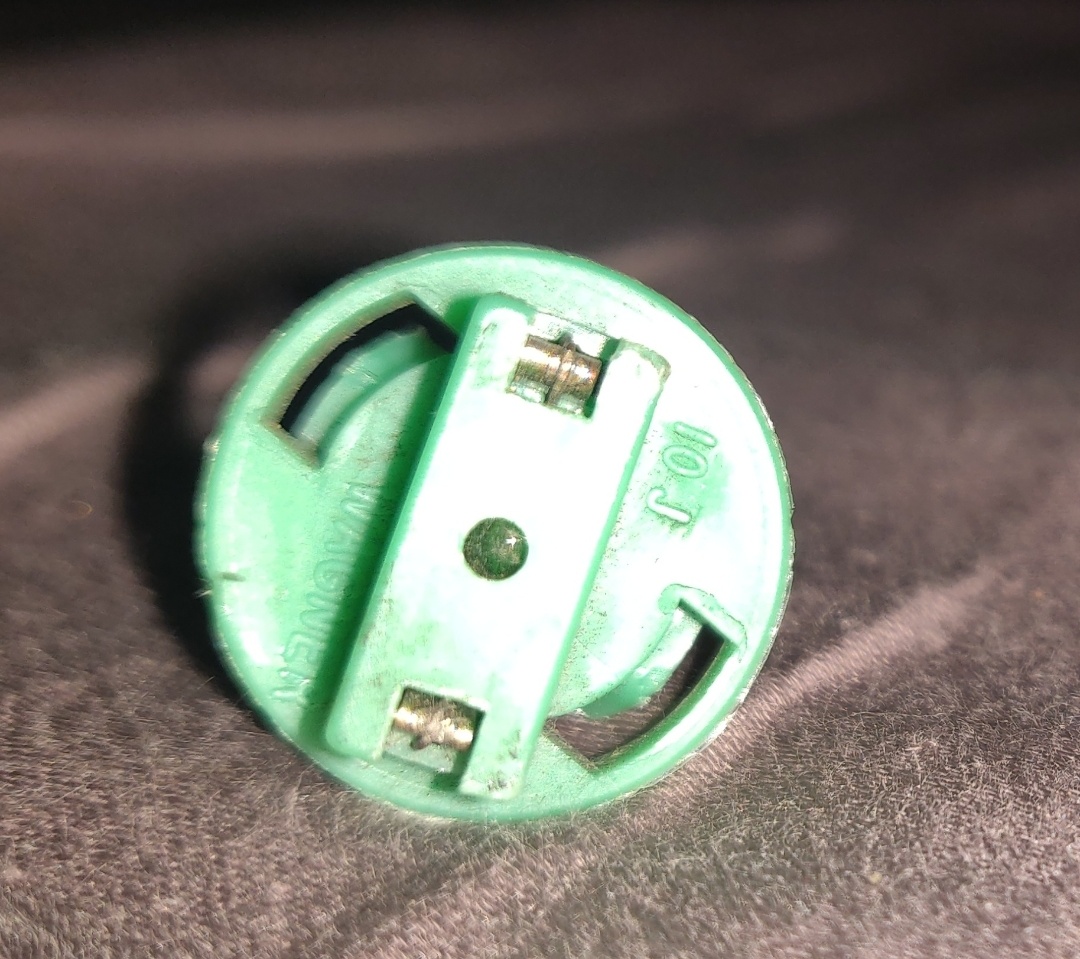

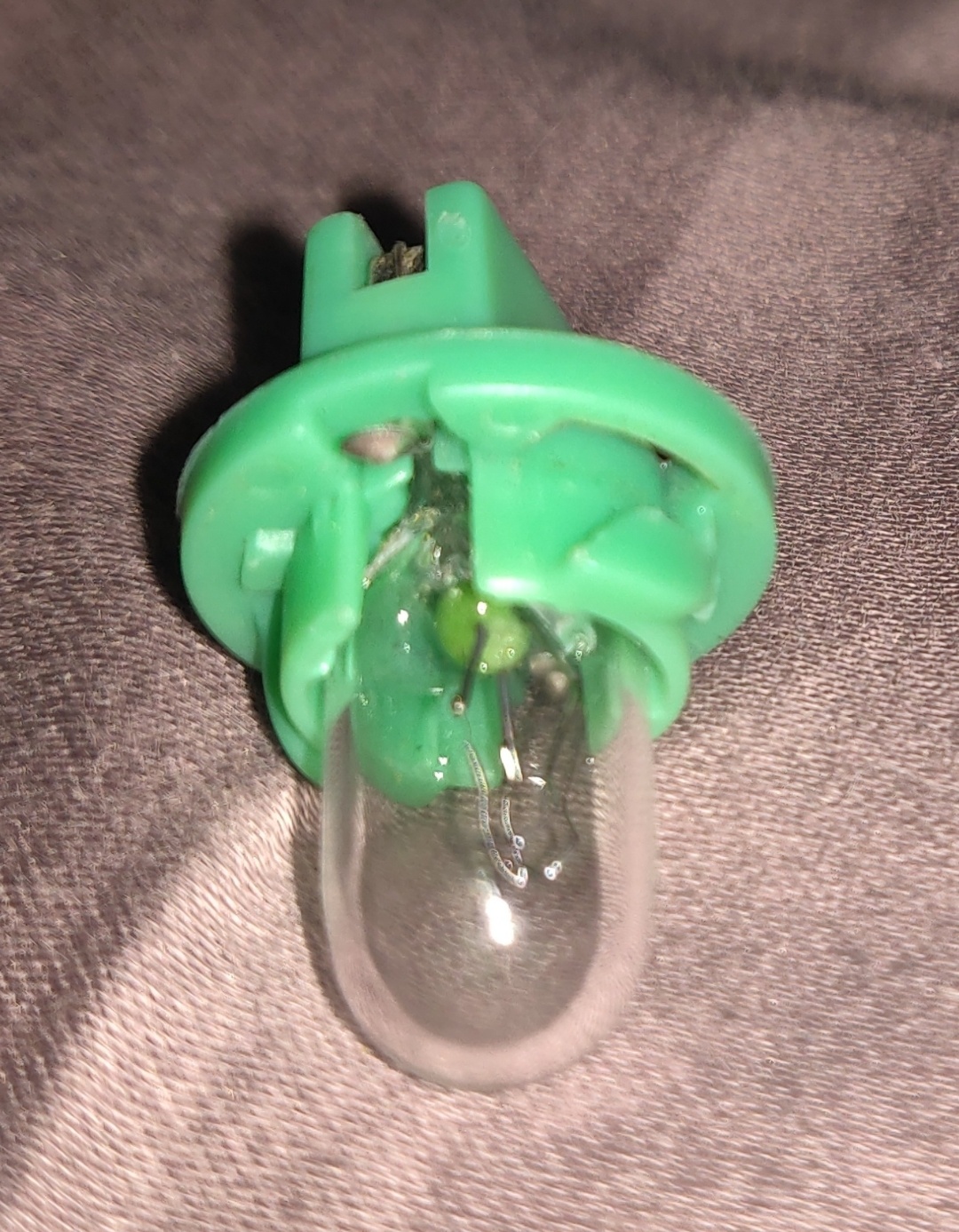

R.E.D Posted September 6, 2020 Share Posted September 6, 2020 Howdy fellas Can someone provide the part # or bulb style for the instrument cluster for the granite? The bulb is not removable from the bulb houlder.im attaching pics , the holder only says "wagner " and "10 j". Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/ Share on other sites More sharing options...
mrgumby Posted September 6, 2020 Share Posted September 6, 2020 I get them from mack buy them 12 at a time cause it seems my local dealer doesn’t even keep them in stock Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-460272 Share on other sites More sharing options...
R.E.D Posted September 7, 2020 Author Share Posted September 7, 2020 Sounds good , yet I would like to find a led replacement. Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-460385 Share on other sites More sharing options...
Metahondra Posted June 5, 2022 Share Posted June 5, 2022 (edited) How old is this light bulb holder? It seems that it's time to think about changing the holder along with the LED replacement. The same Wagner has models that visually promise more. You can try Swinger bulbs, they fit Mask. There are different price categories, so you will have an opportunity to take a closer look. You can also describe your vehicle on ebay, they can offer you something more specific. When I first tried to find a decent LED, I came across an advertisement for a home LED strip. I bought both that and the new LEDs for Mask. Benefits are everywhere. Edited June 9, 2022 by Metahondra Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-499344 Share on other sites More sharing options...
mackey58 Posted November 3, 2023 Share Posted November 3, 2023 Do you have to split the dash apart or can the be replaced from the back of the dash Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-541343 Share on other sites More sharing options...
880joe Posted November 4, 2023 Share Posted November 4, 2023 Pretty sure you have to pull the dash out to change the bulbs Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-541434 Share on other sites More sharing options...
Joey Mack Posted November 4, 2023 Share Posted November 4, 2023 yes, remove the cluster and take the back off, (circuit board).. there are skinny bulbs, like a 1/4 sized #194.. I forgot the bulb number.. sorry.. Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-541436 Share on other sites More sharing options...
mechohaulic Posted November 5, 2023 Share Posted November 5, 2023 another change having me shake my head and wonder;; your saying can't pull the twist lock and install a new 195 bulb ?? for the younger generation 195 was the bulb number in my day. Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-541438 Share on other sites More sharing options...
mechohaulic Posted November 5, 2023 Share Posted November 5, 2023 194 not 195 sorry. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-541439 Share on other sites More sharing options...
mackey58 Posted November 5, 2023 Share Posted November 5, 2023 Mack by me has them.joey do you need any special small screwdrivers needed to take the circuit board Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-541441 Share on other sites More sharing options...
Joey Mack Posted November 5, 2023 Share Posted November 5, 2023 no, phillips i beleive. its been a while... maybe a torx screw.. It's easy... this would be a good time to blow the dust out of it too.. Jojo Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-541443 Share on other sites More sharing options...
mackey58 Posted November 5, 2023 Share Posted November 5, 2023 Yea it needs that too.im sure its a damn torx. Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-541449 Share on other sites More sharing options...
mackey58 Posted November 5, 2023 Share Posted November 5, 2023 I thought I had a service bulletin on the dash but it's been years since I saw them at the shop Quote Link to comment https://www.bigmacktrucks.com/topic/64072-mack-cv-dash-bulbs/#findComment-541451 Share on other sites More sharing options...
