h67st Posted April 28, 2021 Share Posted April 28, 2021 Some of my yokes have a little slop where the cap goes in, I'm looking for ways to tighten them up. What about using bearing mount on them when I put them together? Any other ideas for a fix? Quote Link to comment https://www.bigmacktrucks.com/topic/66618-loose-u-joint-caps/ Share on other sites More sharing options...
Rob Posted April 28, 2021 Share Posted April 28, 2021 Being a hobby truck you could tighten them up with green loctite but they really need replaced. The 1710 series driveline was common to oblong those bores as well as spread the yoke so that should be checked also. IIRC the inner dimension on the 1710 is 3.092" and if spread much they will not retain grease in the joints. On a hobby truck not so bad but a working unit tends to spit the driveline citing lack of maintenance. 2 Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/66618-loose-u-joint-caps/#findComment-473086 Share on other sites More sharing options...
Mark T Posted April 28, 2021 Share Posted April 28, 2021 Give them a good liberal prick punching (yokes) and use that green stuff, might be ok for a hobby truck for a little while. Really have little to lose other than time, as replacing them is only thing to actually fix them 2 Quote Link to comment https://www.bigmacktrucks.com/topic/66618-loose-u-joint-caps/#findComment-473101 Share on other sites More sharing options...
h67st Posted April 29, 2021 Author Share Posted April 29, 2021 I looked on the Loctite page and they recommend using 660, it's supposedly made for building up worn bores. Since it's a hobby truck hopefully that will work. I'm going to have to measure the spread like Rob said. Quote Link to comment https://www.bigmacktrucks.com/topic/66618-loose-u-joint-caps/#findComment-473133 Share on other sites More sharing options...

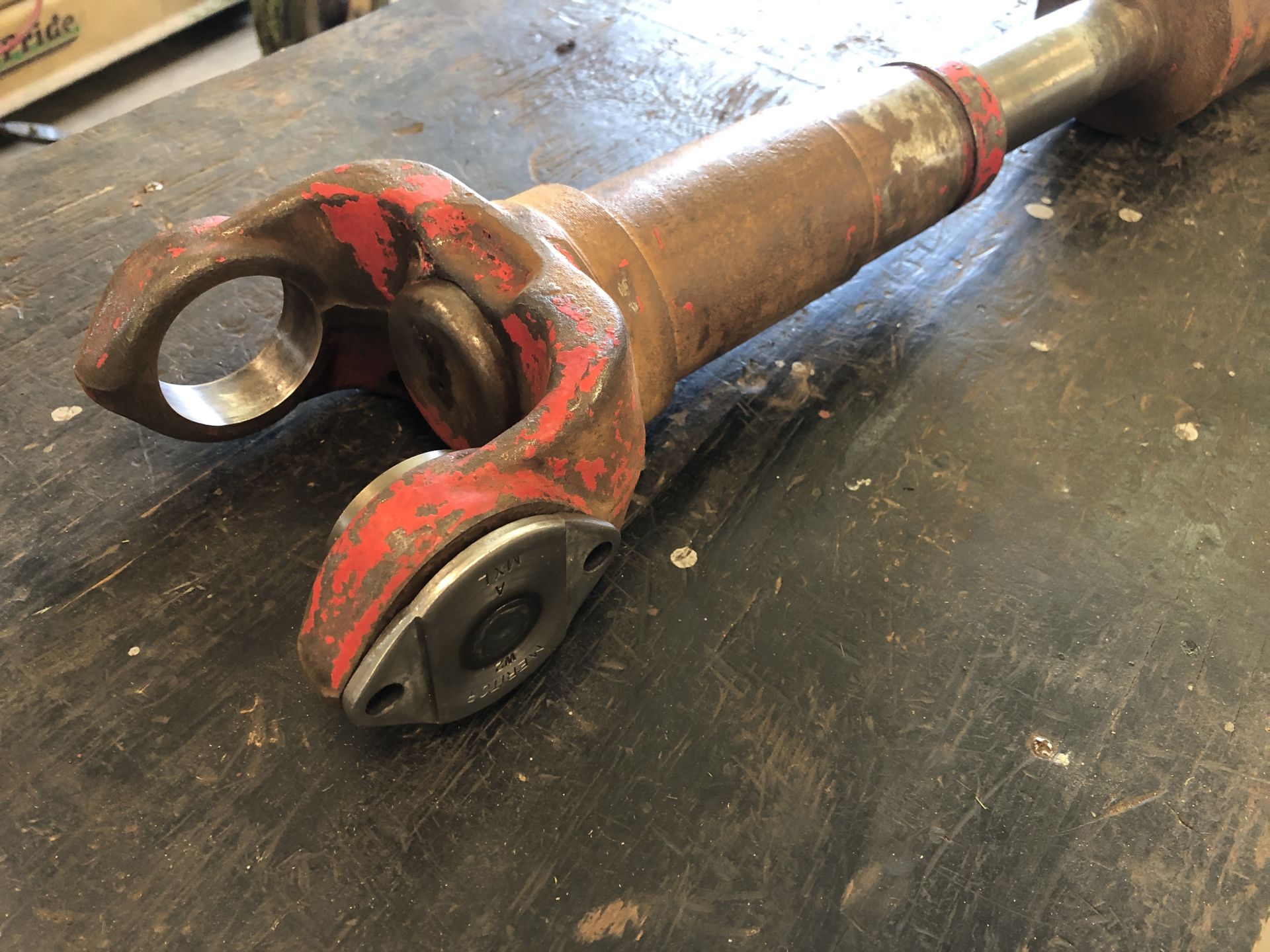

Rob Posted April 29, 2021 Share Posted April 29, 2021 (edited) This will help in determining spread. I was incorrect earlier measuring across the inner dimension. It is 6.094 across the outer bearing plate mating surface for the 1710 series: Edited April 29, 2021 by Rob 2 Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment https://www.bigmacktrucks.com/topic/66618-loose-u-joint-caps/#findComment-473135 Share on other sites More sharing options...
