Mack MR6xx Dimensions

[JoeH]

Looking for dimensional drawings for Mack MR600 series cab/chassis.  Cab/axle, wheelbase, etc.  Ultimately looking for a mid 90's to 2001 triaxle MR with a cab/axle of 168", but don't know what that will translate to in wheelbase because I can't find drawings!

[JoeH]

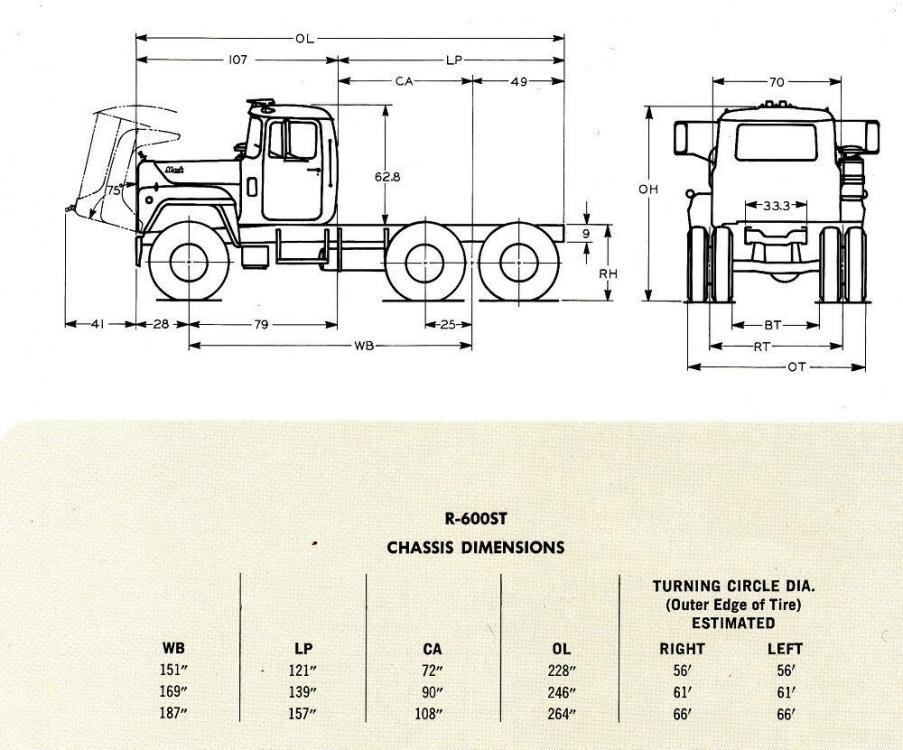

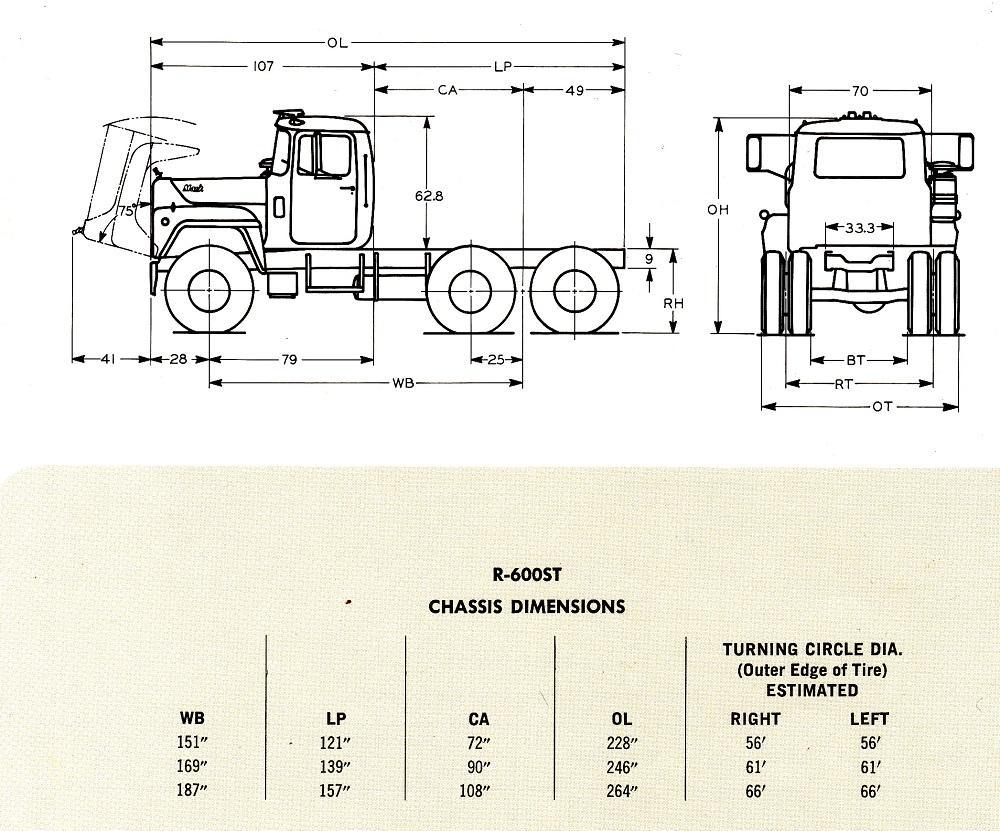

does this picture exist for the MR600 series?

[augsterformula]

I measured a tri axle MR dump truck that my dad built several years ago.  From center of the trunnion to the front of the dump box is 167".  He kept the dump box back a little and the center of trunnion to back of cab is 179".  His wheel base is 208".  I will attach a picture if I can figure out how.  His is a 1988 MR.

Edited August 15, 2021 by augsterformula

[JoeH]

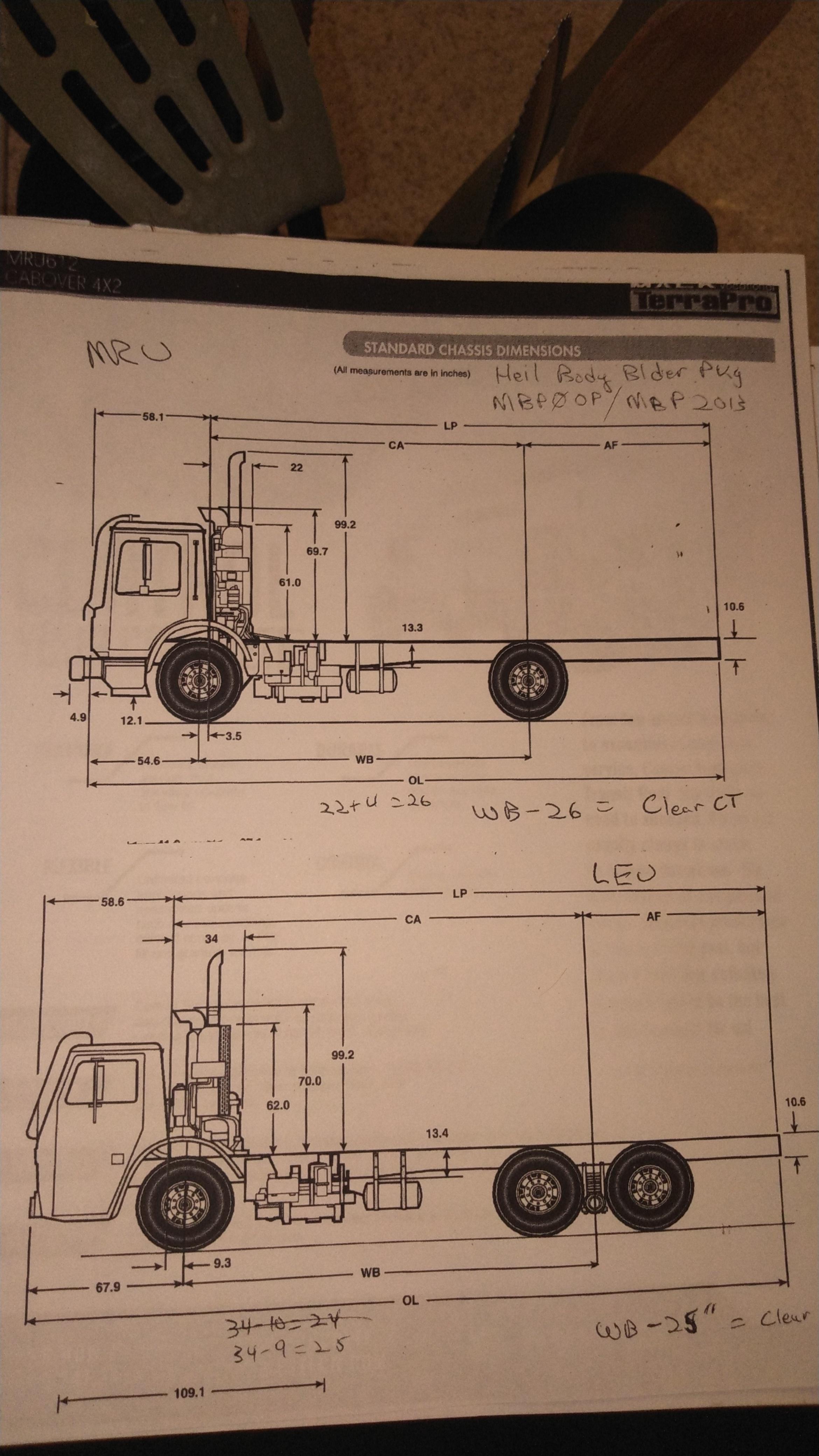

To answer my own question, here's dimensions of the MRU cab on top, and LEU on the bottom.
