Onyx610 Posted July 24, 2022 Share Posted July 24, 2022 12 minutes ago, fjh said: yup well a wear ! Thanks !clarity is good! I believe these AC were offered with jake or power leash! if he receives a power leash cam and doesn't use it it will likely be fine ! If he receives a power leash cam and has a Jake! different story me thinks! Just sayin! Joey said he thought he had an ASET-C Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504022 Share on other sites More sharing options...
R.E.D Posted July 24, 2022 Author Share Posted July 24, 2022 (edited) Fellas, Truck is a 2004 cv713. Ami370 No engine brake No adjustable valve yokes. It already has the 5" exhaust with s400 turbo and etech exhaust manifold. Also has the 427/460 stock injectors. Monday I will be call ATL diesel to order the AC camshaft 454gc5247 along with the valve and eup lifter kit. I got this cam number from my buddy's truck.he has an 04 ch with an. Ac427 with no engine brake. Edited July 24, 2022 by R.E.D 1 1 Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504026 Share on other sites More sharing options...
Joey Mack Posted July 24, 2022 Share Posted July 24, 2022 ok, now I got it... I would like to see a picture of the rocker arm assemblies on the heads.. i guess you have pinless valve bridges on both sides.. jojo Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504061 Share on other sites More sharing options...
fjh Posted July 24, 2022 Share Posted July 24, 2022 (edited) 11 hours ago, R.E.D said: Fellas, Truck is a 2004 cv713. Ami370 No engine brake No adjustable valve yokes. It already has the 5" exhaust with s400 turbo and etech exhaust manifold. Also has the 427/460 stock injectors. Monday I will be call ATL diesel to order the AC camshaft 454gc5247 along with the valve and eup lifter kit. I got this cam number from my buddy's truck.he has an 04 ch with an. Ac427 with no engine brake. Let us know how it goes with this ! This is kind of a first for me up till now We have done just cams ! We all know the just exhaust enhancements help a lot by the lengthy post on that subject! But Plus the cam is a new twist I think! 😅 Good call on checking the buddys truck that will help in getting the right cam!🤞 Edited July 24, 2022 by fjh Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504074 Share on other sites More sharing options...
R.E.D Posted July 24, 2022 Author Share Posted July 24, 2022 Okay, so I have the oil pan off right now as I'm typing this post. Camshaft lobe for the number four exhaust valve is good. I reached and felt the lifter roller and it is also good. Now I'm baffled because this valve is the only one that always needs to be adjusted. I will take a picture of the cam lobe and post it and see what you guys think. Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504079 Share on other sites More sharing options...
Joey Mack Posted July 24, 2022 Share Posted July 24, 2022 (edited) are you able to barr the engine around so you can look really good.. what is the condtion of the pushrod, the number on it should be 417... I expect the threads showing on the adjustere nut is different from the others since you have to adjust it often... jojo Edited July 24, 2022 by Joey Mack more content needed Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504080 Share on other sites More sharing options...

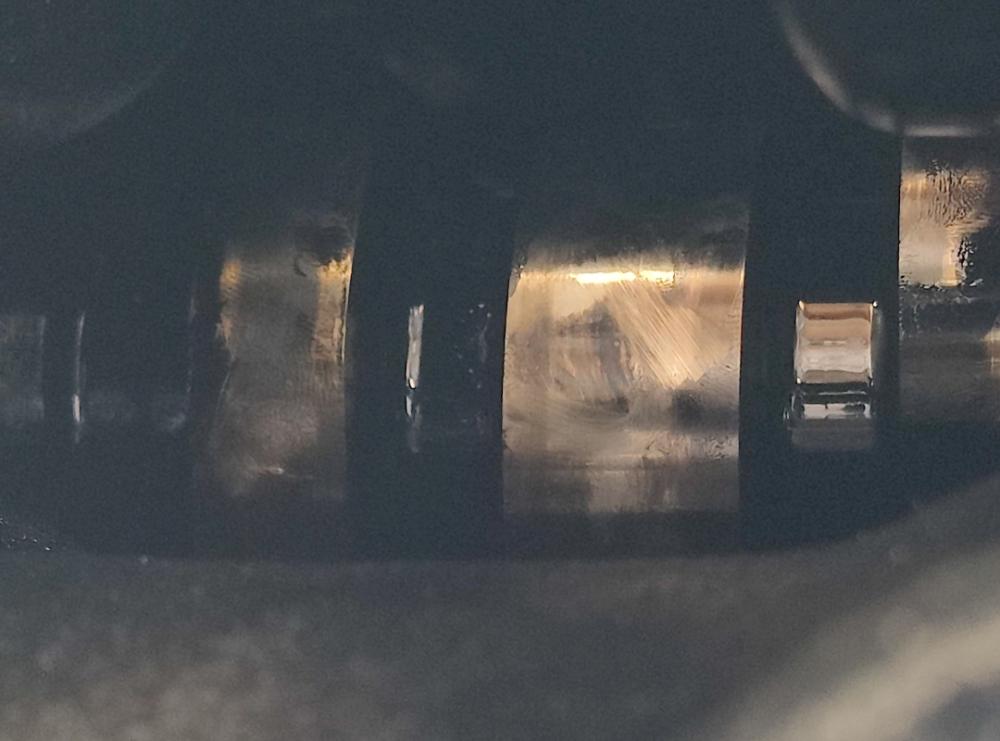

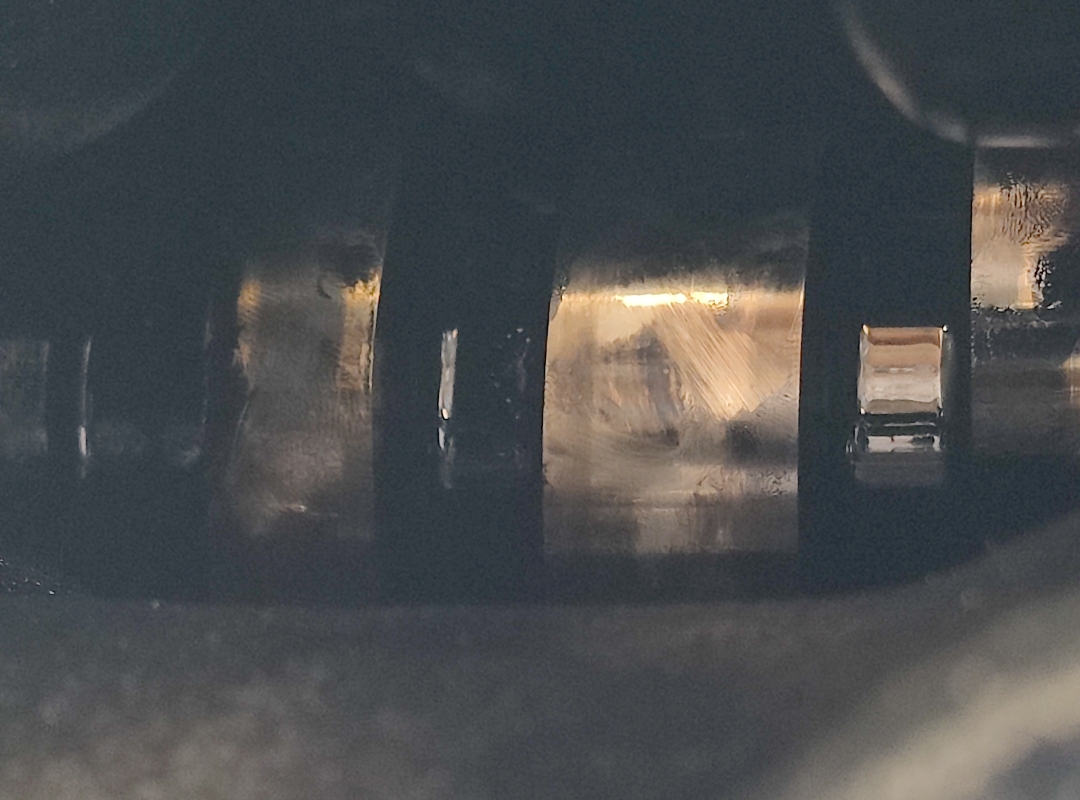

R.E.D Posted July 24, 2022 Author Share Posted July 24, 2022 This is #4 exhaust is on the left.im checking pushrod now. Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504083 Share on other sites More sharing options...
fjh Posted July 24, 2022 Share Posted July 24, 2022 1 hour ago, R.E.D said: This is #4 exhaust is on the left.im checking pushrod now. Roll the push rod on a bench if it rolls nice its good! Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504091 Share on other sites More sharing options...
Joey Mack Posted July 24, 2022 Share Posted July 24, 2022 I'm stuck on how #4 needs to be adjusted often.. where's the metal going??? jojo Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504110 Share on other sites More sharing options...
fjh Posted July 24, 2022 Share Posted July 24, 2022 2 hours ago, Joey Mack said: I'm stuck on how #4 needs to be adjusted often.. where's the metal going??? jojo yup pulling the pump is a given here Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504126 Share on other sites More sharing options...
Joey Mack Posted July 24, 2022 Share Posted July 24, 2022 I would expect a worn cam lobe/ rocker arm/ bad pushrod, but by now, it should have failed big time.. I really dont want to insult him, but, I did ask if he knew how to barr the engine properly to set the cylinders 'up'.. I assume when he dropped the oil pan there wasnt any chunks in it.. I cant seem to wrap my head around this one.. jojo Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504128 Share on other sites More sharing options...
fjh Posted July 24, 2022 Share Posted July 24, 2022 16 minutes ago, Joey Mack said: I would expect a worn cam lobe/ rocker arm/ bad pushrod, but by now, it should have failed big time.. I really dont want to insult him, but, I did ask if he knew how to barr the engine properly to set the cylinders 'up'.. I assume when he dropped the oil pan there wasnt any chunks in it.. I cant seem to wrap my head around this one.. jojo It will sort it self bro !There is an obvious issue sounds like he is heading to a cam job ! I personally would pull the pump pull a main or two and check stuff as you probably would! just can leave stones unturned when your that deep! Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504129 Share on other sites More sharing options...
Joey Mack Posted July 24, 2022 Share Posted July 24, 2022 for sure 'F', but explain to me , multiple valve adjustments on one valve... I really am curious.. I am curios what the cause is.. jojo Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504134 Share on other sites More sharing options...
fjh Posted July 24, 2022 Share Posted July 24, 2022 I didn’t follow this thread how ever ! Came in at the end here To me that cam looks pretty hammered so I think it’s odvious having to set for the wear would account for the setting if that’s what he did! I can remember doing these chasing ticks and mostly chirps ! Doing a set only if I was asked to! These engines from what I saw held there set well if there was a gooffy valve setting especially on only one cyl something is likely going sideways down town. Just my observation! Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504141 Share on other sites More sharing options...
Joey Mack Posted July 24, 2022 Share Posted July 24, 2022 well, I am curious, because I havent seen a ceramic lifter survive this issue, of course, I Like to learn new stuff.. its crazy to me. jojo Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504142 Share on other sites More sharing options...
fjh Posted July 25, 2022 Share Posted July 25, 2022 Again I haven’t seen this either I but maybe he had a rocker stick was the push tube bent? I’ve seen guide pins break and raise hell ! This appears not to have guide pins ! Not what I’m used to! Sure would be nice to know the cause I’m with u on that! 1 Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504143 Share on other sites More sharing options...
Joey Mack Posted July 25, 2022 Share Posted July 25, 2022 I know I am posting a lot on this thread, but I was trying to recall the last time I saw an ASET-I without an engine brake, I think was in a trash truck with an Allison and a Telma brake.. jojo Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504144 Share on other sites More sharing options...
R.E.D Posted July 25, 2022 Author Share Posted July 25, 2022 Well this one is a real Head scratcher.no chunks on magnet or bottom of pan.my next step is to remove the pushrod and inspect it.i couldn't do it today because I don't have new rocker shaft bolts.didnt want to remove them and re use the old ones.. Joey I would never be insulted sir.im come to this site to learn and it would be foolish of me not to listen to learned people such as you , fjh,mackpro and many others that have given good advice over the years of me being a part of this forum. With that said lol.i do know how to set valve lash .cam lobe looks great with no pitting or noticeable wear indentation...I removed the valve yoke so I could push lifter up and I rolled it with my finger and it's doesn't have a flat spot or broken..I figured as long as this issue has been ongoing something might have f-up already..I'll keep you all posted on the progress...as of now I don't see the point of throwing a cam at it before I figure it out .thanks to all for the help. RED Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504163 Share on other sites More sharing options...
Onyx610 Posted July 25, 2022 Share Posted July 25, 2022 @Vmac3, haven’t heard from him in a while. He would be another good one for some input. 1 1 Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504164 Share on other sites More sharing options...
Joey Mack Posted July 25, 2022 Share Posted July 25, 2022 sounds good RED.. Yes it is a head scratcher.. If the cam is good, then keep it.. I too want to learn on this issue you are having.. multiple adjustments with no obvious damage has got me puzzled.. You are doing really good to investigate/diagnose this issue.. sorry if I come off a little brash,, nothing personal, just frustrated for you in my own way,, jojo 1 Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504166 Share on other sites More sharing options...
R.E.D Posted July 25, 2022 Author Share Posted July 25, 2022 1 minute ago, Joey Mack said: sounds good RED.. Yes it is a head scratcher.. If the cam is good, then keep it.. I too want to learn on this issue you are having.. multiple adjustments with no obvious damage has got me puzzled.. You are doing really good to investigate/diagnose this issue.. sorry if I come off a little brash,, nothing personal, just frustrated for you in my own way,, jojo I hear ya brother! Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504167 Share on other sites More sharing options...
fjh Posted July 25, 2022 Share Posted July 25, 2022 39 minutes ago, R.E.D said: I hear ya brother! K so I have seen years ago wear on push tubes on the e6 the ball end would wear into the socket on the rocker side! Due to lack of lube the rocker shaft and rocker should get a real close inspection in my opinion ! You are right to wait on rocker bolts don’t trust them! 1 Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504172 Share on other sites More sharing options...
steeler Posted July 25, 2022 Share Posted July 25, 2022 Now yall got me following this one 😂 Almost sounds at this point as if it has to be a pushrod issue, or something crazy with the rocker itself. I'm assuming the rocker bolts aren't broken or backed off? Bent pushrod? I've seen valve seats change valve adjustments pretty quick, but they go the other way, and the lash gets tighter. I'm putting my money on rocker bolts, but then again I would think it would have broken the rocker shaft by now. I see a lot of AI engines with all 12 solid yokes, but Almost always garbage trucks. But they will even run that setup in thier roll offs with manual trans. 1 1 Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504173 Share on other sites More sharing options...
R.E.D Posted July 25, 2022 Author Share Posted July 25, 2022 17 minutes ago, steeler said: Now yall got me following this one 😂 Almost sounds at this point as if it has to be a pushrod issue, or something crazy with the rocker itself. I'm assuming the rocker bolts aren't broken or backed off? Bent pushrod? I've seen valve seats change valve adjustments pretty quick, but they go the other way, and the lash gets tighter. I'm putting my money on rocker bolts, but then again I would think it would have broken the rocker shaft by now. I see a lot of AI engines with all 12 solid yokes, but Almost always garbage trucks. But they will even run that setup in thier roll offs with manual trans. Yea ,this was a roll off originaly.i tried to feel if rocker arm bushing to shaft clearance was off but everything seemed tight. Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504174 Share on other sites More sharing options...
fjh Posted July 25, 2022 Share Posted July 25, 2022 (edited) Steeler maybe on to it here With the bolt thing as mentioned above! Years ago E6 era ran across a push rod wear issue on e6 wear the rocker gald and dried up wearing the push tube socket ! Causing similar symptoms to a lifter failure maybe it is this kind of scenario! cant rule out a crack in a rocker shaft either like Steeler mentioned ! again We have very few non brake engines here I personally worked on maybe 3 all were in MR Models ! So just speculation on My part the cam pic above kind of threw me as it doesn't look that great to me but if the lobe looks and feels ok then it likley is ! The other scenario I can think of is a displaced H ring and at time of set it was off by a bit and then its some how tracking OK by its self! Duno just speculating now! Edited July 25, 2022 by fjh Quote Link to comment https://www.bigmacktrucks.com/topic/68719-low-to-mid-rpm-ticking-sound/page/4/#findComment-504205 Share on other sites More sharing options...
