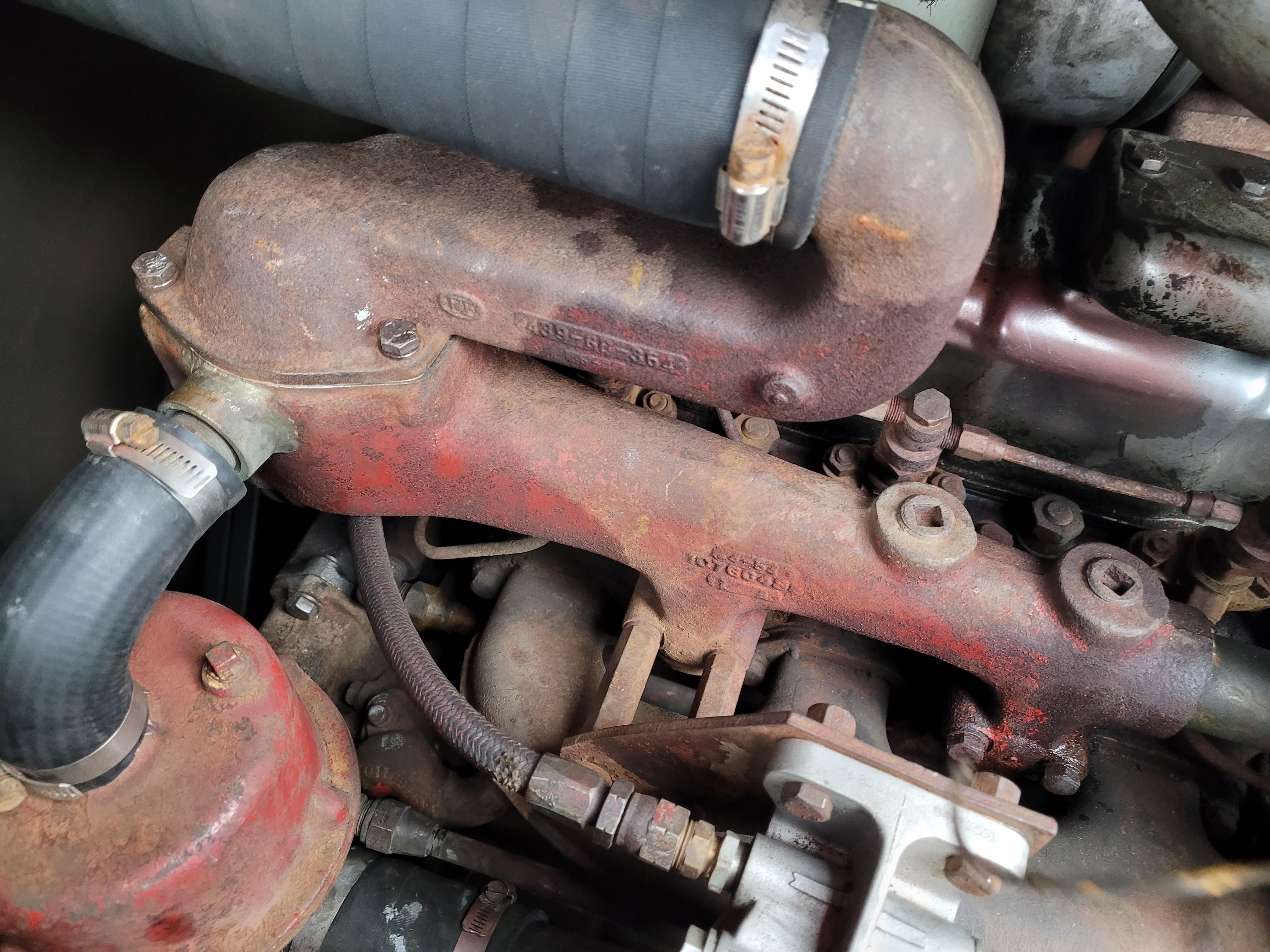

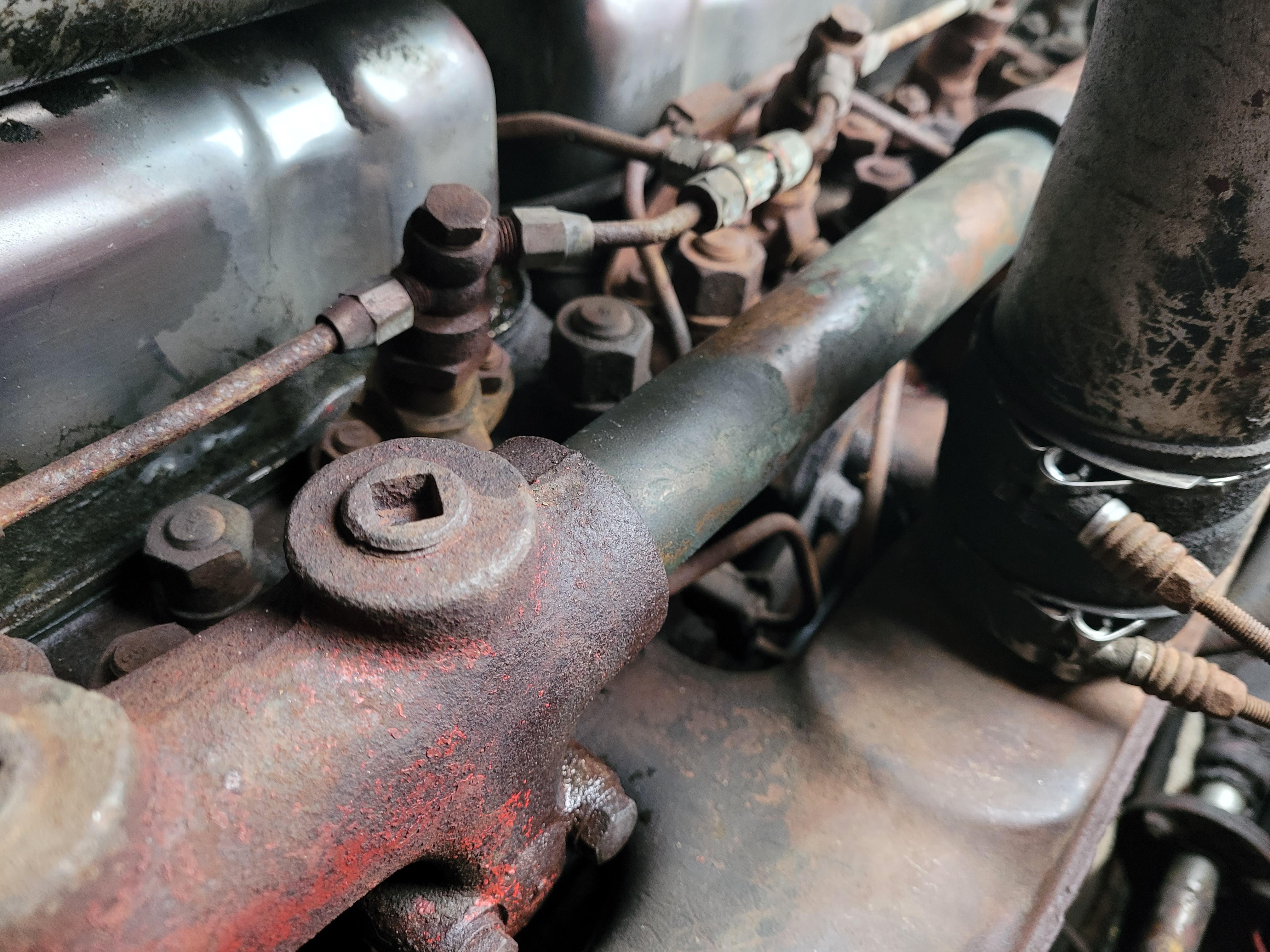

muncieman Posted December 2, 2021 Share Posted December 2, 2021 Anyone have a part number or any info on this?. The housing is leaking between the pipes and I am certain it has O rings however the pipe itself looks bad and it requires removal off the entire cooling system intake part or whatever it is called. Any help is appreciated. Thanks Quote Link to comment https://www.bigmacktrucks.com/topic/68858-endtf-673-cooling-system/ Share on other sites More sharing options...
DM800guy Posted December 2, 2021 Share Posted December 2, 2021 Morning, Those pieces are the water manifolds, the front one has the thermostat in it. If you pull the back one you can take out the pipe and see what the problem is. Most likely just the O rings cause those are the cast iron manifolds. If the brass is gone you have to get one from a junkyard. Or make up your own pipe with a combination of rubber hose and the brass pipe. Quote Link to comment https://www.bigmacktrucks.com/topic/68858-endtf-673-cooling-system/#findComment-483900 Share on other sites More sharing options...
muncieman Posted December 2, 2021 Author Share Posted December 2, 2021 Ok thanks. Any idea where I could get a gasket set for the manifolds. It appears I'll need to take 1 end or the other off. Thanks Quote Link to comment https://www.bigmacktrucks.com/topic/68858-endtf-673-cooling-system/#findComment-483930 Share on other sites More sharing options...
terry Posted December 3, 2021 Share Posted December 3, 2021 6 hours ago, muncieman said: Ok thanks. Any idea where I could get a gasket set for the manifolds. It appears I'll need to take 1 end or the other off. Thanks piece of gasket material and a small pall pien hammer and tap lightly on the edges! will punch it right out. terry 1 Quote Link to comment https://www.bigmacktrucks.com/topic/68858-endtf-673-cooling-system/#findComment-483958 Share on other sites More sharing options...
theakerstwo Posted December 3, 2021 Share Posted December 3, 2021 You can use a gasket from a E6 or E7.The E6 and E7 has the intake and water manifold all made in one piece for all three ports. 1 Quote glenn akers Link to comment https://www.bigmacktrucks.com/topic/68858-endtf-673-cooling-system/#findComment-483965 Share on other sites More sharing options...
