Licensed to kill Posted January 27, 2022 Share Posted January 27, 2022 ....but I just finished converting the FA505 steer axle on my B-61 from Dayton to Hub pilot budds. It is unfortunate that I had to hire out a couple operations that made the project rather costly but often you just have to "buck up" to get what you want. It would have been quite cost effective had I had a lathe big enough to handle the hubs and drums.....but I don't. Oh well, it's done so now I will not have mismatched wheels front and back. On to the next "Challenge" to the pocket book. Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/ Share on other sites More sharing options...
Mean Green Posted January 27, 2022 Share Posted January 27, 2022 I would like to see some pics I have a b42 that has dayton in the front and hub pilot in the rear and want to go full hub pilot what all needed machined ? Quote If your going to be a bear be a grizzly Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-487977 Share on other sites More sharing options...
mowerman Posted January 27, 2022 Share Posted January 27, 2022 Doesn’t matter you got what you wanted sometimes that’s the way it is$$$$ bob 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-487997 Share on other sites More sharing options...
mowerman Posted January 27, 2022 Share Posted January 27, 2022 I’m grateful most of my restoration is body and paint most expensive is going to be rebuilt steering box and all ten tires… Bob Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-487998 Share on other sites More sharing options...
mrsmackpaul Posted January 27, 2022 Share Posted January 27, 2022 3 hours ago, mowerman said: Doesn’t matter you got what you wanted sometimes that’s the way it is$$$$ bob Aint that the truth, I jave always felt I'm better to wait and save for longer than get something I dont want and regret it for ever Paul Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488002 Share on other sites More sharing options...

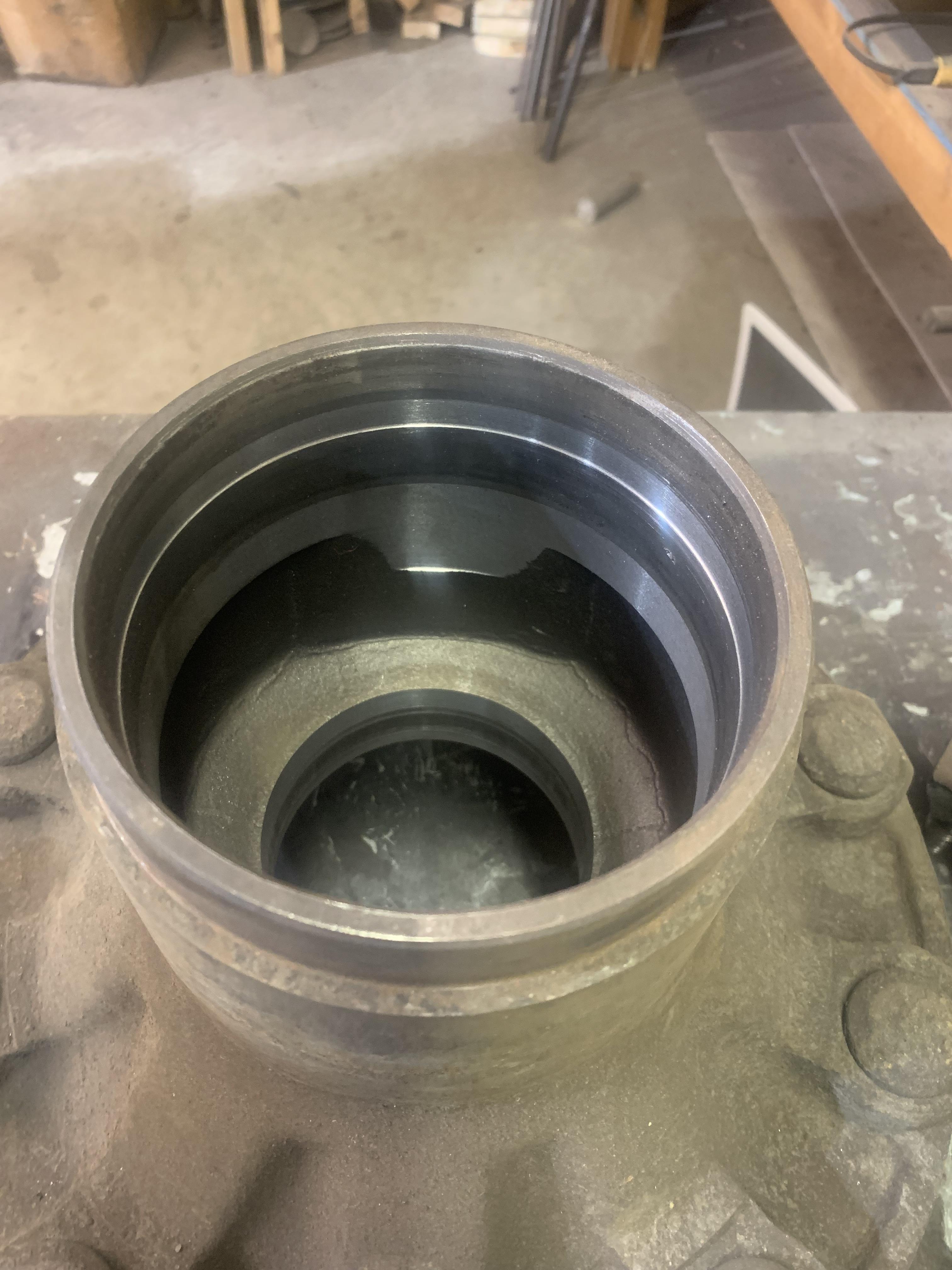

Popular Post Licensed to kill Posted January 27, 2022 Author Popular Post Share Posted January 27, 2022 (edited) On 1/26/2022 at 5:59 PM, Mean Green said: I would like to see some pics I have a b42 that has dayton in the front and hub pilot in the rear and want to go full hub pilot what all needed machined ? It was a pretty simple process. I got a set of hubs off a late model Mack I don't know what model as I am not all that familiar with Macks but a CH maybe?? (I believe that any hubs from any truck will do, I just uses Mack because the guy I got the engine from has dozens of them and gave me the hubs for free). I then had to take the hubs to a machine shop and have the shoulders for the races machined out and a small shoulder machined in for the insert to index to ($400). They were too big for my lathe. EDIT, the index shoulder that I referred to, shown in the picture, was for the outside bearing only. I used the existing seal shoulder on the inside as an index. Just thought I should clarify. Edited January 28, 2022 by Licensed to kill 3 Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488025 Share on other sites More sharing options...

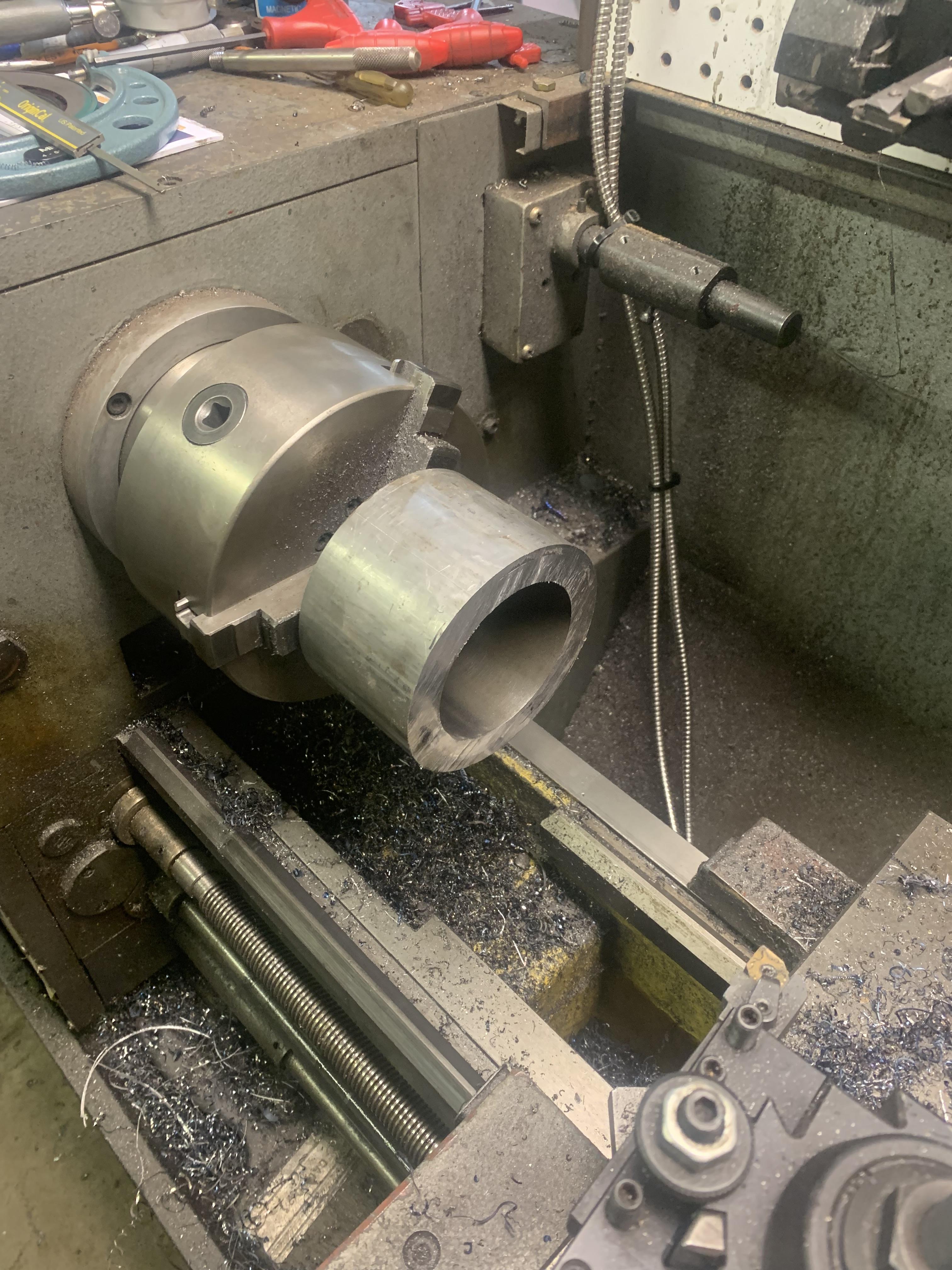

Licensed to kill Posted January 27, 2022 Author Share Posted January 27, 2022 I then made interference fit inserts to press into the hub with the internal dimensions copied from the stock Dayton hub. 2 Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488026 Share on other sites More sharing options...

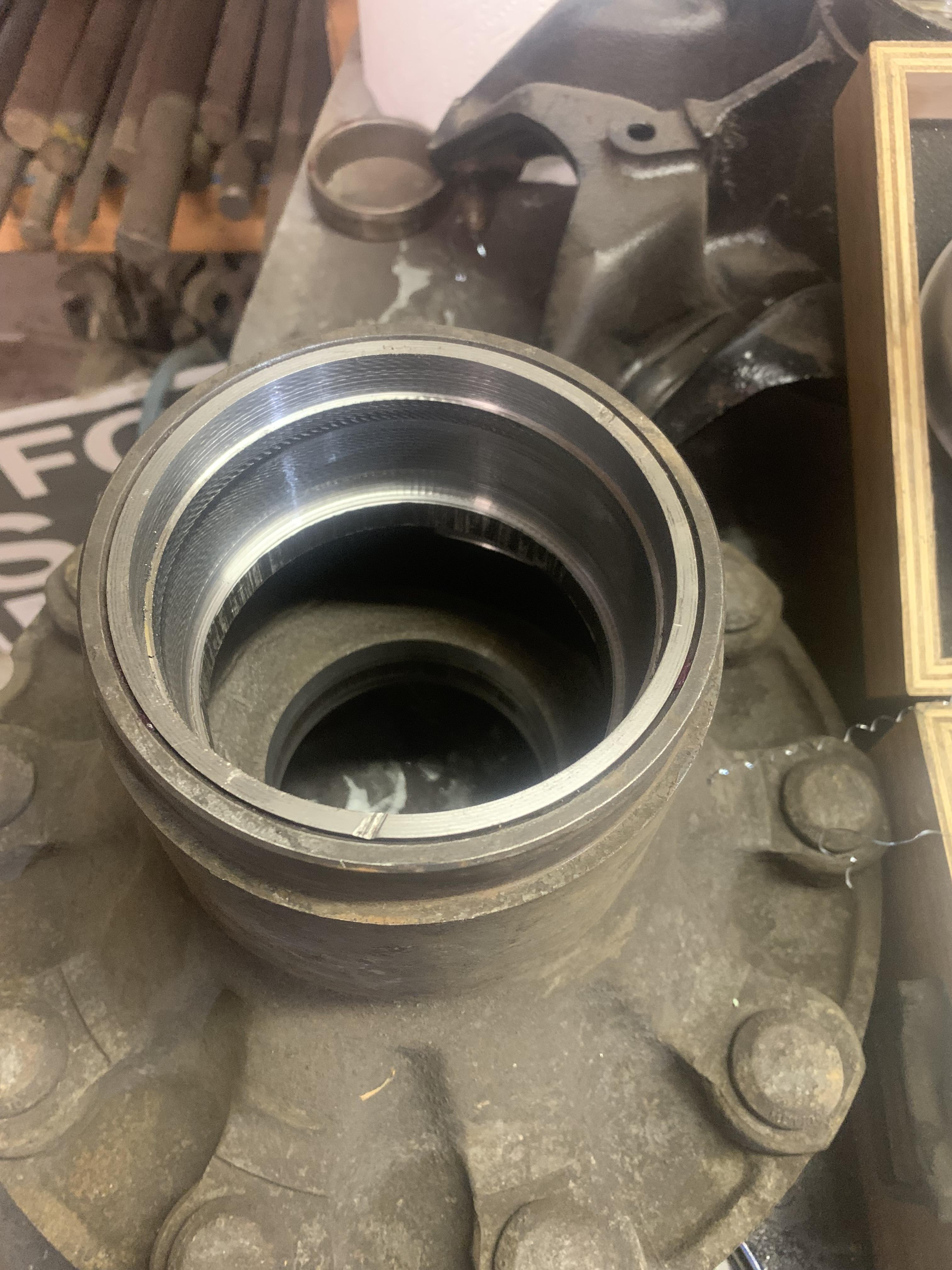

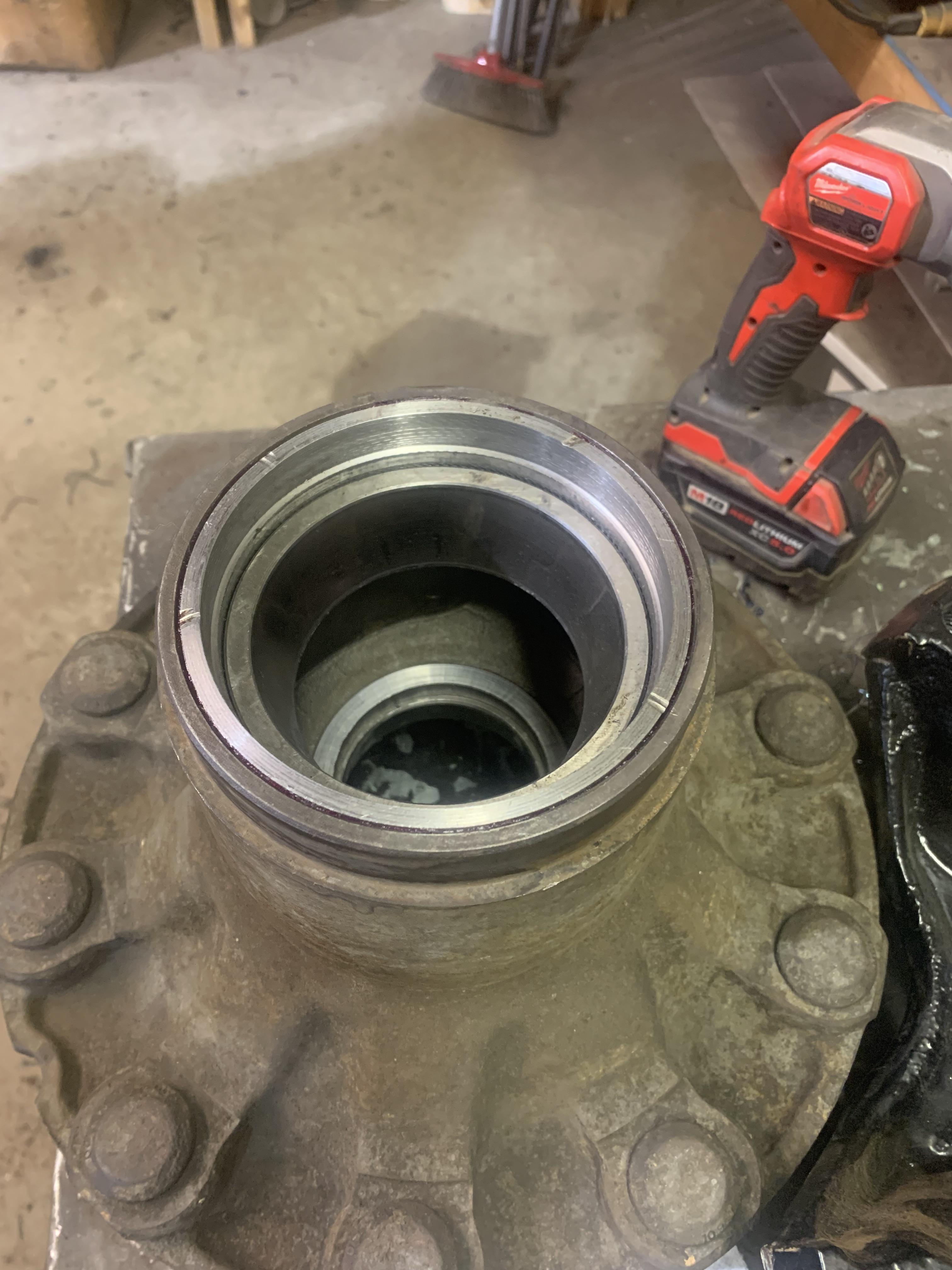

Popular Post Licensed to kill Posted January 27, 2022 Author Popular Post Share Posted January 27, 2022 With race installed. 3 Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488027 Share on other sites More sharing options...

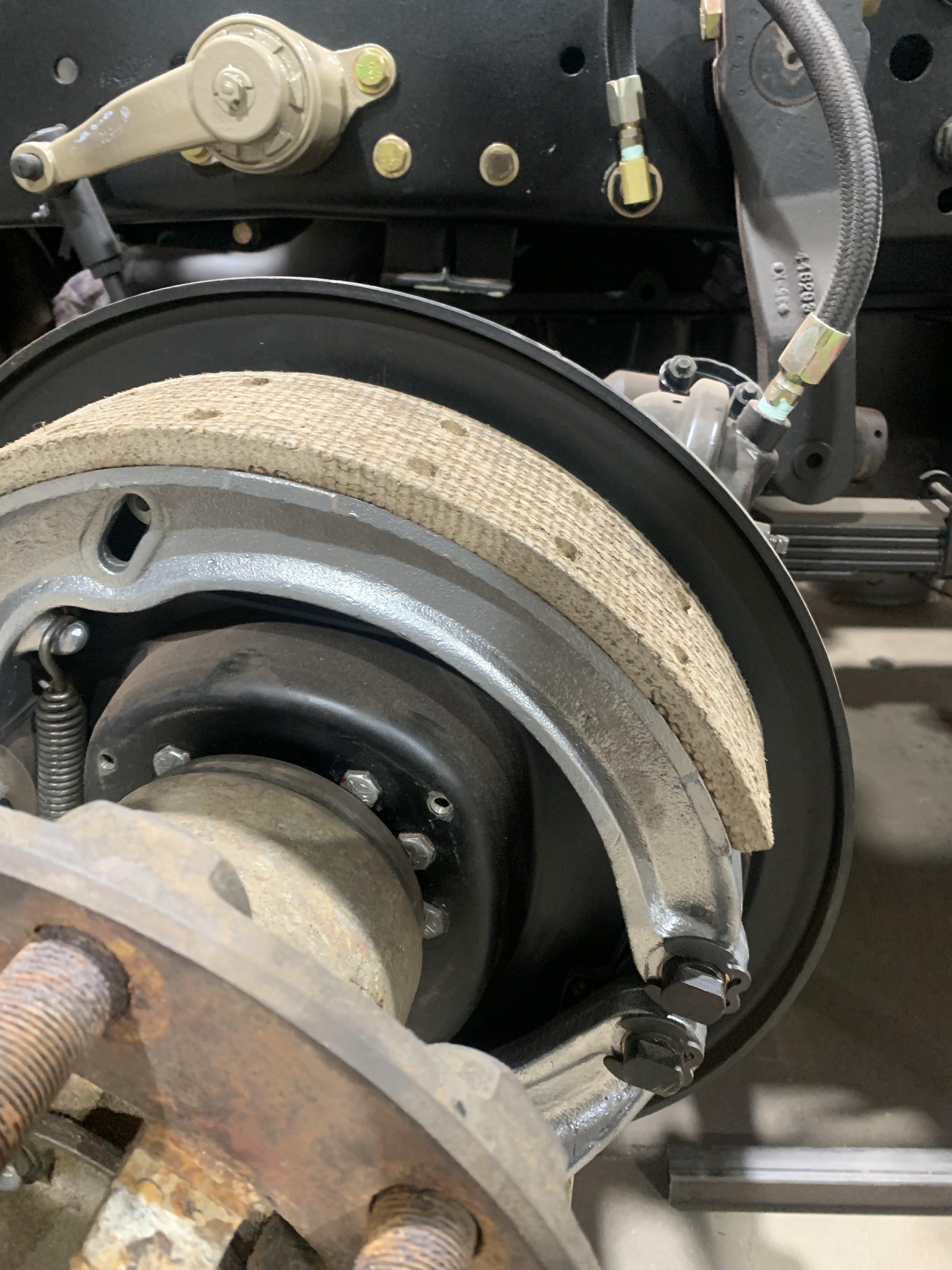

Popular Post Licensed to kill Posted January 27, 2022 Author Popular Post Share Posted January 27, 2022 Then I could use the stock bearings for the 505 axle and the hubs would fit the spindle. The stock Dayton drums were 16" ID but new drums are 16.5" ID so to fix that, I had the shoes relined with thicker lining (they were 1/4" thick and was replaced with 1/2" thick). I looked but could not find lining anywhere on the net so I had to take the shoes to a place that does brake and clutch lining and have them done ($500). I though that more than a bit rich but it had to be done and the advantage of having them do it was that I told them that they were going with a 16.5" ID drum and they speced the lining accordingly. 4 Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488028 Share on other sites More sharing options...

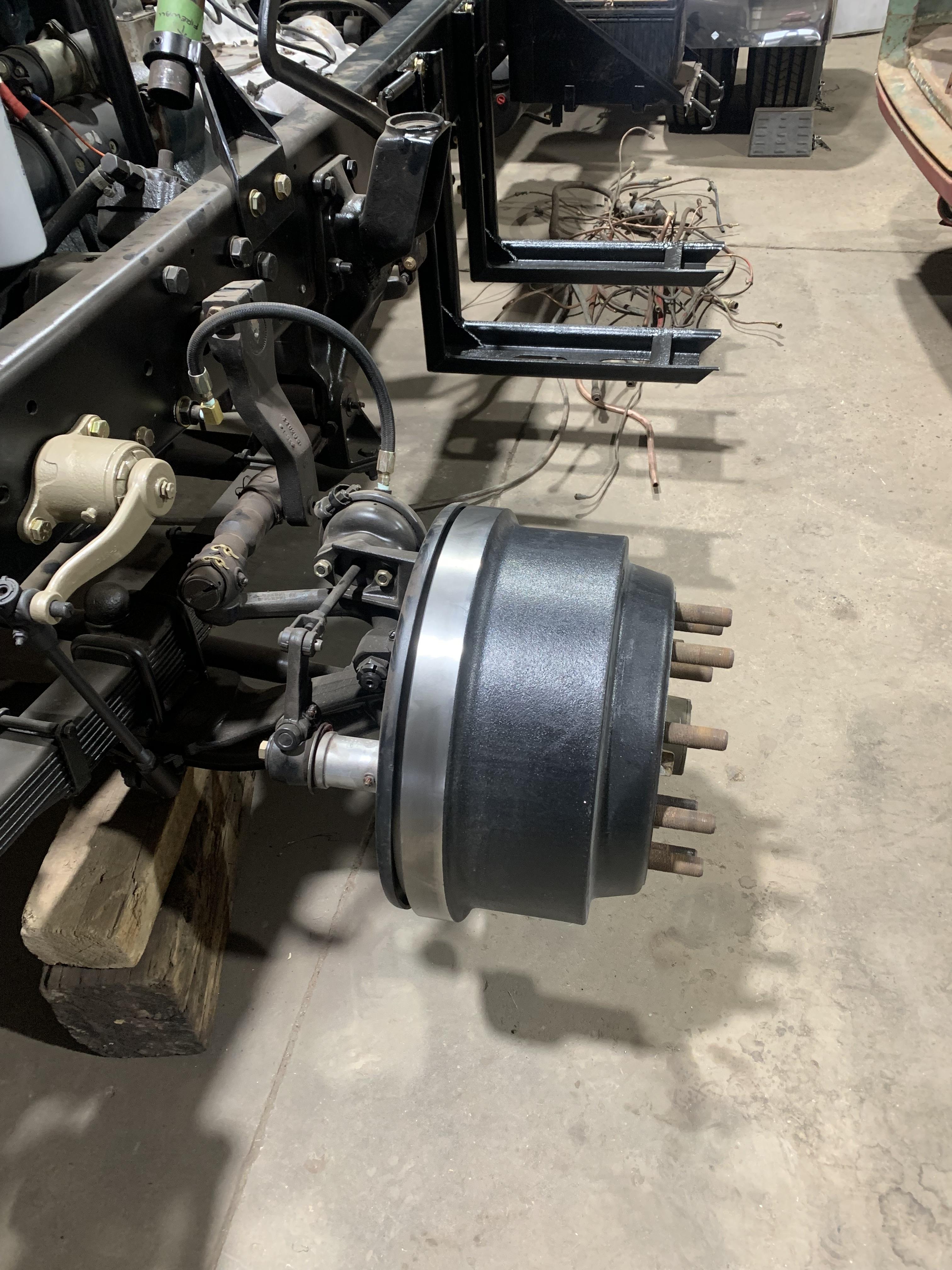

Popular Post Licensed to kill Posted January 27, 2022 Author Popular Post Share Posted January 27, 2022 I searched but was unable to find a drum that was the correct depth. I needed 10" and the closest I could find was 9.75. They would have probably worked but the inner edge of the drum would have been right at the inner edge of the shoe. I didn't like that so I bought the common 10.5 deep drums and had them machined down 1/2" for a perfect fit ($300 + the cost of the drum). 4 Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488029 Share on other sites More sharing options...

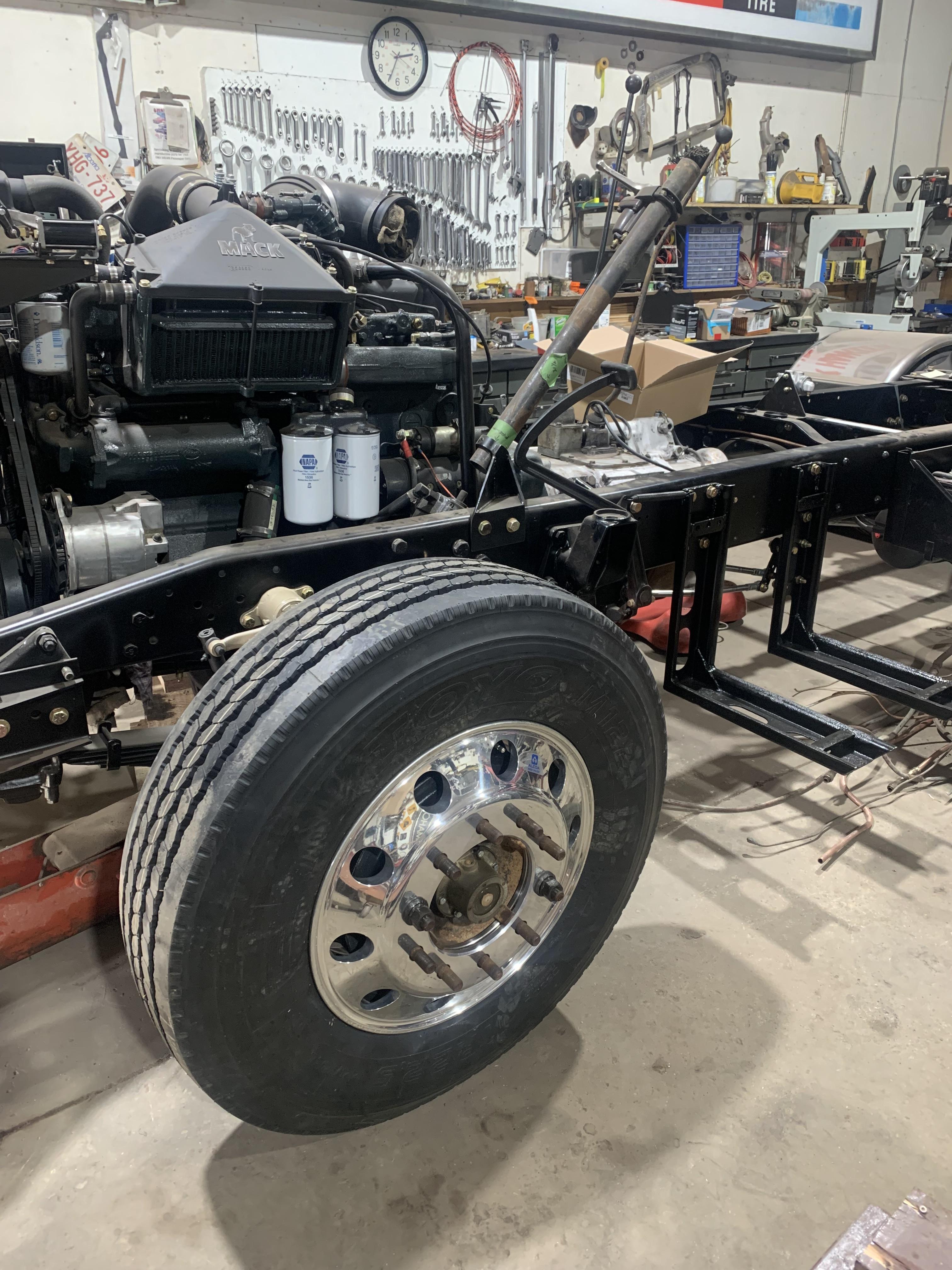

Popular Post Licensed to kill Posted January 27, 2022 Author Popular Post Share Posted January 27, 2022 And voila. Hub pilots on FA 505 axle. Hope this helps. It was a really simple process but I would have MUCH rather been able to do the machining and shoe lining myself. That would have made it a pretty cost effective conversion. 5 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488030 Share on other sites More sharing options...
mrsmackpaul Posted January 27, 2022 Share Posted January 27, 2022 A bit of work but a good result Paul 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488031 Share on other sites More sharing options...
Licensed to kill Posted January 27, 2022 Author Share Posted January 27, 2022 BTW, I forgot to mention, there was what appeared to be a grease shield that was bolted to the backing plate that the original hubs went into. I suspect that it was there so any gease that escaped from the seal would not get on the shoes (at least I think of any other reason for it). I had to eliminate that as the new hub was too big to fit inside it. I contemplated making a new one that would clear the larger hub but decided it wasn't worth the effort. Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488033 Share on other sites More sharing options...
Freightrain Posted January 27, 2022 Share Posted January 27, 2022 Great job. I never even contemplated doing the machine work to get hubs on like that. I have access to all the equipment to do it. It basically is just making the old bearing spacing fit the newer hubs. 1 Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488034 Share on other sites More sharing options...
Licensed to kill Posted January 27, 2022 Author Share Posted January 27, 2022 3 minutes ago, Freightrain said: It basically is just making the old bearing spacing fit the newer hubs. That is all it is. Pretty simple. Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488035 Share on other sites More sharing options...
Freightrain Posted January 27, 2022 Share Posted January 27, 2022 I still have all the budd hubs for my rear axle. Guess maybe I need to start poking around for front hubs that I can convert my 517 axle? Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488036 Share on other sites More sharing options...
Brocky Posted January 27, 2022 Share Posted January 27, 2022 Larry, LEAVE THE SPOKES!!!!!!!!!!! 1 Quote Brocky Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488041 Share on other sites More sharing options...
doubleclutchinweasel Posted January 27, 2022 Share Posted January 27, 2022 That's the world I live in, LTK...the machine shop world. Love it! 1 Quote "Eagles may soar, but weasels don't get sucked into jet engines." Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488050 Share on other sites More sharing options...
Mean Green Posted January 28, 2022 Share Posted January 28, 2022 wow that's some nice work you did that is a good idea to make the parts to fit 1 Quote If your going to be a bear be a grizzly Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488055 Share on other sites More sharing options...
mattb73lt Posted January 28, 2022 Share Posted January 28, 2022 Nice work. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488091 Share on other sites More sharing options...
Licensed to kill Posted January 28, 2022 Author Share Posted January 28, 2022 Truth is I WANTED to stay with the daytons but converting the rear was a no go so I decided to do the front to budds instead. Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488092 Share on other sites More sharing options...
Freightrain Posted January 28, 2022 Share Posted January 28, 2022 19 hours ago, Brocky said: Larry, LEAVE THE SPOKES!!!!!!!!!!! Now that I got them painted up better, I'll likely leave them. Though shiny aluminum is nice to look at too. Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488094 Share on other sites More sharing options...
Vladislav Posted January 28, 2022 Share Posted January 28, 2022 On 1/27/2022 at 7:35 PM, Licensed to kill said: I searched but was unable to find a drum that was the correct depth. I needed 10" and the closest I could find was 9.75. They would have probably worked but the inner edge of the drum would have been right at the inner edge of the shoe. I didn't like that so I bought the common 10.5 deep drums and had them machined down 1/2" for a perfect fit ($300 + the cost of the drum). For $300 I think you could cut the edge of the drum by an angle grinder. Half an hour or so to cut and 20 minutes to even up the edge. Being where I am I sure would bring drums to a machine shop. But I doubt it would cost more than US $30 for each drum to cut. Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488103 Share on other sites More sharing options...
Vladislav Posted January 28, 2022 Share Posted January 28, 2022 On 1/27/2022 at 8:23 PM, Licensed to kill said: BTW, I forgot to mention, there was what appeared to be a grease shield that was bolted to the backing plate that the original hubs went into. I suspect that it was there so any gease that escaped from the seal would not get on the shoes (at least I think of any other reason for it). I had to eliminate that as the new hub was too big to fit inside it. I contemplated making a new one that would clear the larger hub but decided it wasn't worth the effort. My understanding is those shields were important when seals were not efficient enough. My 1945 Mack truck had hub seals made of leather. Modern stuff wouldn't allow any greas to go out if all was centered well during machining so my guess you will be Ok with what you've done. 1 Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488105 Share on other sites More sharing options...
Licensed to kill Posted January 28, 2022 Author Share Posted January 28, 2022 (edited) 11 minutes ago, Vladislav said: For $300 I think you could cut the edge of the drum by an angle grinder. Half an hour or so to cut and 20 minutes to even up the edge. Being where I am I sure would bring drums to a machine shop. But I doubt it would cost more than US $30 for each drum to cut. Problem with the angle grinder idea is that it had to be stepped down to go into the back plate so there is 1/2" on the very end that is about 17.5" OD going g into the back plate then it steps up to the big OD of about 18.5" or so. The reason that it took so long is that, being such a large diameter AND having to hold from the inside with the chuck jaws, (and perhaps due to the fact that it is cast) it had to be turned very slow or it would chatter. When I took them in, the machinist estimated 45 minutes for the first one and 30 minutes for the second but was concerned about the aforementioned issues. It ended up taking 2 hours and he rushed as quickly as he could. He felt bad and offered to take the difference out of his salary but it is what it is. I don't expect anyone too work for free or at a loss. Edited January 28, 2022 by Licensed to kill 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69112-not-for-the-faint-of-heart/#findComment-488106 Share on other sites More sharing options...
