Concrete cowboy Posted March 22, 2022 Share Posted March 22, 2022 I have a 2013 cxu 613 . Need help locating the the fuse in the fuse block on top of dash . I dont have a map of telling me what fuse does what . Blower stopped working today and that's the first thing I'm checking .any help would he greatly appreciated thanks for your time Quote Link to comment https://www.bigmacktrucks.com/topic/69418-blower-motor-issue-heat-ac/ Share on other sites More sharing options...

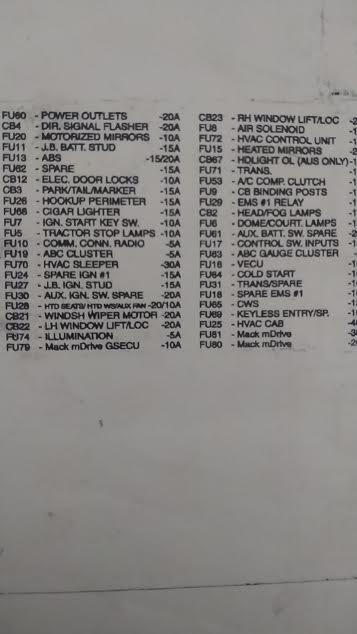

Joey Mack Posted March 22, 2022 Share Posted March 22, 2022 I hope this helps... jojo Quote Link to comment https://www.bigmacktrucks.com/topic/69418-blower-motor-issue-heat-ac/#findComment-492957 Share on other sites More sharing options...
Concrete cowboy Posted March 22, 2022 Author Share Posted March 22, 2022 Joey mack Is this for the top fuse block that's on top of dash or the block down by your left foot Thanks Quote Link to comment https://www.bigmacktrucks.com/topic/69418-blower-motor-issue-heat-ac/#findComment-492958 Share on other sites More sharing options...

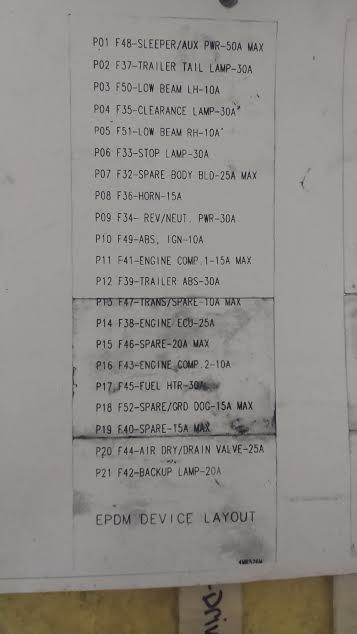

Joey Mack Posted March 22, 2022 Share Posted March 22, 2022 yes and the EPDM behind the panel next to the clutch pedal,, jojo Quote Link to comment https://www.bigmacktrucks.com/topic/69418-blower-motor-issue-heat-ac/#findComment-492959 Share on other sites More sharing options...
Concrete cowboy Posted March 22, 2022 Author Share Posted March 22, 2022 Ok Thank you for your time Quote Link to comment https://www.bigmacktrucks.com/topic/69418-blower-motor-issue-heat-ac/#findComment-492960 Share on other sites More sharing options...
Joey Mack Posted March 22, 2022 Share Posted March 22, 2022 👍 Quote Link to comment https://www.bigmacktrucks.com/topic/69418-blower-motor-issue-heat-ac/#findComment-492961 Share on other sites More sharing options...
Christ Alone Posted June 23, 2023 Share Posted June 23, 2023 Did you ever figure out which fuse it is? I'm having the same problem finding mine in a 2014. Would appreciate any help, thanks. Quote Link to comment https://www.bigmacktrucks.com/topic/69418-blower-motor-issue-heat-ac/#findComment-533510 Share on other sites More sharing options...
Joey Mack Posted June 23, 2023 Share Posted June 23, 2023 I posted the diagrams on this thread... just look at the whole thread.. If you need more,,, post specifics... Jojo Quote Link to comment https://www.bigmacktrucks.com/topic/69418-blower-motor-issue-heat-ac/#findComment-533512 Share on other sites More sharing options...
