Mack Hammer Posted June 10, 2022 Share Posted June 10, 2022 (edited) T310M Trans will not come out of reverse and is blowing air into tranny case Edited June 10, 2022 by Mack Hammer Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/ Share on other sites More sharing options...
terry Posted June 10, 2022 Share Posted June 10, 2022 Sure no expert on this trans, sounds like a o ring blown on reverse shift rail, i'm sure somebody more knowledgable on these will comment. terry 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499838 Share on other sites More sharing options...
DieselDog5.9 Posted June 10, 2022 Share Posted June 10, 2022 Is the T310M the ten speed with selectable reverse, similar to an old twelve speed? 5 reverse gears, yellow selector lever? Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499855 Share on other sites More sharing options...
Mack Hammer Posted June 10, 2022 Author Share Posted June 10, 2022 yes multispeed reverse (all low range gears) with yellow reverse selector lever Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499871 Share on other sites More sharing options...
DieselDog5.9 Posted June 11, 2022 Share Posted June 11, 2022 So my experience is with the 18 speed transmissions, but assuming they have similarities, front box has 6 gears, rear box has high low split and reverse. In my opinion you have an o-ring that is cracked and allowing air into the case, now in the 18 speed the rear piston is for high low, and can be replaced externally. The reverse piston I think is on top of the transmission. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499888 Share on other sites More sharing options...
Joey Mack Posted June 11, 2022 Share Posted June 11, 2022 yes to a bad o-ring. on the top of the back box, there is a shift cover, remove it and re-build the cylinders. when its on the bench you can put shop air to it to see how it leaking, (if you want to see it) then re-ring it.. I suggest replacing the shift fork set bolt... jojo Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499894 Share on other sites More sharing options...

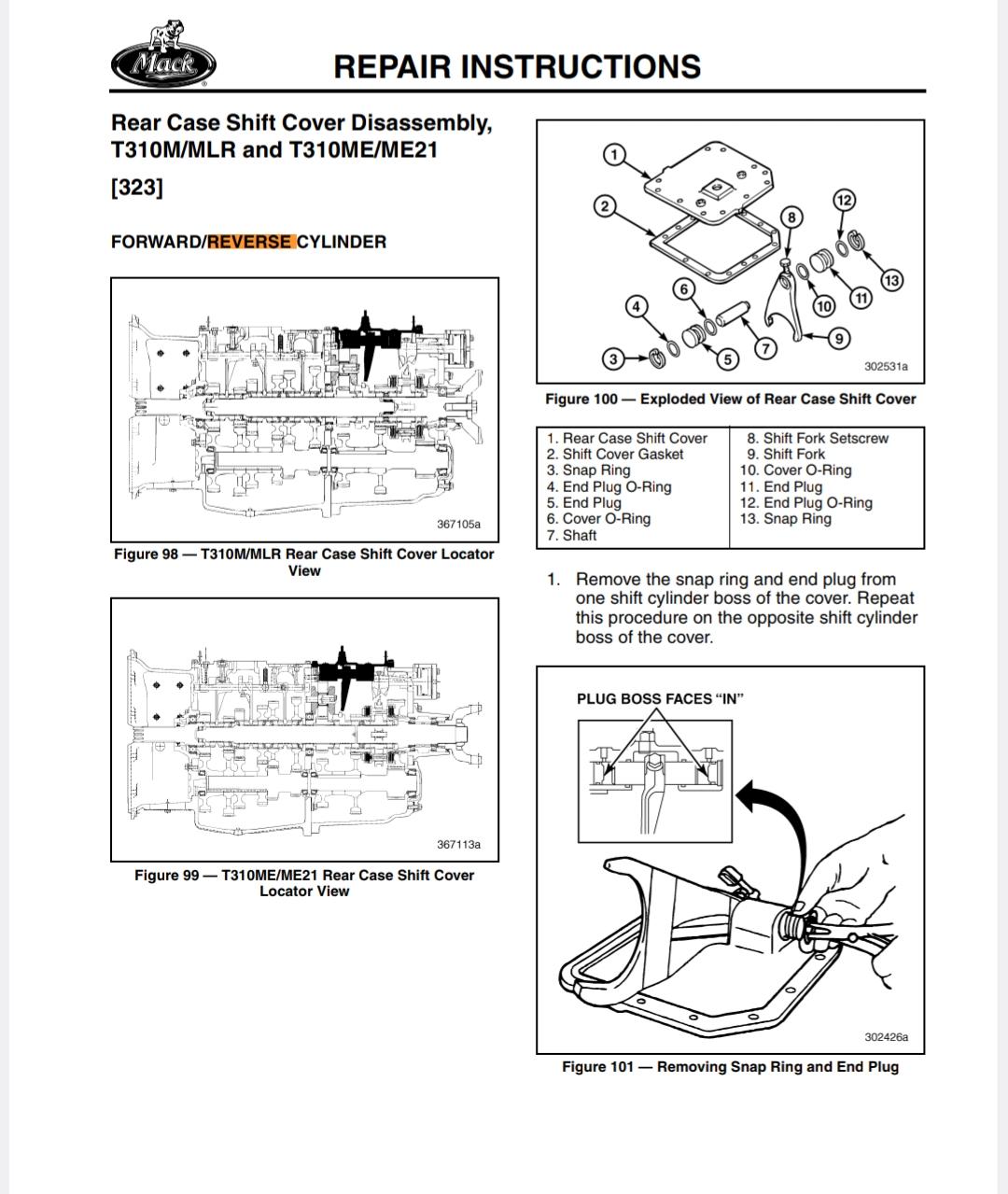

R.E.D Posted June 11, 2022 Share Posted June 11, 2022 (edited) Here you go bud.. picture says 1000 words..orings 4 and 6 or 10 and 12 should be your problem. Edited June 11, 2022 by R.E.D 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499895 Share on other sites More sharing options...
Joey Mack Posted June 11, 2022 Share Posted June 11, 2022 I just went to my book as well... only thing is I cant post pics anymore.. I am glad you posted this pic for him... jojo 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499896 Share on other sites More sharing options...
Mack Hammer Posted June 11, 2022 Author Share Posted June 11, 2022 Can this be done with trans in the truck, or does it need to be removed ? Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499898 Share on other sites More sharing options...
Joey Mack Posted June 11, 2022 Share Posted June 11, 2022 in chassis... remove the drive shaft and squeeze your ass in there.. open the hood, jack the cab up with a small jack,till the cab shocks stop the jack. that will give you a few more inches to get in there.. of course if you are 'girthy'.... well.... I'm girthy... heck I dont even know what chassis you have... I assume a Granite... jojo Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499899 Share on other sites More sharing options...
Mack Hammer Posted June 11, 2022 Author Share Posted June 11, 2022 Yes 2007 Granite CV713 And yes 6'3" 260lbs not a little fellow 🙂 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499900 Share on other sites More sharing options...
Joey Mack Posted June 11, 2022 Share Posted June 11, 2022 well at leaste you have the reach.. im 5-9/ 240... you can get this done.. i hope you dont have dual ass stupid exhaust.. it WILL be in the way... Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499901 Share on other sites More sharing options...
Mack Hammer Posted June 11, 2022 Author Share Posted June 11, 2022 Gonna give this a whirl tomorrow. I appreciate everyone's input on this. The pic is great. I just made a profile on this website today and I'm liking the help. Thank You 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499902 Share on other sites More sharing options...
Joey Mack Posted June 11, 2022 Share Posted June 11, 2022 when you are here at BMT, you are in GREAT hands.. welcome aboard.. Jojo 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499903 Share on other sites More sharing options...
Mack Hammer Posted June 11, 2022 Author Share Posted June 11, 2022 Nope single stack right side only thank god. so assuming cover is on driver side 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499904 Share on other sites More sharing options...
Joey Mack Posted June 11, 2022 Share Posted June 11, 2022 the cover is on top of the rear section.. Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499905 Share on other sites More sharing options...
R.E.D Posted June 11, 2022 Share Posted June 11, 2022 Blow gun all the junk from the top of transmission as to minimize dirt going in to the trans..the rear cover you need to remove has two dowels on left and right side.you will need to pry evenly on the cover because if one side gets brought up to high it will want to bind . 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499921 Share on other sites More sharing options...

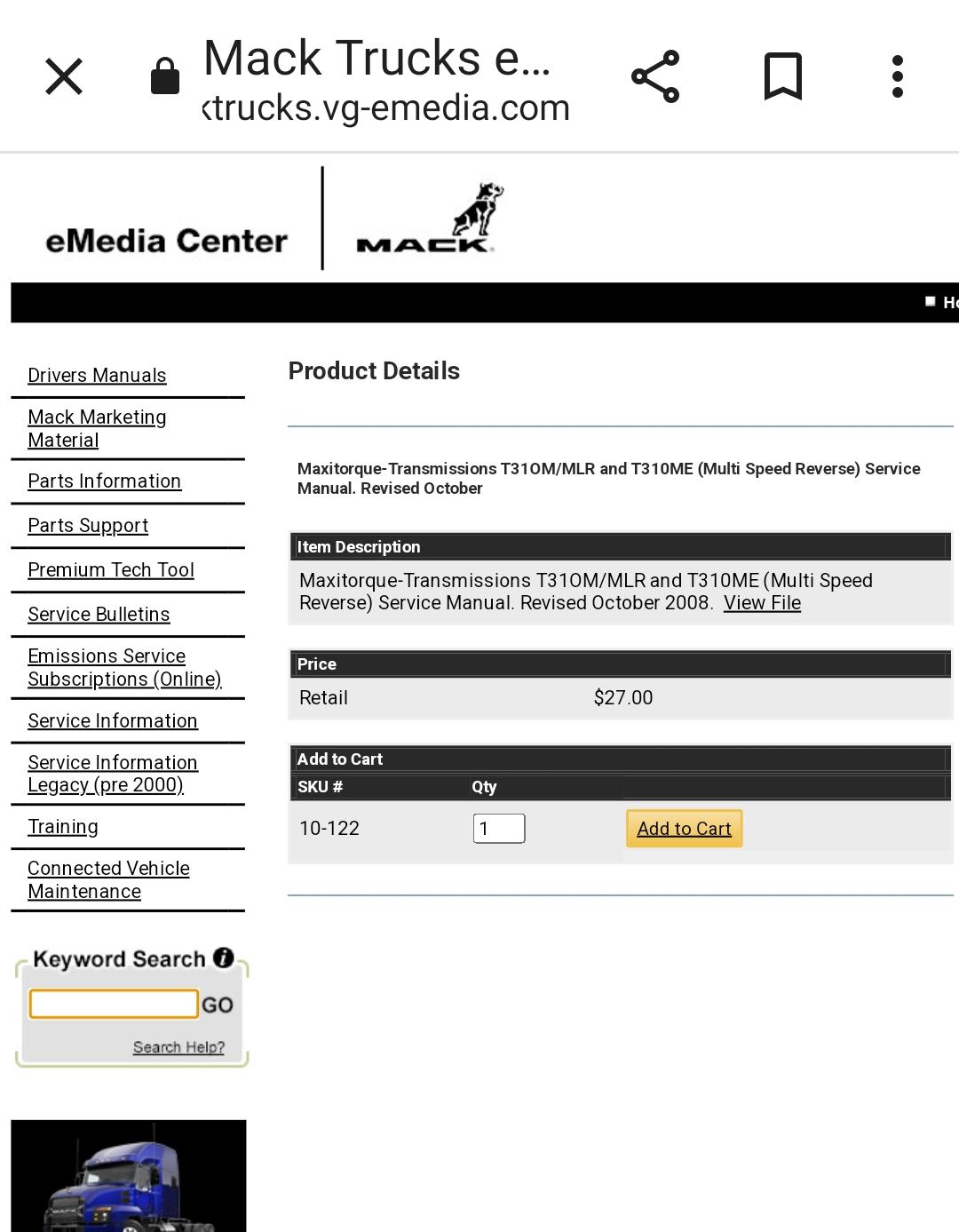

R.E.D Posted June 11, 2022 Share Posted June 11, 2022 (edited) 2 hours ago, Mack Hammer said: Gonna give this a whirl tomorrow. I appreciate everyone's input on this. The pic is great. I just made a profile on this website today and I'm liking the help. Thank You If you go to mack emedia you can download load the whole pdf file on this transmission.for free ..just type 10-122 , which is the part number for the publication and then click on view file.it will download the PDF. Edited June 11, 2022 by R.E.D Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-499922 Share on other sites More sharing options...
Popular Post DieselDog5.9 Posted June 12, 2022 Popular Post Share Posted June 12, 2022 I have only done this job when removing the back box of the transmission to repair the Hi/Lo clutch. If I recall we jacked up the cab and removed the air bags so cab could be lifted higher, but watch the firewall of the cab hitting the back of the engine. 3 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-500033 Share on other sites More sharing options...
Mack Hammer Posted June 14, 2022 Author Share Posted June 14, 2022 Everything went well. Snap ring was missing on forward side of shaft, and end plug was out and stuck to the front wall of rear box. A shout out to everyone who gave me advise. Much appreciated. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-500183 Share on other sites More sharing options...
terry Posted June 14, 2022 Share Posted June 14, 2022 2 hours ago, Mack Hammer said: Everything went well. Snap ring was missing on forward side of shaft, and end plug was out and stuck to the front wall of rear box. A shout out to everyone who gave me advise. Much appreciated. Nice to hear when help here helped! terry 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-500193 Share on other sites More sharing options...
Joey Mack Posted June 14, 2022 Share Posted June 14, 2022 That is great... Thank you for posting the repair.. Jojo 1 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-500195 Share on other sites More sharing options...
R.E.D Posted June 14, 2022 Share Posted June 14, 2022 10 hours ago, Mack Hammer said: Everything went well. Snap ring was missing on forward side of shaft, and end plug was out and stuck to the front wall of rear box. A shout out to everyone who gave me advise. Much appreciated. Nice!🔧🔧 Quote Link to comment https://www.bigmacktrucks.com/topic/69930-t310m-stuck-in-reverse-and-blowing-air-into-case/#findComment-500223 Share on other sites More sharing options...
