Pulling injectors on a 673

[Joey Mack]

Hell,, We use 'saw dust'....  in the noisy rear ends...   Well, not me,  just the story tellers...

[Mark T]

8 minutes ago, mrsmackpaul said:

This is the gear that is reported as the go to deglazer used car sales man instant rebuld kit in jar bombdiggitdoo kit



This will save you bucket loads on those over charging money hungry pescky mechanics 🤣🤣



Paul

Ahhhhh......that's the good stuff, right into the larvae.

[Mark T]

5 minutes ago, Joey Mack said:

Hell,, We use 'saw dust'....  in the noisy rear ends...   Well, not me,  just the story tellers...

Joey..... it's sawdust in 140

[theakerstwo]

In the mid sixtys the dealership here sold a f model with the first ENDT864 that i ever saw.It used oil like other engines for a few months and the owner of the dealership told us to put some Comet Cleanser in the intake.i was working the night shift and saw this.There was no Comet Cleanser there so the forman got a hand full of dust from the top of one of the shop heaters and run thru the intake as it was running.That repaired it for using oil.

[mowerman]

i expect you have sprayed around the injectors real good with WD.....i had to keep tapping the ears real carefully back and forth on mine....as they are saying,,,,,,lotsa patience on this one...bob

[Mark T]

It used to be a common thing for new engines to use oil.

[theakerstwo]

Rings are better now but also the liners was what i remember as plasma honed in the later year that helped the oil sealing.The had what old tiers would have said honed with a hay rack meaning the had deep cross honing.

[mowerman]

16 minutes ago, theakerstwo said:

In the mid sixtys the dealership here sold a f model with the first ENDT864 that i ever saw.It used oil like other engines for a few months and the owner of the dealership told us to put some Comet Cleanser in the intake.i was working the night shift and saw this.There was no Comet Cleanser there so the forman got a hand full of dust from the top of one of the shop heaters and run thru the intake as it was running.That repaired it for using oil.

wow,,,interesting..i would have been afraid to throw that that shit in there.bob

[davehummell]

We had a can of Commet cleaner setting in the engine dyno room when I worked at Cleveland Brothers it was just in case. I have used it in the cylinder of an old hit and miss engine it got the compression up.

[Mark T]

Just now, theakerstwo said:

Rings are better now but also the liners was what i remember as plasma honed in the later year that helped the oil sealing.The had what old tiers would have said honed with a hay rack meaning the had deep cross honing.

Now a CNC machine of some type can do what was once astronomically expensive work for basically nothing. Newer oils.  Whole different thing in ways than 35 or 40 years ago even.

[Craig N]

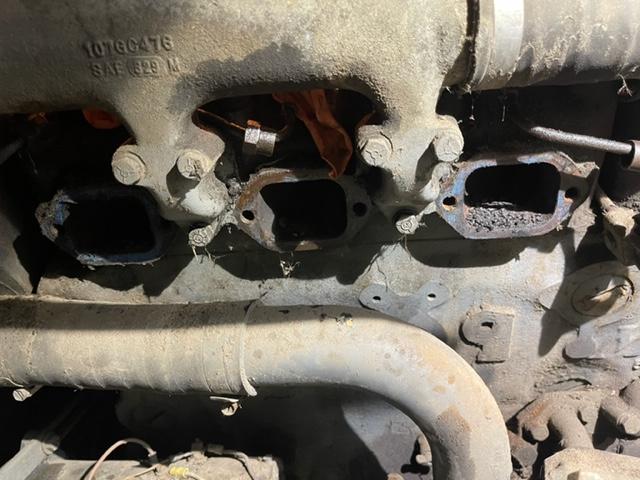

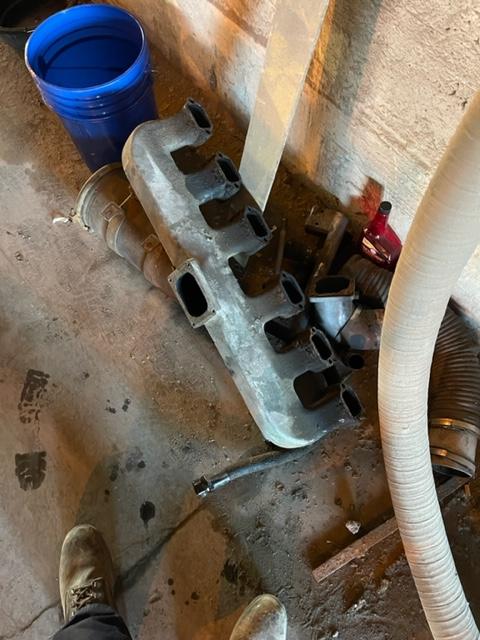

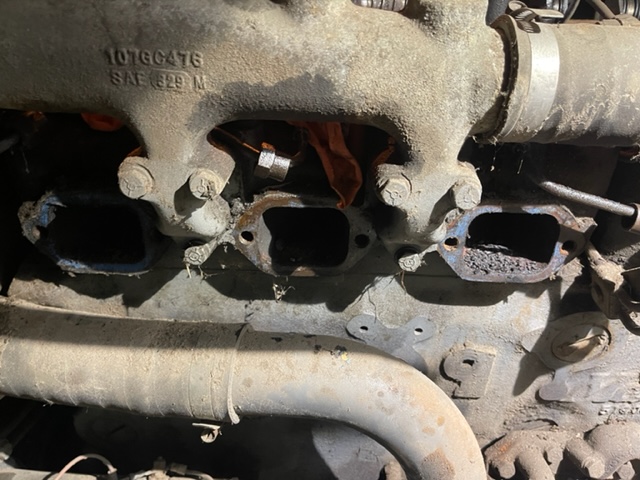

Well, I’ll do my best to not put any bananas in the gear box, but no promises. Man, lots of mouse poop in the intake ports. That intake surprised me being made of aluminum too. Was waiting for a 200 pound intake but was pleasantly surprised lol. Wonder how far the mice got, I can’t imagine they got passed any valves. Could’ve pissed in there a bunch though I guess.  Got cut short but I’ll try and get the water manifolds and exhaust manifolds off Monday. I won’t be able to get there tomorrow

Edited November 12, 2022 by Craig N
Spelling

[Craig N]

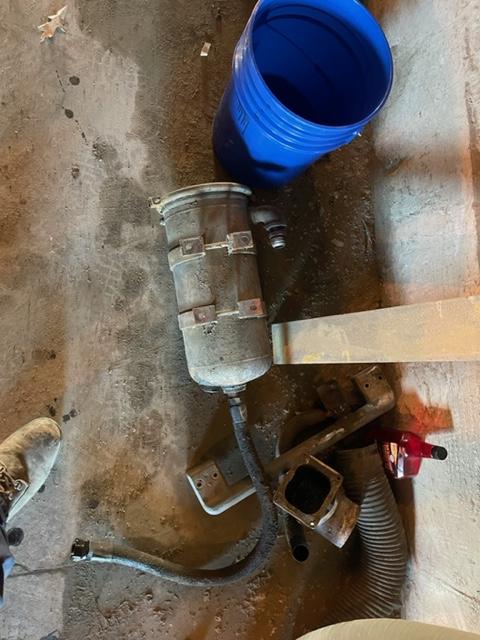

Looks like I don’t have the full flow/bypass oil filter so that big pain in the ass luberfiner has to go back on I guess.

[fjh]

1 hour ago, theakerstwo said:

In the mid sixtys the dealership here sold a f model with the first ENDT864 that i ever saw.It used oil like other engines for a few months and the owner of the dealership told us to put some Comet Cleanser in the intake.i was working the night shift and saw this.There was no Comet Cleanser there so the forman got a hand full of dust from the top of one of the shop heaters and run thru the intake as it was running.That repaired it for using oil.

Don’t no how many times I heard that story always wanted to try it never had the ball’s!

[mrsmackpaul]

Well this is good news, now that's gumna sound strange

But let me explain, you stopped forcing it before you went to far and broke something

Mouse piss etc should be of concern, or at least it would be to me, must be some valves open either fully or partly

How did these mice find their way into your motor ?



Paul

[Craig N]

1 hour ago, mrsmackpaul said:

Well this is good news, now that's gumna sound strange

But let me explain, you stopped forcing it before you went to far and broke something

Mouse piss etc should be of concern, or at least it would be to me, must be some valves open either fully or partly

How did these mice find their way into your motor ?



Paul

Breather tube coming off the valve covers. Nothing at the end of the tube, just open.  The air hose to the intake broke off at the firewall so they got in there too. I’m gonna yank the heads and clean them up really well in the parts washer. I’ve got the cylinders soaking in marvel mystery oil at the moment. I’ll see what shape the cylinder walls are in once I get the heads off. I’ll clean everything up real good and try freeing up the motor without the heads on. Glad I didn’t get it to spin over and cause any damage. Hoping she just needs a good cleaning and she’ll be ok

[mrsmackpaul]

Once you yank the heads,  before trying to turn the motor make sure you clamp the sleeves in properly other wise even when you get this free your gunna enter the world of clusterfuckerie with a masters degree

If you accidentally move the sleeves you will turn from adventure to a in frame rebuild quicker than you can say "bugger me"

Anyway, it's all good fun and adventure so far



Paul



[Craig N]

8 hours ago, mrsmackpaul said:

Once you yank the heads,  before trying to turn the motor make sure you clamp the sleeves in properly other wise even when you get this free your gunna enter the world of clusterfuckerie with a masters degree

If you accidentally move the sleeves you will turn from adventure to a in frame rebuild quicker than you can say "bugger me"

Anyway, it's all good fun and adventure so far



Paul



Oh man, I didn’t know anything about this. So, the heads basically stop the sleeves from coming out the top when they’re bolted on?  How would I clamp the sleeves on properly?  I’m assuming vice grips isn’t it haha.

[fjh]

45 minutes ago, Craig N said:

Oh man, I didn’t know anything about this. So, the heads basically stop the sleeves from coming out the top when they’re bolted on?  How would I clamp the sleeves on properly?  I’m assuming vice grips isn’t it haha.

YUP! This a good point brought up by Mcpaul ! The liners are dri fit and usually tight but under the current  circumstances best be safe!

Get some  heavy over sized flat washers  remove a stud each side of the liner apposing each other closest to the liner and replace with short bolts! two per cyl

[BOBWhite]

Are these dry sleeve or wet sleeve motors? And if they do pop out why could't you just reseal it and pop them back in?  You can check the condition of the cylinders and check for cavitation if they're out.

Also do Mack's have problems with dropping or sinking liners like Cats do? I'd imagine sleeve shims would not be easy to find for one of these.

[Joey Mack]

Dry..

[theakerstwo]

Back when these engine were in production the liners were a press fit like .0005. we had to install with dry ice.When the maxidyne came out it was almost a slid in fit with out a press fit.We was sure glad.

[Joey Mack]

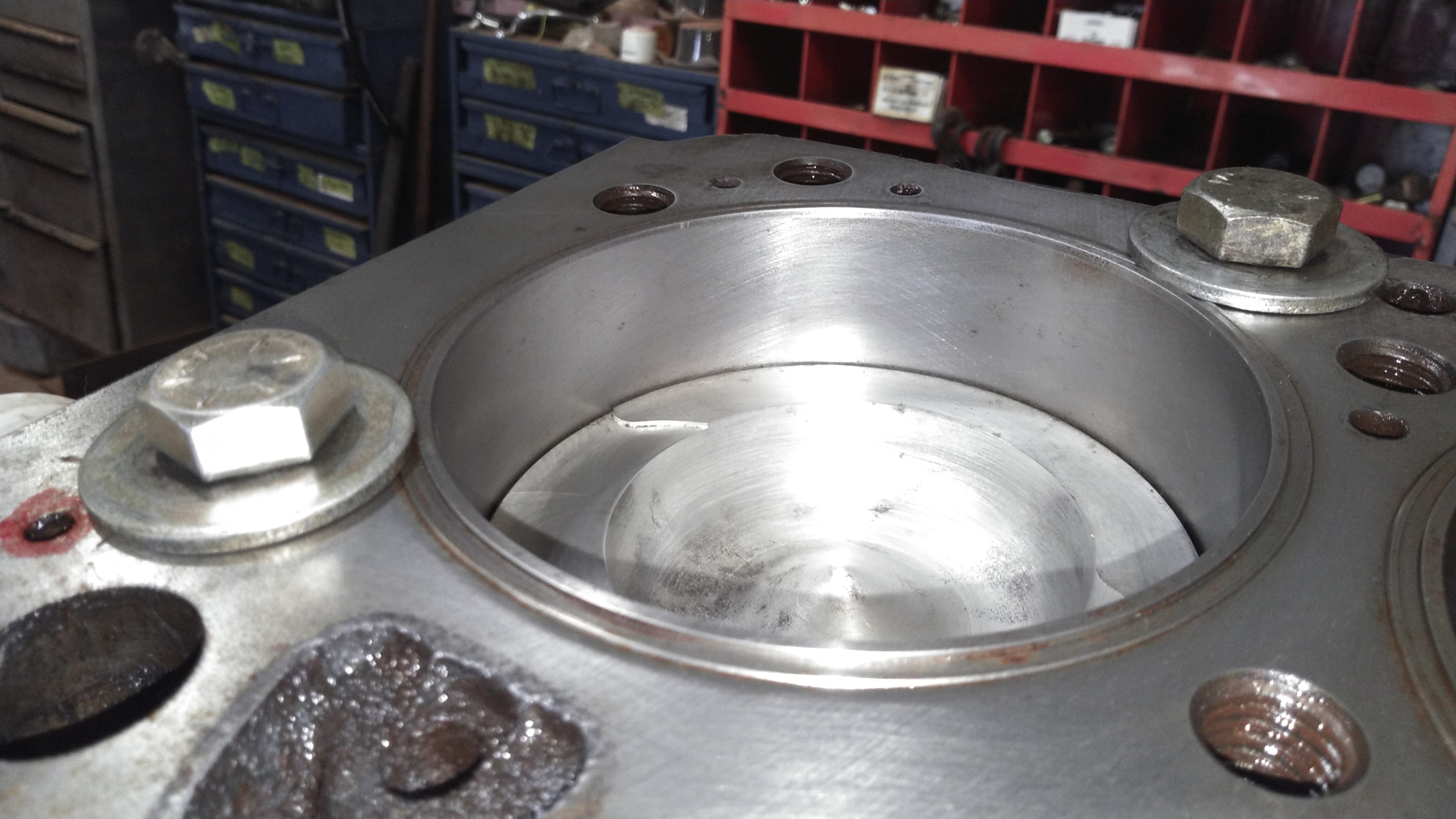

Hey Craig,  The funny thing is i'm going to get back on the E-6 that has been in the back of my shop (un-touched) for over a year..  Here is a picture of liner hold down bolts.  be sure to keep the washer off of the raised part of the liner, any dent will cause a compression leak..  If the washer is too big, just put it on the bench grinder and take it down a bit..  jojo

[Joey Mack]

I have to do some cleaning on it today,, I have kept it lubed and covered, but as you can see, a little light rust made it's way in..  jojo

[Craig N]

21 minutes ago, Joey Mack said:

Hey Craig,  The funny thing is i'm going to get back on the E-6 that has been in the back of my shop (un-touched) for over a year..  Here is a picture of liner hold down bolts.  be sure to keep the washer off of the raised part of the liner, any dent will cause a compression leak..  If the washer is too big, just put it on the bench grinder and take it down a bit..  jojo

Can still see the cross hatch on those sleeves!! New sleeves and pistons?  Thanks for the pic!


Thanks for all the help here, everyone. What a great group of guys here!!

[fjh]

18 minutes ago, Craig N said:

Can still see the cross hatch on those sleeves!! New sleeves and pistons?  Thanks for the pic!


Thanks for all the help here, everyone. What a great group of guys here!!

We do our best! Something to note when installing studs its recommended you bottom the bottom the stud and back it out a half turn ! not sure why the fine thread on the top does a better job of holding the heads down than any type of coarse thread! in my mind That said the 866 engine was a fine thread bolt if I remember correctly  and they had issues with head gasket leaks! So who knows I could be misguided in my thoughts here! This maybe the reason Mack when to Coase thread in more current engines I don't know!? Been that way ever since! that may be the reason for the aforementioned instruction! So it won't hurt to heed that mention! Something else check them injectors you pulled and make sure the washers are  stuck to them  if Not Go Searching!

just sayin!😅
