97 Ch613 Coolant Leak

[msbulldog601]

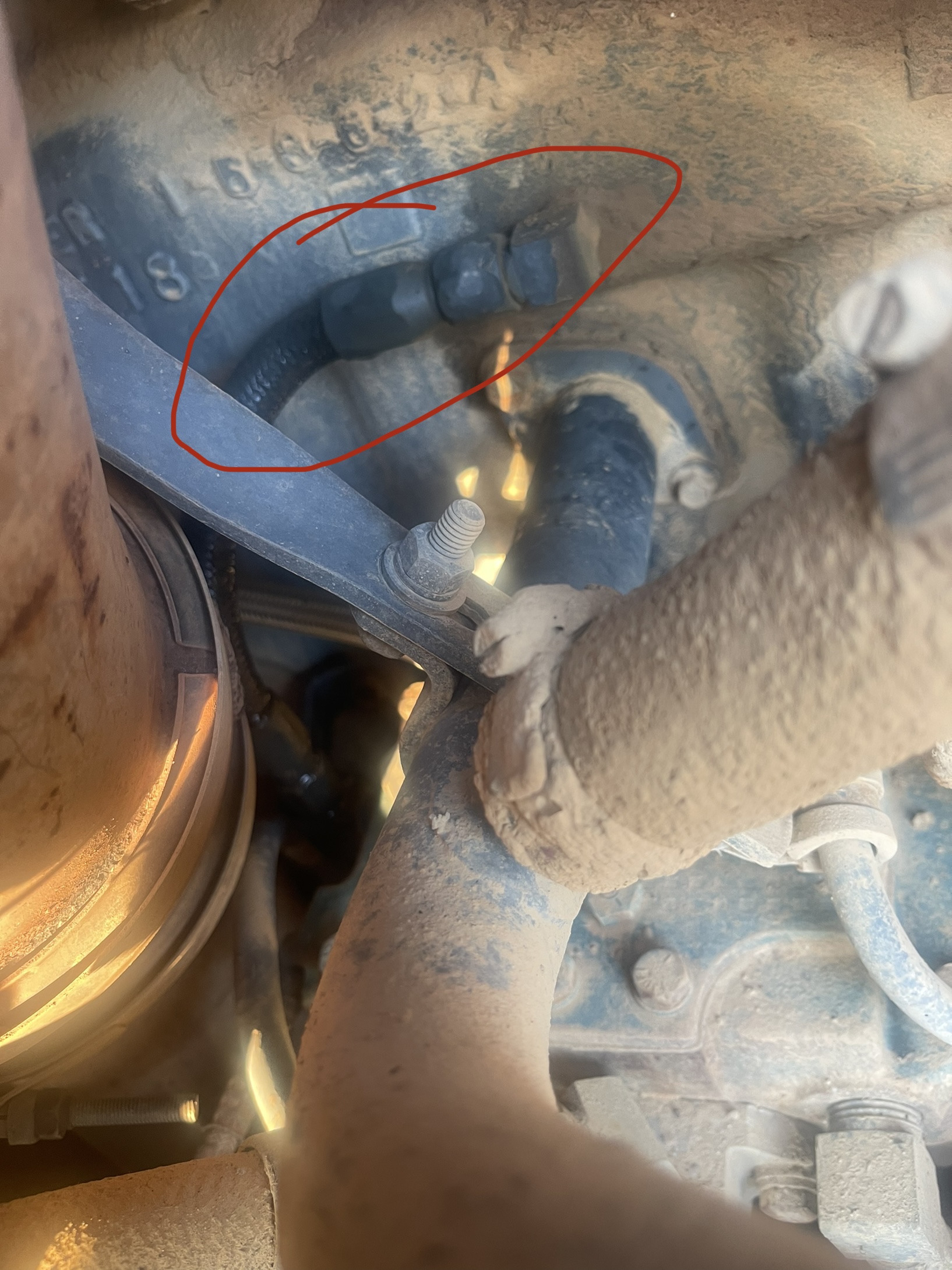

My 97 Ch613 is leaking coolant I see it on the ground looked around and saw this threaded line wet and I’m sure it’s coolant that I see on the line. Can anyone identify this line for me so I can replace it? Thanks!

[MACKS]

5 hours ago, msbulldog601 said:

Thank you is this a part I can get from Mack or will need to get one made?

Take that one off bring it with u an get one made,with that type of end fitting u can make your own,just buy the right size hose,easier to get one made tho..

[Joey Mack]

Yep...  coolant line to the air compressor... easy fix...  jojo

[msbulldog601]

On 11/12/2022 at 9:21 PM, Joey Mack said:

Yep...  coolant line to the air compressor... easy fix...  jojo

Thank you is this a part I can get from Mack or will need to get one made?

[Joey Mack]

Just like Macks said..  it's that easy..

[msbulldog601]

On 11/14/2022 at 3:36 AM, MACKS said:

Take that one off bring it with u an get one made,with that type of end fitting u can make your own,just buy the right size hose,easier to get one made tho..

Okay thanks will I loose a lot of coolant when I take it off?

[msbulldog601]

On 11/14/2022 at 5:01 AM, Joey Mack said:

Just like Macks said..  it's that easy..

thanks!!!

[880joe]

Yes you will. You need to drain the radiator be starting to replace the line

[67RModel]

I think when I did mine I just disconnected that line from the compressor first and aimed it into a large catch pan and let it drain out that way until it stopped. Then disconnected the hose from the side of the block. It took a few minutes but this way I didn't have to drain out any more than I needed to. This was on a 94 RD. If I remember right the radiator drain / lower hose is still a good bit lower than where that hose runs into the block. Either way will work though.

[Joey Mack]

Yep, there is a port on the compressor head, top right outer side, on a Bendix. Some of them have a 90 degree drain spout, takes a 9/16" deep socket to open it..  I think about 3-4 gallons is all that will drain.  Easy to do..

[msbulldog601]

4 hours ago, 880joe said:

Yes you will. You need to drain the radiator be starting to replace the line

Thanks!

[msbulldog601]

3 hours ago, Joey Mack said:

Yep, there is a port on the compressor head, top right outer side, on a Bendix. Some of them have a 90 degree drain spout, takes a 9/16" deep socket to open it..  I think about 3-4 gallons is all that will drain.  Easy to do..

thanks!

[msbulldog601]

3 hours ago, 67RModel said:

I think when I did mine I just disconnected that line from the compressor first and aimed it into a large catch pan and let it drain out that way until it stopped. Then disconnected the hose from the side of the block. It took a few minutes but this way I didn't have to drain out any more than I needed to. This was on a 94 RD. If I remember right the radiator drain / lower hose is still a good bit lower than where that hose runs into the block. Either way will work though.

Thanks!
