petehall12 Posted December 11, 2022 Share Posted December 11, 2022 Working on a 2004 cv713. The drive shaft going into the front of the power divider has a little up and down movement and the front seal is leaking. Was hoping somebody could give me the number of the service manual for the driveline. Quote Link to comment https://www.bigmacktrucks.com/topic/70855-power-divider-leaking/ Share on other sites More sharing options...

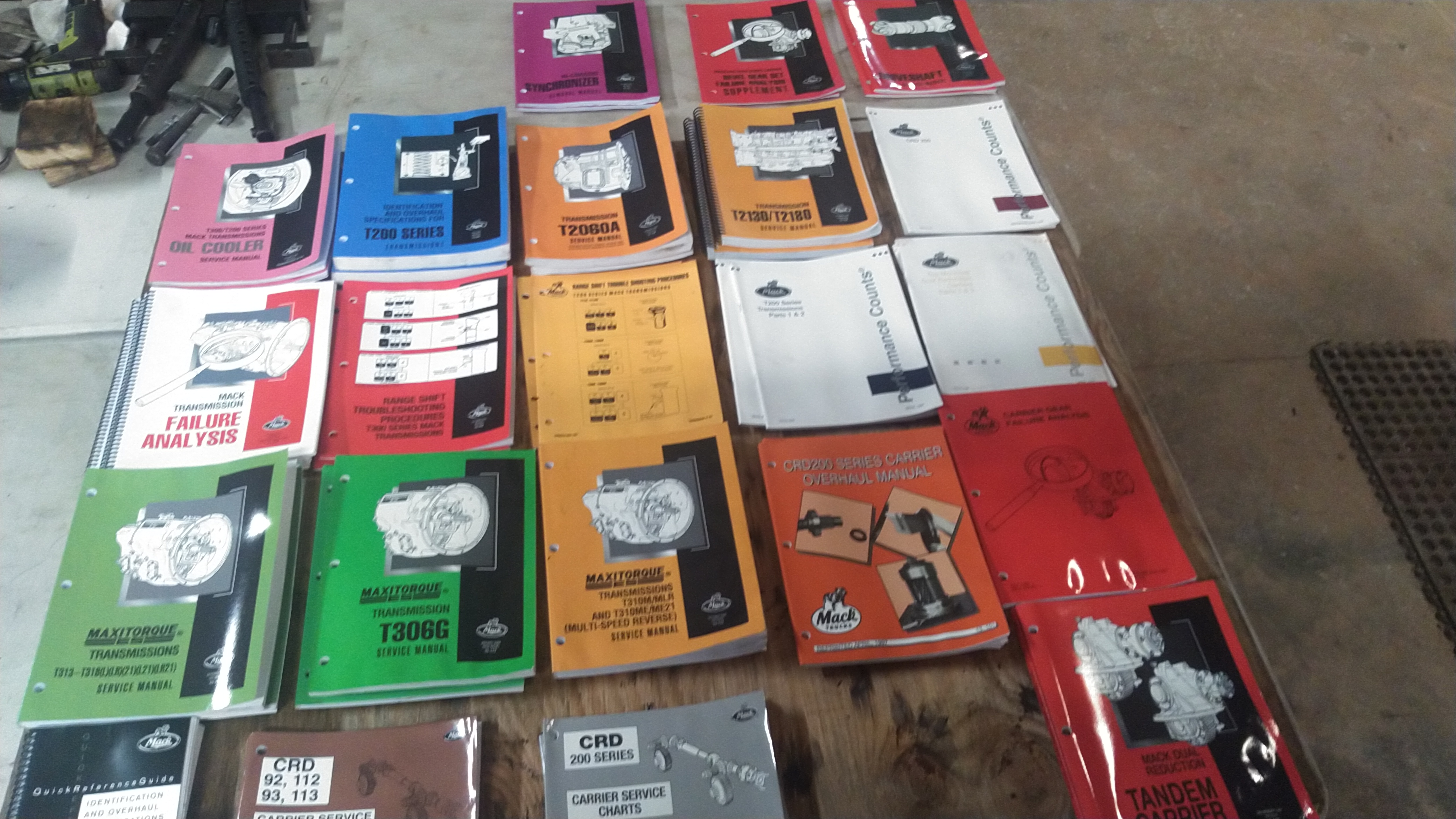

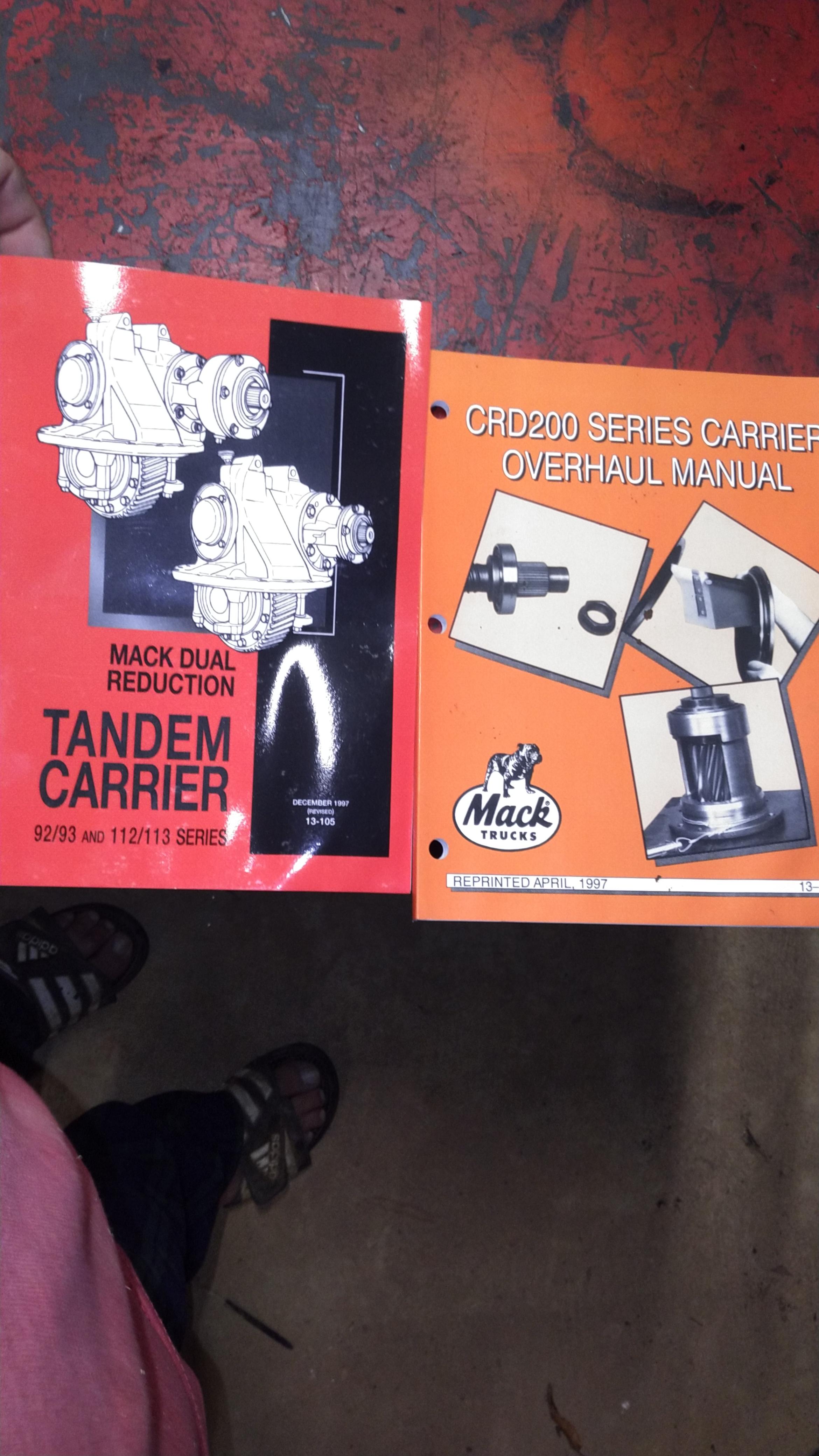

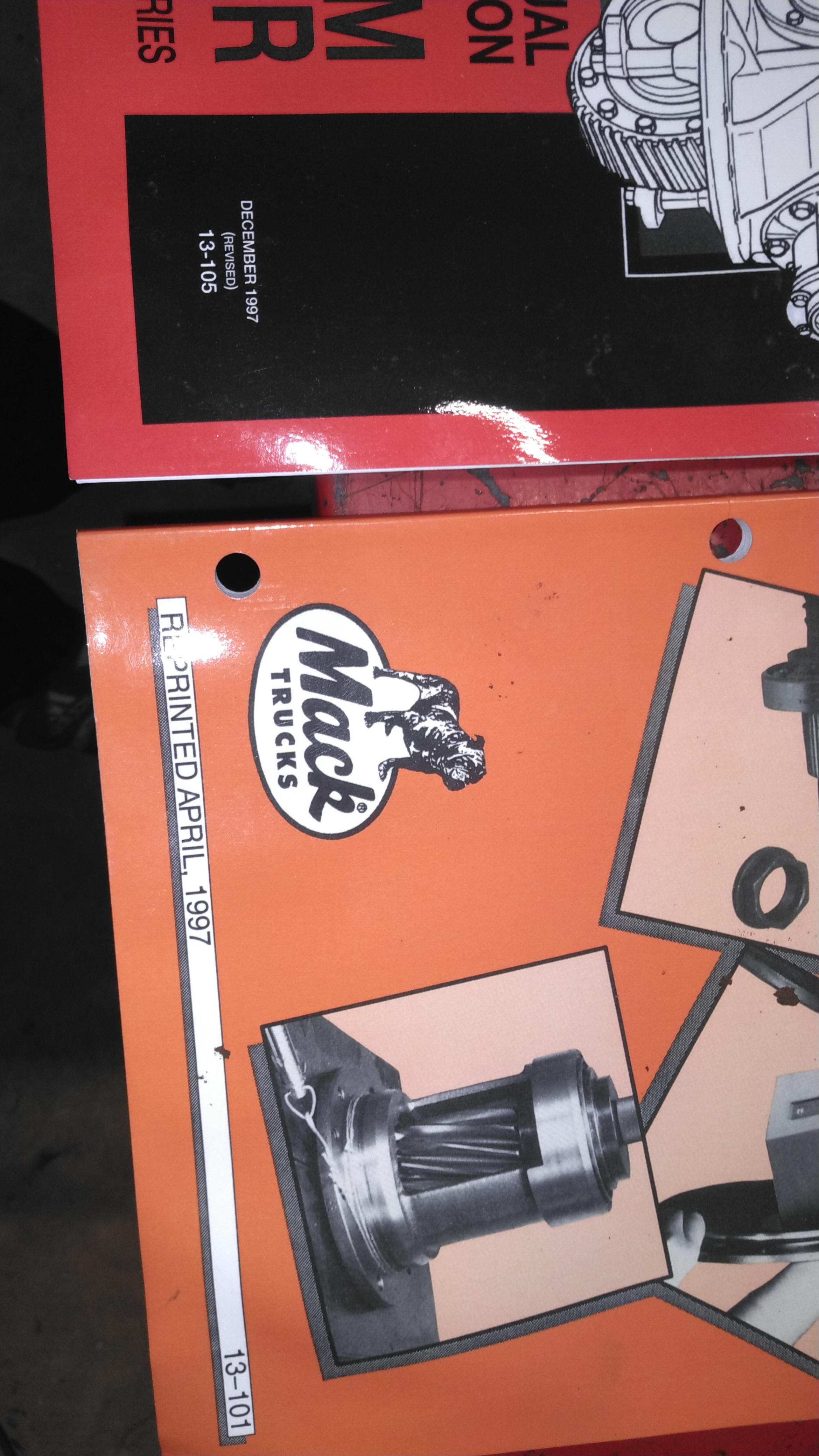

Joey Mack Posted December 11, 2022 Share Posted December 11, 2022 These are for Mack rears.. I expect you to have 92-93 series.. I posted the book for the 200 series anyway. I have 2 new complete sets of svc. manuals.. P.M. me if you want to buy any of them.. You can search E-Bay for them. let me know if you cant read the book number in the bottom right corner.. Jojo Quote Link to comment https://www.bigmacktrucks.com/topic/70855-power-divider-leaking/#findComment-517971 Share on other sites More sharing options...
petehall12 Posted December 11, 2022 Author Share Posted December 11, 2022 5 hours ago, Joey Mack said: These are for Mack rears.. I expect you to have 92-93 series.. I posted the book for the 200 series anyway. I have 2 new complete sets of svc. manuals.. P.M. me if you want to buy any of them.. You can search E-Bay for them. let me know if you cant read the book number in the bottom right corner.. Jojo When I fill up the power divider with oil is it supposed to stay full or does it drain back into the main housing Quote Link to comment https://www.bigmacktrucks.com/topic/70855-power-divider-leaking/#findComment-517988 Share on other sites More sharing options...
Joey Mack Posted December 11, 2022 Share Posted December 11, 2022 It holds its own correct level.. it takes less than a quart to fill it initially, then as the rearend gears turn, oil is splashed lubed to trough's made inside the housing. it will direct the oil to the poer divider, the extra oil drains into the top reduction then circulates in there, then the extra oil drains down into the lower reduction, (Banjo housing),, That is why you check the level at the rear plug only, after the unit has been in service.. jojo Quote Link to comment https://www.bigmacktrucks.com/topic/70855-power-divider-leaking/#findComment-517992 Share on other sites More sharing options...
petehall12 Posted December 11, 2022 Author Share Posted December 11, 2022 Ok just making sure. Still learning about these Mack’s they’re sure are different. Thanks Joey Mack. Quote Link to comment https://www.bigmacktrucks.com/topic/70855-power-divider-leaking/#findComment-518000 Share on other sites More sharing options...
Joey Mack Posted December 11, 2022 Share Posted December 11, 2022 Its my pleasure.... Stick around here long enough, and your mind will be blown, as you learn how many guys will help you, and the amount of knowledge they have... I learn something every day, and I have been working on the Dogs for 25 years.. jojo 2 Quote Link to comment https://www.bigmacktrucks.com/topic/70855-power-divider-leaking/#findComment-518001 Share on other sites More sharing options...
