Full Floater Posted December 11, 2022 Share Posted December 11, 2022 I'm about to lift 2 different 675, 235hp engines to swap one of them into the other truck. I have never lifted a Mack engine before and I plan on using a steel cable/strap under the rear of the bellhousing/clutch housing; but still need an idea for lifting the front. I have read that some have used the valve cover bolts to affix a bracket to (I'm not that brave). And some have used a couple head bolts. I am really not wanting to disturb the head bolts on the one good running engine that's being pulled. Are there any other ideas on a front lifting point? Thanks Quote Link to comment https://www.bigmacktrucks.com/topic/70856-675-lifting-points/ Share on other sites More sharing options...
Freightrain Posted December 11, 2022 Share Posted December 11, 2022 I should have a lifting bracket I made for mine. It's been so long I don't recall what end I bolted it to. Don't think I used headbolts either even though I pulled the heads off. I'll see if I can find it and post a picture. Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment https://www.bigmacktrucks.com/topic/70856-675-lifting-points/#findComment-517981 Share on other sites More sharing options...
Full Floater Posted December 11, 2022 Author Share Posted December 11, 2022 51 minutes ago, Freightrain said: I should have a lifting bracket I made for mine. It's been so long I don't recall what end I bolted it to. Don't think I used headbolts either even though I pulled the heads off. I'll see if I can find it and post a picture. Awesome, thank you. Quote Link to comment https://www.bigmacktrucks.com/topic/70856-675-lifting-points/#findComment-517986 Share on other sites More sharing options...

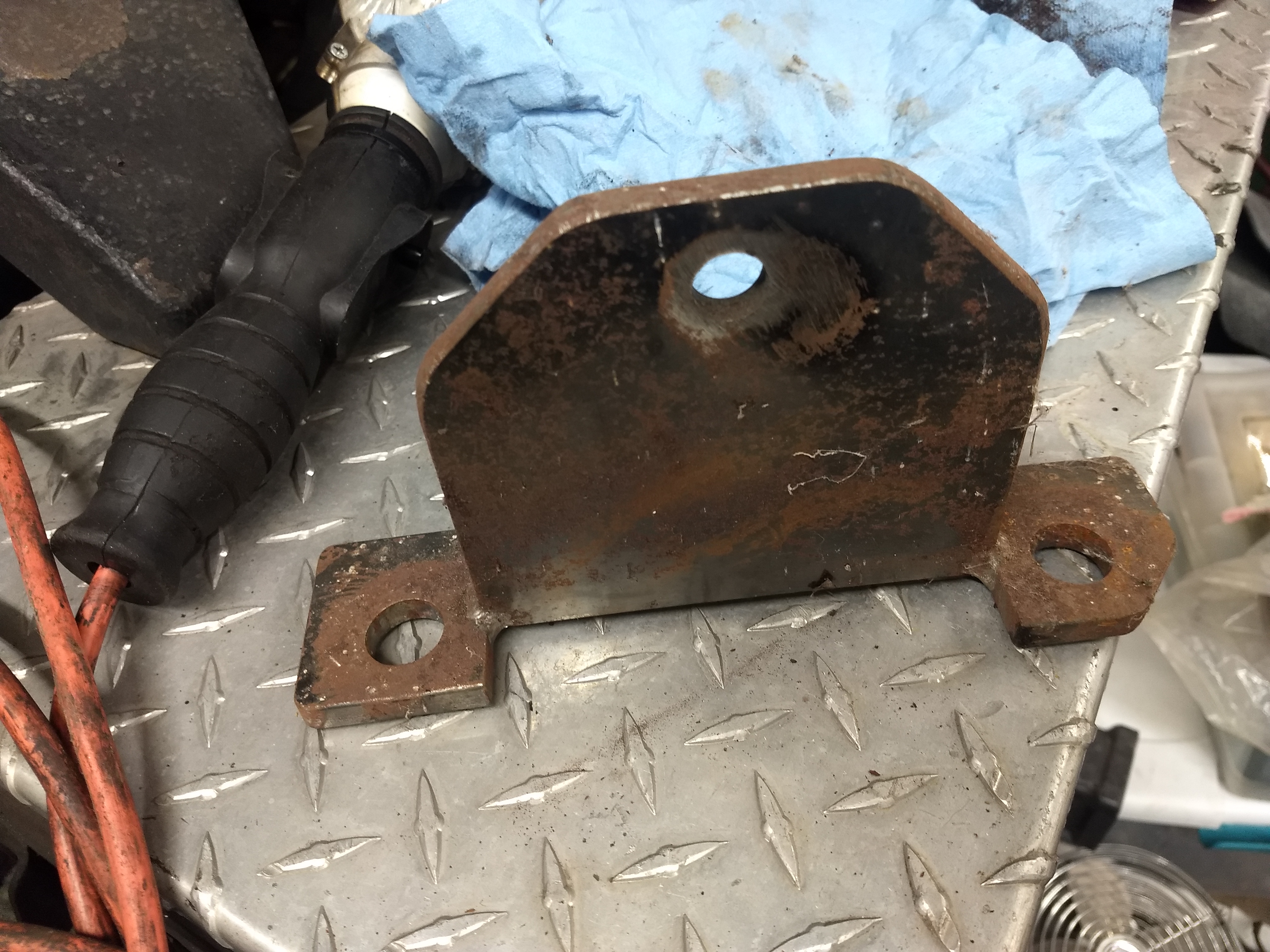

Freightrain Posted December 12, 2022 Share Posted December 12, 2022 Hmmm, maybe I did use the head studs? I just don't remember the details, or if I used this in the front or back? It's like a 6.5" span across the holes. It doesn't really fit well now since I put jakes on the engine. The Jake spacers kinda block things. Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment https://www.bigmacktrucks.com/topic/70856-675-lifting-points/#findComment-518102 Share on other sites More sharing options...
mowerman Posted December 12, 2022 Share Posted December 12, 2022 thats ingenious bud...nice neat job.bob Quote Link to comment https://www.bigmacktrucks.com/topic/70856-675-lifting-points/#findComment-518105 Share on other sites More sharing options...
Freightrain Posted December 13, 2022 Share Posted December 13, 2022 Friend works at a fab shop so anything I need material for, he gives me. He picks up the drops off the shear and gives me the pieces. He'll hand me a big bundle every once in a while. 1 Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment https://www.bigmacktrucks.com/topic/70856-675-lifting-points/#findComment-518127 Share on other sites More sharing options...
Full Floater Posted December 13, 2022 Author Share Posted December 13, 2022 Thank you for sharing that pic of your lifting apparatus. I like it. I am going to try my best to avoid using the head bolts. I'll see what I can come up with Quote Link to comment https://www.bigmacktrucks.com/topic/70856-675-lifting-points/#findComment-518151 Share on other sites More sharing options...
