Joey Mack Posted May 19, 2023 Share Posted May 19, 2023 I was hoping MackPro would see this.. He always has the specs. and knowledge.. I suggest you pay attention to him.. I can help, but not as thorough as he can.. jojo Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531657 Share on other sites More sharing options...
worellana88 Posted May 19, 2023 Author Share Posted May 19, 2023 Jojo you doing good as well sir. I appreciate all the help. I got on here about 2 years ago and you were in most of the topics. Good sign. 1 Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531660 Share on other sites More sharing options...
tjc transport Posted May 19, 2023 Share Posted May 19, 2023 3 minutes ago, worellana88 said: Jojo you doing good as well sir. I appreciate all the help. I got on here about 2 years ago and you were in most of the topics. Good sign. jo jo is jut a post hoe that stayed at holiday in express last night............ he really aint that smart. Tag JoJo, you are it!! 2 Quote when you are up to your armpits in alligators, it is hard to remember you only came in to drain the swamp.. Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531661 Share on other sites More sharing options...
Popular Post Joey Mack Posted May 19, 2023 Popular Post Share Posted May 19, 2023 Actually I stayed at a ''Courtyard by Marriot'' last week.. when I was at school for my 'Poop Water' Job... Oh wait..... Where was I ??? Oh yeah, Mack Trucks.. Uhhhh Well, they break, and you have to come here to get REAL answers.... For B.S. answers... See: TJC.. 💋 1 1 1 Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531662 Share on other sites More sharing options...
Mackpro Posted May 20, 2023 Share Posted May 20, 2023 4 hours ago, worellana88 said: Thanks Mackpro so I’ll take the covers off of the panel there at the pedals shake those wires and check on the firewall plugs too. I replaced ECM and Ignition relay today beside clutch pedal. Cut off 2times all day today and sputter one time like it was gonna cut off. Hours were 12111 when it cut off when I cranked it back up it was at 12107🤷🏻♂️ I’ll try to get a pic of the problem connector. It’s under the hood around the foot valve area . Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531683 Share on other sites More sharing options...
Mackpro Posted May 20, 2023 Share Posted May 20, 2023 Best pic on the Internet I could find . I circled it . Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531684 Share on other sites More sharing options...
Mackpro Posted May 20, 2023 Share Posted May 20, 2023 The fuse box down by the clutch pedal is know to get water in it . Do much so that they had a major recall on several thousand units from 2008 to around 2012. Sadly the CTP and CXP were not part of this recall even though the design was basically the same as the CXU,CHU and GU trucks. However the CTP/CXP fuse panel has a different part number than the 2008 and up trucks. Pull a couple of the bottom relays and if there is white crusty residue on the pins then water has been in the fuse panel and possibly needs the be replaced 1 Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531685 Share on other sites More sharing options...
fjh Posted May 20, 2023 Share Posted May 20, 2023 13 hours ago, Mackpro said: The fuse box down by the clutch pedal is know to get water in it . Do much so that they had a major recall on several thousand units from 2008 to around 2012. Sadly the CTP and CXP were not part of this recall even though the design was basically the same as the CXU,CHU and GU trucks. However the CTP/CXP fuse panel has a different part number than the 2008 and up trucks. Pull a couple of the bottom relays and if there is white crusty residue on the pins then water has been in the fuse panel and possibly needs the be replaced Yup that always baffled me! all the designs were the same for almost all but, the few got the fix! and a bandaid Boot ! Hummmmm! same old same old! Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531717 Share on other sites More sharing options...
worellana88 Posted May 20, 2023 Author Share Posted May 20, 2023 Mackpro I took off all those cover moved cables on fuse box and cables above brake pedal look at the relays as well . They didn’t appear to be wet or been wet in the past. I’m thinking computer , do they normally last more than 12000 hours because if I remember right not long after I purchased the truck it was replaced . And I believe it had about that many hours🤷🏻♂️ Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531728 Share on other sites More sharing options...
Popular Post Mackpro Posted May 22, 2023 Popular Post Share Posted May 22, 2023 Most of the time when the engine ecm dies it’s done and doesn’t ever start/ wake up again. However I have had a couple randomly die like yours. To figure it out I put a amber trailer marker light in the cab and grounded it to somewhere in the cab and ran the other wire to the power supply wires at the ecm connector. When light on I knew I had power at the ecm. Then go for a test drive and see what happens. I’ll post pin locations later 1 2 Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531799 Share on other sites More sharing options...
worellana88 Posted May 22, 2023 Author Share Posted May 22, 2023 It loses hours everytime it cuts off🤷🏻♂️ that’s what makes me think that. I appreciate all the help Jojo and Mackpro! So if it is ECM where can I get one to avoid dealership bill🤣 long shot but I’m sure y’all understand Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531800 Share on other sites More sharing options...
Mackpro Posted May 22, 2023 Share Posted May 22, 2023 1 Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531804 Share on other sites More sharing options...

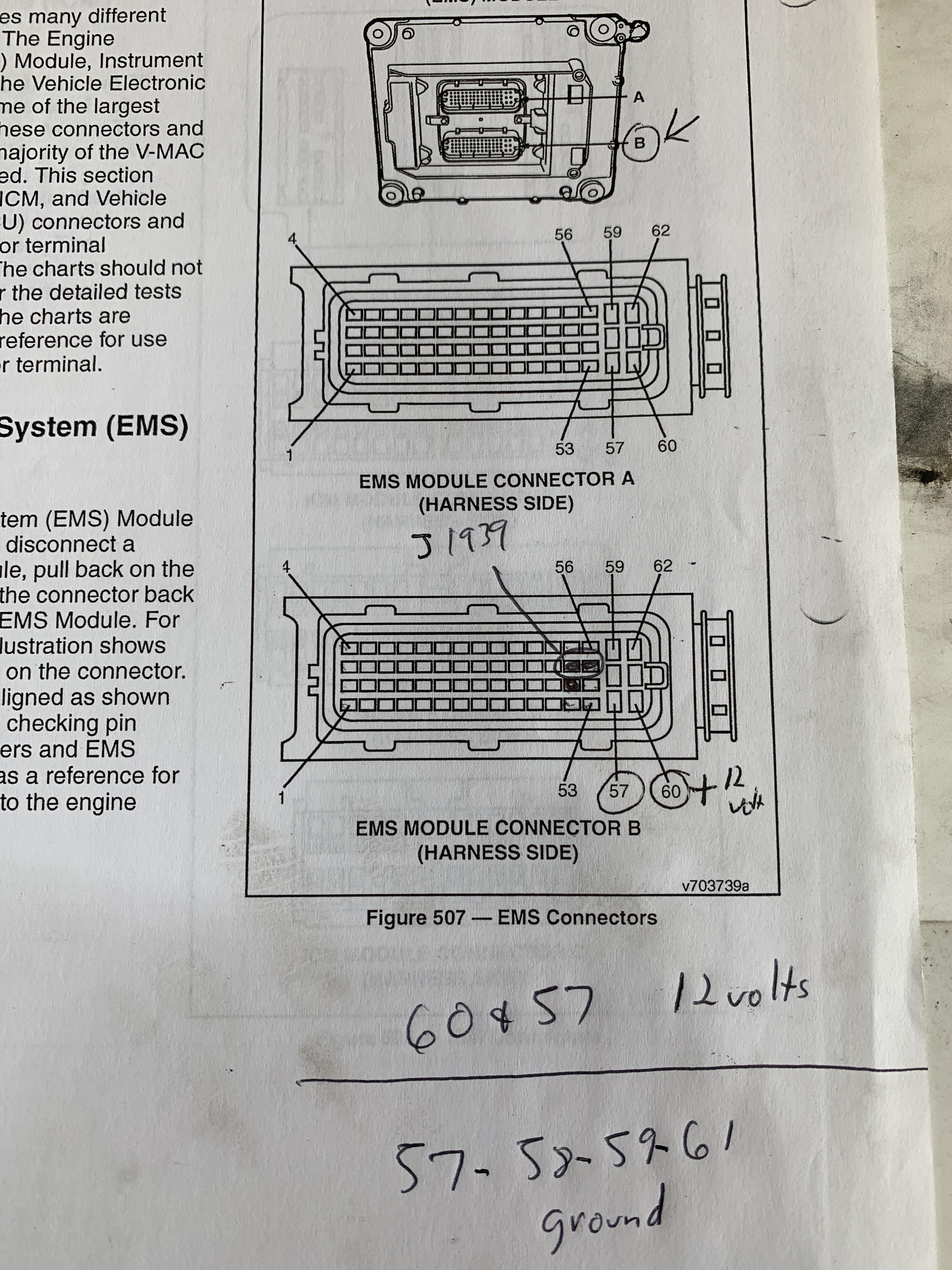

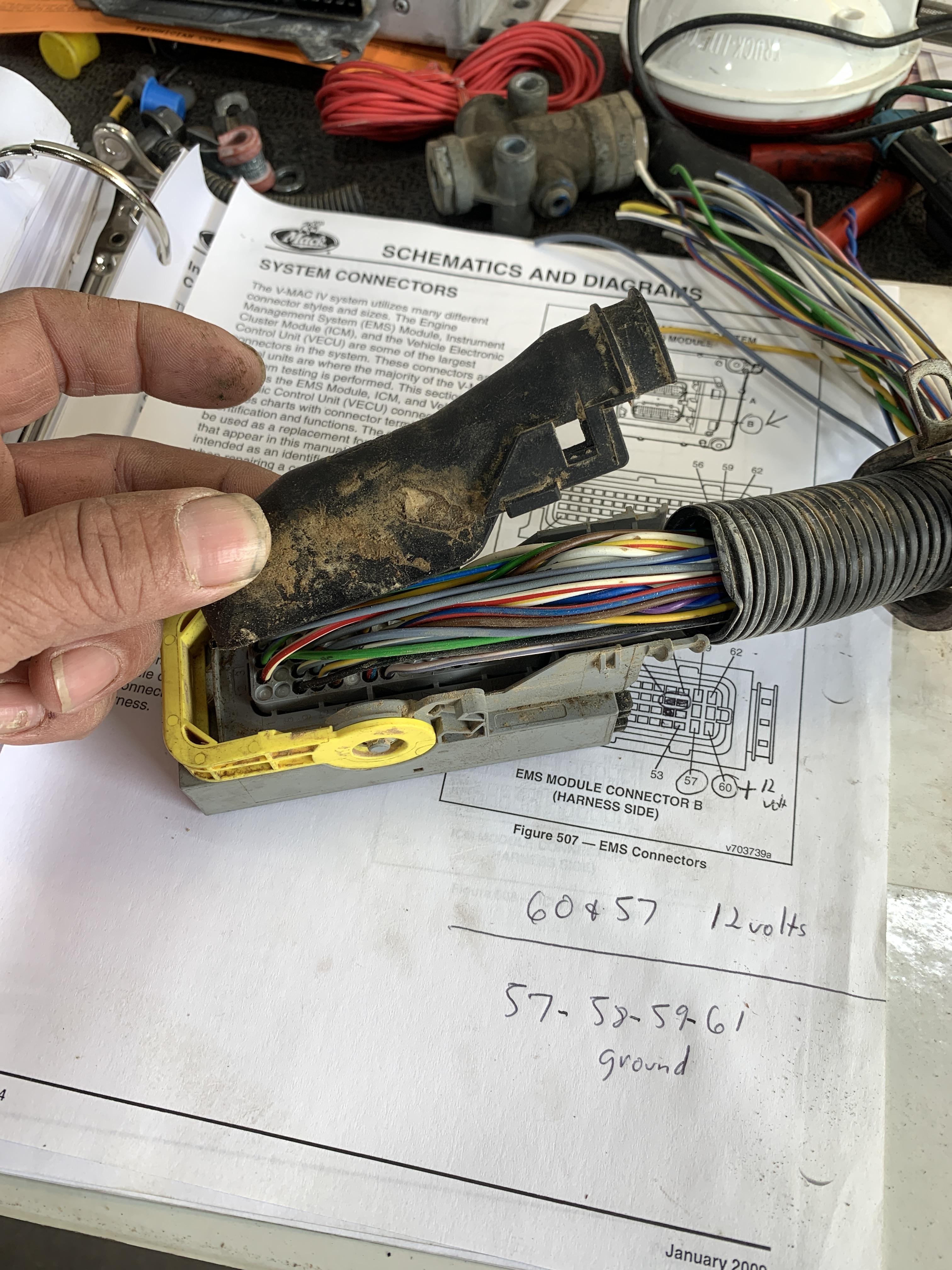

Mackpro Posted May 22, 2023 Share Posted May 22, 2023 The power and grounds are in the “B” connector which is the bottom connector on the ecm. Pop the cover off to tap into the wires . Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531805 Share on other sites More sharing options...

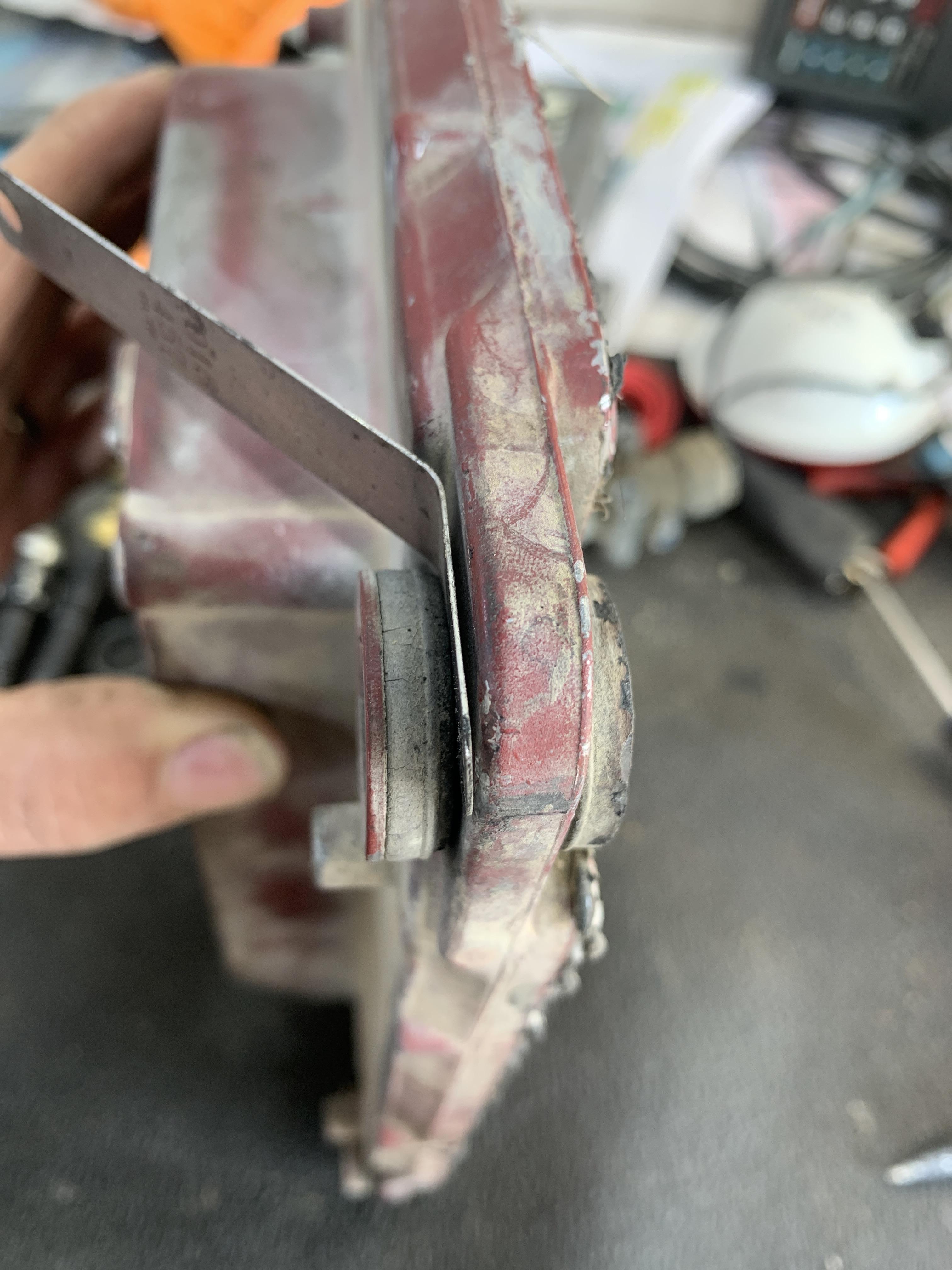

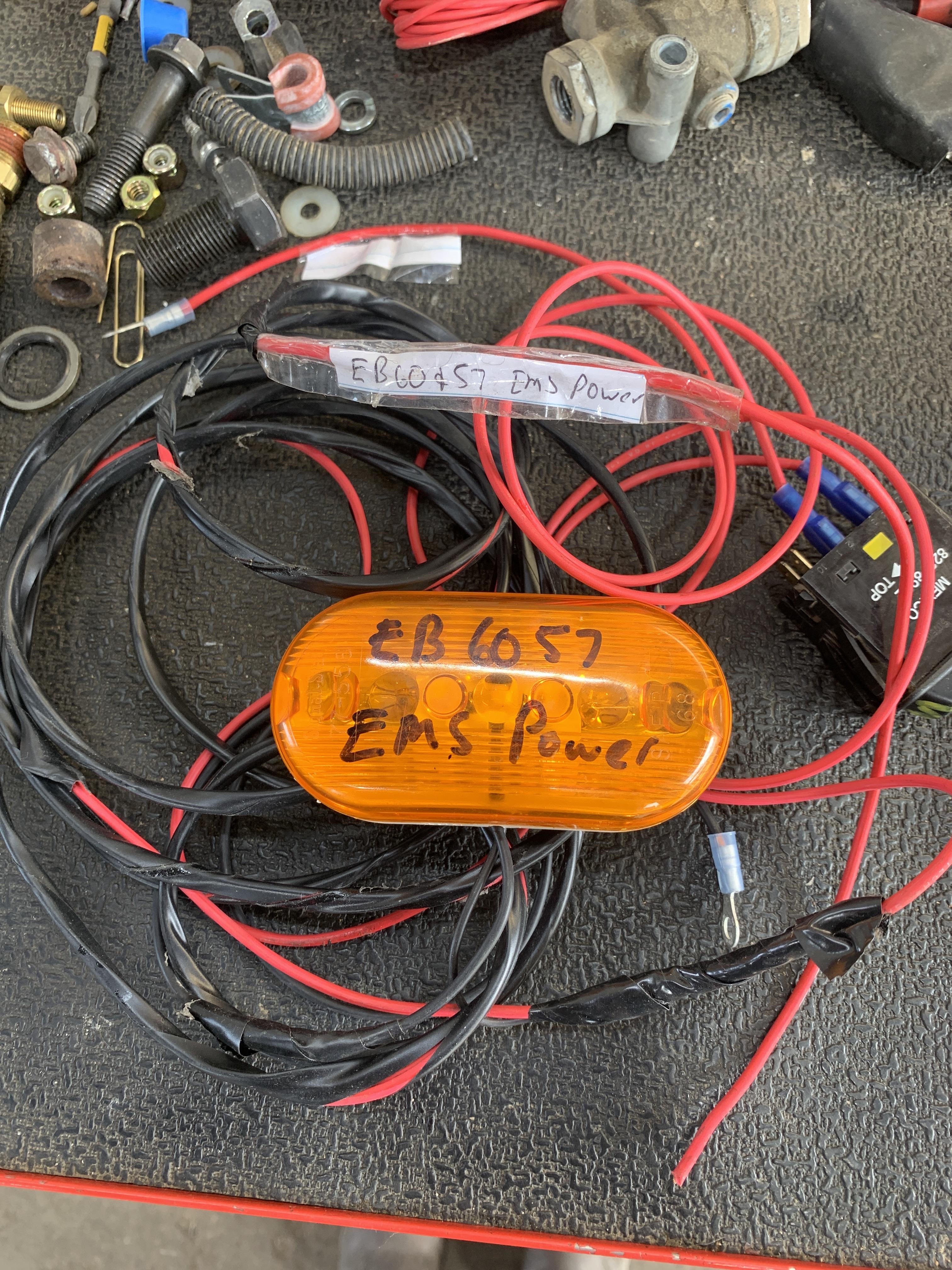

Mackpro Posted May 22, 2023 Share Posted May 22, 2023 (edited) I even found my harness I made up to test it. What I have found is the rubber insulation grommets that the ecm bolts go through seem to shrink over time and this causes the ecm to vibrate/shake and causes the ecm to fail. Edited May 22, 2023 by Mackpro Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531806 Share on other sites More sharing options...
Mackpro Posted May 22, 2023 Share Posted May 22, 2023 Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531807 Share on other sites More sharing options...
worellana88 Posted May 22, 2023 Author Share Posted May 22, 2023 Thank you sir. I’ll do my best Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531808 Share on other sites More sharing options...
Popular Post Joey Mack Posted May 22, 2023 Popular Post Share Posted May 22, 2023 Now,, That right there is a Priceless Lesson... MackPro, always lives up to his name... 2 1 Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531809 Share on other sites More sharing options...
fjh Posted May 23, 2023 Share Posted May 23, 2023 On 5/22/2023 at 7:03 AM, Joey Mack said: Now,, That right there is a Priceless Lesson... MackPro, always lives up to his name... Yup it don't get better than this! Mack school on line! 1 1 Quote Link to comment https://www.bigmacktrucks.com/topic/72868-07-ctp713-granite-mack/page/2/#findComment-531853 Share on other sites More sharing options...
