Toe-In Adjustment


Go to solution Solved by Joey Mack,

Recommended Posts

I've recently driven my 1959 H653LT for the first time. Runs great - drives "OK" but needs front-end alignment. I've checked "toe-in" and found it actually has about 0.5" toe-out. Rotating the tie-rod with a pipe wrench seems to just move the tie-rod left or right - but doesn't change the toe-in as I'd thought it would. So, looks like I'll need to disconnect one of the ball-joints from the tie-rod to make the adjustment.

To remove the ball joint, I've been told to just hit it from various angles with a 4-lb hammer, and it will drop out. I'm reluctant to do that without knowing a little more about it.

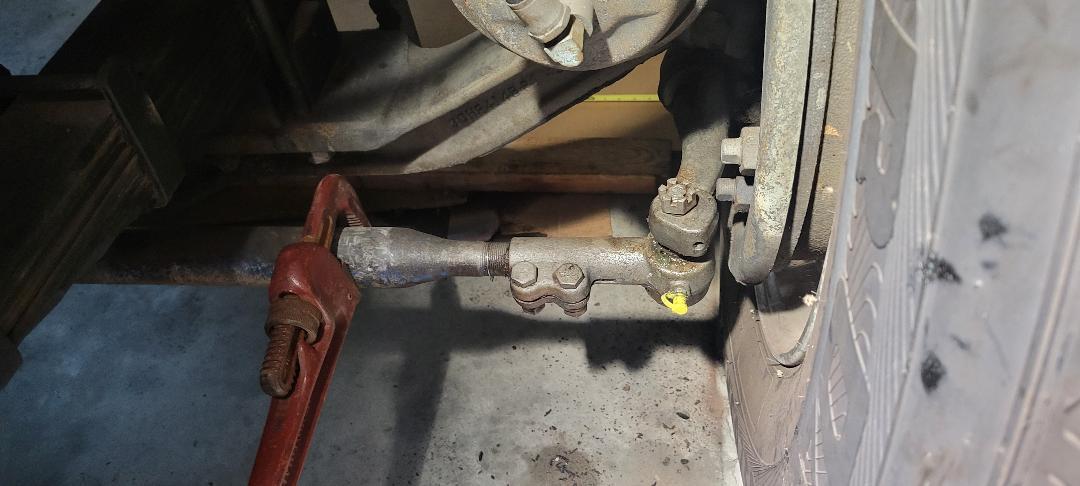

In the picture below, there's a hole in the steering knuckle adjacent to the ball joint's tapered shaft. I'm concerned that there might be a roll-pin or some other sort of "keeper" there that must be removed before the shaft can come out!

I'll really appreciate an answer!


Link to comment
Share on other sites

Thanks, Terry - I get that about the castle nut.

But I'm talking about the hole in the steering knuckle itself. Anyway, a local ATHS friend said "don't worry about it" there's nothing in that hole that will prevent the shaft from coming out of the knuckle.

  • Like 1
Link to comment
Share on other sites

  • Solution

there are NO pins just loosen the castle nut and strike the end of the steering arm and it will fall out, leave the nut on a turn or 2 so it dont hit the ground..it may take a few strikes, but she'll come...

  • Like 1
Link to comment
Share on other sites

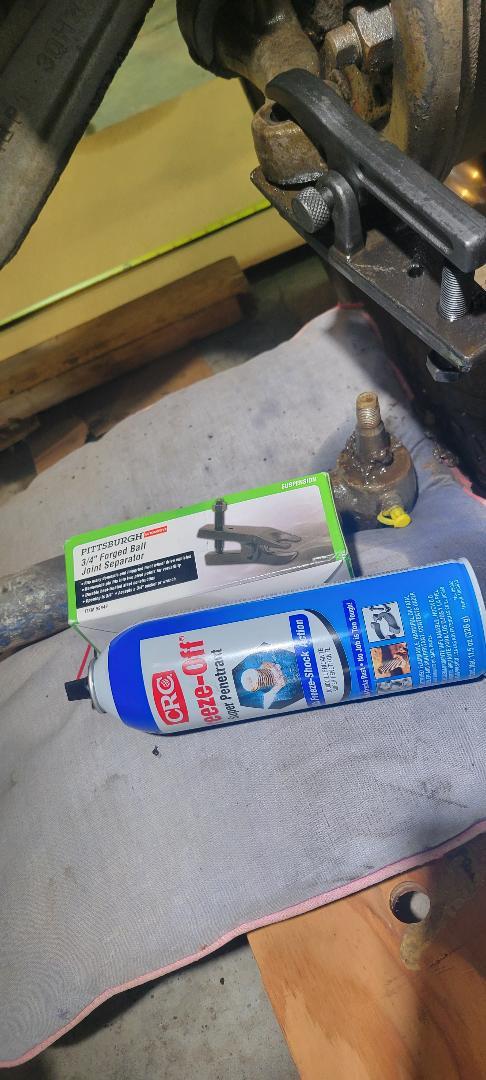

Yes! Eventually. But not without help (Credit where credit is due!) : Heavy-duty ball joint tool from Harbor Freight, propane torch, CRC Freeze-Off. I had to grind out the opening in the ball joint tool - it was about 1/8-inch too narrow. Applied the tool and cranked it down hard. Heated steering knuckle with the torch. Applied Freeze-Off to the stud for about 30-seconds. And ... BAM! ... it let go! Glad I'd planned for success (!) by placing a wood block and cushion underneath.

Anyway, thanks again. You guys 'had my back'. I appreciate it.
