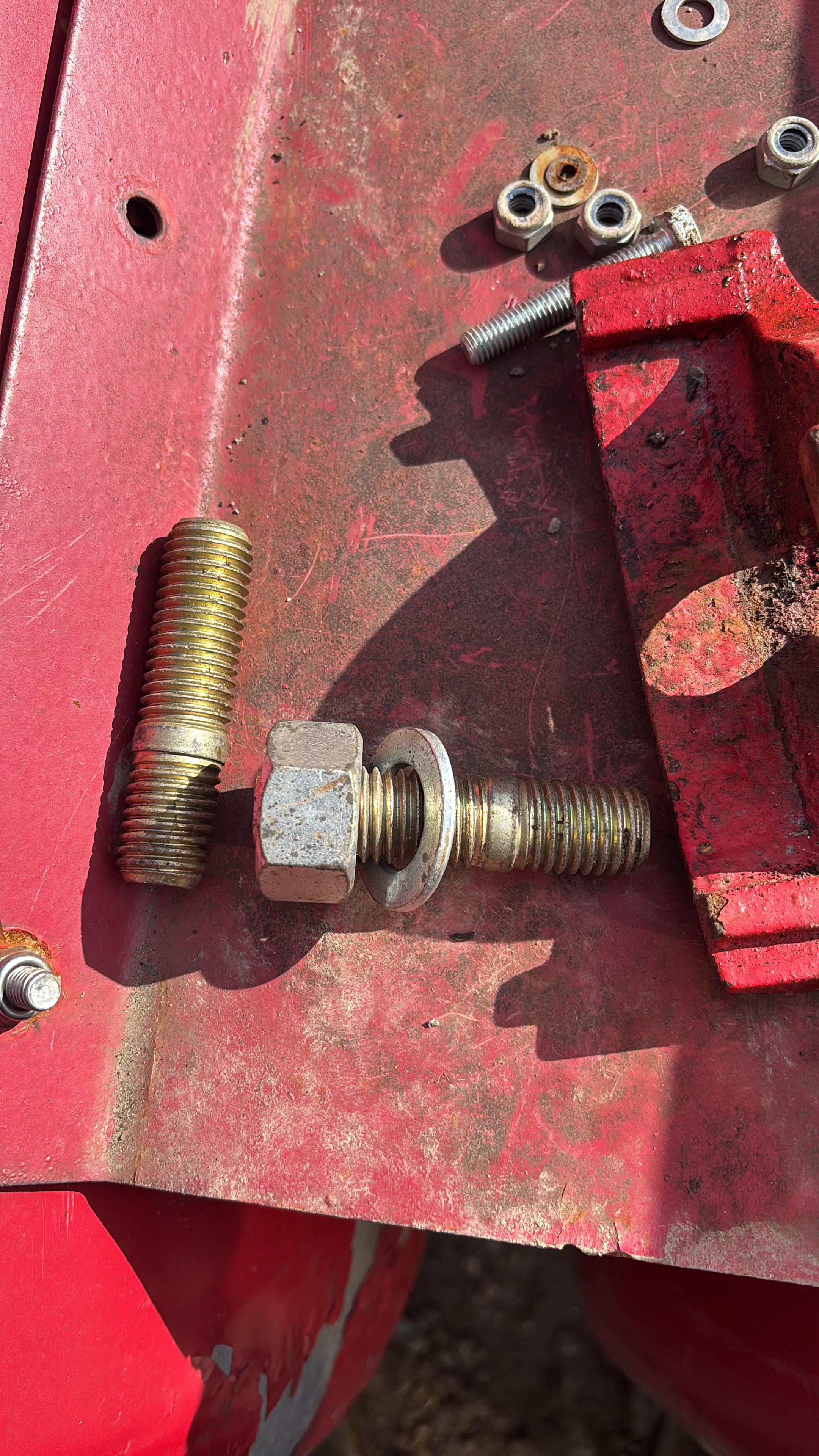

Nathanwhit1 Posted March 26 Share Posted March 26 Evening all does anybody know what thread these wheel nuts are on my cruise liner cheers Quote Link to comment https://www.bigmacktrucks.com/topic/75328-wheel-nuts/ Share on other sites More sharing options...
67RModel Posted March 26 Share Posted March 26 Are those the ones at the end of each spoke on the hub? That the wedge clamp goes on? On my Mack with spoke hubs those nuts take an 1-1/4" socket or wrench so that typically would indicate a 3/4" nominal thread size and coarse threads in 3/4" have a pitch of 10 threads per inch. Fine thread would be 16 per inch. Although that nut your holding looks a good bit smaller than 1-1/4". What size nut is that? Quote Link to comment https://www.bigmacktrucks.com/topic/75328-wheel-nuts/#findComment-572098 Share on other sites More sharing options...
Geoff Weeks Posted March 26 Share Posted March 26 If they are on the spokes and hold the wedges on, They should be 3/4" x 10 TPI 1 Quote Link to comment https://www.bigmacktrucks.com/topic/75328-wheel-nuts/#findComment-572099 Share on other sites More sharing options...

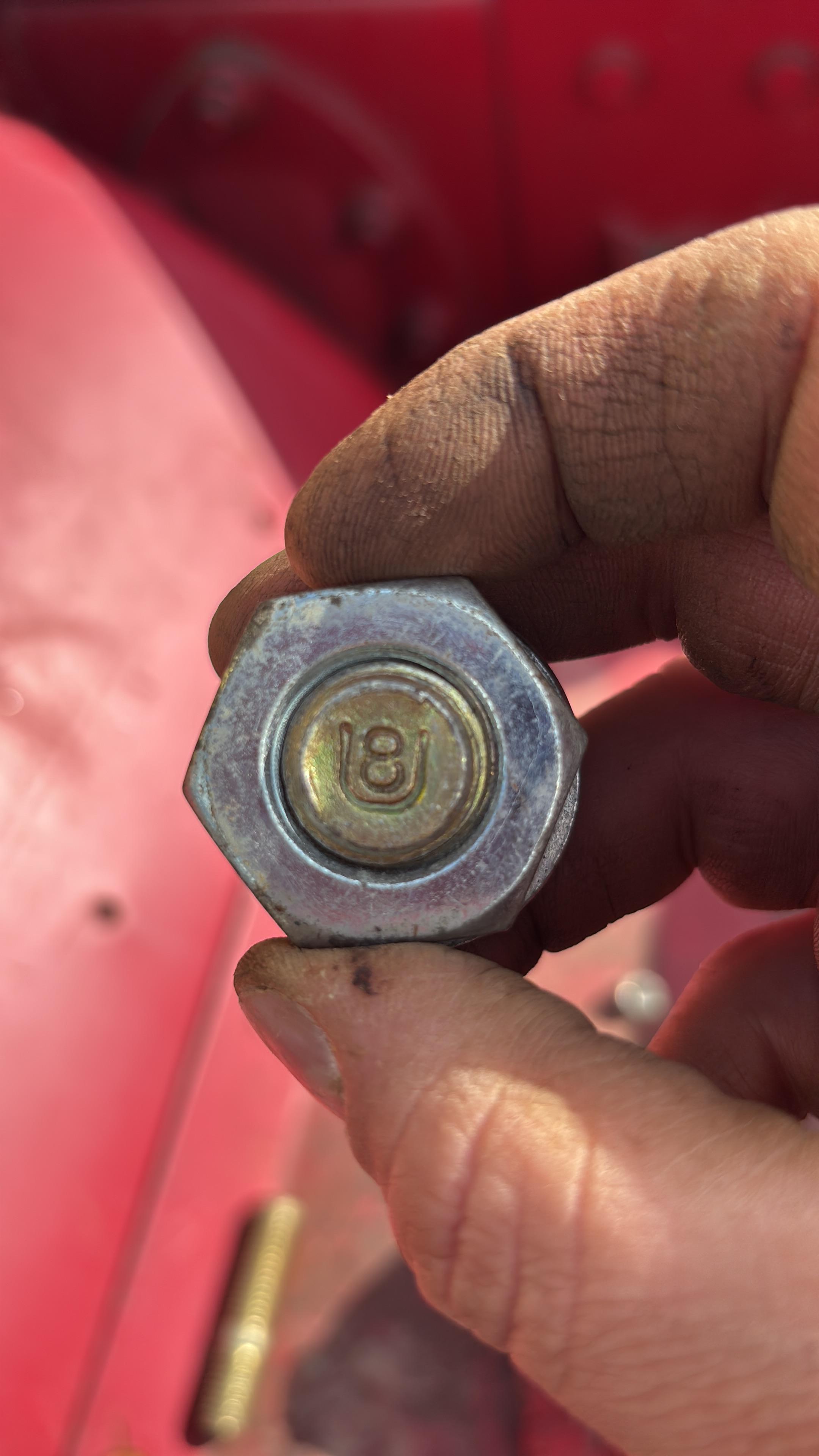

Nathanwhit1 Posted March 26 Author Share Posted March 26 56 minutes ago, 67RModel said: Are those the ones at the end of each spoke on the hub? That the wedge clamp goes on? On my Mack with spoke hubs those nuts take an 1-1/4" socket or wrench so that typically would indicate a 3/4" nominal thread size and coarse threads in 3/4" have a pitch of 10 threads per inch. Fine thread would be 16 per inch. Although that nut your holding looks a good bit smaller than 1-1/4". What size nut is that? They are 32 mm in my language 🤣🤣 Quote Link to comment https://www.bigmacktrucks.com/topic/75328-wheel-nuts/#findComment-572103 Share on other sites More sharing options...
Nathanwhit1 Posted March 26 Author Share Posted March 26 56 minutes ago, Geoff Weeks said: If they are on the spokes and hold the wedges on, They should be 3/4" x 10 TPI Cheers bud Quote Link to comment https://www.bigmacktrucks.com/topic/75328-wheel-nuts/#findComment-572104 Share on other sites More sharing options...
Mark T Posted March 26 Share Posted March 26 39 minutes ago, Nathanwhit1 said: They are 32 mm in my language 🤣🤣 32 MM is about inch and a quarter as far as the socket size. Quote Link to comment https://www.bigmacktrucks.com/topic/75328-wheel-nuts/#findComment-572111 Share on other sites More sharing options...
