Joey Mack Posted Monday at 07:06 PM Share Posted Monday at 07:06 PM The front drive has 3 drain and fill plugs, the rear has 2. Are you replacing the oil or topping it off?? 1 Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573675 Share on other sites More sharing options...
Nathanwhit1 Posted Monday at 07:17 PM Author Share Posted Monday at 07:17 PM 9 minutes ago, Joey Mack said: The front drive has 3 drain and fill plugs, the rear has 2. Are you replacing the oil or topping it off?? Just topping up at mo as the drain plugs have seen better days so don’t wanna start messing with them at the mo. Is it the same oil for the front axle and the back ? 1 Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573678 Share on other sites More sharing options...
Joey Mack Posted Monday at 07:23 PM Share Posted Monday at 07:23 PM Same oil in both. The check/fill plug is at the rear of the banjo housing. When these rears have been filled, you only check and fill at that rear plug. The oil is carried from the bowl throughout the carrier via the gears and troughs.... 🍻 1 1 Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573680 Share on other sites More sharing options...
Nathanwhit1 Posted Monday at 07:26 PM Author Share Posted Monday at 07:26 PM 2 minutes ago, Joey Mack said: Same oil in both. The check/fill plug is at the rear of the banjo housing. When these rears have been filled, you only check and fill at that rear plug. The oil is carried from the bowl throughout the carrier via the gears and troughs.... 🍻 Ah sound and u fill the front axle thru the hub caps ? Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573681 Share on other sites More sharing options...
Popular Post Joey Mack Posted Monday at 08:48 PM Popular Post Share Posted Monday at 08:48 PM Same oil in both. The check/fill plug is at the rear of the banjo housing. When these rears have been filled, you only check and fill at that rear plug. The oil is carried from the bowl throughout the carrier via the gears and troughs.... 🍻 1 2 Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573683 Share on other sites More sharing options...
Joey Mack Posted Monday at 08:49 PM Share Posted Monday at 08:49 PM Steer axle fills through the hub cap.. 1 1 Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573684 Share on other sites More sharing options...
Joey Mack Posted Monday at 09:22 PM Share Posted Monday at 09:22 PM Any chance the steer hubs are packed with grease ? 1 Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573686 Share on other sites More sharing options...
Nathanwhit1 Posted 18 hours ago Author Share Posted 18 hours ago 8 hours ago, Joey Mack said: Any chance the steer hubs are packed with grease ? I will have a look it looks like oil tbh 1 Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573721 Share on other sites More sharing options...

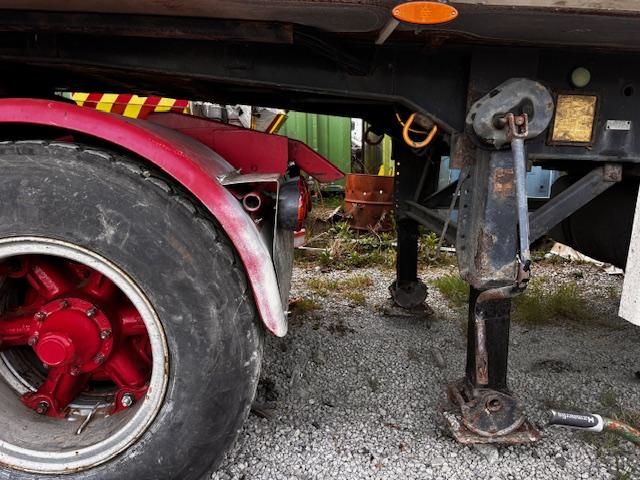

fjh Posted 12 hours ago Share Posted 12 hours ago Don't know about the the rest of the folks but I have never seen brake chambers like the ones used there! Are these common in Europe? Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573727 Share on other sites More sharing options...
Geoff Weeks Posted 12 hours ago Share Posted 12 hours ago (edited) 37 minutes ago, fjh said: Don't know about the the rest of the folks but I have never seen brake chambers like the ones used there! Are these common in Europe? Not exactly like, but a version of our piston type spring brake chambers. I guess in Europe, they know enough not to remove the bolts holding the chamber together with out caging it in some way, so don't need our idiot-proof non serviceable chambers that are required here,. I have similar MGM piston chambers with the big snap ring on the rear cover/lid on my Marmon. https://mgmbrakes.com/files/4815/8153/4411/MGMBRAKES_PISTON_BRAKES_FINAL.pdf Edited 11 hours ago by Geoff Weeks Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573728 Share on other sites More sharing options...
fjh Posted 11 hours ago Share Posted 11 hours ago 6 minutes ago, Geoff Weeks said: Not exactly like, but a version of our piston type spring brake chambers. I guess in Europe, they know enough not to remove the bolts holding the chamber together with out caging it in some way, so don't need our idiot-proof non serviceable chambers that are required here,. I have similar MGM piston chambers with the big snap ring on the rear cover/lid on my Marmon. https://mgmbrakes.com/files/4815/8153/4411/MGMBRAKES_PISTON_BRAKES_FINAL.pdf I am familiar with the MGM! Just never seen the ones in the pic! 1 Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573730 Share on other sites More sharing options...
Nathanwhit1 Posted 3 hours ago Author Share Posted 3 hours ago 8 hours ago, fjh said: Don't know about the the rest of the folks but I have never seen brake chambers like the ones used there! Are these common in Europe? Yeah they are quite common over here in the uk. There’s so many different ones now. They are a lot easier to work with just unscrew the middle bolt to release the handbrake saves having caging bolts Quote Link to comment https://www.bigmacktrucks.com/topic/75366-clutch-swap/page/4/#findComment-573762 Share on other sites More sharing options...
